Alphacool’s first RAM water block for a high-end water cooling loop!
In a water cooling system, when completely eliminating the fans in the enclosure, the RAM modules should not be forgotten about. Especially when the air flow is completely coming to a standstill in the enclosure, the stock heatspreaders barely help any more in reducing the temperature. An active solution is needed!
The most effective solution is the integration of the RAM modules into a water cooling loop. For this the Alphacool developers thought up a simple, but very effective solution.

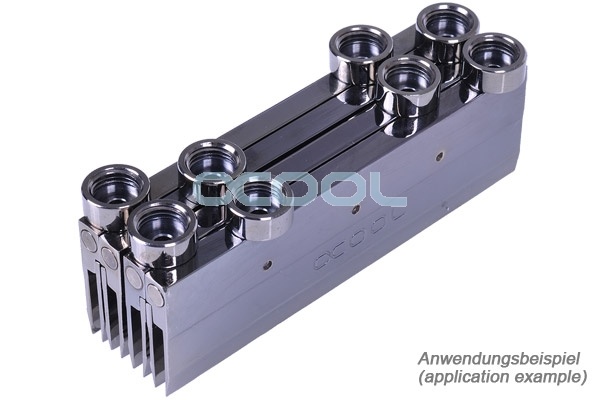

Important is that every memory module is cooled individually! The coolers can be mounted with an offset between each other. Two neighbouring memory banks can hence be cooled ideally. On more than two neighbouring slots one slot in between or the one at the side should be left vacant to ensure perfect mounting.

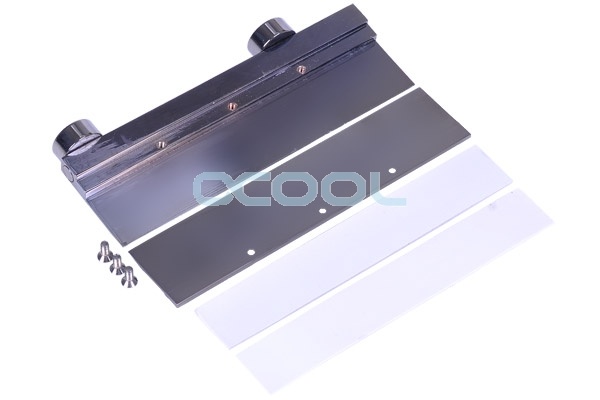

The water block is shipped with two thermal pads and is designed for double-sided memory modules, which have memory ICs on both sides. With the help of additional thermal pads, optionally available at our webshop, single-sided modules can also be cooled.
For mounting three small screws at the side have to be loosened. Next remove the protective foil from the thermal pad and insert the RAM module with the thermal pad into the water block. Then prepare the second pad, put it on and fixate the cooler, done! Now the module can be inserted into the memory slot with the water block.
Optically this memory cooler is perfect for a matching design in the system with the glossy Alphacool copper finish.
Color: black nickel
Compatibility: DDR, DDR2, DDR3
Dimensions (L x H x W): 125 x 46 x 18mm
Connection thread: ¼“
