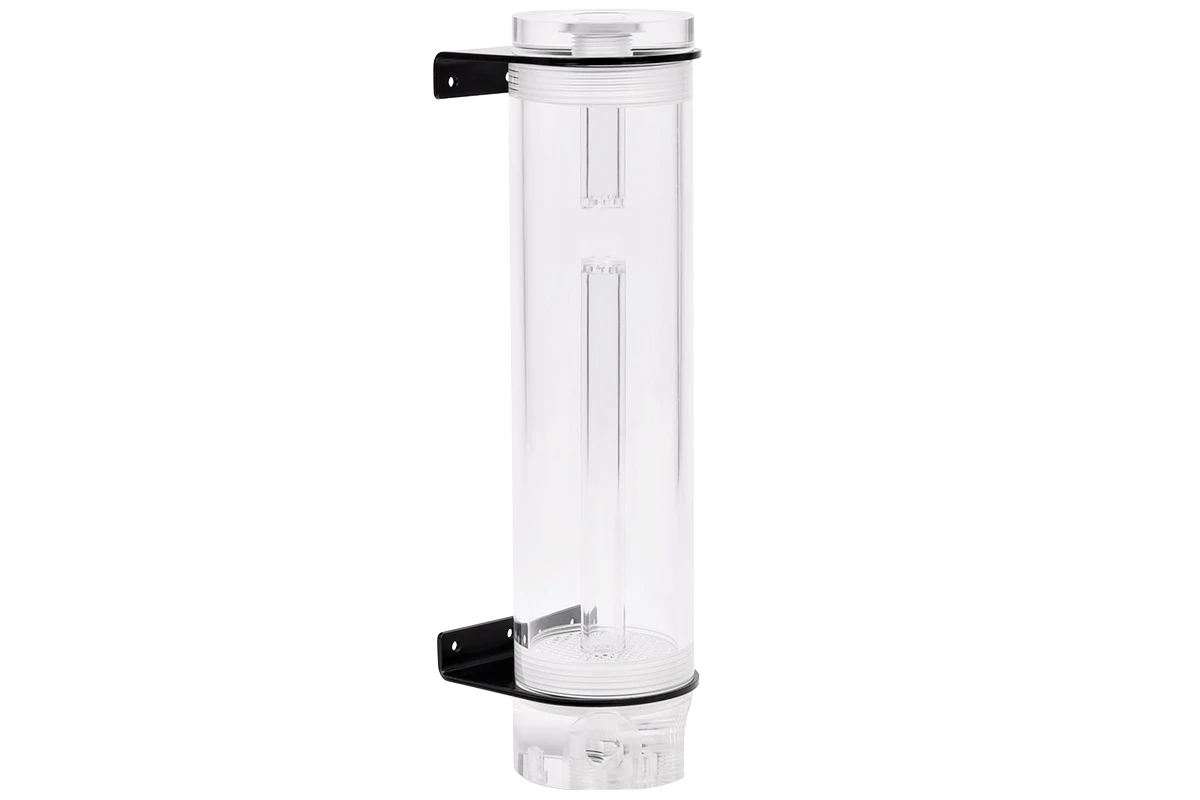

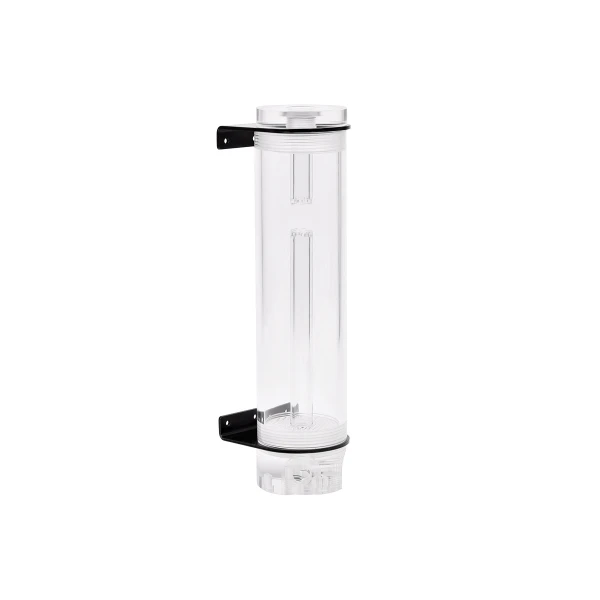

Alphacool Eisbecher 250mm Plexi

Reinvent the tube

The Eisbecher Series consist of 20 different reservoirs that differ between usage, measurement and appearance. There are ten reservoirs within this series that consist of 99% plexi - totally unique! But the main difference between these reservoirs is within the functionality of the different sockets.

Constituents

Bubble Down

It is placed at the bottom of the reservoir to prevent turbulences that could lead air into the watercircle.

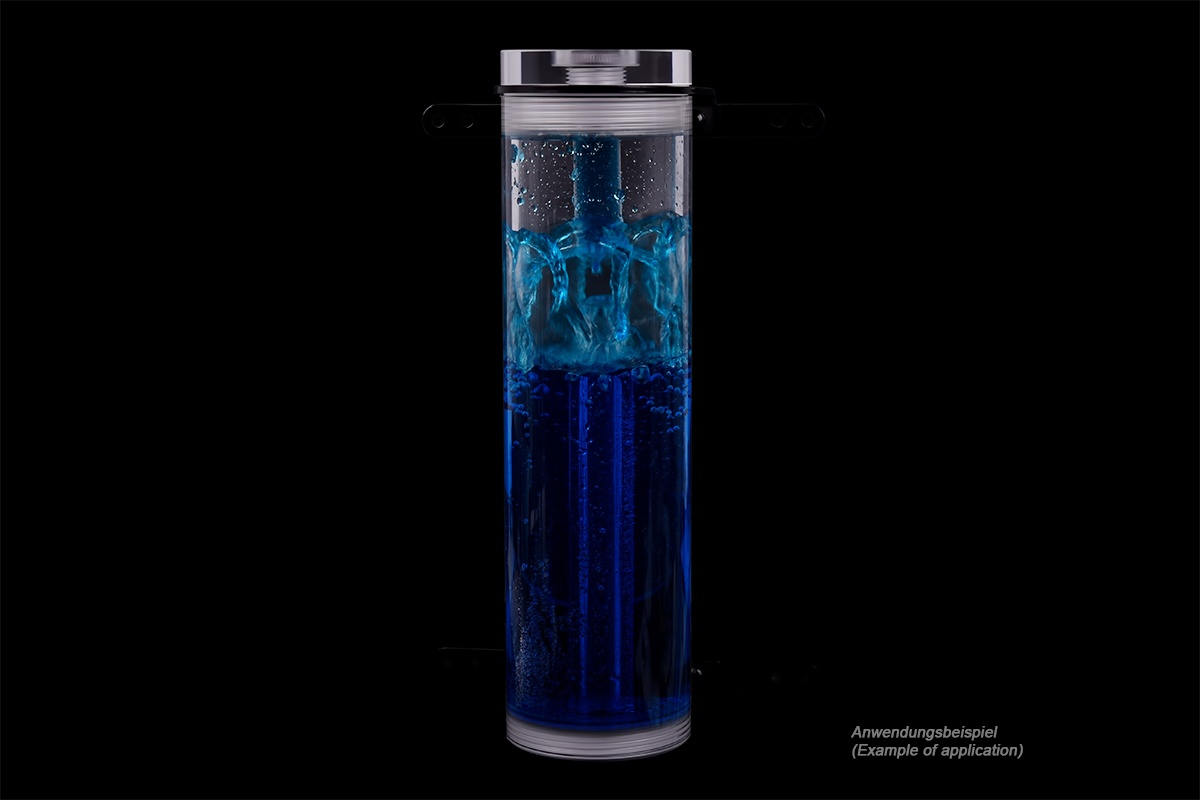

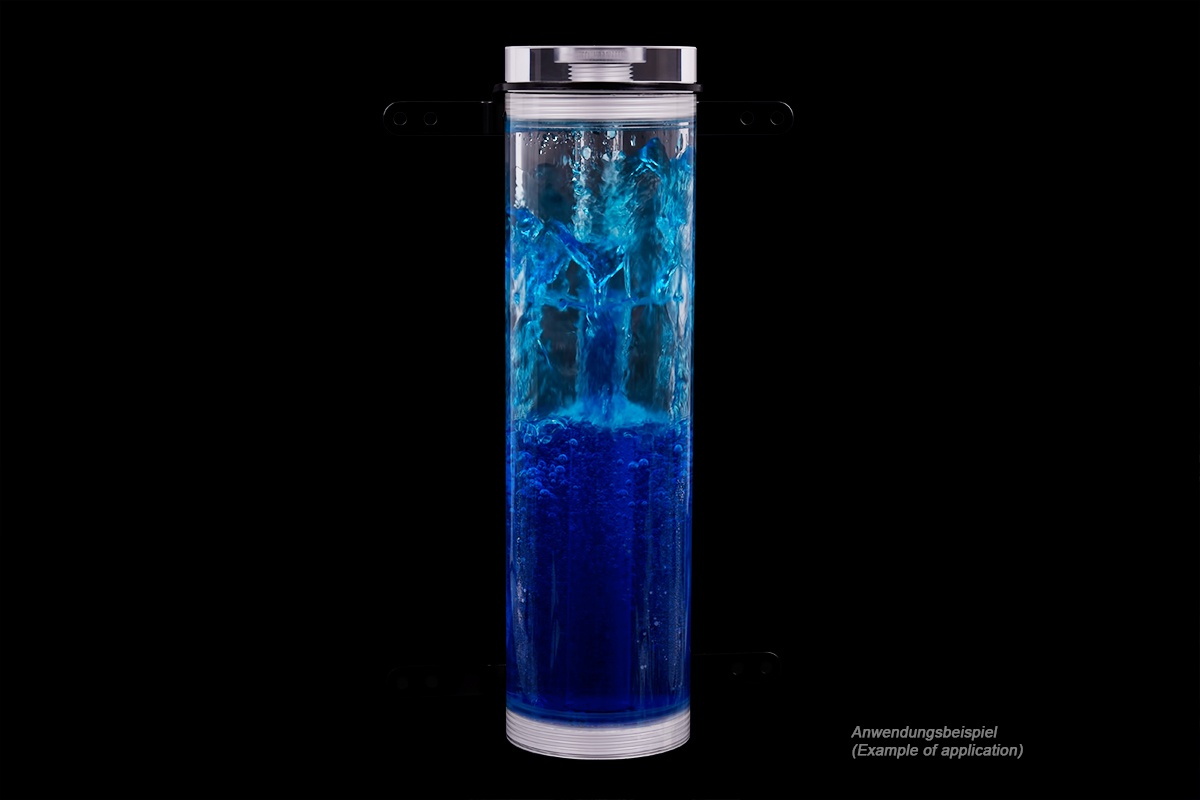

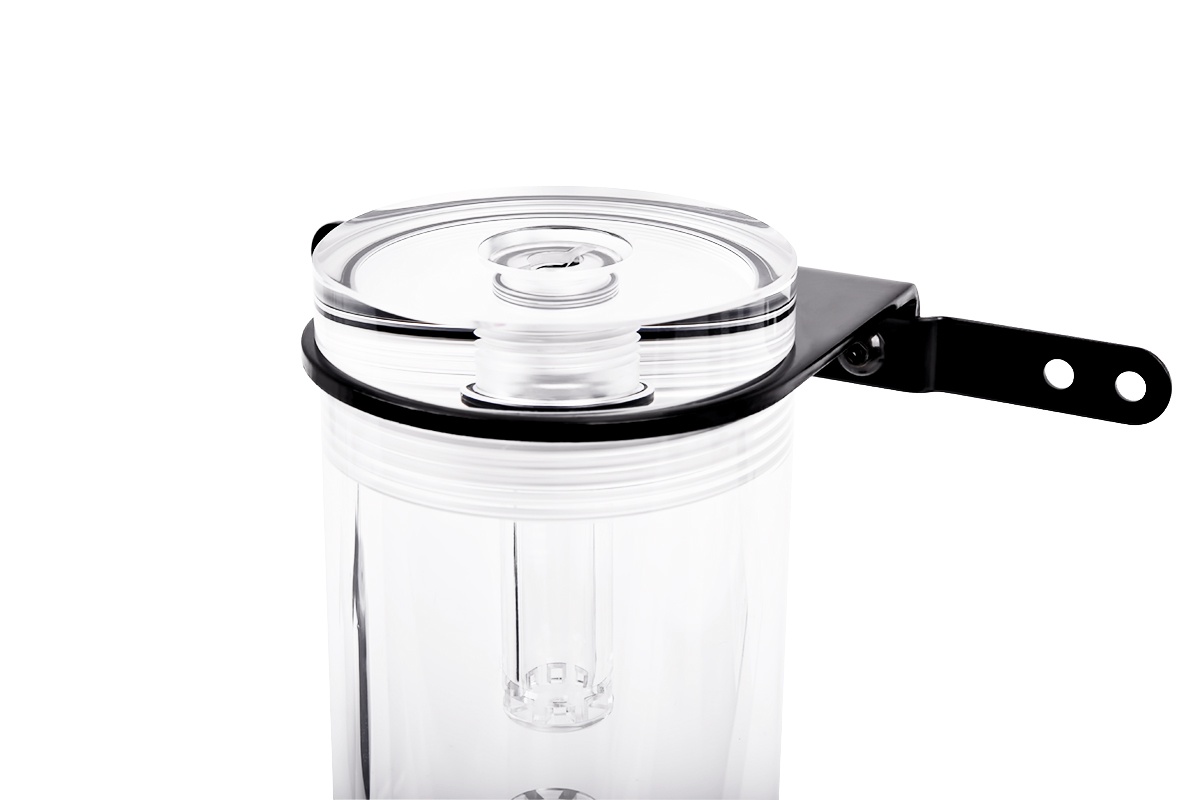

Lighttower Standpipe

The "Lighttower" effect creates an astounding visual experience within every watercooling system. The Eisbecher supports this in two different ways: fluid coming from the bottom and coming from the top. The water is being led through the standpipe to the bottom or to the top where it splashes out of eight evenly distributed holes at the end of the pipe to the inner wall of the reservoir. This special watergame is the so called "Lighttower" effect.

Stand

The known feet from the "Eisdecken" find its very way even to the Eisbecher and sustain every combination with a solid stand.

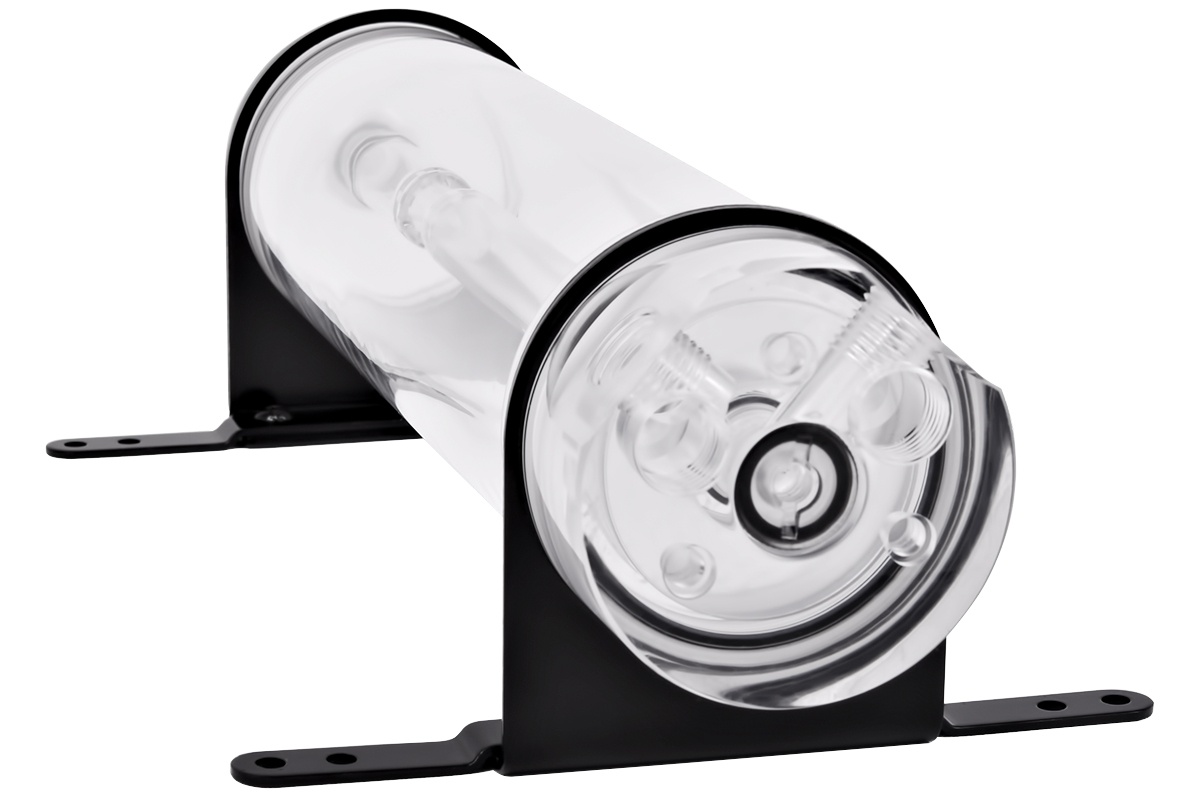

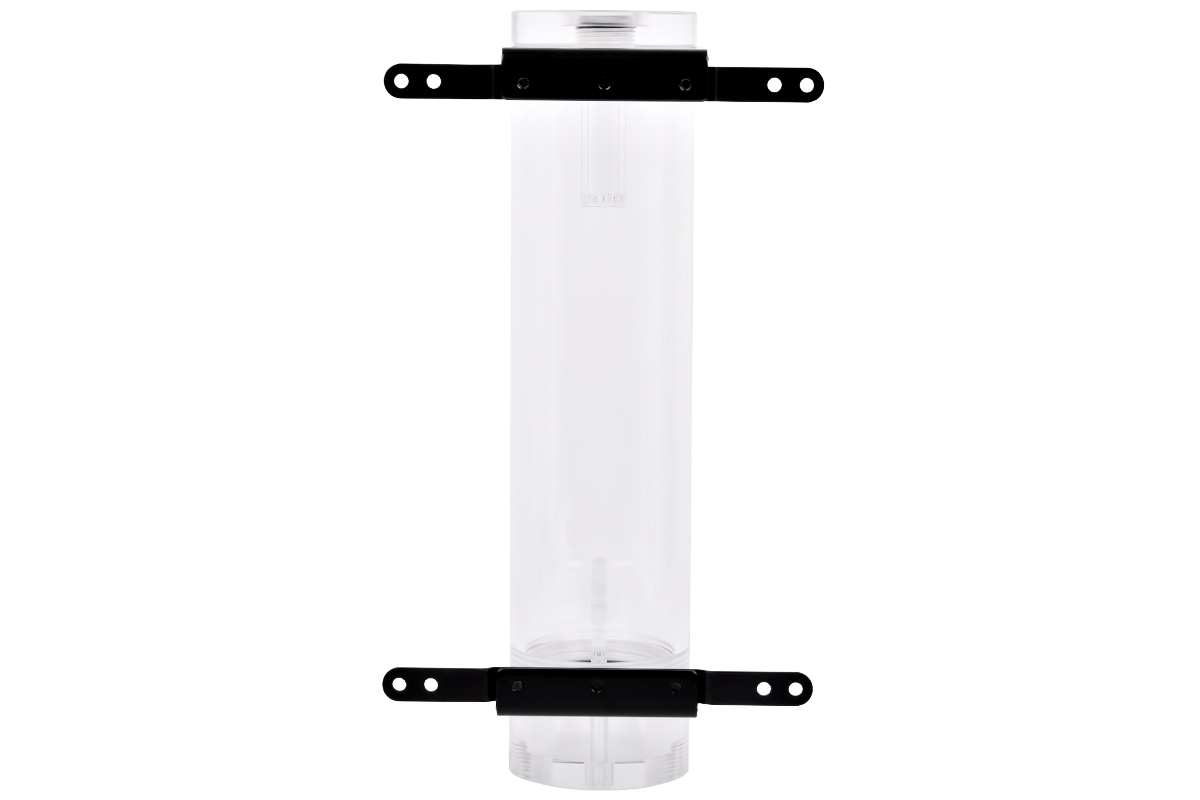

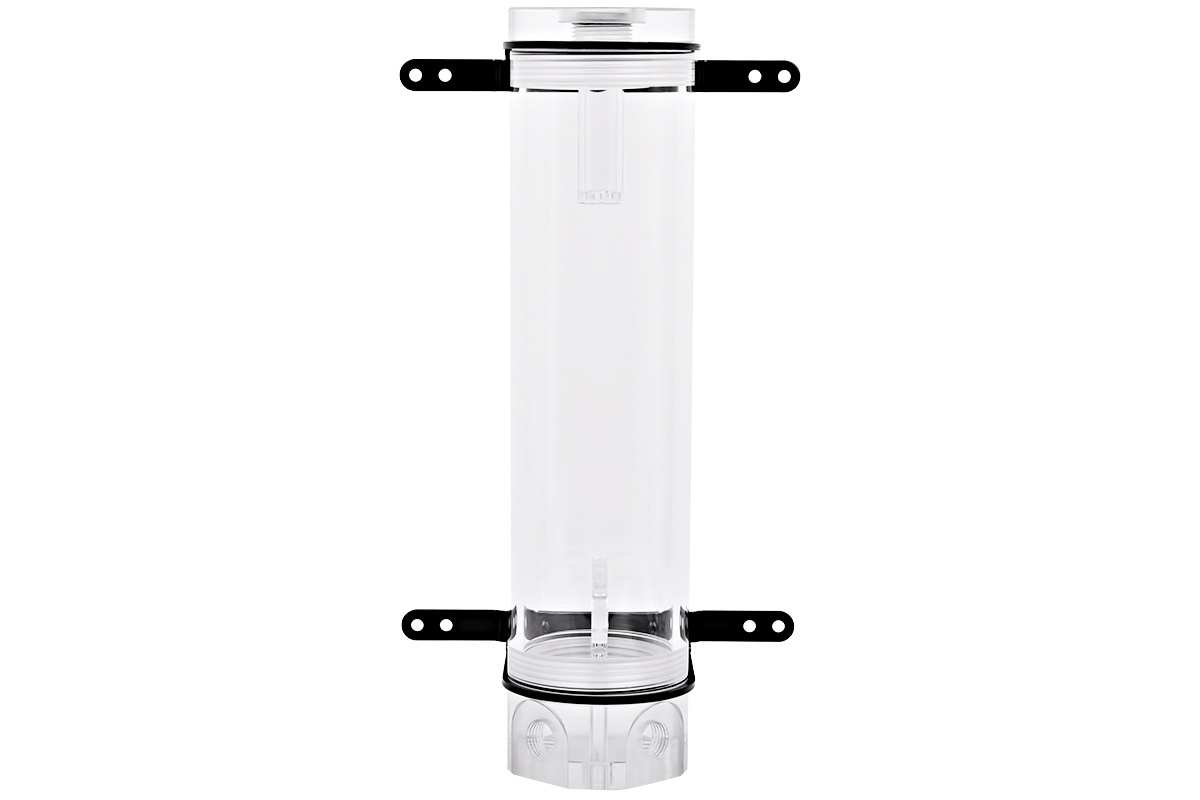

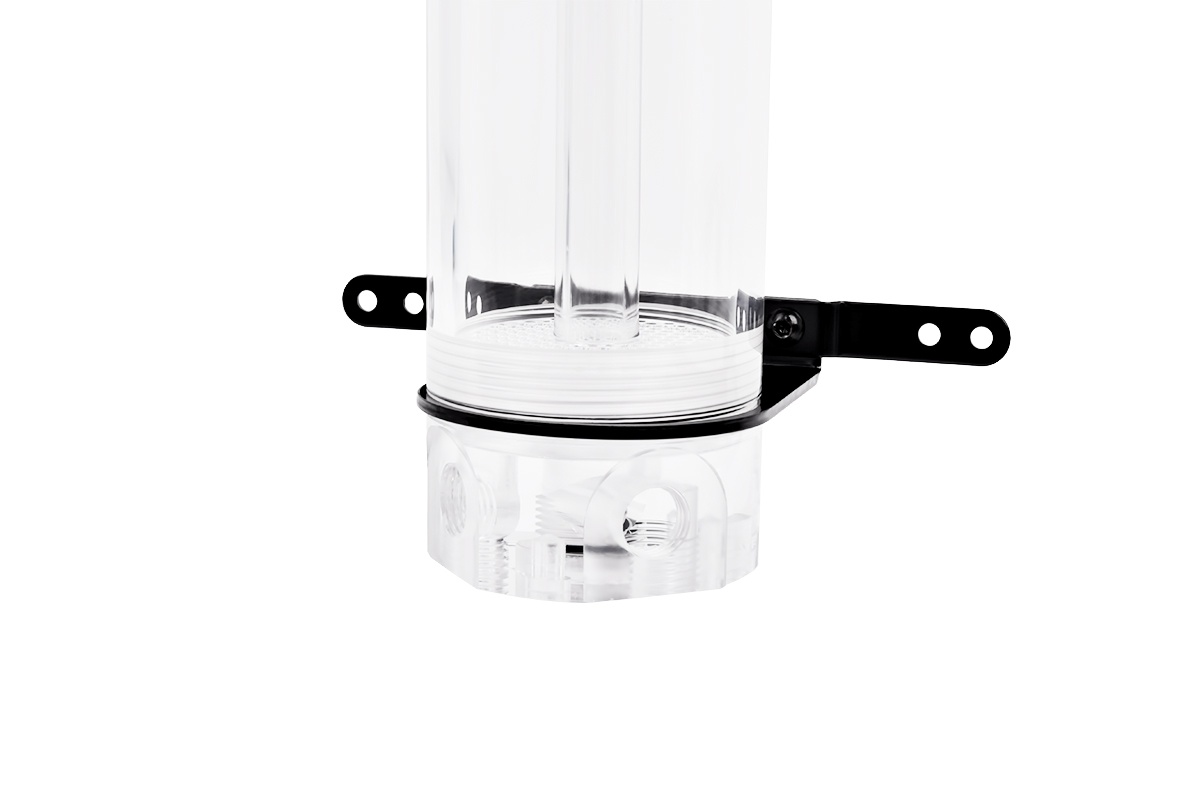

Mountings

There are two mountings placed above and under the pipe for fastening the lot in the casing. The holes in this mounting have a spacing of a 120/140 cooling fan.You can reduce the width of the mountings up to the width of the reservoir and there are three M4 threads availaible per mounting for fastening if you would rather not mount the reservoir at the fan space. These mountings are easily removeable especially when not being used. You will find these mountings on all 20 reservoirs.

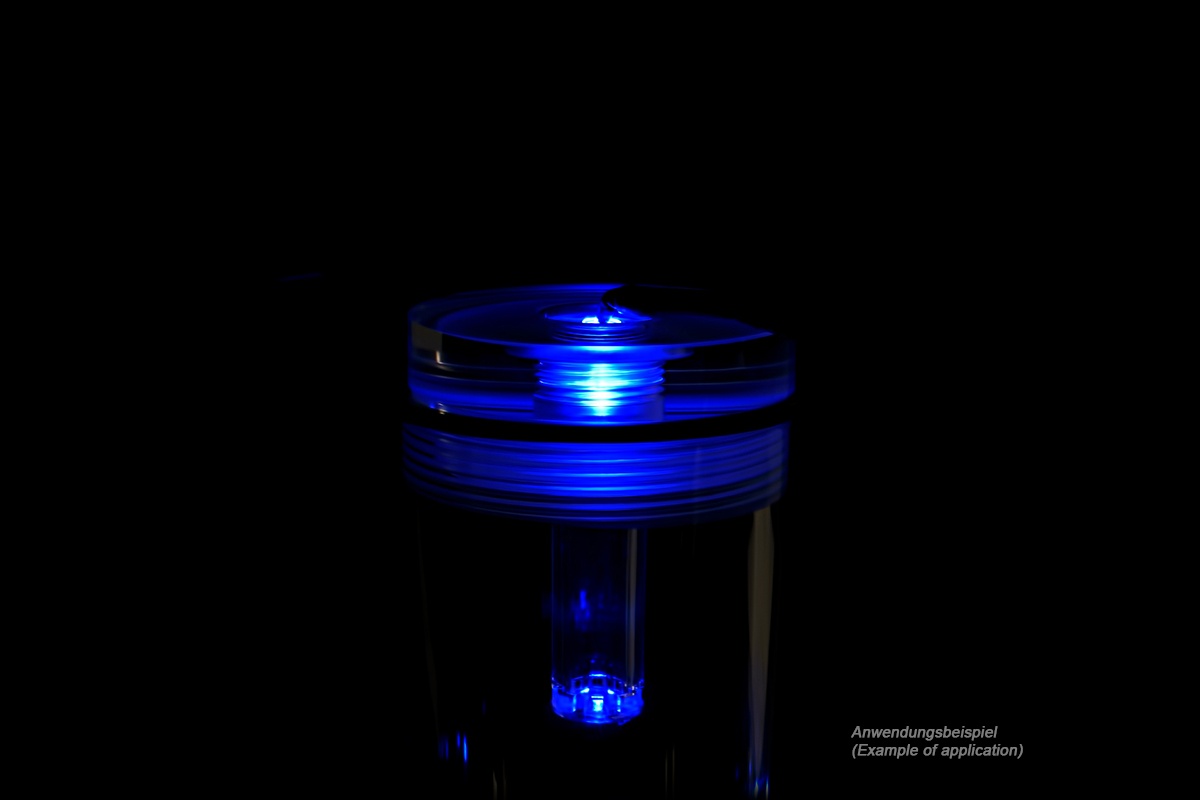

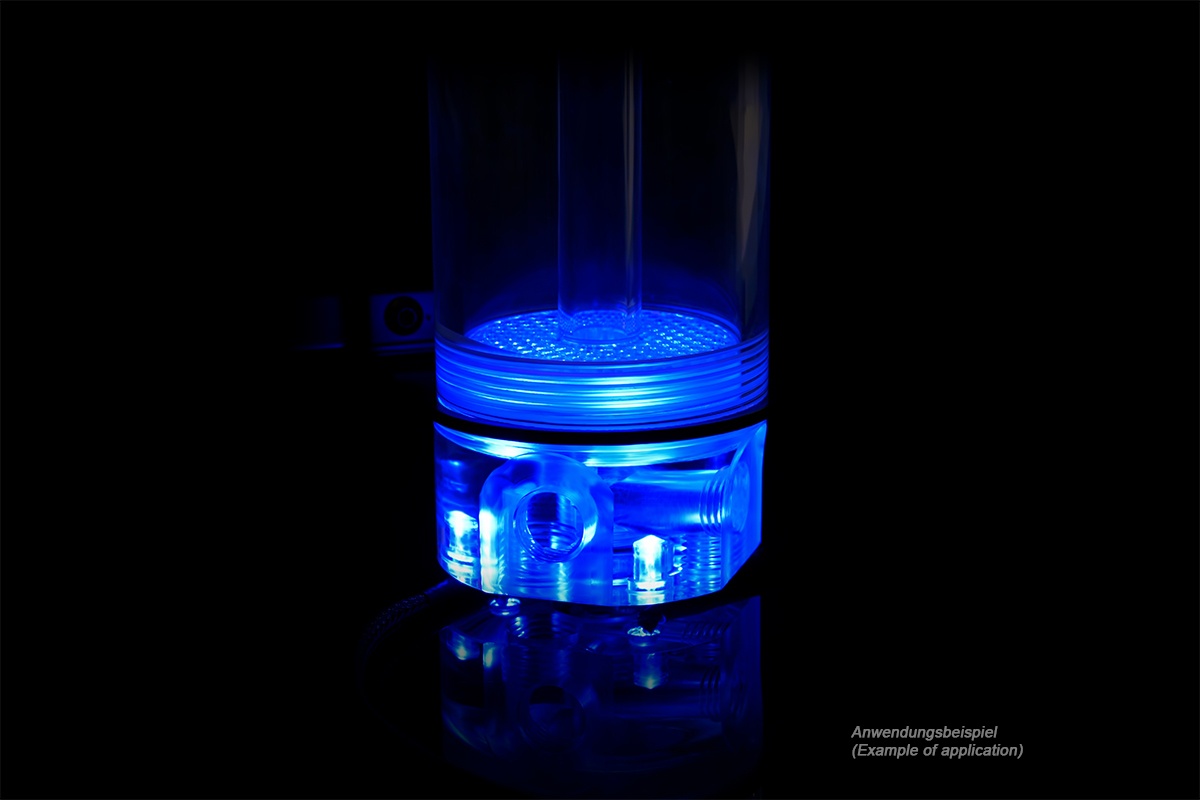

Lighting module

The lighting modules consist of plexi and enable the lighting with a 5mm LED. These modules can be installed into all 1/4" holes. They are being used in the lid and occasionally in the socket of the reservoir. This facilitates a unique way to your personalised lighting effects.

Material

All models of the reservoir are availaible in acetal and plexi. So there is something for everone.

Measurements


All reservoirs are availaible in two different sizes: the 150mm version and the 10cm bigger 250mm version. The smaller reservoir comes with only one standpipe coming from the bottom because of its size and the bigger reservoir comes with two: one coming from the top and the other one from the bottom.











The Eisbecher

There are two additional versions for everyone that would rather operate the pump seperately. The Bubble Down and depending on the size one or two standpipes that fascilitate the "Lighttower" effect and two lighting modules one from the top and the other one from the bottom are being used here. And there are additional three LED holes for the plexi version to maximize the lighting power. The openings to fill or drain the liquid are doubled here: One at the side and one at the bottom.

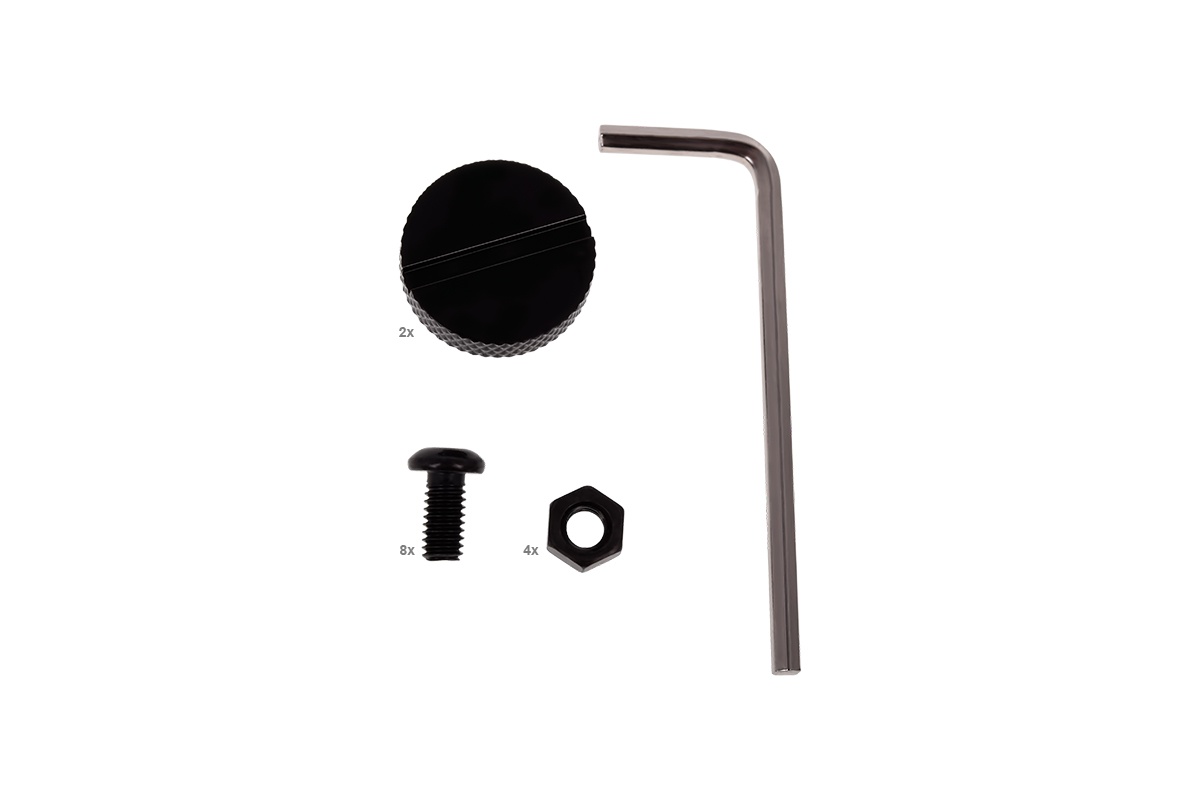

Included in delivery:

8x M4x8mm screw

4x M4 nut

2x G1/4" locking screw

1x allen key 2,5mm

Measurements 250mm Version:

Measurements with mounting (LxWxD): 251 x 136 x 79,5mm

Measurements without mounting(LxW): 251 x 60mm


Diameter of the Plexitube: 60mm



Notice

Alphacool recommended for correct operation of the water cooling distilled water!
