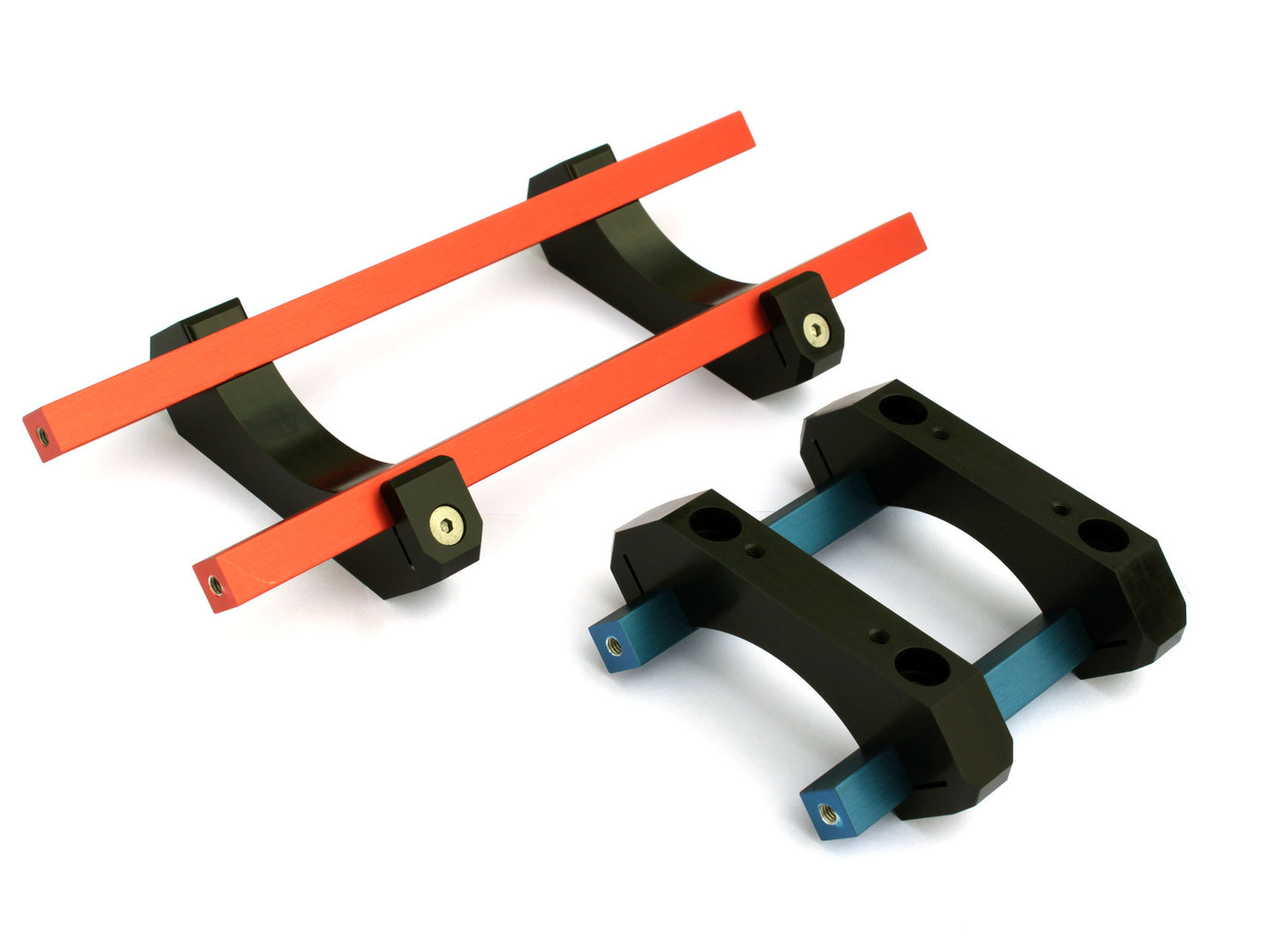

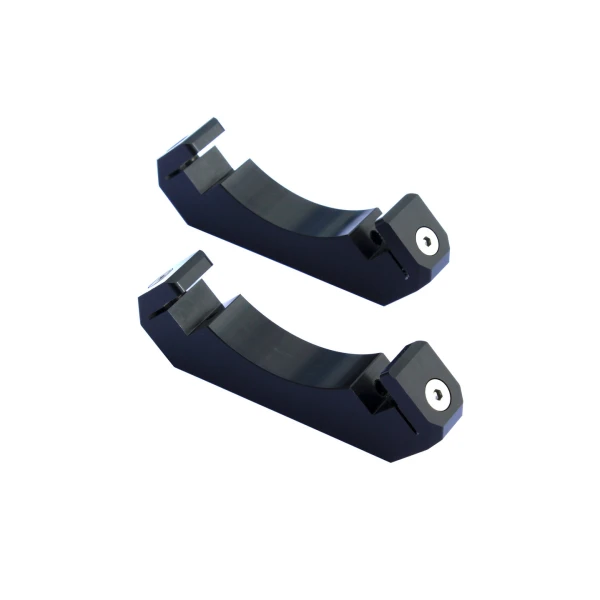

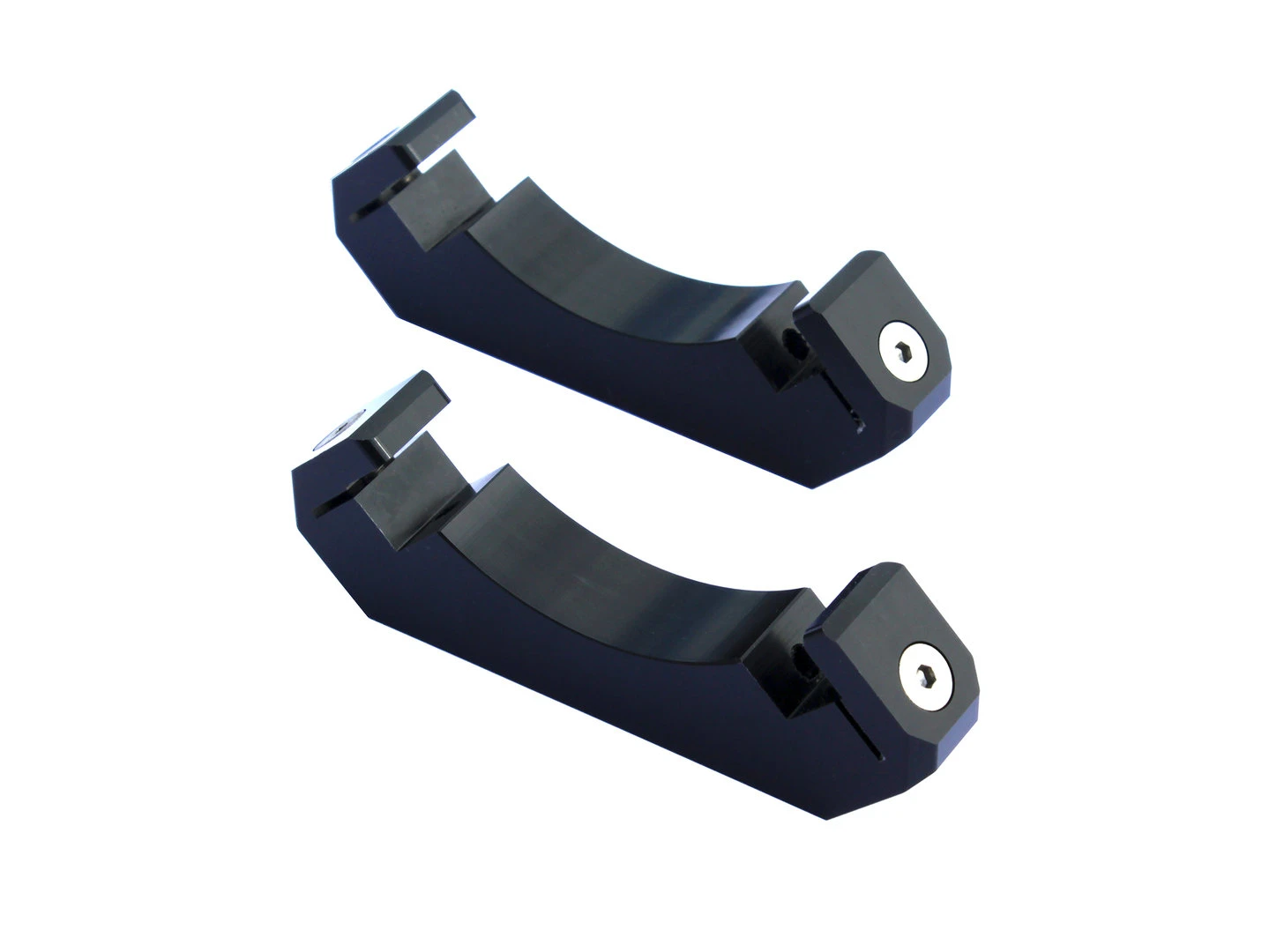

Using the mount could not be easier. Just slide the mount onto the struts to the desired position and fix them in place using the lateral countersunk screws. The back of the mount has a M4 thread to screw the mount to the case wall.
Vibration dampening montage is also possible. Decoupling modules are contained in the scope of delivery.
With optional adapters the reservoir can be fixed into the mounting holes of 120x120mm or 140x140mm fans. This can attach the reservoir to a HTSF2 series radiator for example. We also offer an adapter to mount the reservoir to a radiator from the MO-RA3 series.
Dimensions (L x W x H):
Material: POM (ACETAL)
1x HEATKILLER® Tube - Basic Mounting Kit
