● 9 Full Color RGB LEDs
● Extreme Static Pressure
● High Precision Shark-Tooth Blade
● Noiseless Motor Drive IC
● Ultra-Durable Double Ball Bearing
● Wide Speed Range 500 – 2000 RPM

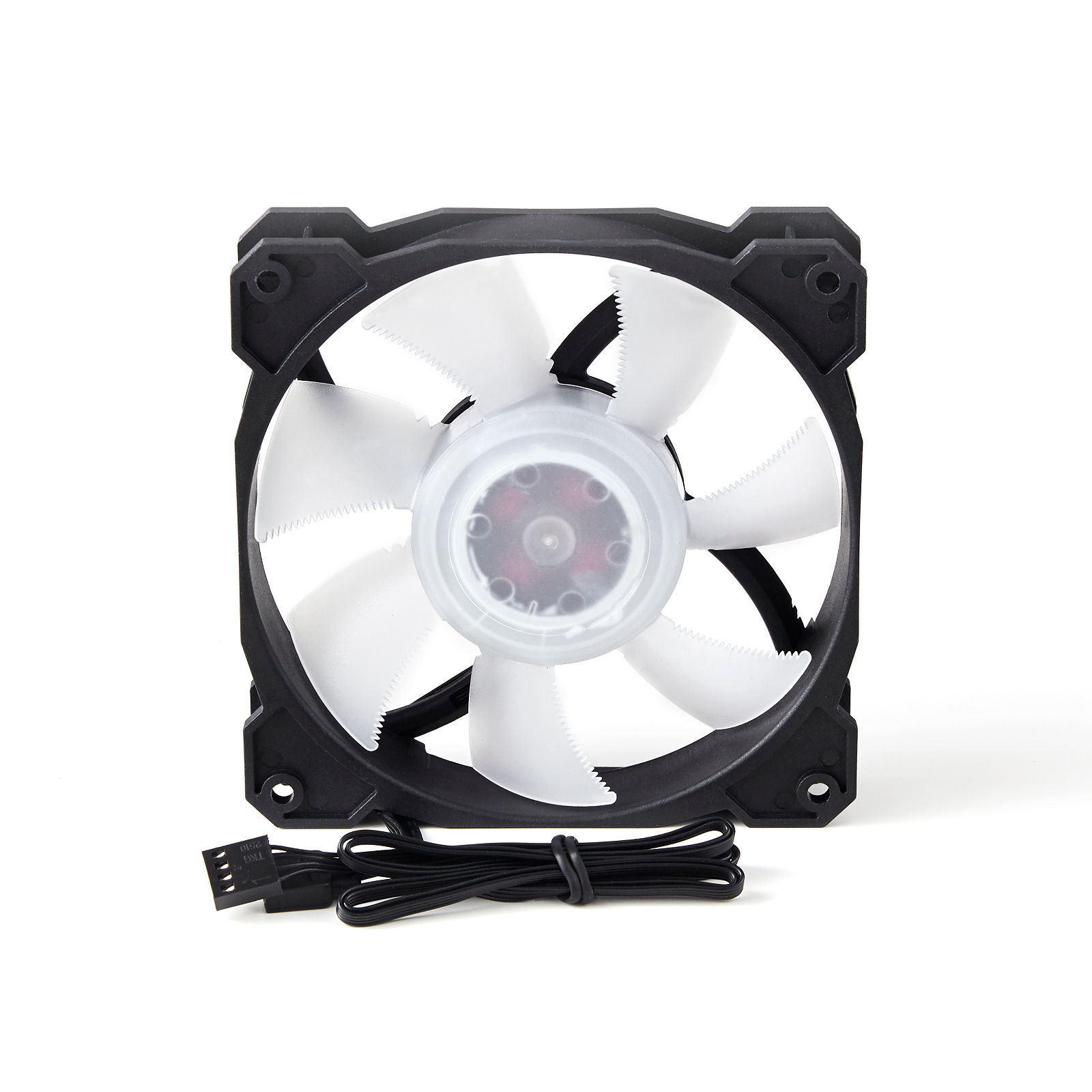

120mm Extreme Performance RGB Fan
Magnificent Colors. Extreme Performance. Bold Design
Brewed with top technologies and passion, the Radiant RGB LED Fan fosters a stunningly vivid RGB LED lighting experience. Magnificent colors, extreme performance and bold design make the Radiant a perfect mate for water-cooling radiators, advanced heatsinks and custom PC rigs. Just try it, and ignite full colors of life inside your PC!

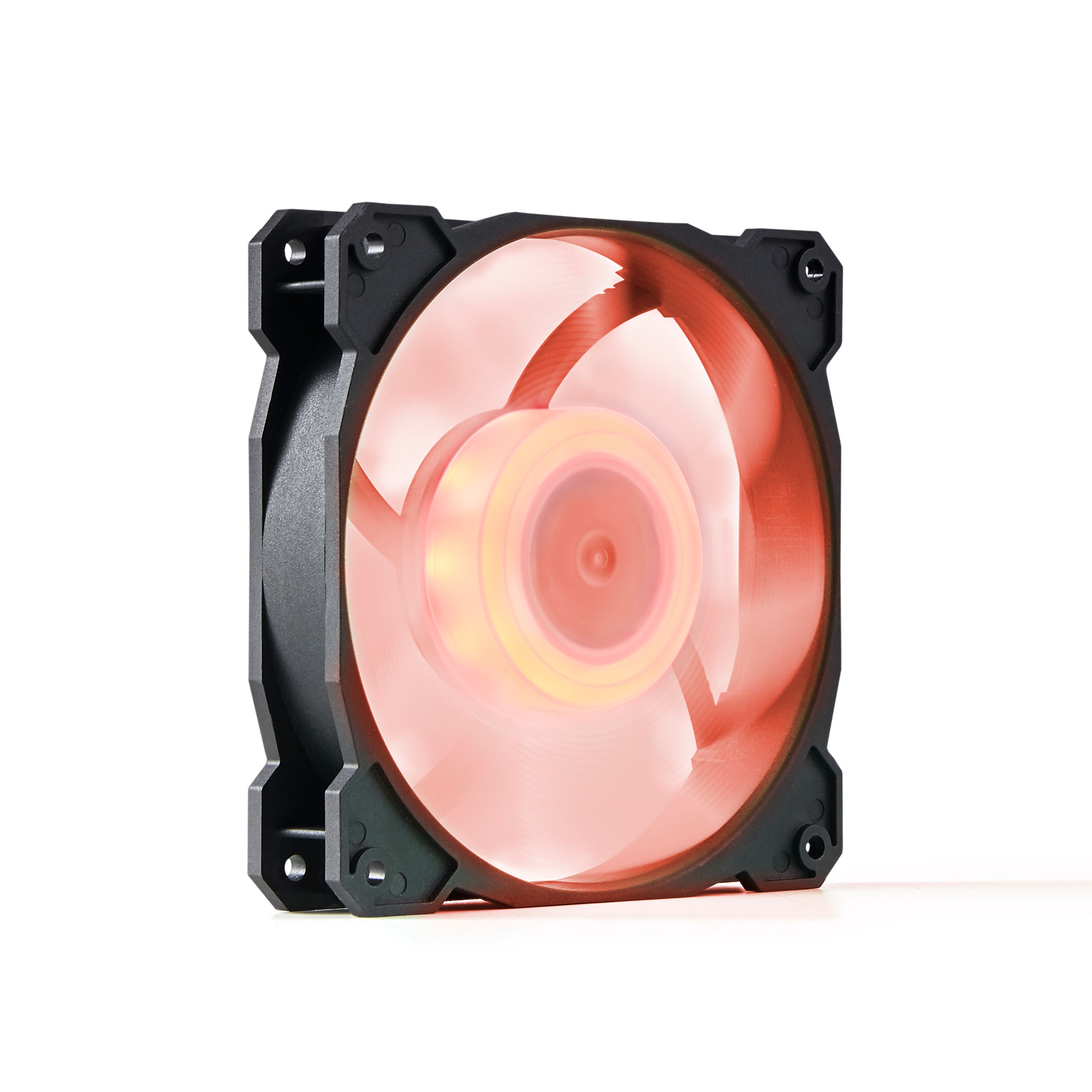

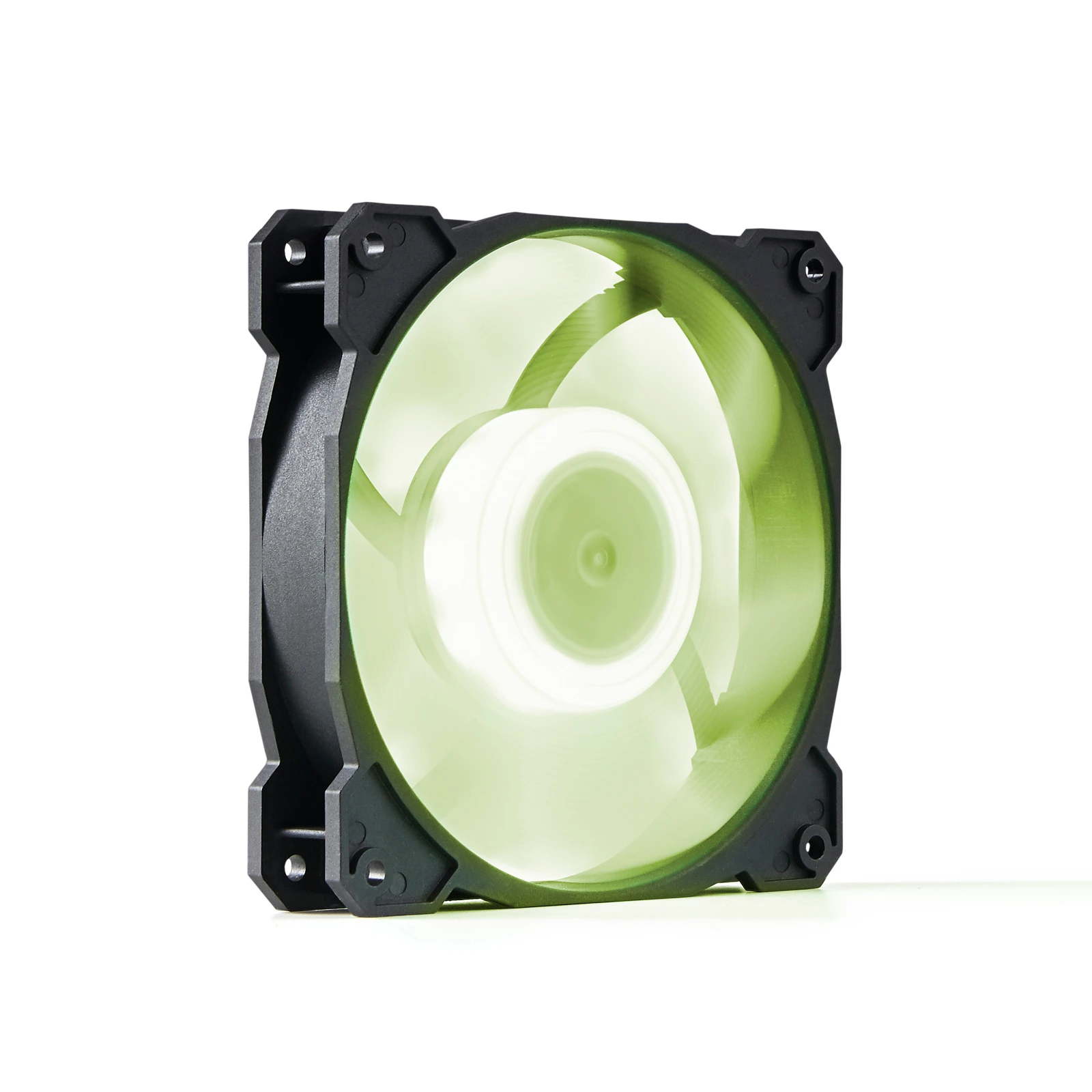

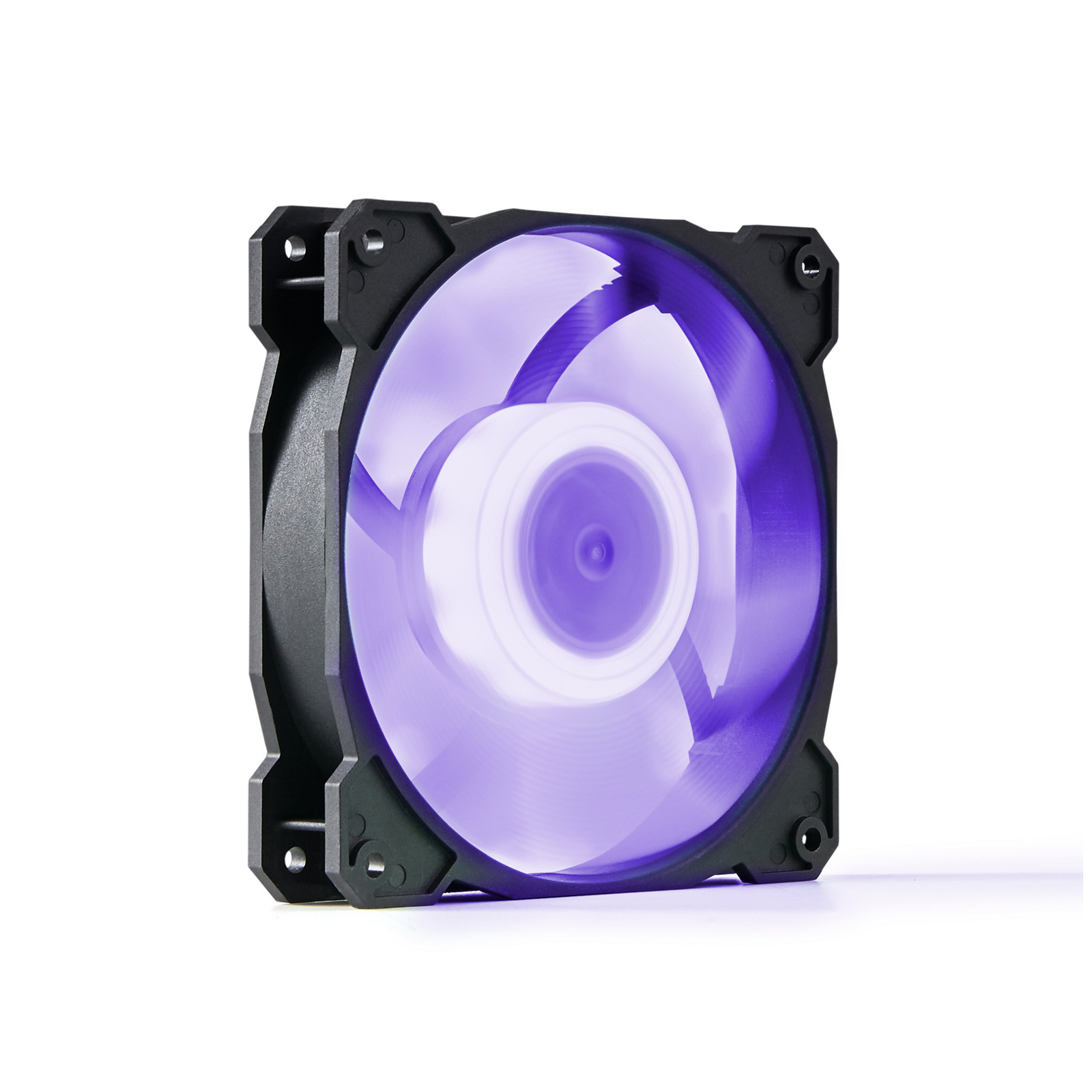

9 Full Color RGB LEDs: circularly mounted high-brightness LEDs for a stunningly vivid RGB Lighting experience.
Infinite Color Spectrum: variable color modes via motherboard controls or the optional GELID RGB LED Multi-Fan Controller.
Extreme Static Pressure: powerful impeller with the unprecedented static pressure and performance profiles.

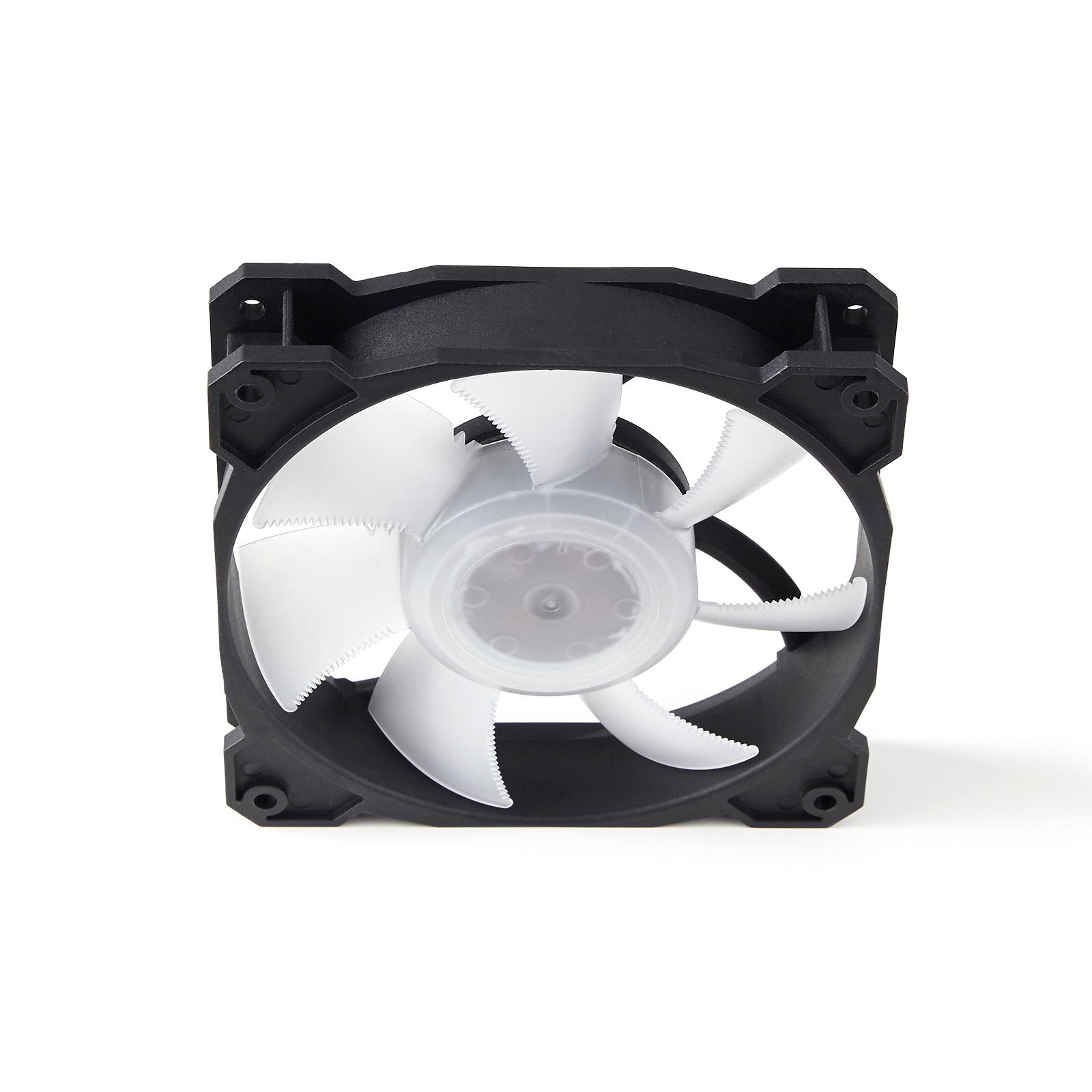

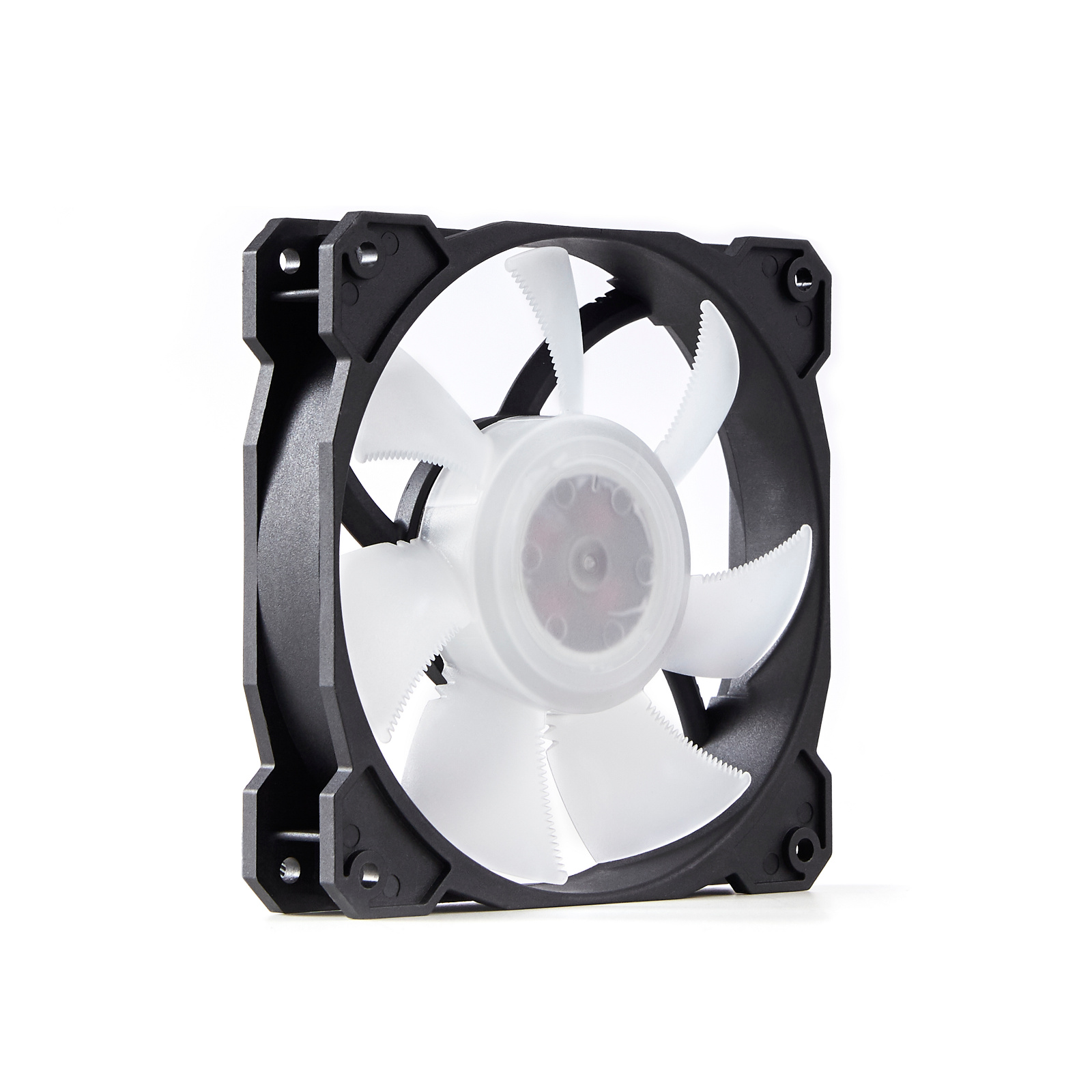

High Precision Shark-Tooth Blade: 3D optimized blade for even higher airflow and lesser noise.
Noiseless Motor Drive IC: newly designed and enhanced motor driver to eliminate clicking noise.
Ultra-Durable Double Ball Bearing: carefully selected top-quality ball bearings for ultra-durable operation.
Wide Range RPM: extended fan speed in the range 500 – 2000 RPM.
Broad Compatibility: all modern motherboards with RGB Lighting controls and 12V standard RGB headers are supported.
The fan is RoHS and WEEE conform and carries a 5 year warranty.
STANDARD RGB AND INDIVIDUALLY ADDRESSABLE RGB EXPLAINED
In standard RGB applications, this type of fans uses the standard RGB LED header with 4-wiring: 12V, R, G, B. All the LEDs integrated with the fan are then connected onto the same 4 busses, they are all controlled as a whole, so they each will output exactly the same color.
It’s like you set color for an object in your graphics editor, for example, Red: 25, Green: 50 and Blue: 125, an external RGB controller or motherboard drives the standard RGB LED fan in the same way by altering power on the color busses at a proper duty cycle – the Red, Green and Blue bus, respectively – to output the desired RGB color.
Of course, colors can be managed dynamically, with numerous lighting effects in series. But uniformity of the LEDs – one color for all the LEDs at a time – limits RGB lighting effects to some degree.
Digital Individually Addressable RGB
Unlike the standard RGB fans, controls of the individually addressable RGB fans are digital in nature. For this case, the fans use the addressable RGB LED header with 3-wiring: 5V, D, Ground. And the LEDs integrated with the fan have a special companion IC which drives each of them individually: it resides on a one-wire serial bus and sends commands like “LEDs number 3, 5 and 6: switch to green” to set the desired color per individual LED. So, each of the LEDs has its own ID and is controlled independently from the others. In turn, an external app can be used to program the IC giving virtually unlimited options of color modes and effects. Rainbow-circle, rotating colors, multipoint pulsating colors and some other stunningly vivid RGB lighting effects are available only with the individually addressable RGB fans. But, as far as this type of fans supports digital RGB controls only, it’s up to your motherboard to provide a full-featured RGB app to discover the excellence of RGB lighting.
Please refer to your motherboard manual before connecting the individually addressable RGB fans.
|Air Flow (CFM):||77.2 max.|
|Bearing:||Double Ball Bearing|
|Cable Length (mm):||500 (PWM & RGB)|
|Power Draw (W):||5.4 max|
|DC Voltage (V):||12|
|Dimensions (mm):||120 (l) x 120 (w) x 25 (h)|
|Fan Life Time MTTF at 40C (h):||100000|
|Fan Speed (RPM):||500 – 2000|
|Noise Level (dBA):||40.4 max|
|Static Pressure (mmAq):||3.39|
|Fan Connector:||4-Pin PWM Header|
|LED Connector:||4-Pin RGB Header (12V)|
