This is a value-oriented, high-performance D-RGB liquid cooling kit that comes with many accessories that help with building the loop. With low noise emissions, it is ready to be expanded with a GPU water block, and also enables overclocking and efficient cooling of any mainstream Intel or AMD CPU on the market. Designed for ATX and larger cases, the P kits are a great way to enter the world of custom liquid cooling with a high-performing cooling solution that will easily cool an overclocked CPU and a GPU if you add a block to your custom loop.
The kit brings all the hardware you need to assemble your first custom loop. But, it also brings useful tools to build it - Tube Cutter, Foldable Filling Bottle, 4-in-1 Allen Key, and more! You don't have to worry about compatibility issues, missing something, or being nervous about the right amount of fittings or tube length. Also, this kit can easily be expanded with a GPU block to liquid cool your entire system, but EK recommends adding at least one more 120mm radiator to achieve great temperatures and a silent system. All products in this kit use 3-pin 5V D-RGB headers and are compatible with popular RGB sync technologies from all major motherboard manufacturers, as well as the EK-Loop Connect controller.
This kit brings the following components, selected from our wide range of quality products:
EK-Classic CPU Water Block 115x/20xx/AM4 D-RGB - a high-end, nickel-plated copper CPU water block for modern Intel and AMD processors. It uses addressable RGB LEDs to light up your CPU area. It features a classic, market-proven design that will perfectly fit the needs of core enthusiasts and demanding users as well. The tool-less mounting system makes the installation process a breeze even for beginners. This block comes with a pre-installed Intel mounting system while the AMD AM4 mounting system is in the packaging and needs to be installed if needed.
EK-CoolStream Classic PE 360 radiator - 45mm thick design allows for lower fin density while allowing great cooling potential due to increased thickness. Lower fin density allows for less fan noise, as they can be run at lower speeds. This 360mm long radiator can easily cool off overclocked CPU and a GPU. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range thus delivering exceptional performance at both low and high airflow operation.
EK-Vardar S 120ER D-RGB (500-2200rpm) - high-static pressure computer cooling fan enriched by addressable RGB LEDs, designed and built primarily for highest-performance computer liquid cooling systems. EK-Vardar is simply the best choice for computer radiator cooling as it provides unmatched performance throughout the entire operating range.
EK-Classic Pump Reservoir 160 SPC PWM D-RGB - is a value-oriented water cooling pump reservoir combo. It has been designed to lower the production costs yet still offer premium hydraulic performance at the best price. PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper-quiet operation in idle mode and on top of that rich D-RGB illumination. It comes with both vertical and horizontal mounting kits.
EK-DuraClear - 2 meters of the premium quality clear PVC tubing, guaranteed to be free of plasticizer leaching related issues. Made for 10/13mm fittings.
EK-CryoFuel Clear Concentrate (100ml) - EK-CryoFuel Clear is a pure, non-toxic coolant based on the patent-pending chemical formula, which prevents the creation of any sediments in the liquid cooling loop. The 100mL concentrate is to be mixed with distilled water in ratio 1:9 to form 1L of ready-to-use coolant. To make mixing the concentrate with distilled easier, EK recommends the use of the foldable filling bottle (included) that is also designed to make a loop filling process much easier.
EK-STC Classic 10/13 - nickel-plated brass fittings. With a high-quality finish, the EK-STC Classic Fittings are an aesthetically appealing and secure option for your custom loop liquid cooling system. A non-intrusive, minimalistic look, with NO added branding at all.
EK-AF Classic Angled 90° - nickel-plated brass angled adapters. One of the most useful tools to have, as it benefits every build. It makes a troublesome tube route easy and more aesthetically pleasing.
EK-Loop Soft Tube Cutter - A simple tool used to make a straight tube cut. Safe and easy to use.
EK-D-RGB 6-Way Splitter Cable - This splitter cable enables you to connect up to 6 D-RGB products to a single source header. Be it on the motherboard or on the D-RGB controller of your choice.
Foldable Filling Bottle - Very convenient for mixing the EK-CryoFuel concentrates with distilled water. The telescopic tube of the filling bottle can reach even the most remote and crammed fill ports.
EK-Loop Multi Allen Key - a multi-purpose tool that replaces the standard 6mm, 8mm, and 9mm Allen key, while it can also be used to operate acetal plugs (with the line style groove). The key does not only replace all of the crucial Allen key formats used for building a liquid-cooled PC but also helps protect your liquid cooling gear.
The kit is easy to install, use, and maintain, a thorough installation manual is included. Every item in this kit can be purchased separately, further descriptions and specifications of individual items can be found in EK webshop.
The majority of components have been pre-assembled resulting in a quick and painless installation procedure. Once installed, this kit is a full custom loop solution. It can be upgraded with additional water blocks and components, such as additional radiators or GPU blocks.

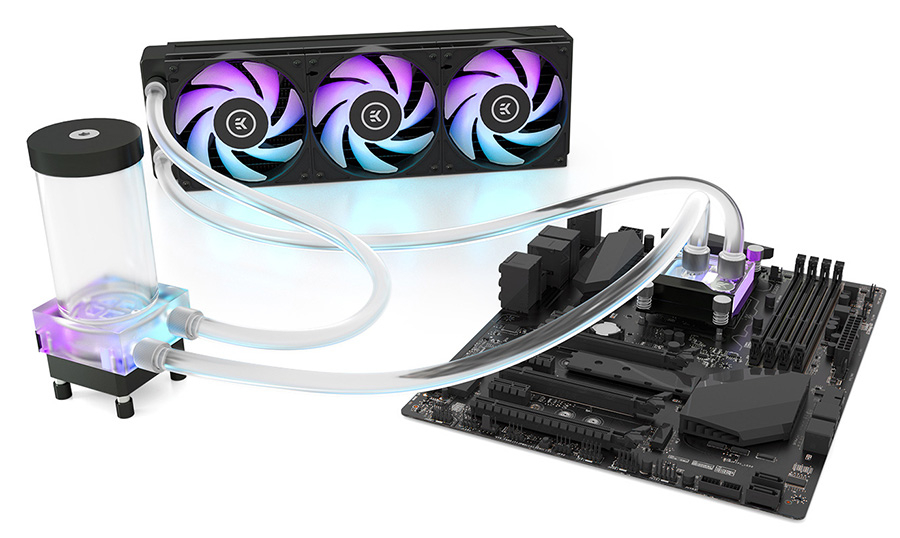

EK-KIT Classic D-RGB P360 water cooling kit includes:
- Universal CPU water block: EK-Classic CPU Water Block 115x/20xx/AM4 D-RGB (incl. thermal paste)
- Radiator: EK-CoolStream Classic PE 360 (Medium Triple)
- Radiator size: 393 x 120 x 45mm (L x W x H)
- Radiator fan: EK-Vardar S 120ER D-RGB (500-2200rpm) (3pcs)
- Water pump-reservoir combo: EK-Classic Pump Reservoir 160 SPC PWM D-RGB (incl. pump)
- Tubing: EK-DuraClear 9,5/12,7mm (3/8'' - 1/2'') (2 meters)
- Compression fittings: EK-STC Classic 10/13 (3/8'' - 1/2'') - G1/4 Nickel (6 pcs)
- Angled adapter: EK-AF Classic Angled 90° - Nickel (2pcs)
- Coolant concentrate: EK-CryoFuel Clear rev.2 (100mL; for 1L of coolant)
- Combo mounting: EK-Loop UNI Pump Bracket - 120mm
- EK-RES X3 - Holder 60mm
- Y-cable splitter: EK-Cable Y-Splitter 3-Fan PWM (10cm)
- EK-Cable Pump testing adapter
- ATX Bridging Plug
- D-RGB 6-Way Splitter Cable
- EK-Loop Multi Allen Key
- EK-Loop Soft Tube Cutter
- Foldable Filling Bottle
This water cooling kit is compatible with the following CPU sockets:
- Intel LGA-1200
- Intel LGA-1150/1151/1155/1156
- Intel LGA-2011(-3)
- Intel LGA-2066
- AMD Socket AM4
Developed and assembled in the EU
Manufactured in China
