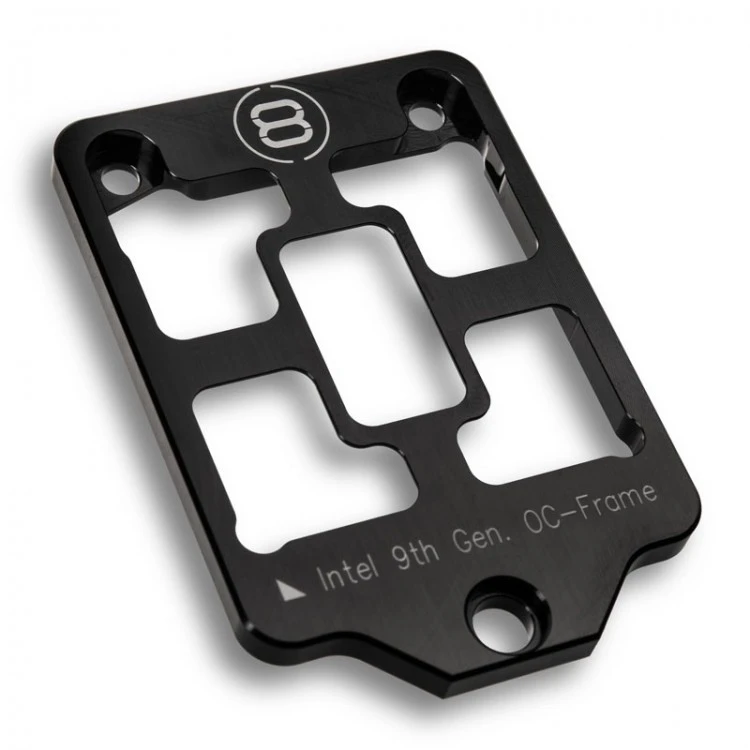

The der8auer Intel 9th gen. OC-Frame replaces the Intel ILM (Integrated Loading Mechanism) on the motherboard, opening up completely new possibilities for extreme overclockers to professionally overclock their CPUs, with a processor cooler that does not interfere with the Integrated Heat Spreader ( IHS ) and sits directly on the chip of the CPU.
The der8auer 9th gene. Overview of OC frame:
- Practical tool for CPU use without heatspreader
- Safe installation to maximize cooling performance
- Made of high quality aluminum in anodised black
- Only compatible with Intel 9000 series CPUs and LGA-1151-v2 socket
German Engineered Perfection - Developed by overclocking world champion der8auer
Roman "der8auer" Hartung (pronounced "the farmer") is a studied mechatronics engineer (B.Eng.), Hardware enthusiast and professional overclocker from Germany. He has been active in the extreme overclocking scene for many years and has set countless groundbreaking world records during this time. He is always keen to tease out the last drop of power from any high-end hardware.
Overclocking to the limit
A CPU can be sufficiently cooled even with pronounced overclocking, enthusiasts unceremoniously disconnect the heatspreader with the der8auer Delid-Die-Mate 2 (FSD8-019), which can reduce the CPU temperature by several valuable degrees. However, this dangerous crafting tact has the consequence that the sensitive silicon Die or other now exposed components of the headed CPU in the cooler mounting can be easily damaged. The der8auer 9th gene. OC-Frame provides a remedy and makes it possible to install the CPU cooler directly and safely on the chip itself.

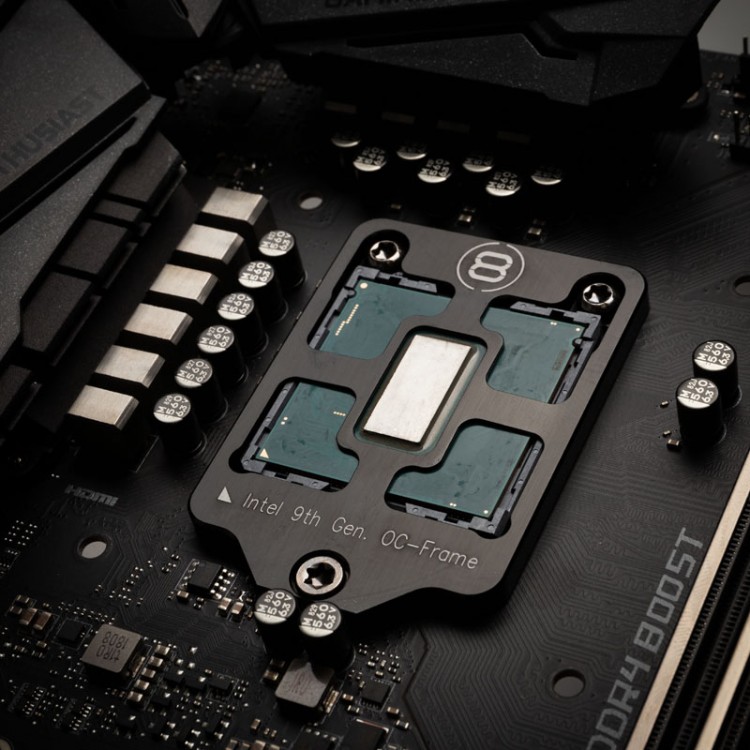

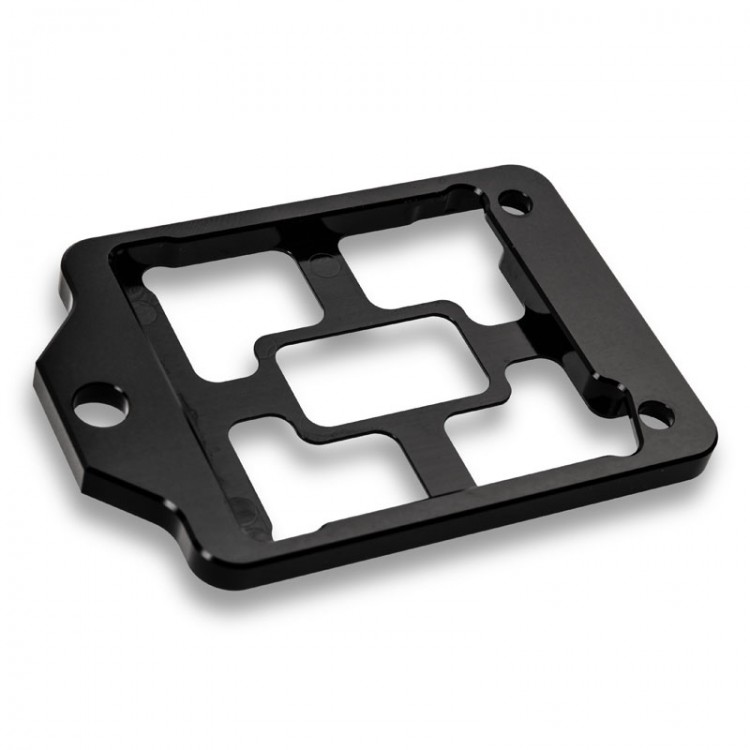

The outer edge of the 8 ohm OC frame is only about 0.1 mm below the silicon chip itself, effectively protecting the latter from tilting of the CPU cooler and hence damage. The black anodized coating also isolates the aluminum of the OC frame, which makes it no longer electrically conductive. As a result, the 9th gene OC frame can safely rest on the upper contacts of the CPU. For mounting, the socket holder (retention module) of the Intel socket must be removed and the OC frame is screwed with the original screws to the standard backplate of the mainboard.
Warning: Removing the CPU heatspreader and the mainboard socket holder (Retention Module) is at your own risk and always works with thecomplete loss of the manufacturer's warranty and warranty !
Compatibility Note: Without the built-in heatspreader, the mounting height of the CPU cooler will be slightly reduced, which means that those with an unalterable mounting height can no longer be mounted. It is therefore essential to check before installation that the cooler to be used can also be used at a lower mounting height.
- Type: CPU mounting frame
- Material: anodized aluminum
- Colour: Black
- Only compatible with Intel 9th Gen Desktop Processors (Coffee Lake Refresh)
- Compatible with socket 1151 motherboards

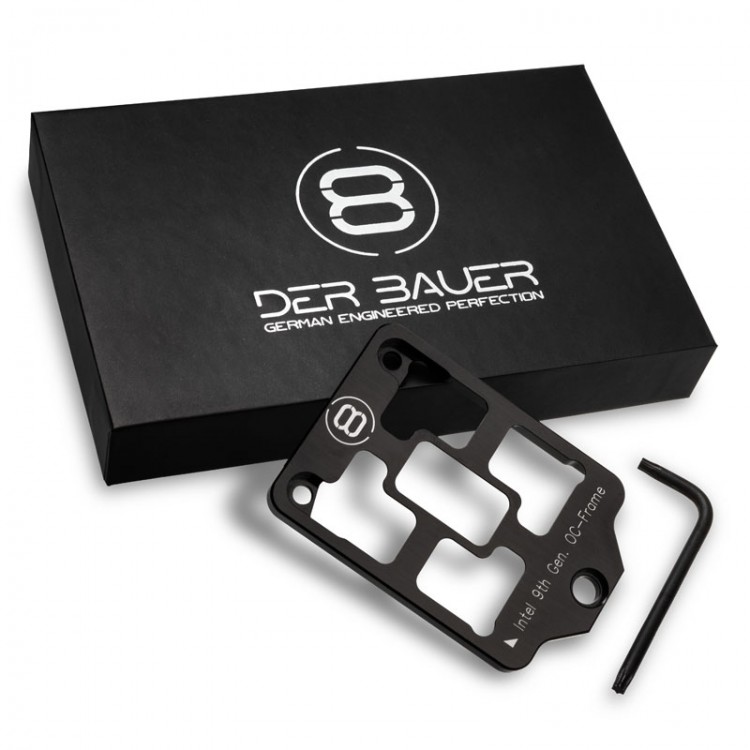

- Delivery : - 1x der8auer 9th-Gen-OC-Frame
- 1x Torx-key
