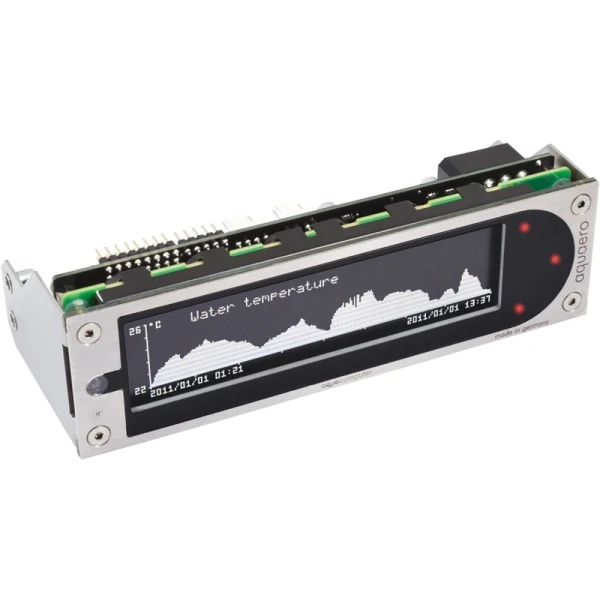

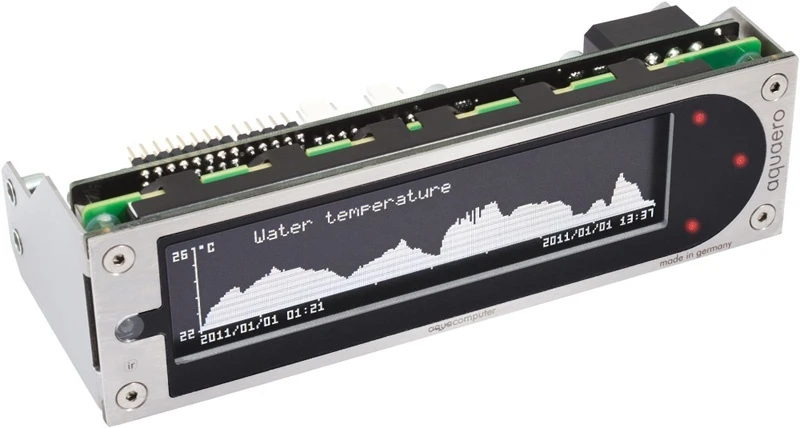

Aquacomputer aquaero 6 XT red USB fan controller, graphic LCD, touch control, IR remote control

The aquaero is an absolutely autonomous working microprocessor-controlled device with USB 2.0 interface. All speed parameters and sensor values can be set and visualized in an user-friendly menu or through an even easier to use PC-software. Additionally, the graphic LC display can be used to display almost any information using the popular LCD software LCDHype.

The key features of the aquaero 6 include:
· Programmable four channel fan controller
· Graphic LC display with backlight
· USB 2.0 and aquabus interface
· Four fan outputs with up to 30 Watt of power per channel
· All fan outputs with 4-Pin plug, switchable to PWM control
· Versatile control options
· Eight temperature sensor inputs
· Flow sensor input

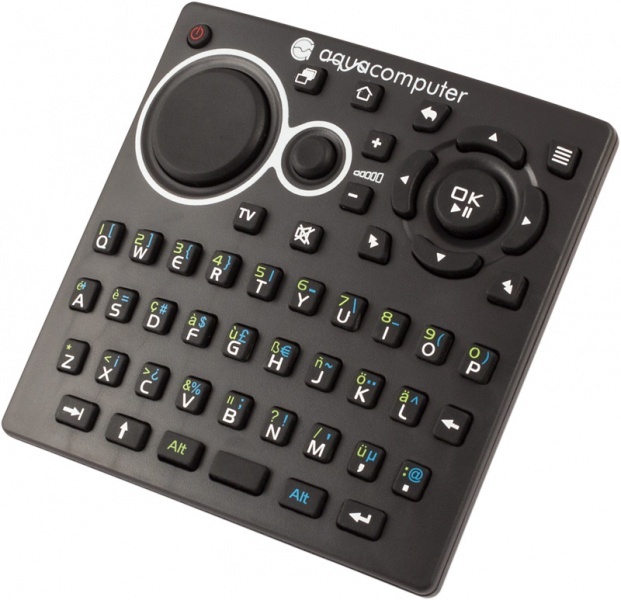

· Universal IR receiver
· Output for IR transmitter
· Three LED outputs
· Potential-free switch
· Two additional power outputs
· Extensive alarm options
· Acoustical alarm
· Speed signal output for status evaluation
· Expandable to a maximum of 12 fan channels

Several aqua computer products can be used to expand the functionality of the aquaero 6 controller. These expansions are dynamically mapped into the menus and display pages of the aquaero, creating a consitent control system rather than individual devices.

In maximum configuration, the following devices can be connected to an aquaero 6 simultaneously:
Two aquastream XT pumps
Eight poweradjust 2 controllers
Four mps-based devices (flow sensor, pressure/fill level sensor and D5 pump with aquabus)
One tubemeter
Two multiswitches

Scope of delivery:
- aquaero 6 XT controller
- four temperature sensors, length approx. 70 cm
- one internal USB cable, length approx. 100 cm
- one connection cable for speed signal or aquabus
- manual
- mounting material for installation into a free extension bay

Differences between Aquaero 5 and 6
- switching controllers instead of analog voltage regulators
- power of 30W per channel without any form of cooling, 36W with optional waterblock (not available yet)
- no more overheating when you slow down the speed (becomes even colder in this case)
- all fan channels as 4-pin PWM

Well, that is it - or at least what is visible to the customer :) For further small details you can read the announcement:
http://forum.aquacomputer.de/weitere-foren/english-forum/103573-new-aquaero-6/

UWAGA

Urządzenie po podłączeniu do komputera i uruchomieniu dedykowanego oprogramowania Aquacomputer Aquasuit, automtycznie się aktywuje.

Aktywacja rozpoczyna okres  wsparcia technicznego ( licencję na Aqusuit) oraz gwarancję.
