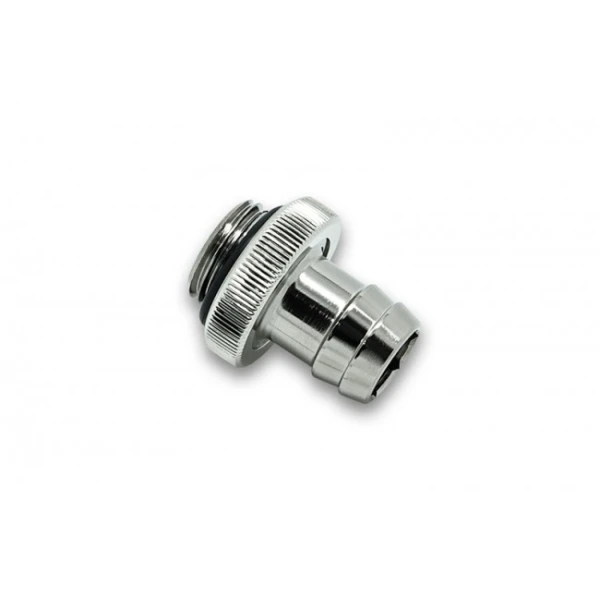

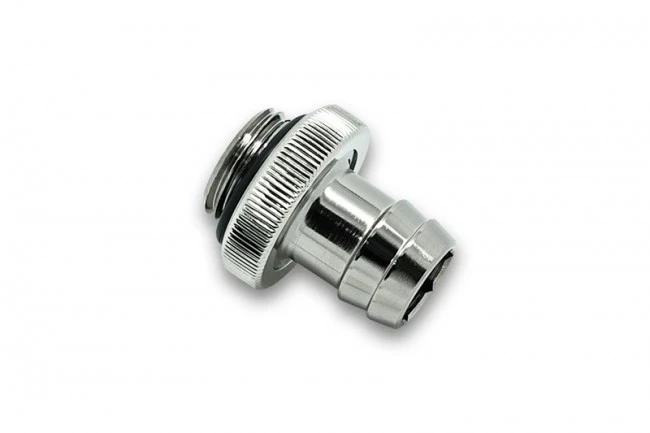

EK Water Blocks EK-HFB Fitting 10mm - Nickel

EK-HFB Fitting (High Flow Barb) is a soft-tube barb fitting, designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.



EK-HFB Fitting is a stylish looking variant of the classic high flow barb fitting and requires the use of hose clamps or similiar substitute for safest operation.



The barb is made from nickel-plated CNC machined brass with quality O-rings while the ring is made from CNC machined aluminium. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.



These fittings can be either tightened by hand or by using Allen Key 8mm (not included, available for separate purchase).



- thread: G1/4" BSP; 4.5mm male thread lenght

- supported tube: 10mm (ID; roughly equalls 3/8" ID)

- outer diameter of the tube: unlimited

- outer diameter of a fitting: 19.8mm

- installed height: 19mm

- compatible tubing: PVC, EPDM, Norprene, silicone, most types of flexible tube



ROHS 2.0 Compliant!



Made in Slovenia - Europe!



- This fitting is to be used only with correctly sized tubing!

- Do not use excessive force when attaching fitting barbs using Allen Key 8mm in order to prevent water block damage!

- Use appropriate hose clamp or substitute to secure tubing to the barb!
