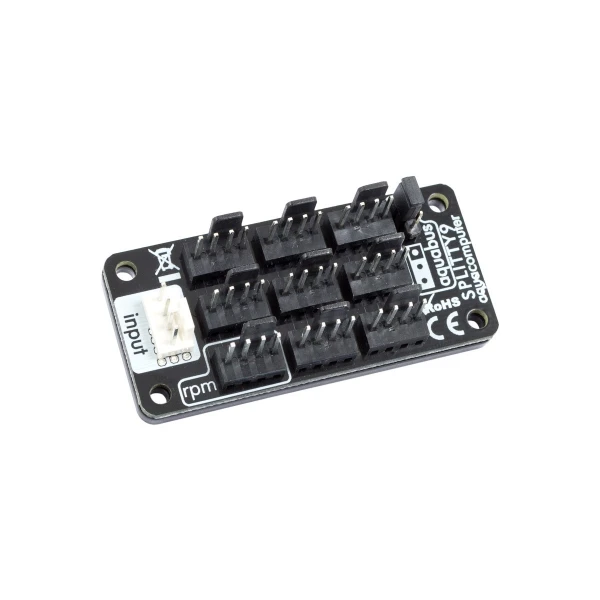

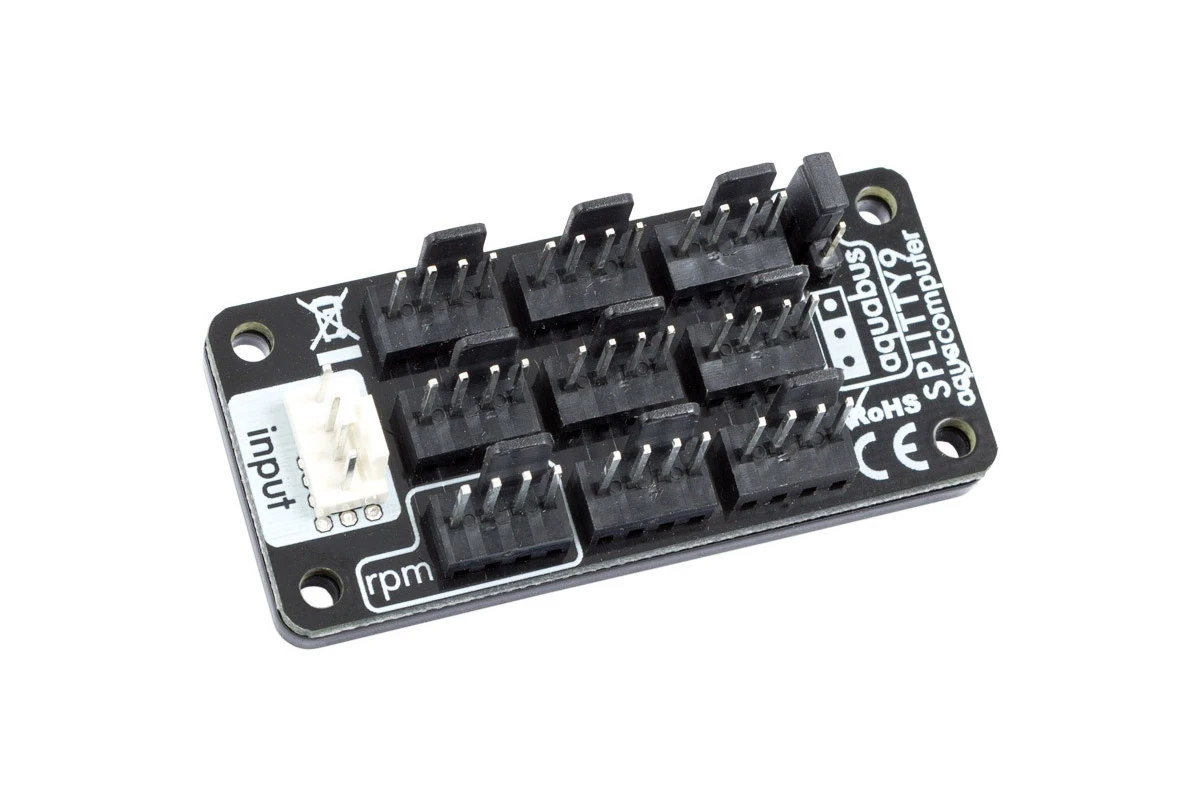

Aquacomputer SPLITTY9 splitter for up to 9 fans or aquabus devices

Splitty9 is a universal ninefold splitter and can be used for 3-pin fans, 4-pin PWM fans or as an aquabus splitter.

When used with a fan output, the white connector marked with the word "input" is connected to a fan output using the supplied cable. Power supply and PWM signal (if available) are provided to all nine black connectors, additionally the speed signal received from the connector marked "rpm" is forwarded to the fan output.

When used as aquabus splitter, the white connector marked with the word "input" is connected to the aquabus connector of an aquaero using the supplied cable. By setting the jumper to the "aquabus" position, all four aquabus signal lines are forwarded to all black connectors. The splitter can be used for 4-pin as well as 3-pin aquabus devices.

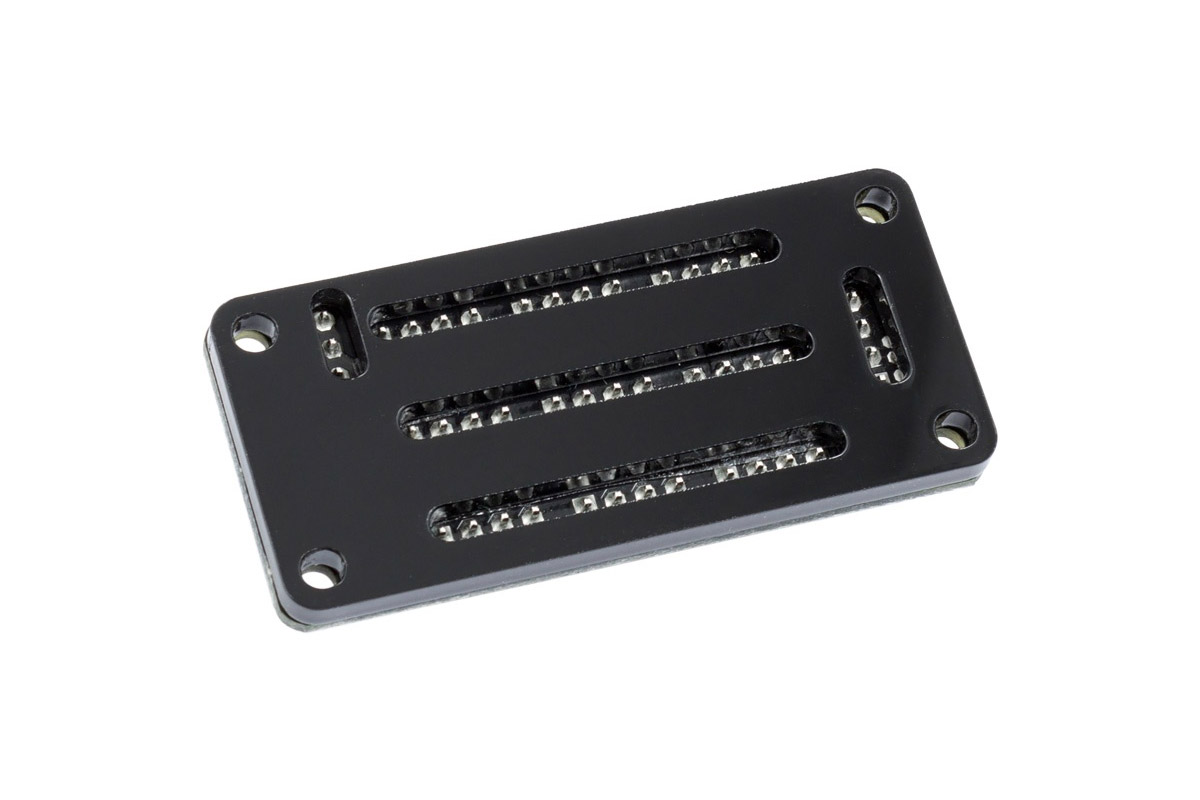

A self-adhesive hook-and-loop strip is included for easy installation, alternatively four mounting holes can be used.



Maximum current: 5 A

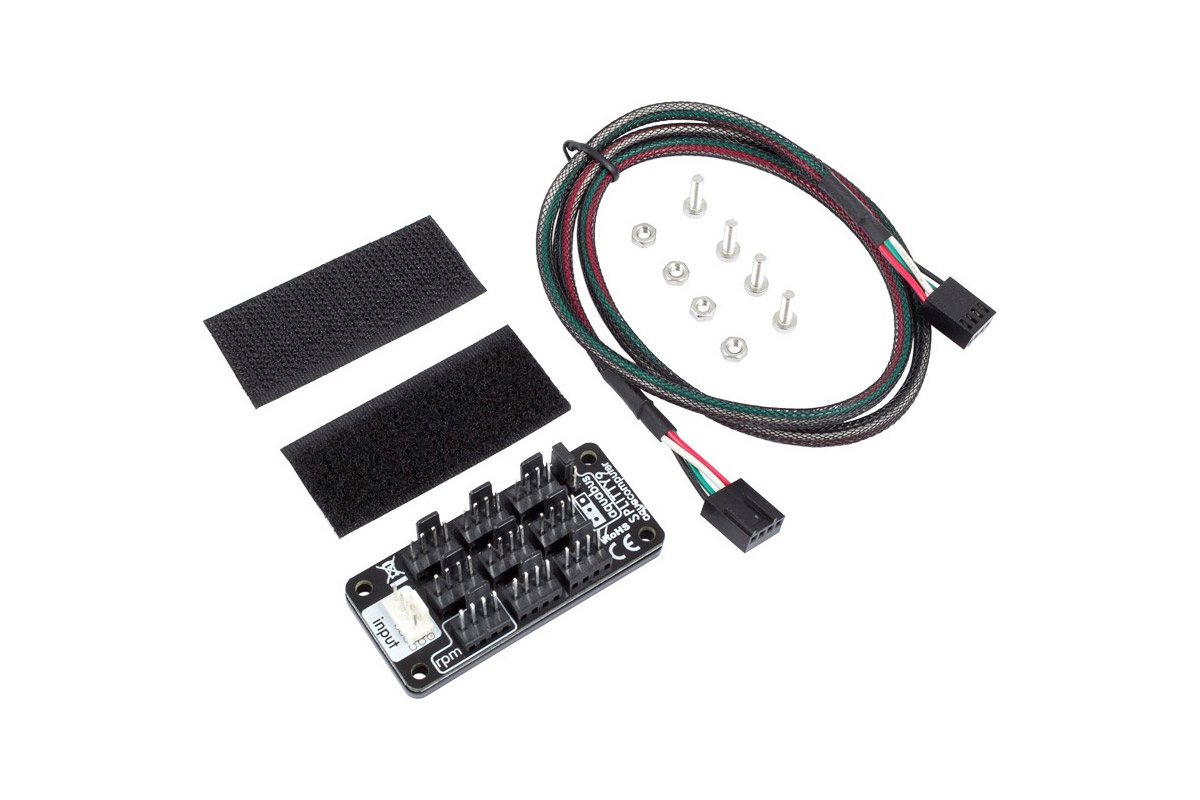

One splitter

One 4-pin cable, total length 70 cm

Self-adhesive hook-and-loop fastening strip

Mounting material
