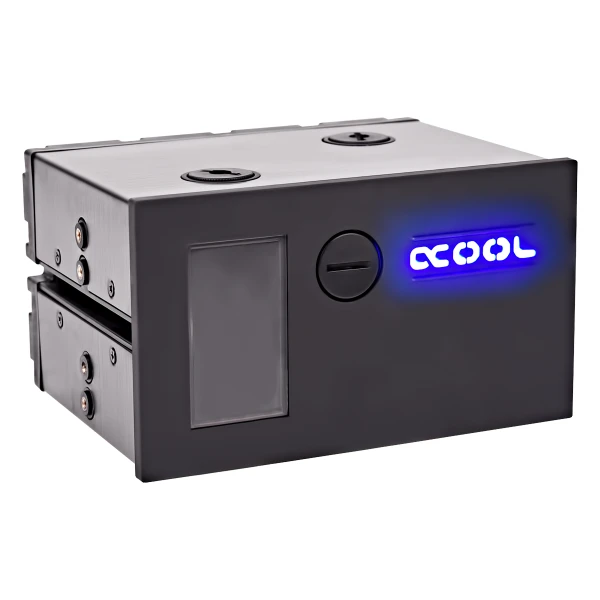

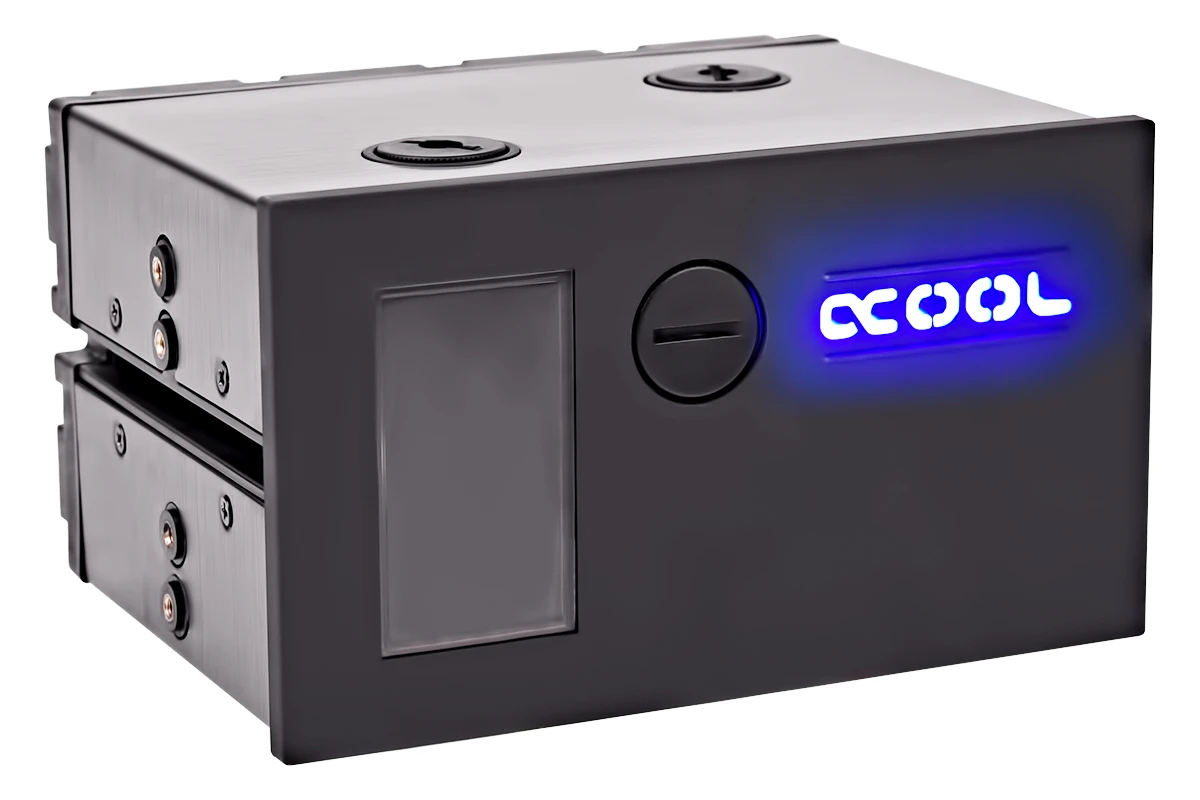

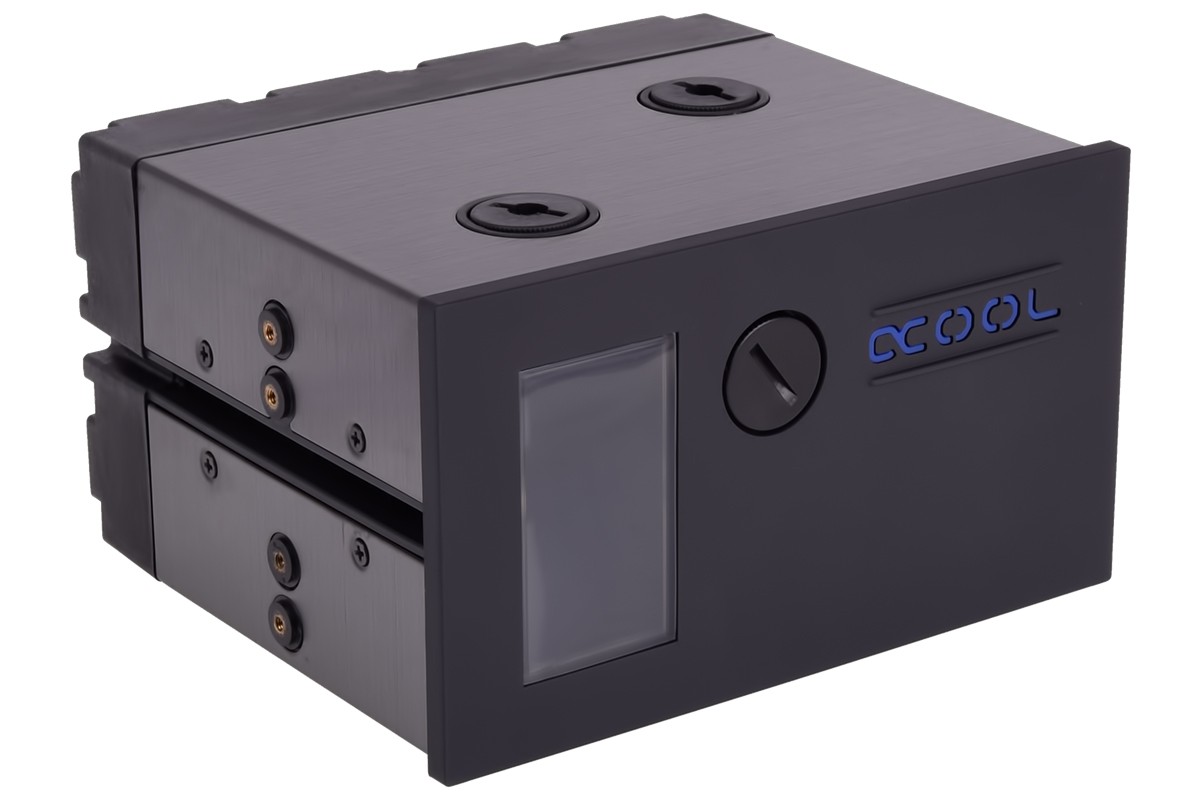

Alphacool Eisfach - Single Laing D5 incl. Alphacool ice pump VPP Apex

Alphacool Eisfach - Single Laing D5 incl. Alphacool ice pump VPP Apex

Brak ocen

Producent: Alphacool
Kod producenta: 13304
Kod EAN: 4250197133043
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

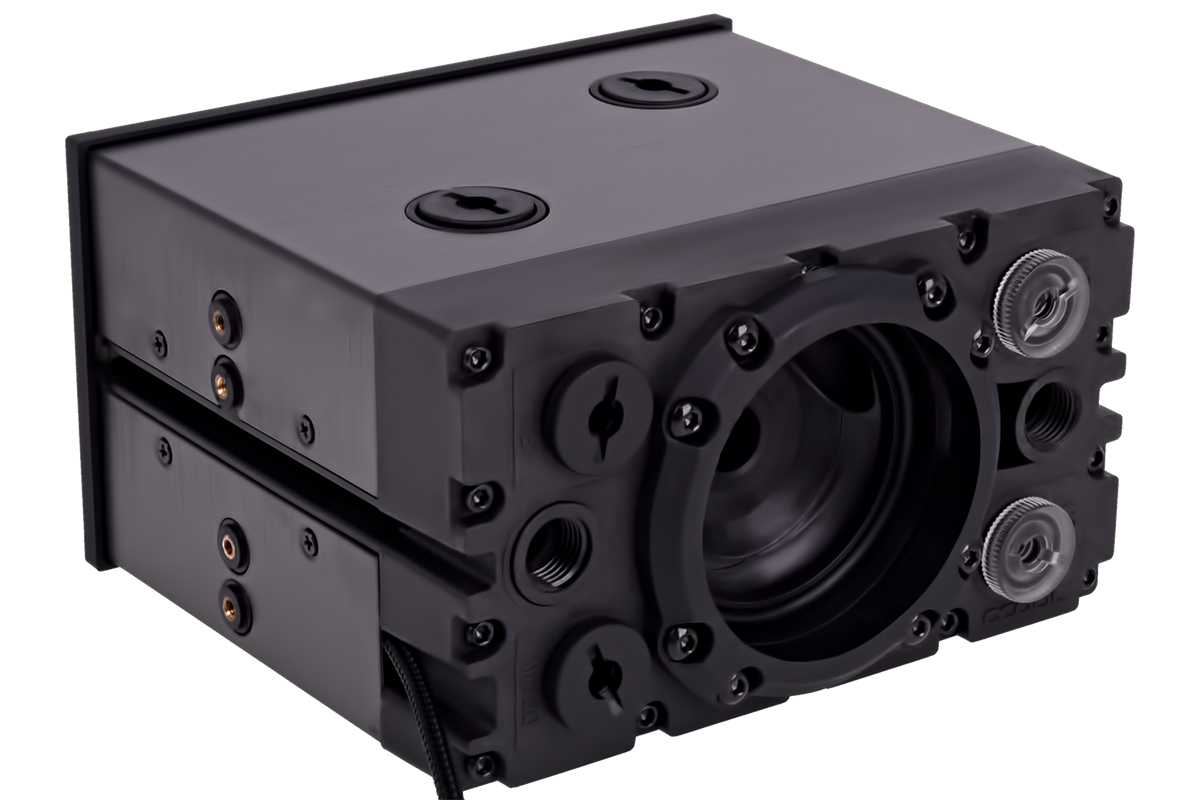

Eisfach Technical Specifications

Material: plastic, metal
Colour: black
Dimensions (LxWxH): 148 x 132 x 84.5mm
Connection threads: 10x 1/4"
Lighting: 2x 5mm LED

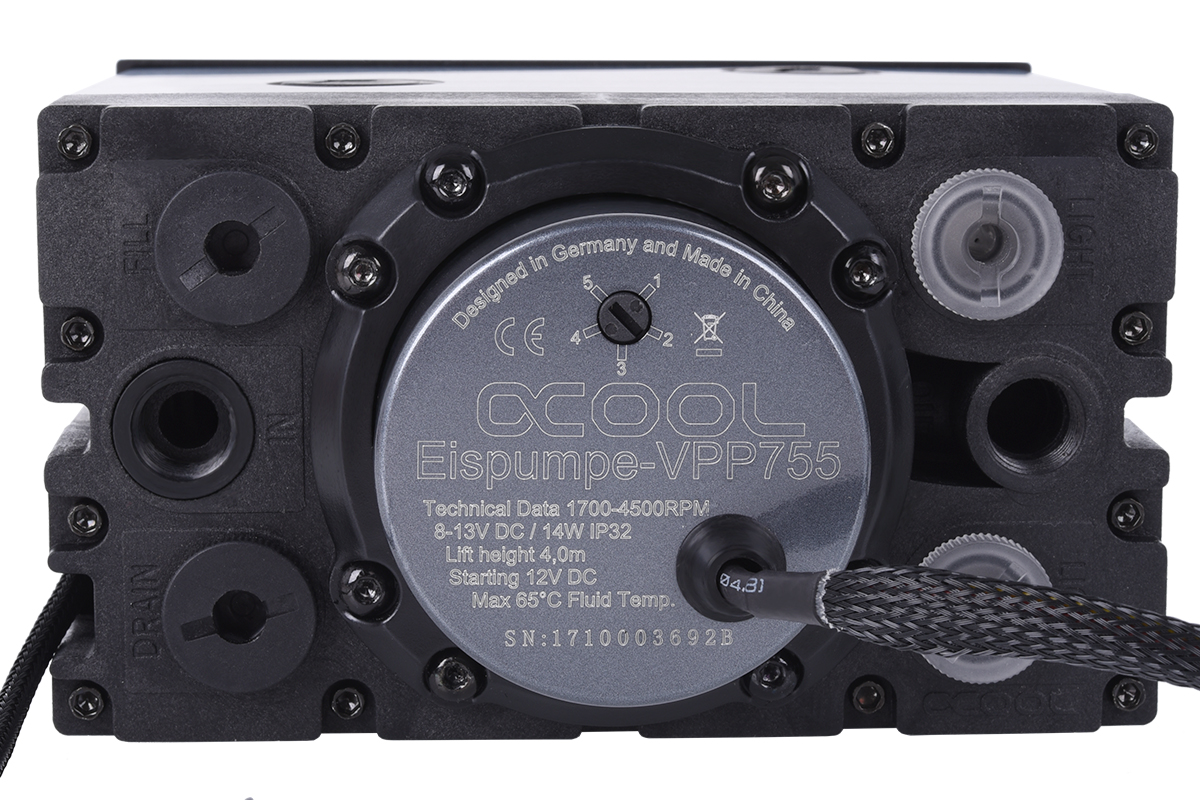

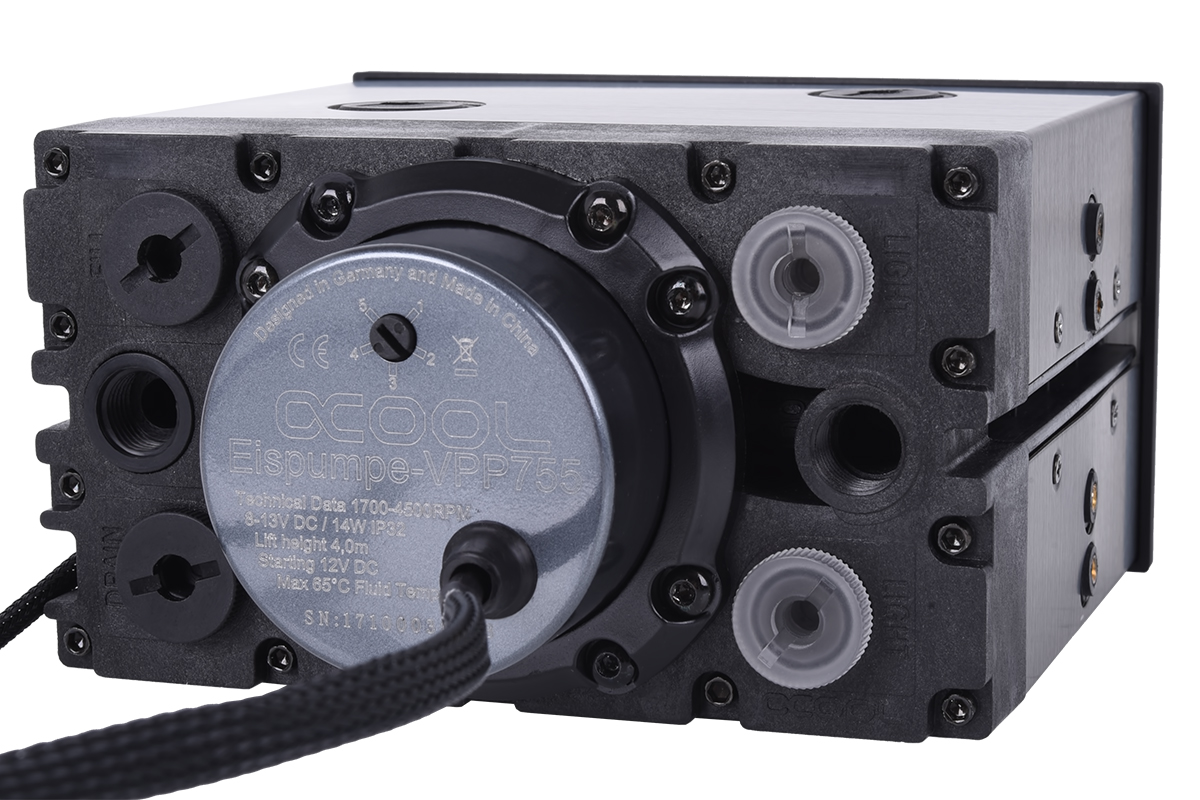

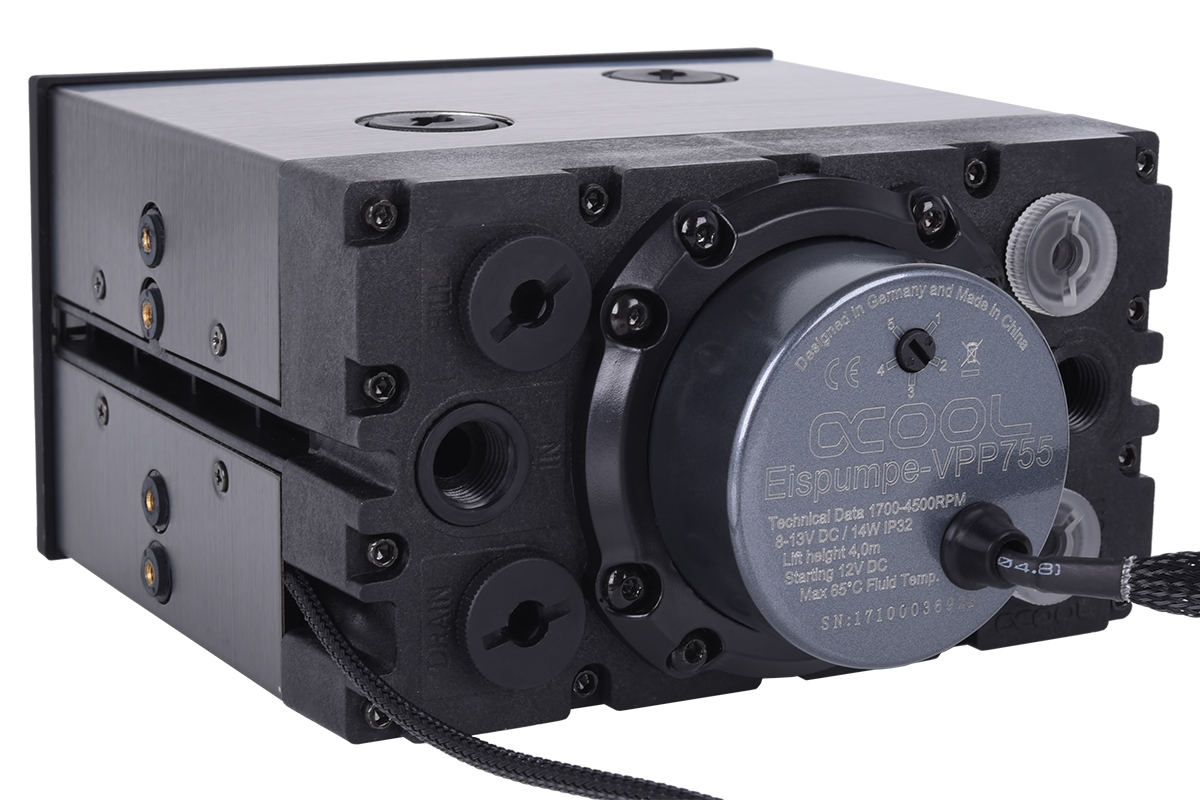

Eispump Technical Specifications

Dimensions (DxH): 60 x 53.5mm
Cable length: 50cm
Standard voltage: 12V DC
Power consumption: 14W
Permitted voltage: 8-13V DC
Pressure at 12V: 4m water head
Maximum flow rate: 350l/h
Pump medium: water, water/glycol mixture
Maximum system temperature: 65ºC
Power connection: 4-pin molex
Tach signal: 3-pin
PWM signal: 4-pin
Special feature: adjustable in five levels
- Level 1: 1800 RPM
- Level 2: 2500 RPM
- Level 3: 3200 RPM
- Level 4: 3900 RPM
- Level 5: 4500 RPM

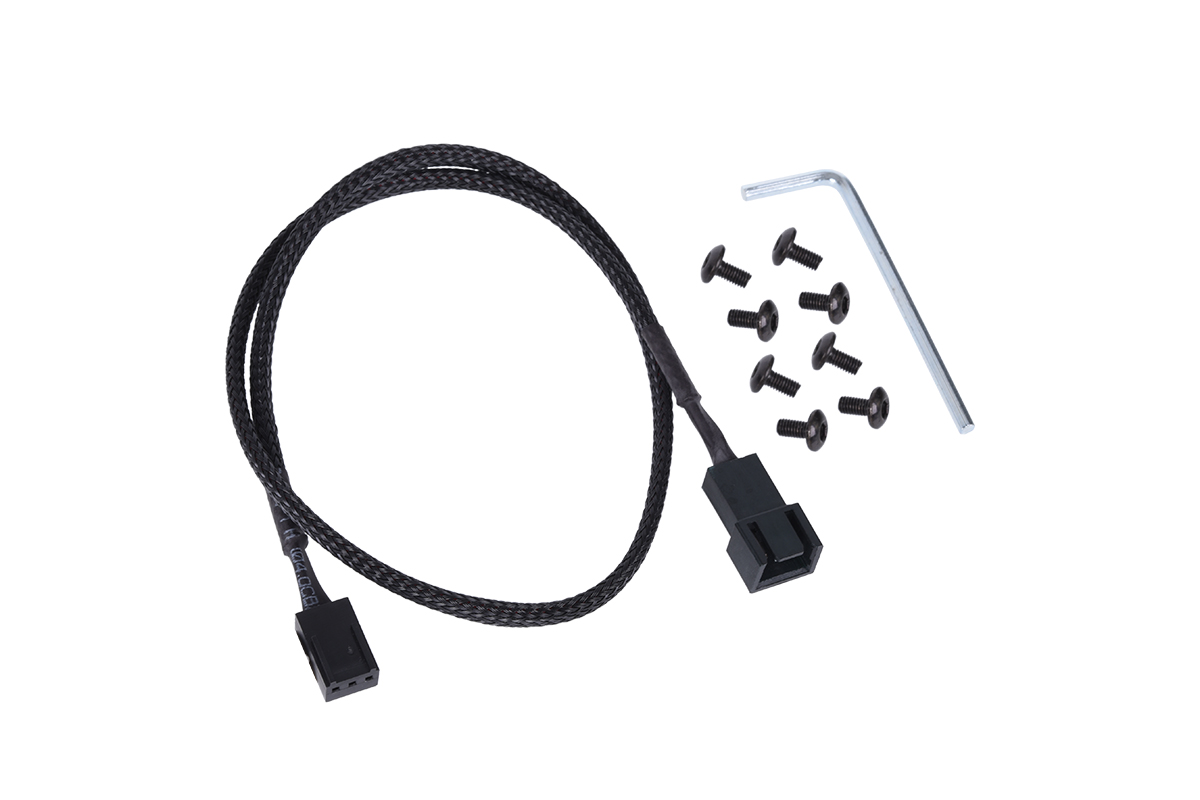

Scope of Delivery

1x Alphacool Eisfach - Single Laing D5 incl. Alphacool Eispump APEX

CAUTION

Removing the impeller from the ceramic shaft will cause the upper ceramic clamping ring to over-expand, which will destroy it! Removal will void the pump’s warranty!

If the pump is put together again and put back into operation, the clamping ring will loosen, which is not accepted as grounds for a return or exchange...
