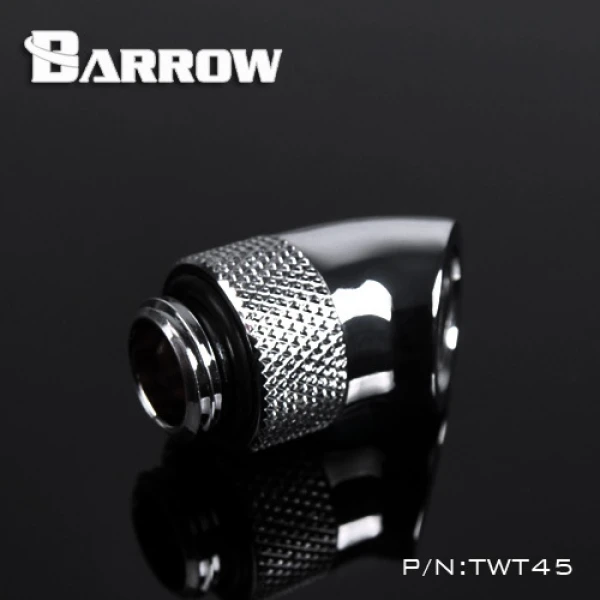

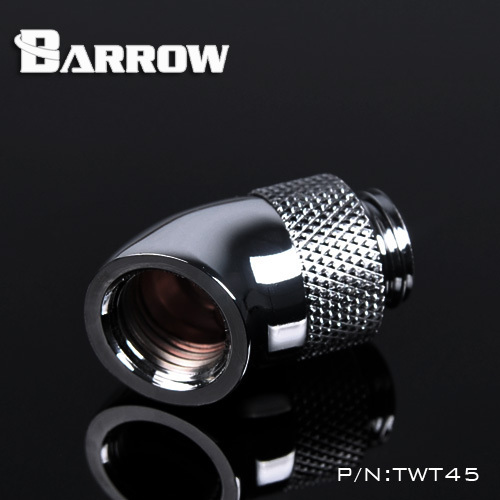

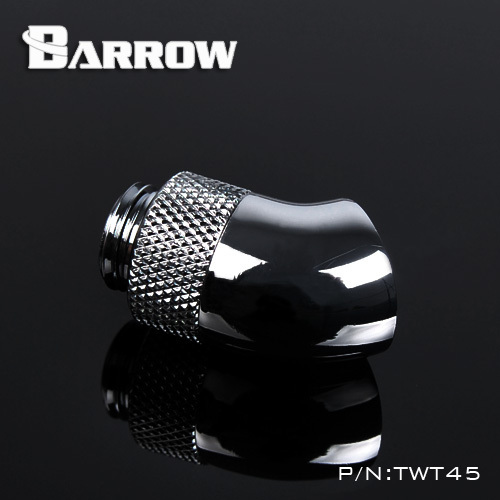

Barrow G1/4" 45 Degree Rotary Adaptor Fitting silver nickel

This adapter offers both a male and a female G1/4'' thread. All Barrow fittings can be screwed into the 5mm deep internal thread to form a safe and leak free angled fitting. The male thread is a rotary thread, so the adapter can be positioned facing any direction. Together with the complex Barrow snake adapters, every desired tubing option can even be mastered in very tight spaces.

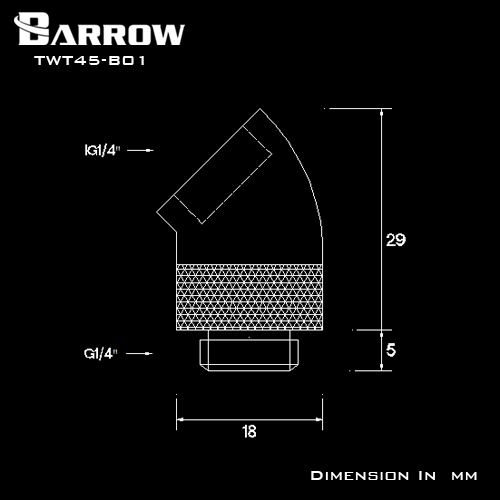

• Threads: 2x G1/4“
• Thread length: 5mm
• Height without thread: 29 mm
• Outer diameter: 18mm
• Material: Nickel plated brass
