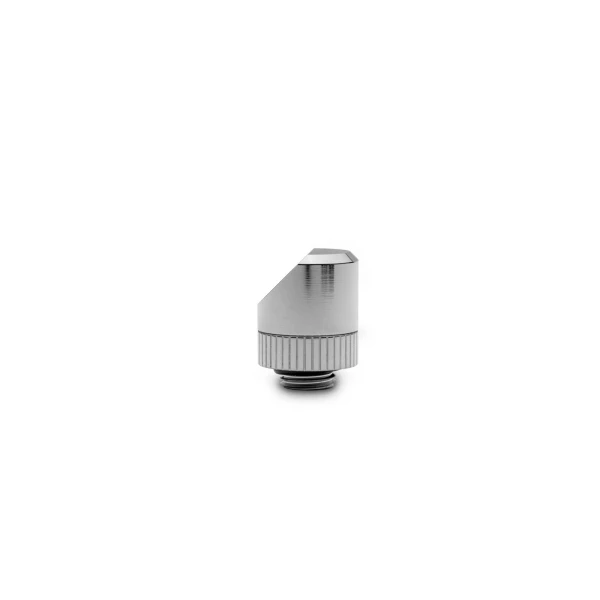

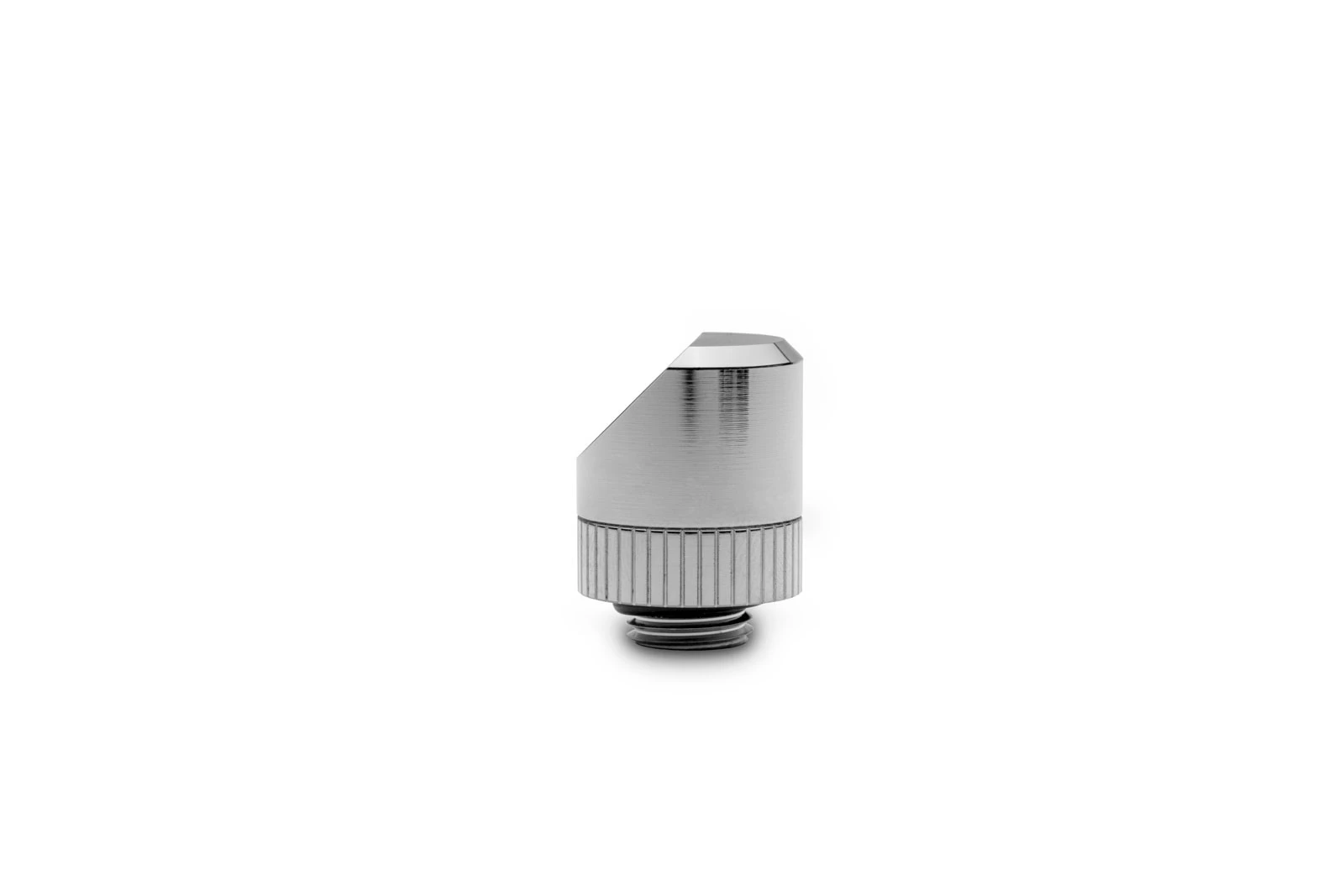

EK Water Blocks EK-Torque Angled 45° - Nickel

EK-Torque (Adapter Fitting) - Nickel is a revolvable angled (45°) adapter fitting with G1/4" threads. In the form of a cut-off cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Nickel finish while the seal is made by quality rubber O-rings. It is an extremely secure and sturdy piece that will last for many future builds.



The adapter allows for connection of fitting with G1/4" threads to extend tubing possibilities in your water cooled system allowing for easier bends and better accessibility.



- Material: made of nickel plated brass

- Threads:

   * G1/4" BSP; 4,5mm male thread length

   * G1/4" BSP, 6mm female thread length

- The outer diameter: 23mm

- Installed height: 26mm

- Sealed with high-quality NBR o-ring.



ROHS compliant!
