Aquacomputer airplex GIGANT 3360 with aquaero 6 PRO, copper fins
- Producent: Aqua Computer
- Kod producenta: 33308
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Cechy produktu
-
Kolor:
Srebrny

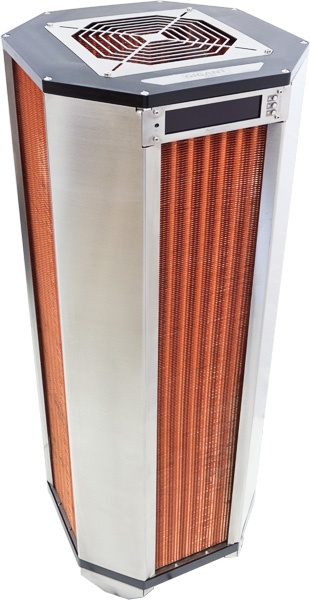

The airplex GIGANT series shows similarities to the renowned airplex modularity system series, but the airplex GIGANT series readiators are designed as stand-alone devices and offer a much higher cooling capacity. The airplex GIGANT series is perfectly suited for fanless (and threrefore noiseless) operation, installation of fans will unleash its immense cooling capacity. One 170-180 mm fan can be installed into the top cover of the radiator as well as into the base, alternatively 140 mm fans can be installed directly in front of the fins using optonal fan rails (not included in delivery) to further increase the cooling capacity.

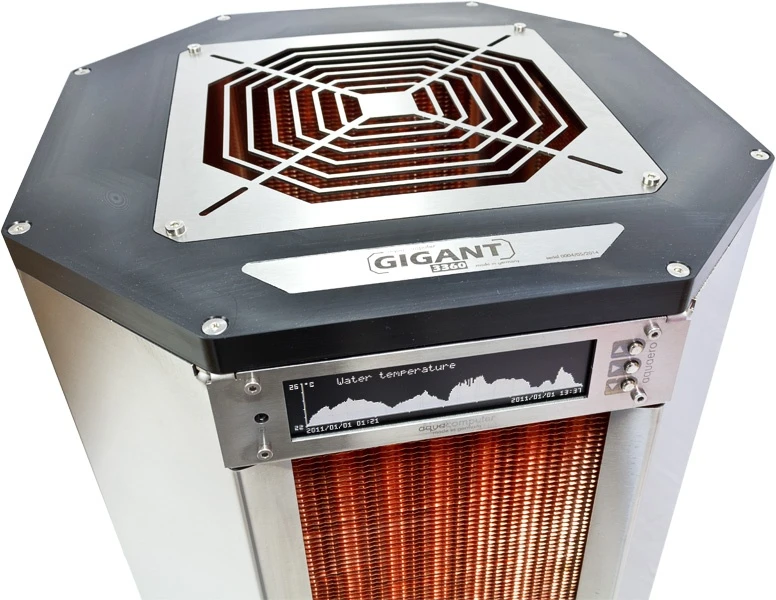

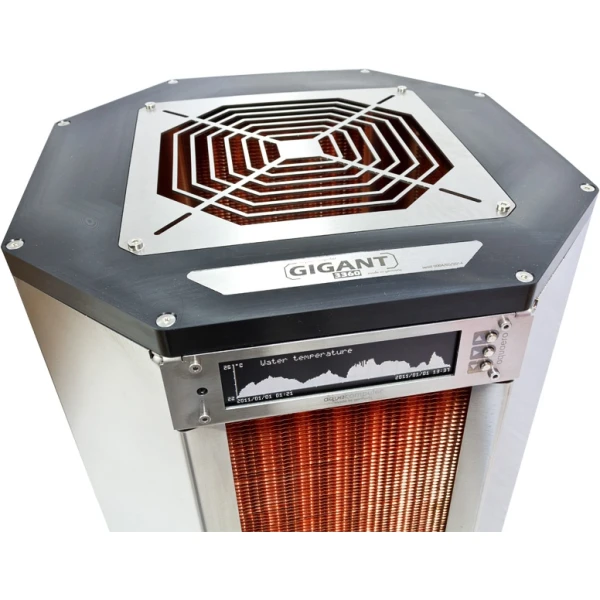

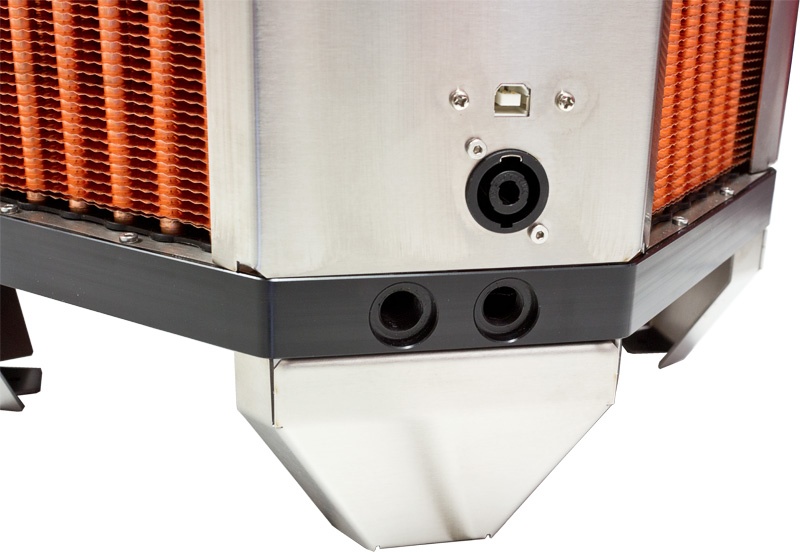

This model is equipped with an aquaero 6 PRO which is installed in the upper front of the airplex GIGANT. Connectors for power supply and USB are integrated into one of the rear stainless steel panels, cables for PC connection are included in delivery.
The key features of the aquaero 6 PRO include:
· Programmable four channel fan controller
· Graphic LC display with backlight
· USB 2.0 and aquabus interface
· Four fan outputs with up to 30 Watt of power per channel
· All fan outputs with 4-Pin plug, switchable between voltage and PWM control
· Eight temperature sensor inputs
· Flow sensor input
· Universal IR receiver
· Three LED outputs
· Extensive alarm options
· Acoustical alarm
· Expandable to a maximum of 12 fan channels
Key features of the airplex GIGANT series:
- extremely large fin surface
- fin spacing optimized for low air flow and excellent passive cooling capacity
- removable side covers made from stainless steel for easy cleaning
- internal ports inside the radiator can for example be used to install a reservoir inside the radiator
- no welding residues in the water circuit (since no welding is done during production)
- flexible fan installation options
- low flow resistance
- approved for a pressure of up to 0.8 bar
Technical details:
Connection threads: G1/4
Dimensions: ca. 310 x 310 x 960 mm
Weight: 20.4 kg
Scope of delivery:
One radiator (ready for connection)
One power supply cable, length approx. 2 m
One USB cable, length approx. 1.8 m
Four temperature sensors, length approx. 70 cm
Individual name engraving an the type plate available:
As a special service for our airplex GIGANT customers, the radiators can be manufactured with an additional engraving on the type plate free of charge. In order to benefit from this offer, Aqua Computer has to receive your desired text prior to production of the radiator. Special engraving is not possible once the radiator has been manufactured. During the checkout process, please use the annotations field to input your desired text (your name, call sign or nickname). Otherwise, each radiator will be equipped with a standard type plate.
Radiators with special engravings are exempt from returns and refunds and may require some extra time for production.
Notes on the aquasuite software:
When you activate this product you will receive the current version of the aquasuite software including an upgrade service for at least eighteen (18) months. After the expiration of the upgrade service you may use and reinstall the latest version available during the upgrade period without a time limit.
The update service can optionally be extended or renewed at any time for a fee.
Please note that an internet connection is required for the installation and activation of the aquasuite software.
Further information about the update service and the activation of the aquasuite software can be found here.
