Alphacool Eisstation 40 DC-LT - reservoir

Alphacool Eisstation 40 DC-LT - reservoir

Brak ocen

Producent: Alphacool
Kod producenta: 15369
Kod EAN: 4250197153690
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

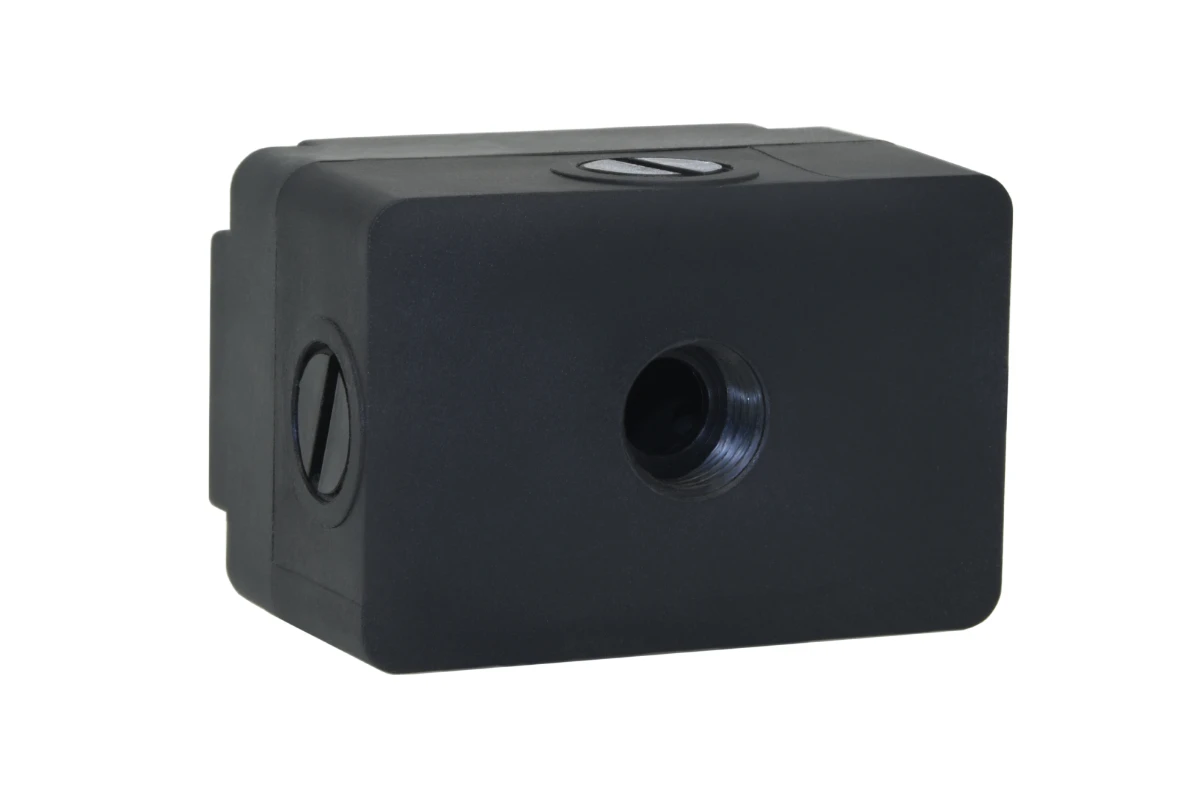

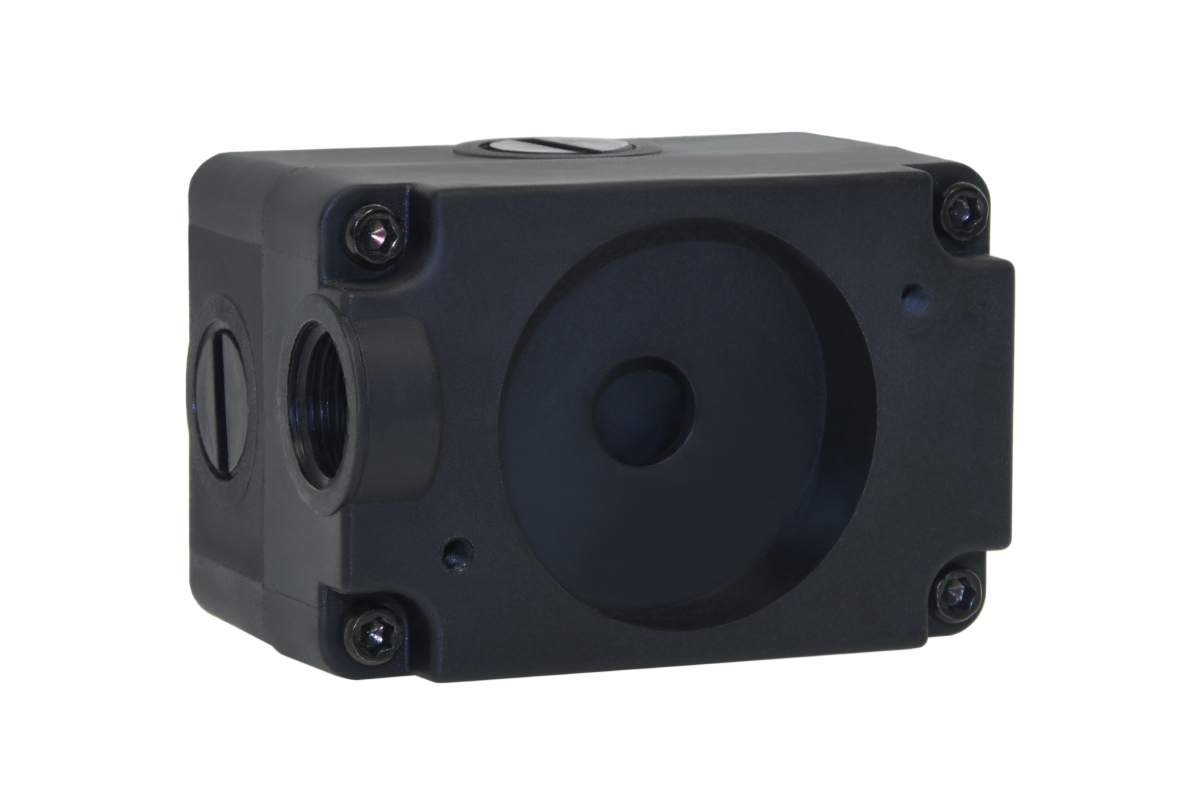

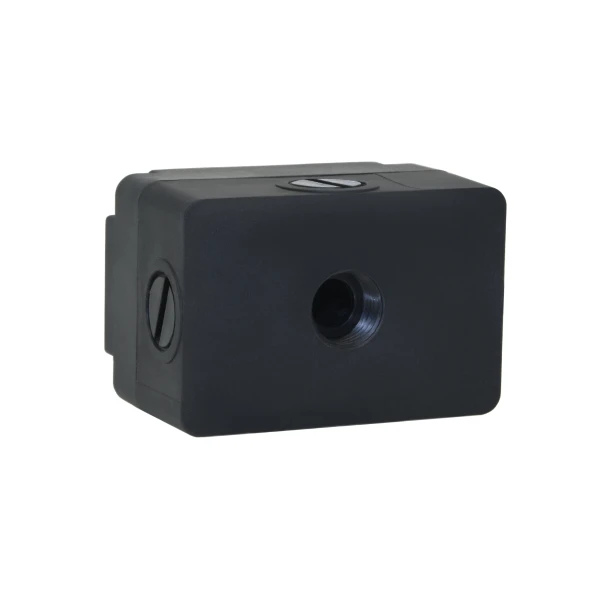

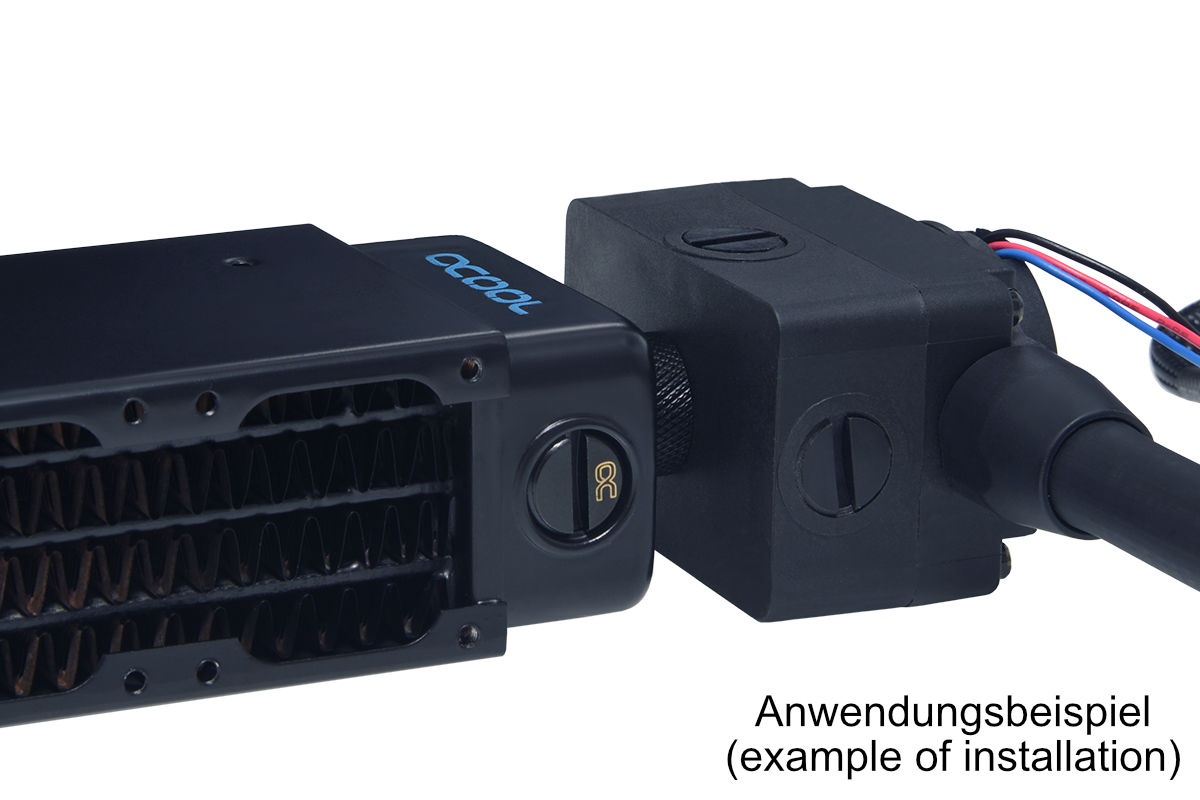

The Eisstation 40 DC-LT of the Enterprise Solutions series corresponds to the above Solo Top and is therefore also extremely compact. This however comes with a reservoir. It also fits into 1U server racks but can also be mounted directly on a radiator. Together the Solo Top and reservoir are only 6 cm long, 4 cm wide and 4.1 cm high. That's why it also fits on a 40 mm Alphacool X-Flow NexXxoS radiator. Despite its size, just under 30 ml of coolant still fits inside and since it can be connected directly to a radiator, it too acts as a reservoir. As with the Solo Top, the filter prevents air bubbles from entering the pump. The included double nipple allows the Eisstation to be connected directly to one of the four G1/4" threads at the side or front entrance of the radiator. The Eisstation, together with a NexXxoS 40 mm X-Flow radiator fits easily into a 1U server housing.

Eisstation 40 DC-LT

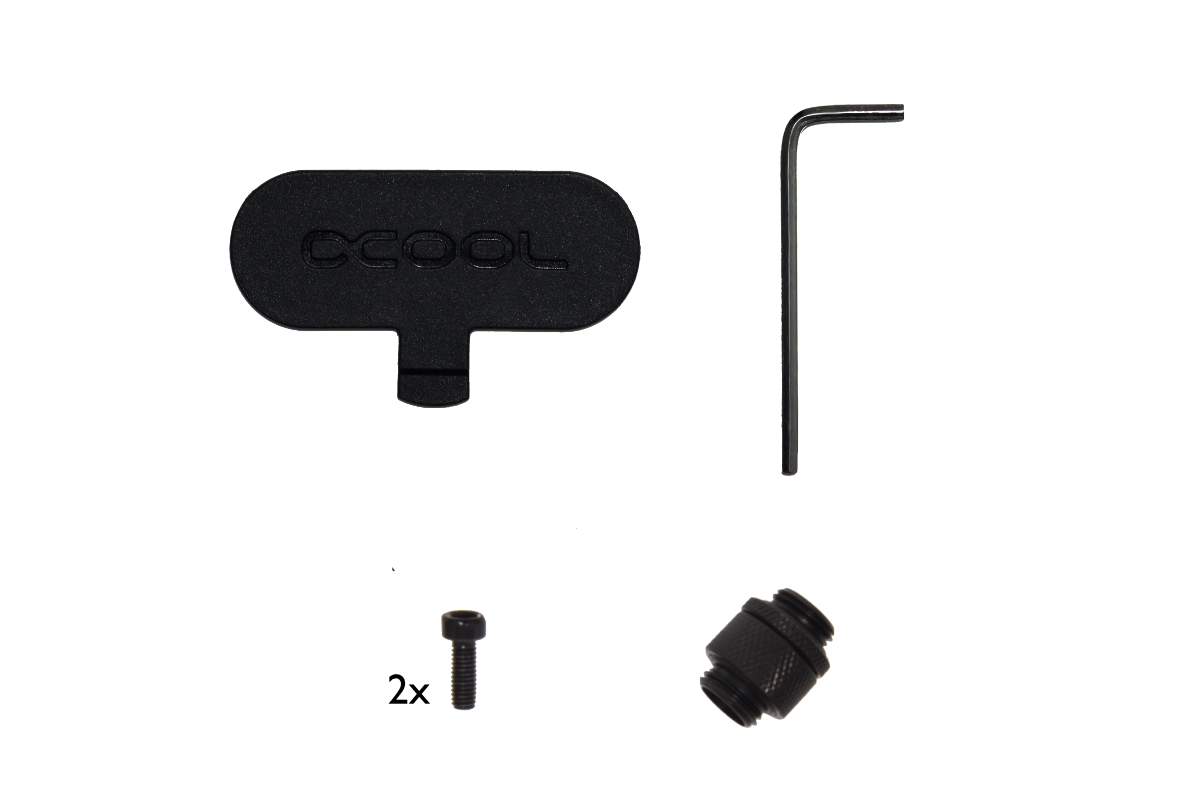

Scope of delivery:

1x Pump top
3x Stop Fitting
2x M3x8 screws
1x Stop Fitting - Tool
1x Hexagon key
1x Adapter (2x G1/4'' external thread, rotatable)

Technical Data:

Dimensions: 60 x 40 x 40,48 mm (W x D x H)
Net weight: 61 g
Maximum working temperature: 60 °C
Connections: 5x G1/4"
Pressure tested: 1.5 Bar
Certificates: CE, FC, ROHS

Information & Assembly instructions EN (See page 3 for manual.)
