EK Water Blocks EK-Quantum Torque HDC 12 - Satin Titanium

EK Water Blocks EK-Quantum Torque HDC 12 - Satin Titanium

Brak ocen

Producent: EK Waterblocks
Kod producenta: 3831109823781
Kod EAN: 3831109823781
Gwarancja: 24 miesiące

Dostępność:

Dostępne

Dostępna ilość:

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Cechy produktu

Kolor:

Satin Titanium
Kształt:

prosta
Strona A:

G1/4"
Strona B:

HT12

Cechy produktu

Typ

G-HT

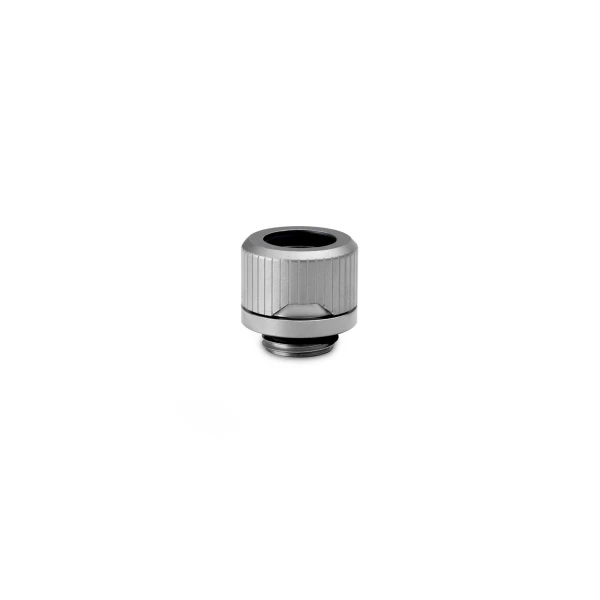

EK-Quantum Torque HDC 12 fittings are EK's new minimalistic 12mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.

EK-Quantum Torque Satin Titanium

The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.

The fitting barb and the compression rings are covered with a unique, high-quality satin silver finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings. Satin Titanium EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.

EK-Quantum Torque Satin Titanium Color Rings

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products!

These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.

Technical data:
- Material: Brass
- Finish: Satin Silver
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel

Made in Europe - Slovenia!

PLEASE NOTE:

Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
Do not use excessive force when inserting solid tube!
Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
It is mandatory to use a chamfer tool on the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage.
This product should NOT be installed with any aluminum Fluid Gaming parts!
EK strongly recommends the use of PETG inserts with the use of PETG tubes.
Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
The aesthetic rings are sold separately.
