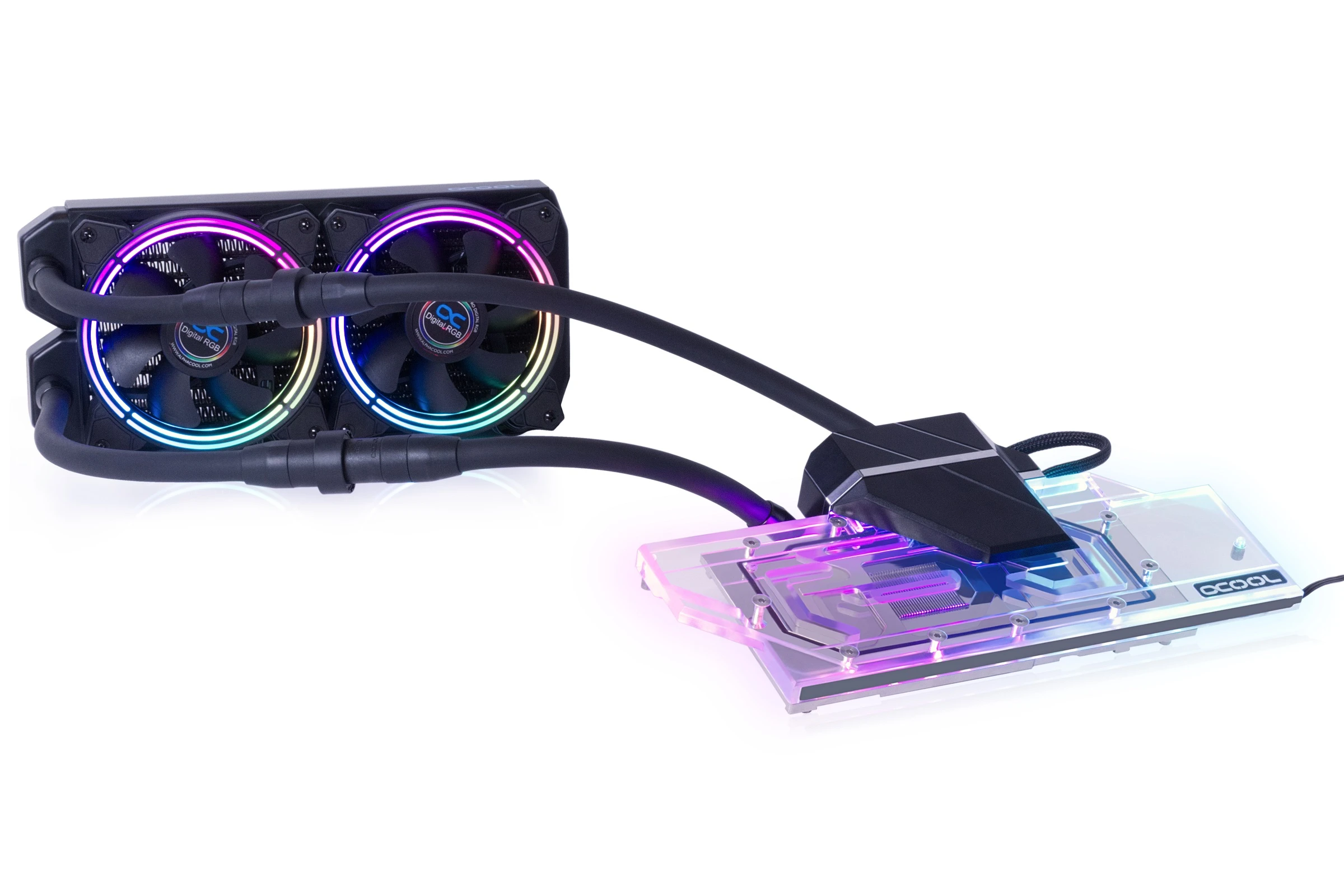

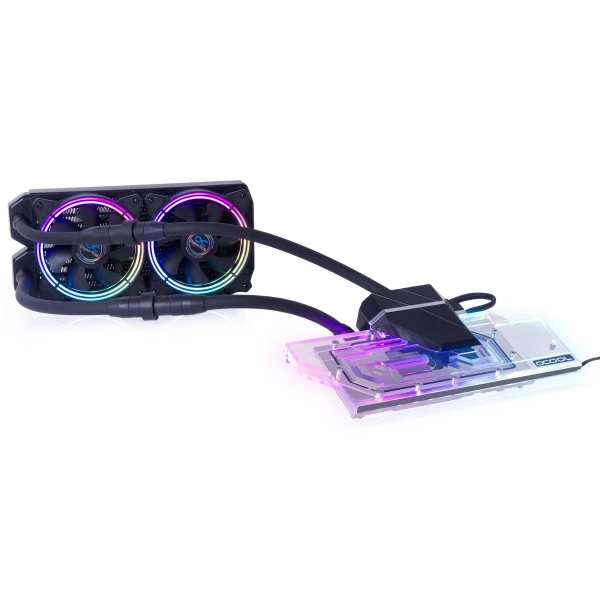

The Alphacool Eiswolf 2 is the first full cover GPU AIO waterblock from Alphacool. It is based on the Alphacool GPX Eisblock Aurora GPX water block, a pump unit and a 240mm NexXxoS ST30 full copper radiator. The latter is equipped with the Alphacool Lux Pro Digital RGB fans.

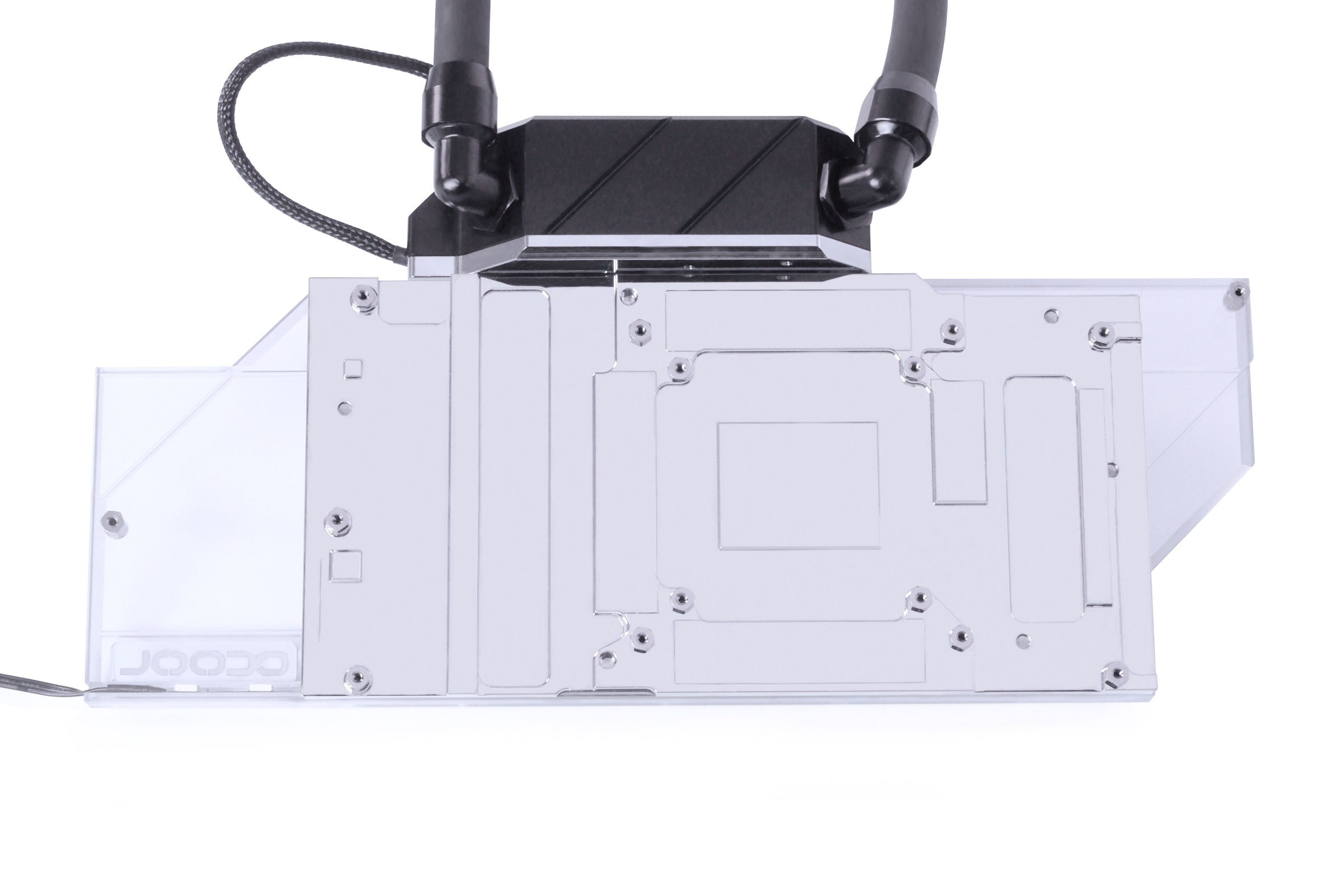

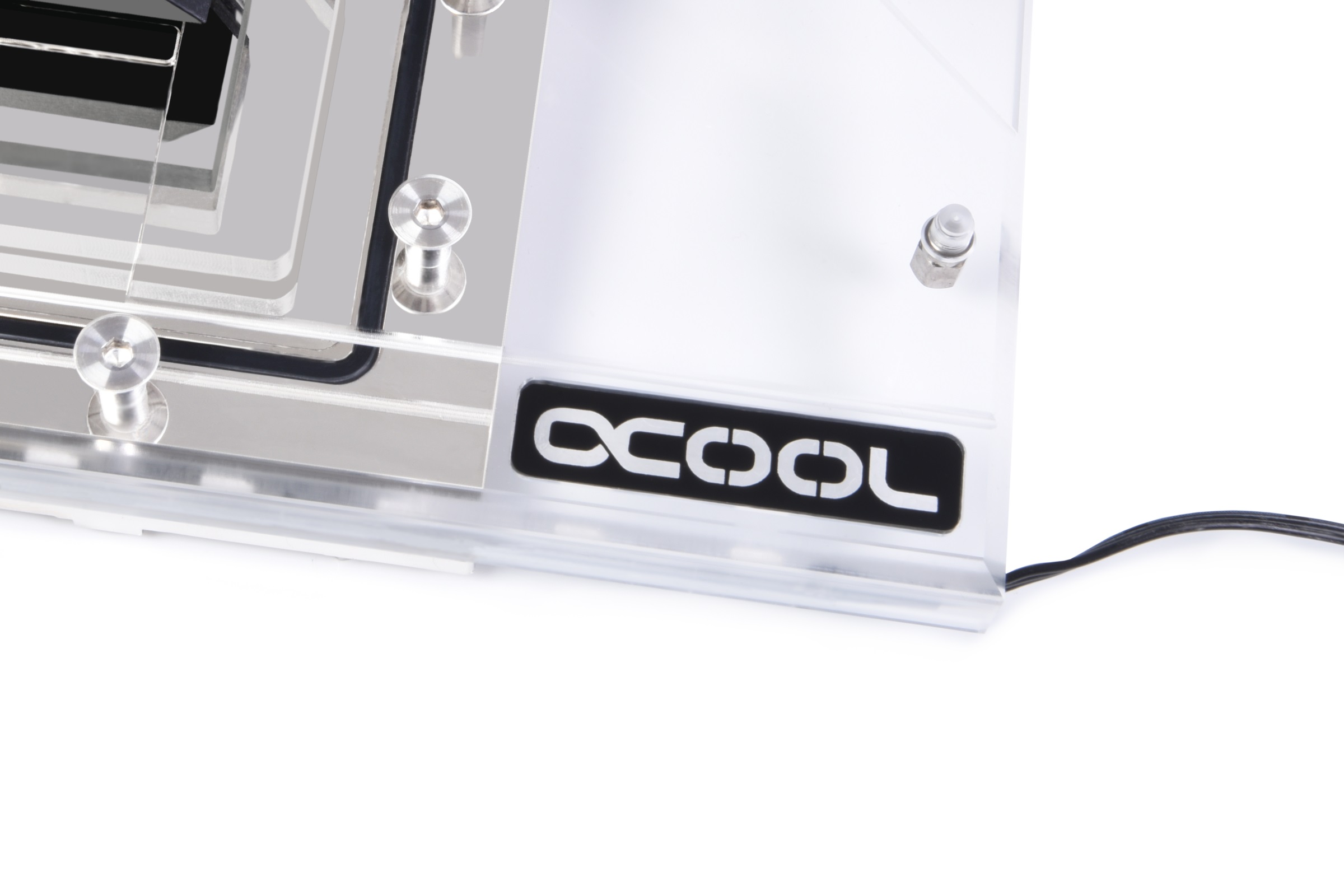

The Eiswolf 2 graphics card AIO water block not only cools the GPU with liquid but also all relevant components that require active cooling. This includes the graphics memory, the VRM and, if necessary, other components that require direct cooling. By using the Eisblock GPX Aurora water cooler, the cooling capacity is identical to that of a DIY graphics card water cooler.

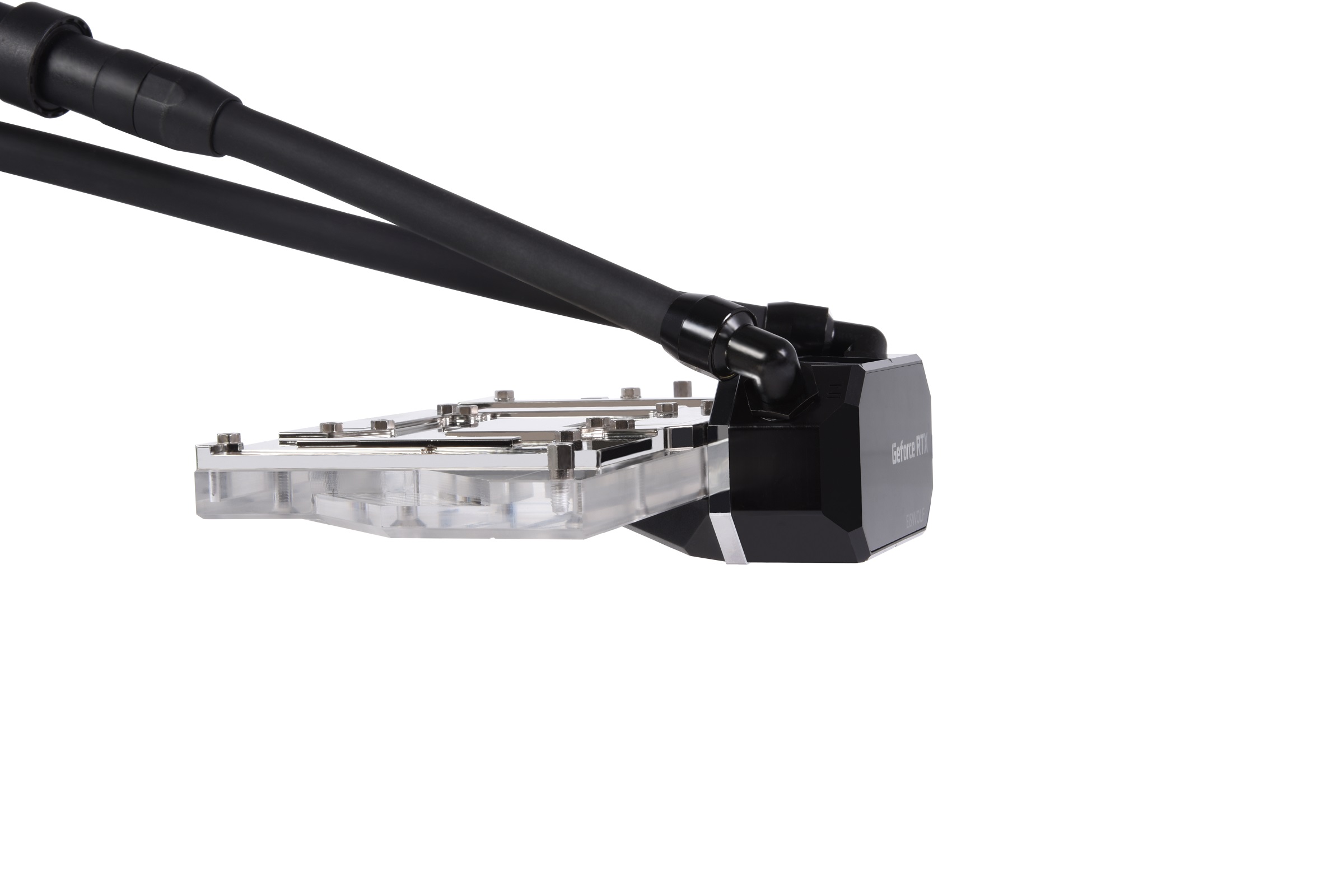

The Eiswolf 2 has a pump unit in place of the normal connection terminal. This pump unit houses the DC-LT 2 pump. An improved and quieter version of the well-known DC-LT Low Noise Ceramic Pump. Despite looking rather large, the pump unit is only 5 mm wider than a normal connection terminal.
Fittings and Tubing
As with all new AIO units, Alphacool uses only TPV hoses from the Enterprise Solution range for (usually reserved for servers and workstations) in the Eiswolf 2. The tubing is made of EPDM/PP and are extremely heat-resistant, durable, and free of plasticizers. All fittings are also based on the Enterprise Solution range and match the TPV hoses perfectly.
By using the quick-release fastener, the Eiswolf 2 can be connected to another Alphacool AIO unit to achieve a larger loop in seconds. Alphacool offers various prefilled components with which the loop can be easily extended. For safety reasons, the quick-release fasteners are firmly screwed together and not just plugged together.
Lighting and fans

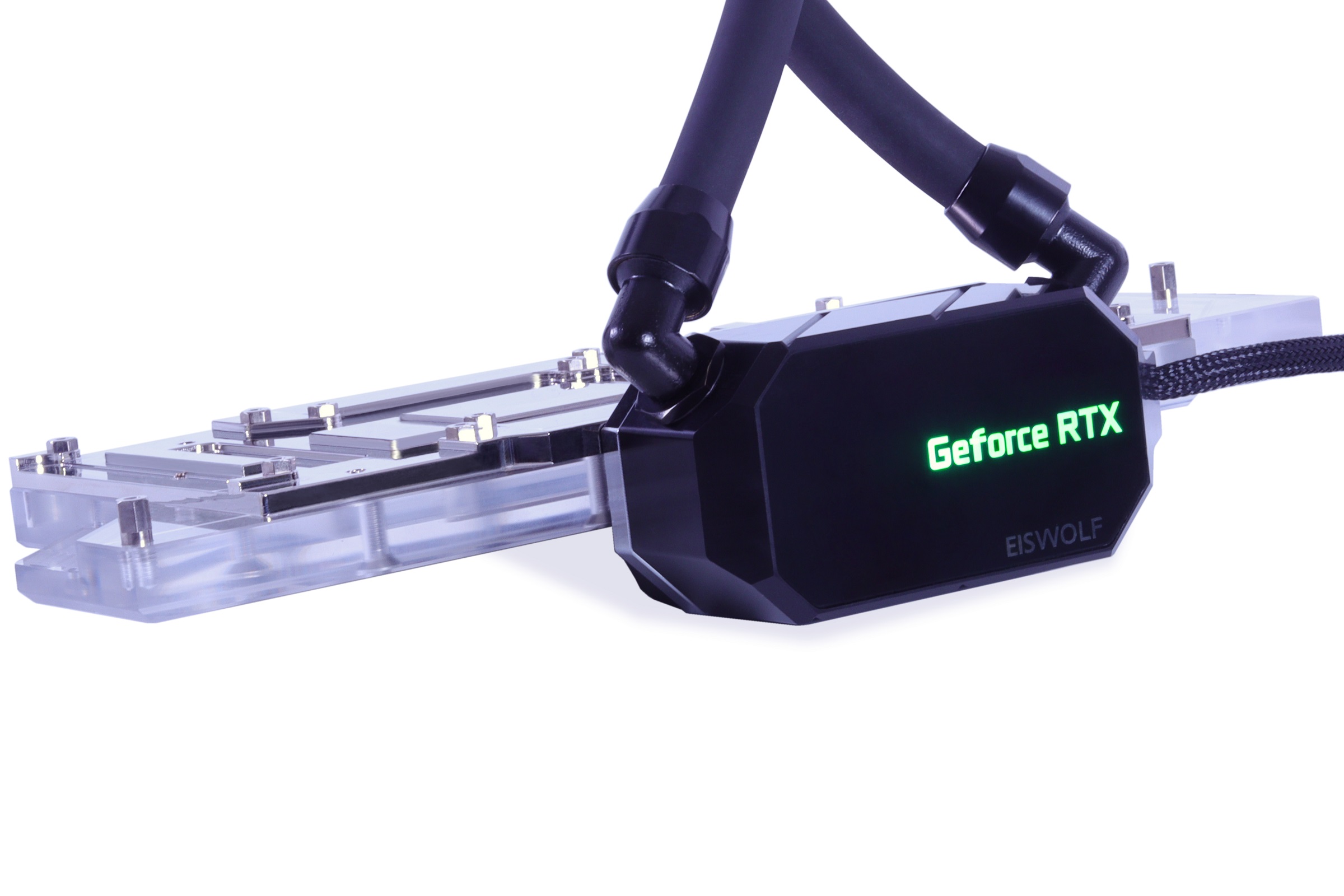

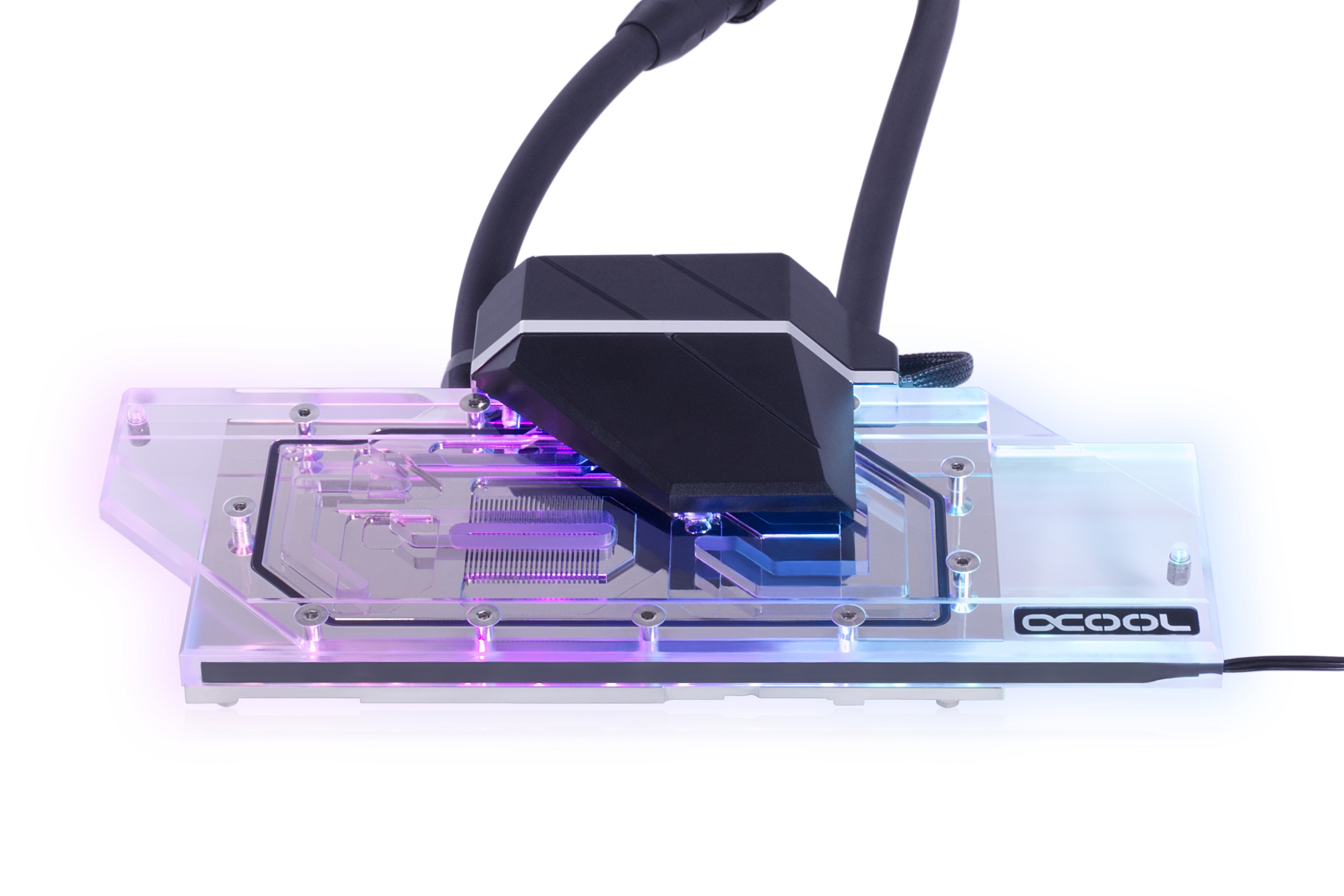

The Eiswolf 2 cooler has a digital RGB LED lighting, also called addressable RGB LEDs. They run along the entire back of the graphics card cooler and provide complete illumination of the water cooler. The pump unit is more discreet and offers a green glowing logo for Nvidia and a red glowing logo for AMD cards. The name "Eiswolf" on the pump unit remains unlit, discreetly in the background. The Lux Pro fans, as known from the Eisbaer Aurora series, are also used for the Eiswolf 2. They also have an extraordinary lighting with Digital RGB LEDs.

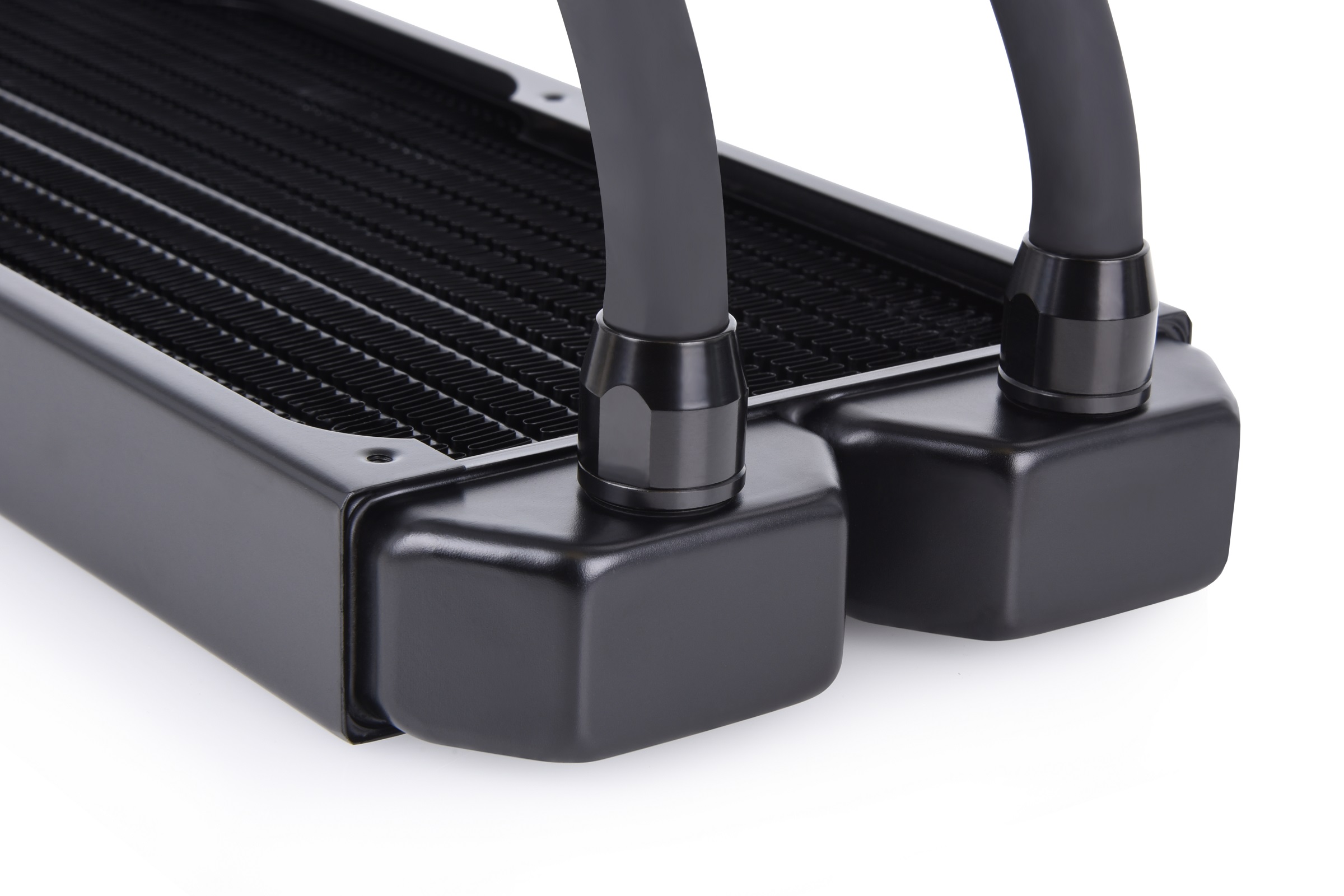

As with all AIO units, Alphacool uses radiators from the world renowned NexXxoS series. The full copper radiators offer a much higher cooling capacity than aluminium radiators and have contributed significantly to Alphacool's worldwide success.
The combination of all of the components results in a solution that is as simple as an AIO solution to install, but with the performance of a pre-assembled and prefilled custom loop.
Compatibility list: Compatibility list for all Nvidia graphics cards
Graphic card configurator: Find the right cooler for your graphics cards here
Technical data radiator:
Size: 278 x 124 x 30 mm
Threads: 3 x G1/4" (one is a fillport)
Technical data cooler and pump:
Size: 263,7 x 130,9 x 46,2 mm
Material cooler bottom: Nickel plated copper
Material cooler top: PMMA clear
Pump: DC-LT 2
Pump speed: 2300 rpm (+/- 10%)
Lift height: 0,7 m
Max flow rate: 130 L/h
Voltage: 12V DC
Power consumption: 3 W
MTBF: 50.000 h
Technical data fans:
Size: 120 x 120 x 25 mm
Speed: 800 - 2000 rpm
Connection fan: 4-Pin PWM
Connection Digital RGB LEDs:3-Pin JST + 3-Pin 5V
Bearing: Hydraulisches Lager
Air flow: 104,49 m³/h
Static pressure: 2,0 mm H2O
Download Manual: Alphacool Eiswolf GPU AIO Nvidia RTX 2080/2080TI (2080 & 2070 Super)
Download data sheet: Alphacool Eiswolf GPU AIO Nvidia RTX 2080/2080TI (2080 & 2070 Super)
