Aquacomputer Flow sensor high flow 2, G1/4
- Producent: Aqua Computer
- Kod producenta: 53292
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Aqua Computer flow sensors are easily integrated into your water cooling loop and allow continuous flow monitoring. The flow sensor high flow 2 is also equipped with a temperature sensor for coolant temperature monitoring.
Coolant flowing through the sensor drives a rotor/impeller, a contactless magnetic sensor system detects the rotation speed. Each sensor is calibrated for optimum bearing play to achieve minimum operation noise. The sensor delivers reliable readings over a wide range of flow rates between 35 l/h and 1000 l/h (approximately 9 to 260 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems. Due to a symmetrical construction, the flow direction is irrelevant. Furthermore, the sensor may be installed in any orientation. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems.

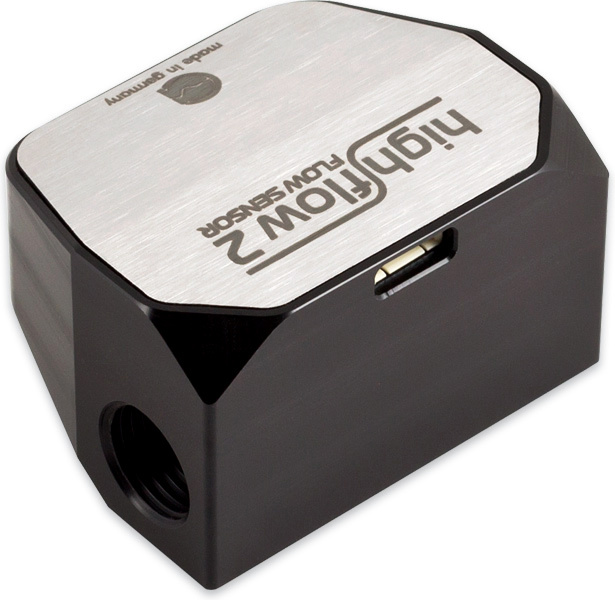

The high flow 2 has much more compact dimensions than its predecessor. In the beautifully designed housing made of acetal, the very precise and fast water temperature sensor is integrated additionally to the flow sensor. The stainless steel cover of the sensor is held magnetically without screws.
The connection threads are G 1/4 and can be used with virtually any tube dimensions.

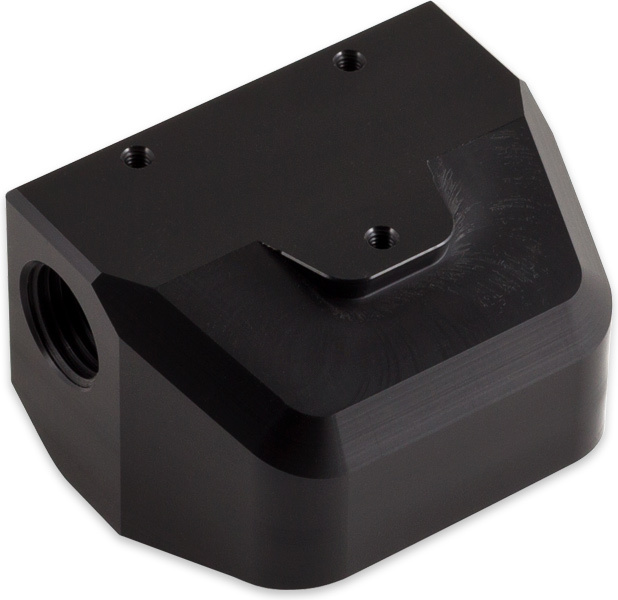

For sensor installation, three M3 threads are integrated into the base of the sensor, suitable screws are included in delivery.
Compatibility list:
aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
aquaero 4.00 / 3.07 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
aquastream ULTIMATE (41108)
aquastream XT (41059, 41060, 41061)
D5 NEXT (41118)
poweradjust 3 (53166, 53167)
poweradjust 2 (53082, 53083)
poweradjust (53049, 53054)
aquaduct 240 Pro mark III (11213)
aquaduct 360 eco+ (11212, 11233)
cuplex kryos NEXT with VISION
VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
VISION Touch (53232, 53235)
QUADRO (53256)
OCTO (53286)
Scope of delivery:
One flow sensor

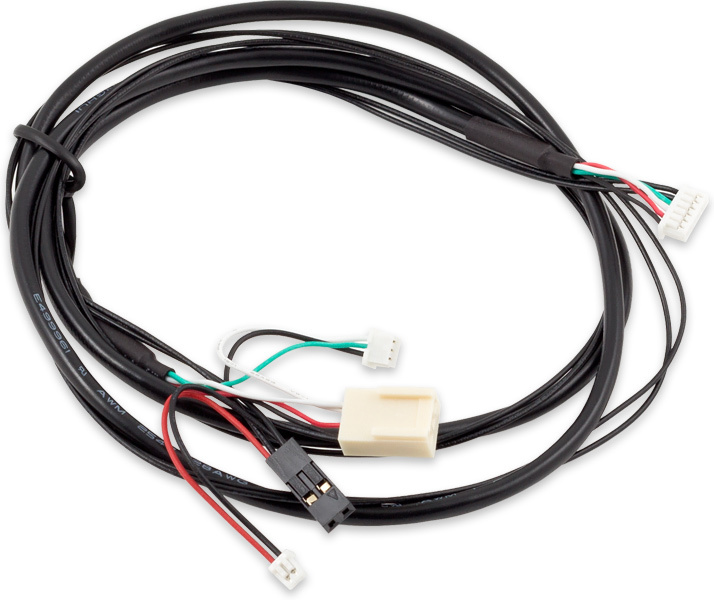

One connection cable
Three screws M3 x 6 mm
Technical details:
Dimensions: ca. 51 x 41 x 31 mm
Connection threads: G 1/4
For flow signal evaluation, a device with flow sensor input (see compatibility list) is required and is not included in delivery!
Coolant flowing through the sensor drives a rotor/impeller, a contactless magnetic sensor system detects the rotation speed. Each sensor is calibrated for optimum bearing play to achieve minimum operation noise. The sensor delivers reliable readings over a wide range of flow rates between 35 l/h and 1000 l/h (approximately 9 to 260 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems. Due to a symmetrical construction, the flow direction is irrelevant. Furthermore, the sensor may be installed in any orientation. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems.
The high flow 2 has much more compact dimensions than its predecessor. In the beautifully designed housing made of acetal, the very precise and fast water temperature sensor is integrated additionally to the flow sensor. The stainless steel cover of the sensor is held magnetically without screws.
The connection threads are G 1/4 and can be used with virtually any tube dimensions.
For sensor installation, three M3 threads are integrated into the base of the sensor, suitable screws are included in delivery.
Compatibility list:
aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
aquaero 4.00 / 3.07 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
aquastream ULTIMATE (41108)
aquastream XT (41059, 41060, 41061)
D5 NEXT (41118)
poweradjust 3 (53166, 53167)
poweradjust 2 (53082, 53083)
poweradjust (53049, 53054)
aquaduct 240 Pro mark III (11213)
aquaduct 360 eco+ (11212, 11233)
cuplex kryos NEXT with VISION
VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
VISION Touch (53232, 53235)
QUADRO (53256)
OCTO (53286)
Scope of delivery:
One flow sensor
One connection cable
Three screws M3 x 6 mm
Technical details:
Dimensions: ca. 51 x 41 x 31 mm
Connection threads: G 1/4
For flow signal evaluation, a device with flow sensor input (see compatibility list) is required and is not included in delivery!
