Alphacool Eisblock XPX Pro Aurora Light - Plexi
- Producent: Alphacool
- Kod producenta: 12981
- Kod EAN: 4250197129817
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

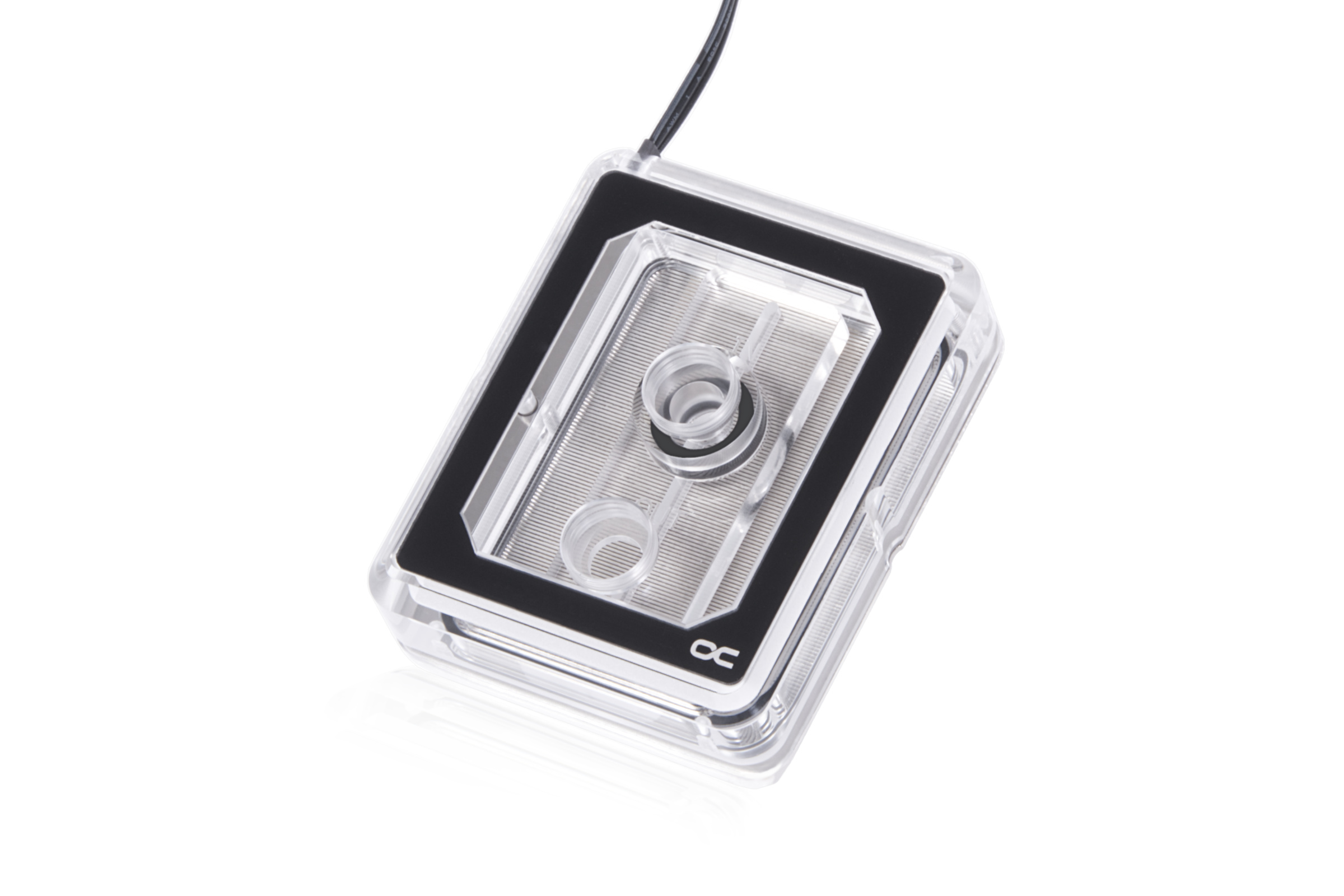

The Alphacool XPX Aurora Pro Light is the little sister of the XPX Pro CPU liquid cooling block. It offers a clearer design but does without the ramp system of the XPX Pro models. This eliminates the view of the water channels, giving a much clearer look to the coolant. Like the other XPX Pro models, the cooler has been specially optimized for AMD Threadripper, Intel LGA 3647 and 2011/2066 processors.

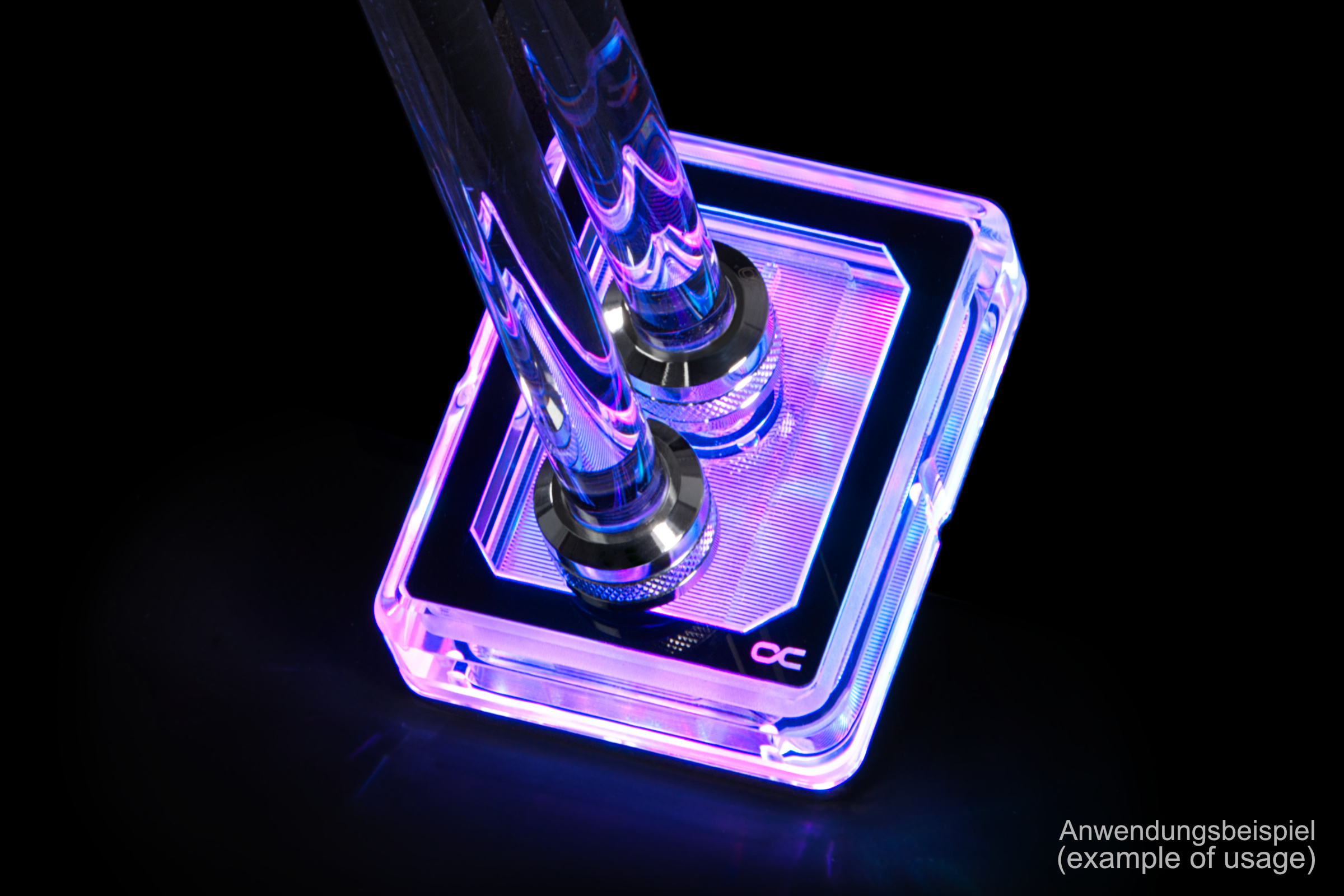

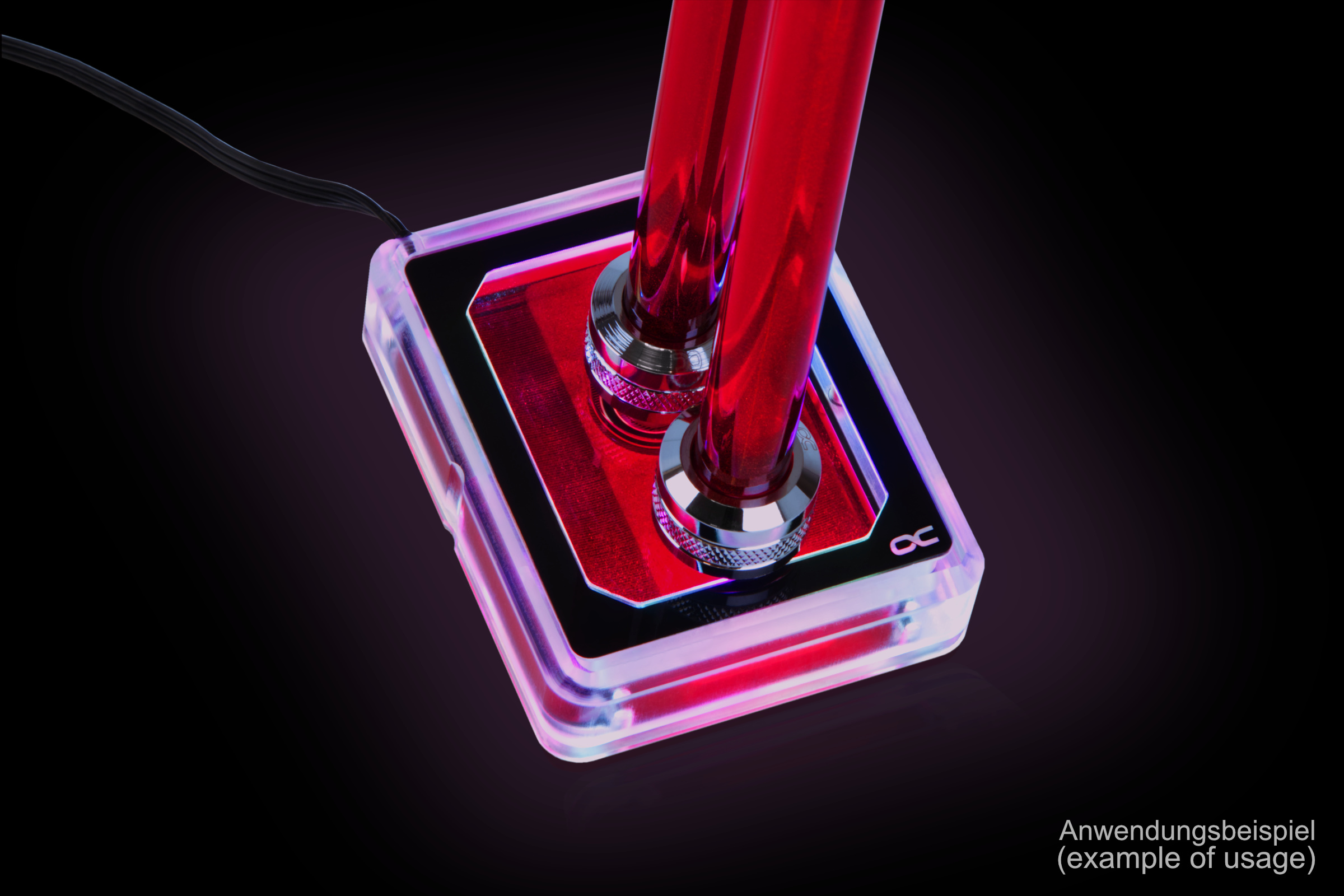

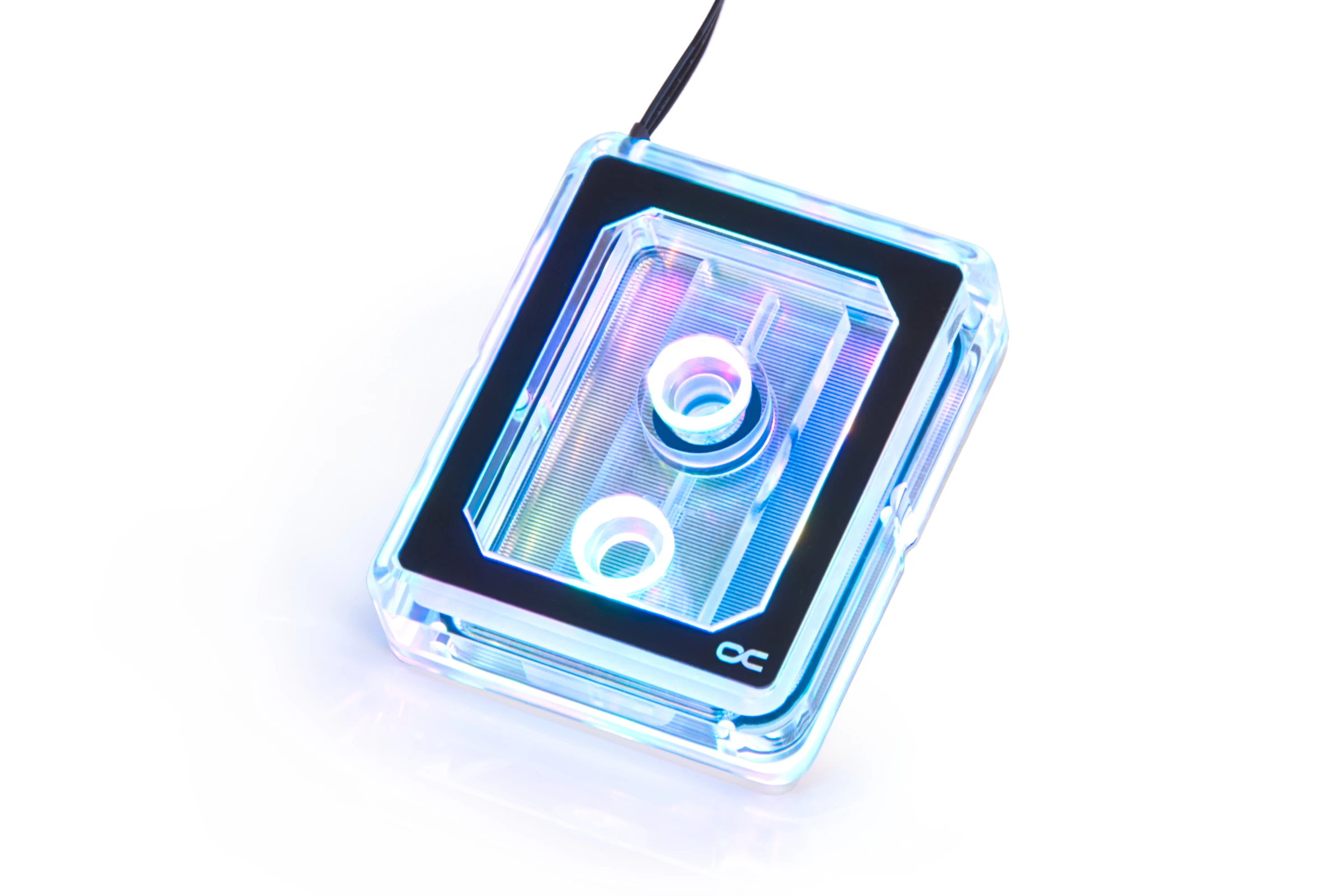

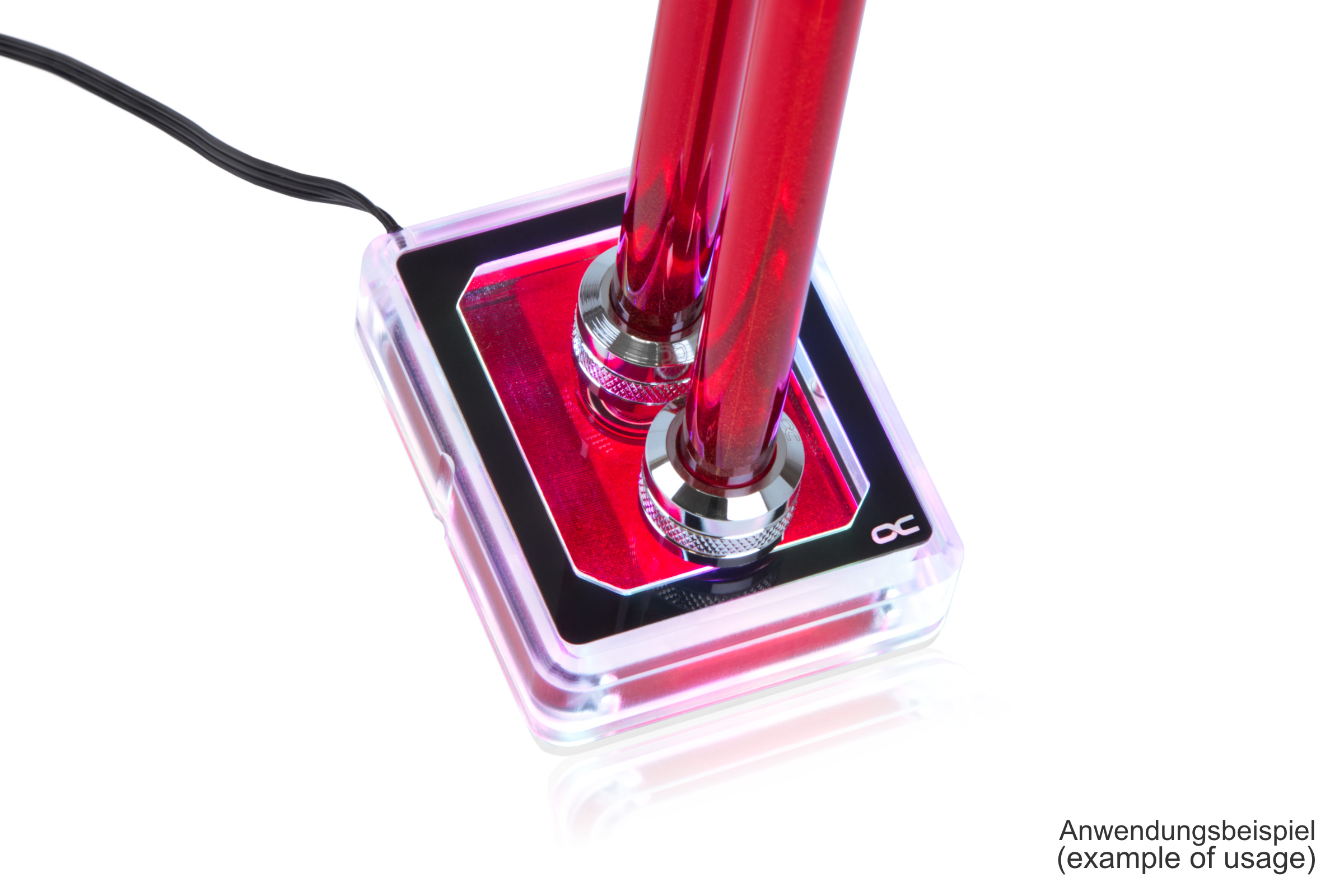

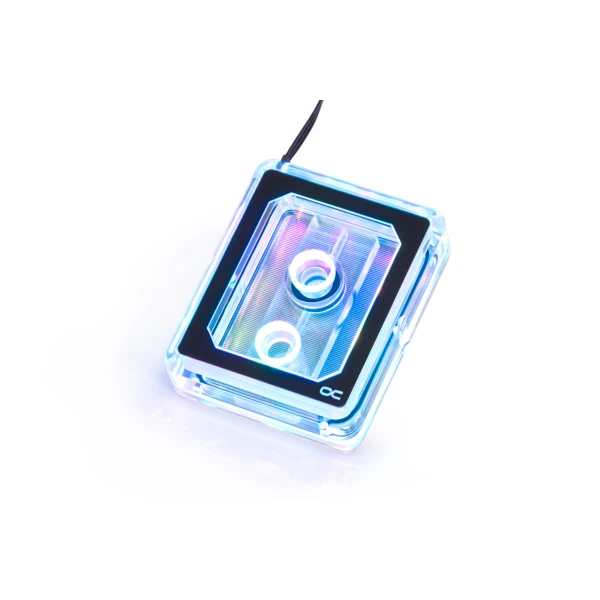

How is the CPU cooler illuminated?

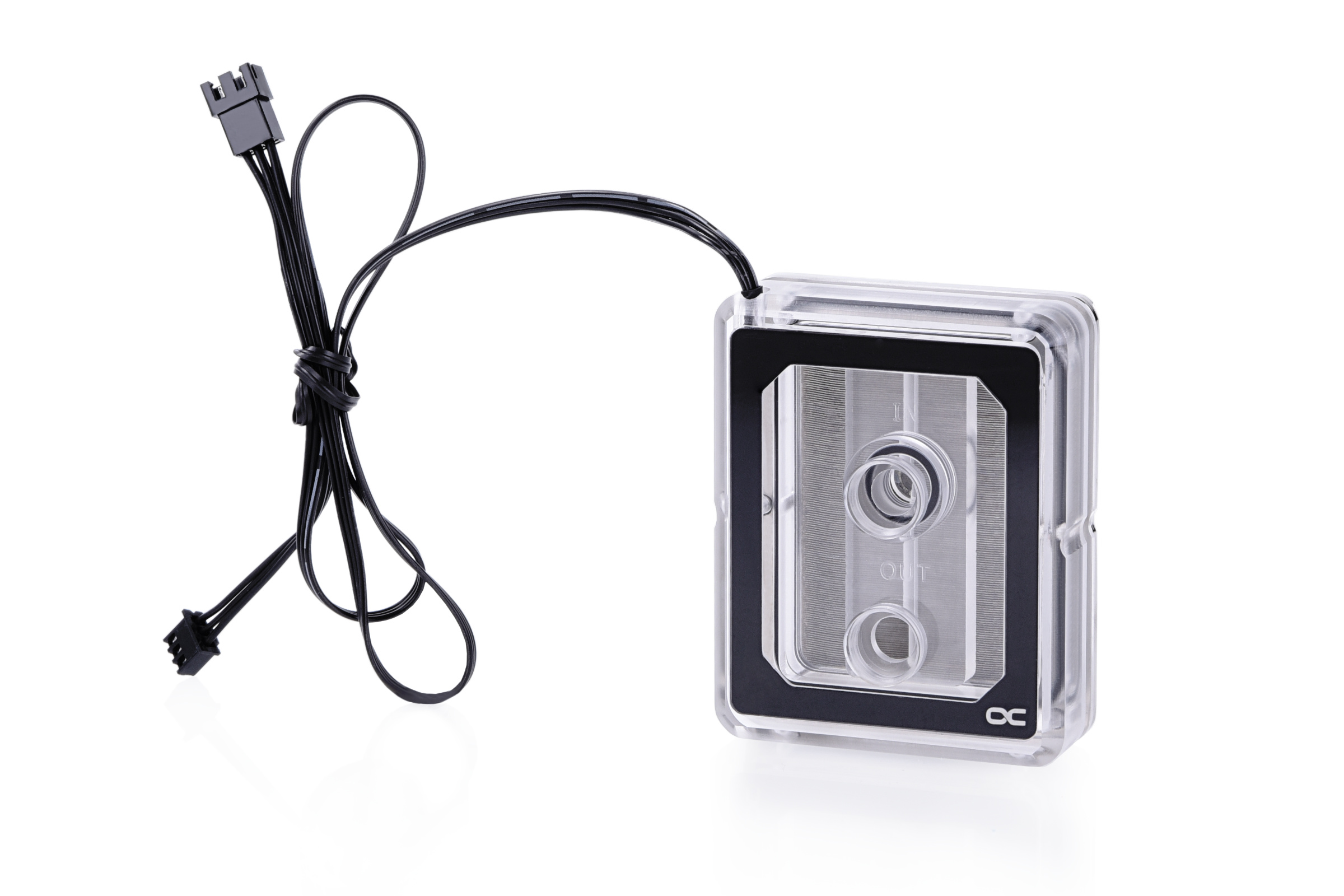

As with all new Eisblock CPU water coolers, Alphacool uses an integrated aRGB solution. Under the black frame there are 14 Digital RGB LEDs are mounted around the entire cooler. Each of these 5V aRGB LEDs can be controlled separately. This means that all known effects are possible, depending on the selected controller. There are controllers are available from Alphacool, but also many mainboards offer a 3-pin 5V aRGB connector to control the LEDs of the Eisblock Aurora Pro Light. The cable ends in a 3-pin JST connector with integrated Y-adapter to connect further Alphacool components directly. A corresponding 3-pin JST to 3-pin V adapter is included in the delivery.
Extremely powerful

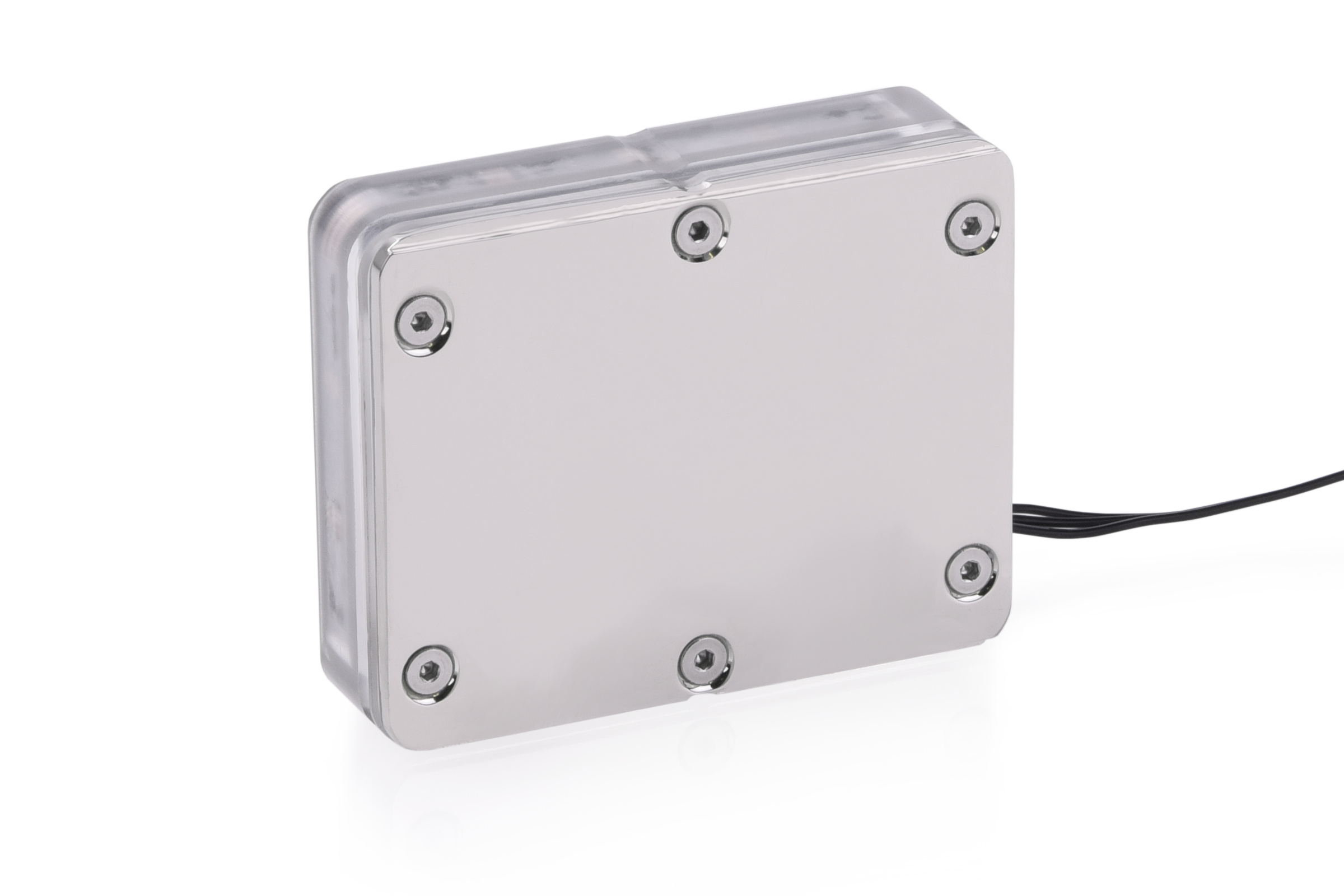

The coldplate has been specially optimized for the large processor cores. A total of 147 cooling fins run over an area of around 42 x 58.6 mm. For comparison: An Alphacool XPX Aurora Eisblock requires only 81 cooling fins to completely cover the processor core of a normal CPU. Both coolers use the same type of fins with a thickness of only 0.2 mm. This clearly shows how far Alphacool has gone in order to offer the best possible performance. The entire cooler base is of course made of nickel-plated copper and not aluminium. This is because the thermal conductivity of copper is known to be almost twice as high as that of aluminium.

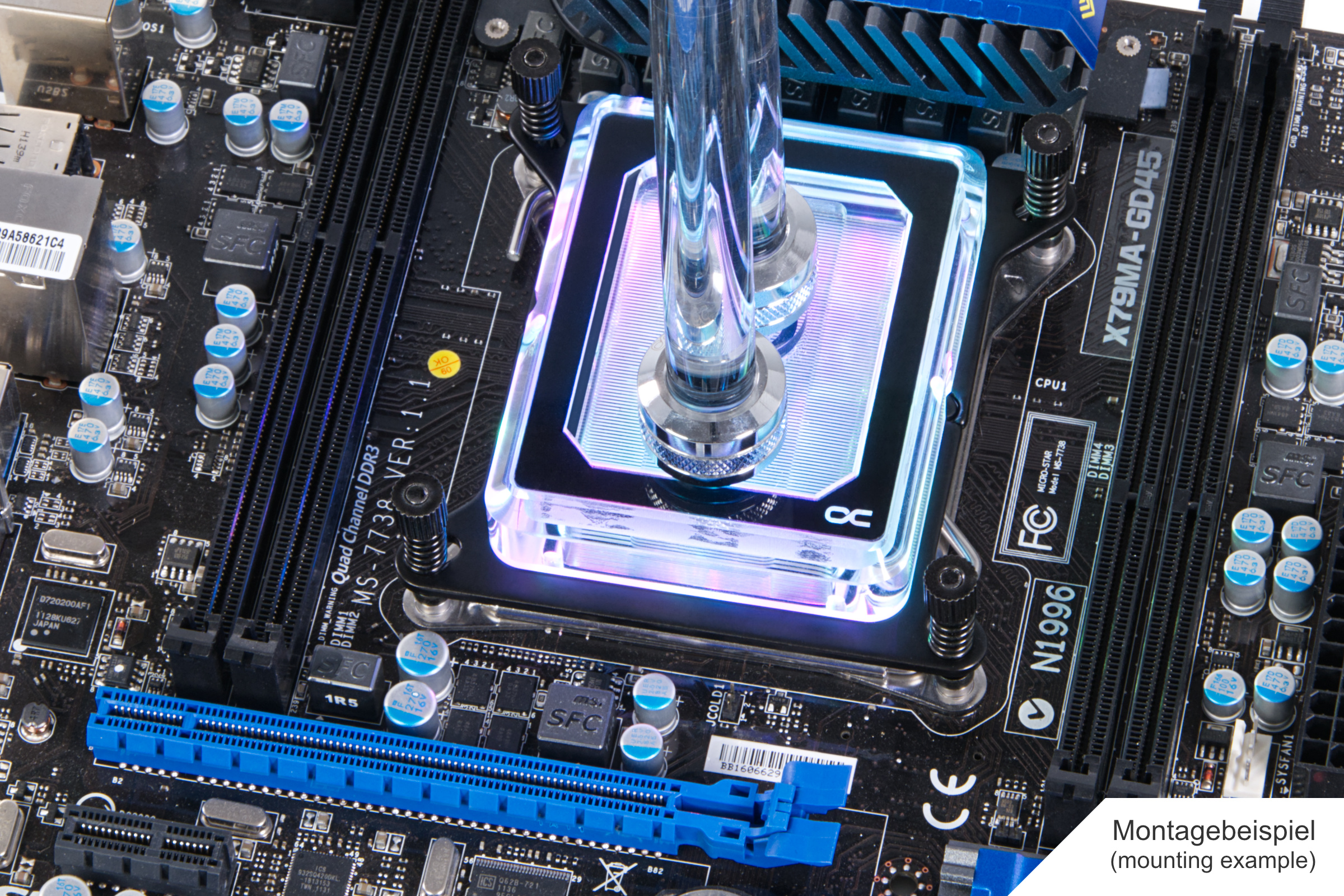

Is installation difficult?

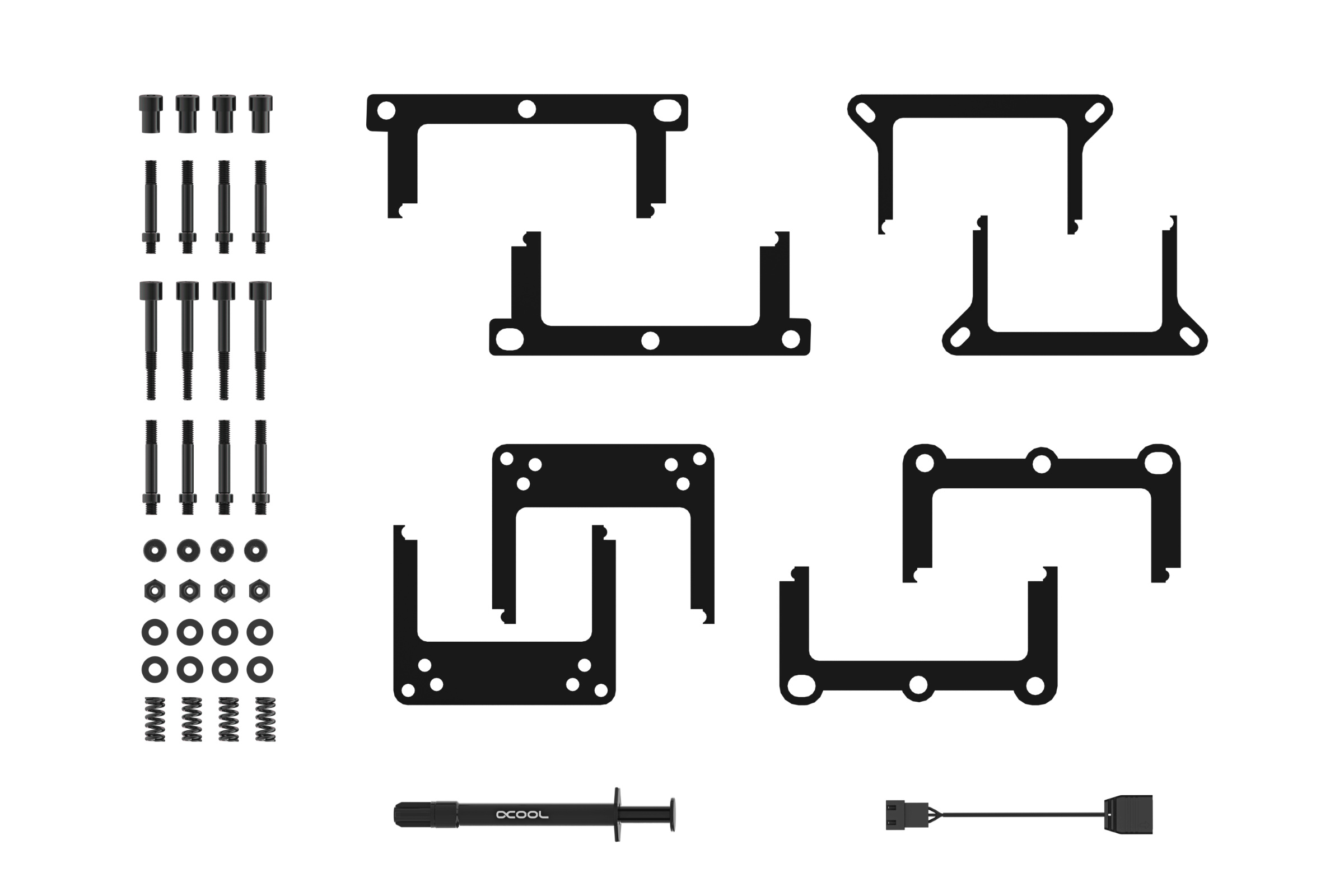

The assembly is extremely easy. You remove the protective foil from the cooler bottom, spread some of the enclosed thermal paste on the CPU and then attach the cooler. Depending on the base, the mounting screws are screwed on before or after the cooler is put on. No tools are necessary for the installation. Alphacool uses knurled screws, which allow a quick and easy installation.
Technical data:
L x B x H: 63,8 x 79 x 22,5 mm
Net weight: 205 g
Material cooler bottom: Vernickeltes Kupfer
Material top: POM klar
Connections: 2 x G1/4“
Thickness cooling fins: 0,2 mm
Illumination: Digital RGB LEDs
Power connector: Digital RGB LEDs 3-Pin JST (with integrated Y-Splitter)
Voltage: Digital RGB LEDs 5V
Compatible sockets:
INTEL: LGA 2066, 2011-3, 3647-0 Narrow/Square / 4189 (optional) / 1700
AMD: TR4, SP3, sTRX4, sWRX8, SP3, AM4
Download data sheet PDF: Alphacool Eisblock XPX Pro Aurora Light - Plexi
Download manual PDF: Alphacool Eisblock XPX Pro Aurora Light - Plexi
How is the CPU cooler illuminated?
As with all new Eisblock CPU water coolers, Alphacool uses an integrated aRGB solution. Under the black frame there are 14 Digital RGB LEDs are mounted around the entire cooler. Each of these 5V aRGB LEDs can be controlled separately. This means that all known effects are possible, depending on the selected controller. There are controllers are available from Alphacool, but also many mainboards offer a 3-pin 5V aRGB connector to control the LEDs of the Eisblock Aurora Pro Light. The cable ends in a 3-pin JST connector with integrated Y-adapter to connect further Alphacool components directly. A corresponding 3-pin JST to 3-pin V adapter is included in the delivery.
Extremely powerful
The coldplate has been specially optimized for the large processor cores. A total of 147 cooling fins run over an area of around 42 x 58.6 mm. For comparison: An Alphacool XPX Aurora Eisblock requires only 81 cooling fins to completely cover the processor core of a normal CPU. Both coolers use the same type of fins with a thickness of only 0.2 mm. This clearly shows how far Alphacool has gone in order to offer the best possible performance. The entire cooler base is of course made of nickel-plated copper and not aluminium. This is because the thermal conductivity of copper is known to be almost twice as high as that of aluminium.
Is installation difficult?
The assembly is extremely easy. You remove the protective foil from the cooler bottom, spread some of the enclosed thermal paste on the CPU and then attach the cooler. Depending on the base, the mounting screws are screwed on before or after the cooler is put on. No tools are necessary for the installation. Alphacool uses knurled screws, which allow a quick and easy installation.
Technical data:
L x B x H: 63,8 x 79 x 22,5 mm
Net weight: 205 g
Material cooler bottom: Vernickeltes Kupfer
Material top: POM klar
Connections: 2 x G1/4“
Thickness cooling fins: 0,2 mm
Illumination: Digital RGB LEDs
Power connector: Digital RGB LEDs 3-Pin JST (with integrated Y-Splitter)
Voltage: Digital RGB LEDs 5V
Compatible sockets:
INTEL: LGA 2066, 2011-3, 3647-0 Narrow/Square / 4189 (optional) / 1700
AMD: TR4, SP3, sTRX4, sWRX8, SP3, AM4
Download data sheet PDF: Alphacool Eisblock XPX Pro Aurora Light - Plexi
Download manual PDF: Alphacool Eisblock XPX Pro Aurora Light - Plexi
