Alphacool NexXxoS XT45 Full Copper Quad 480/560 Radiator

Would you like a little more?

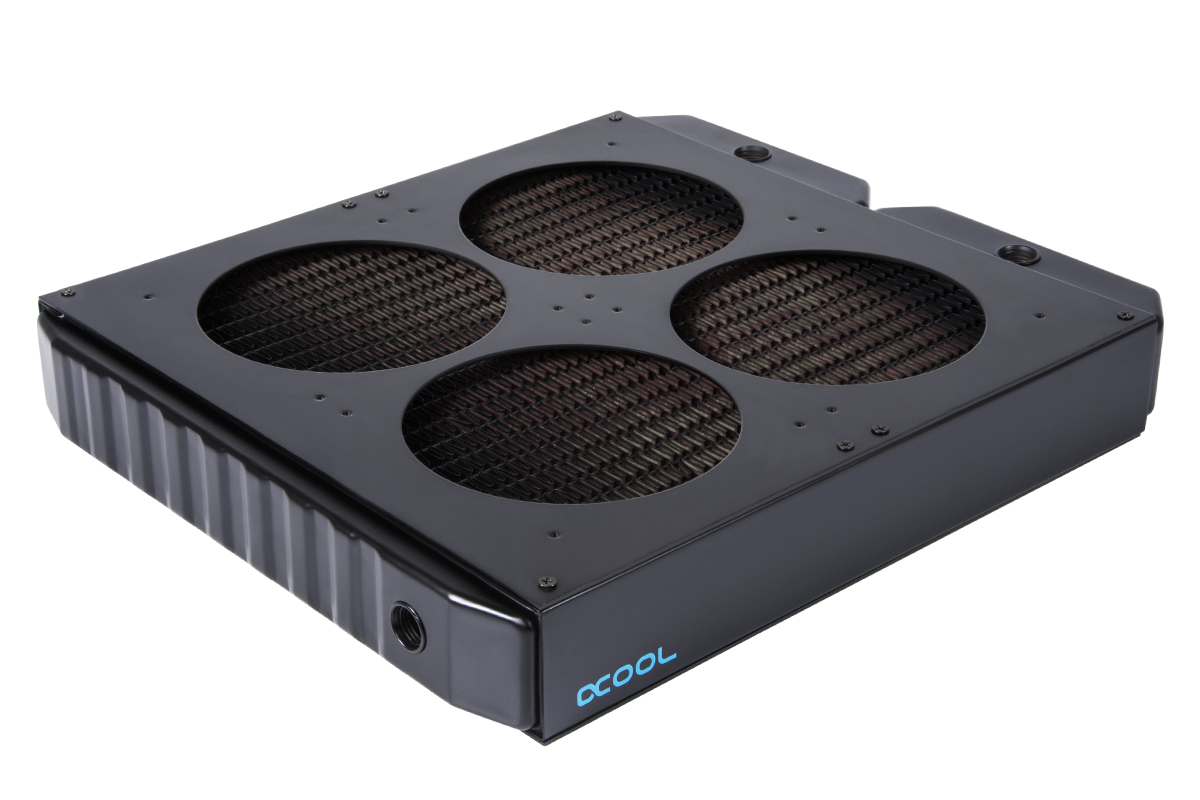

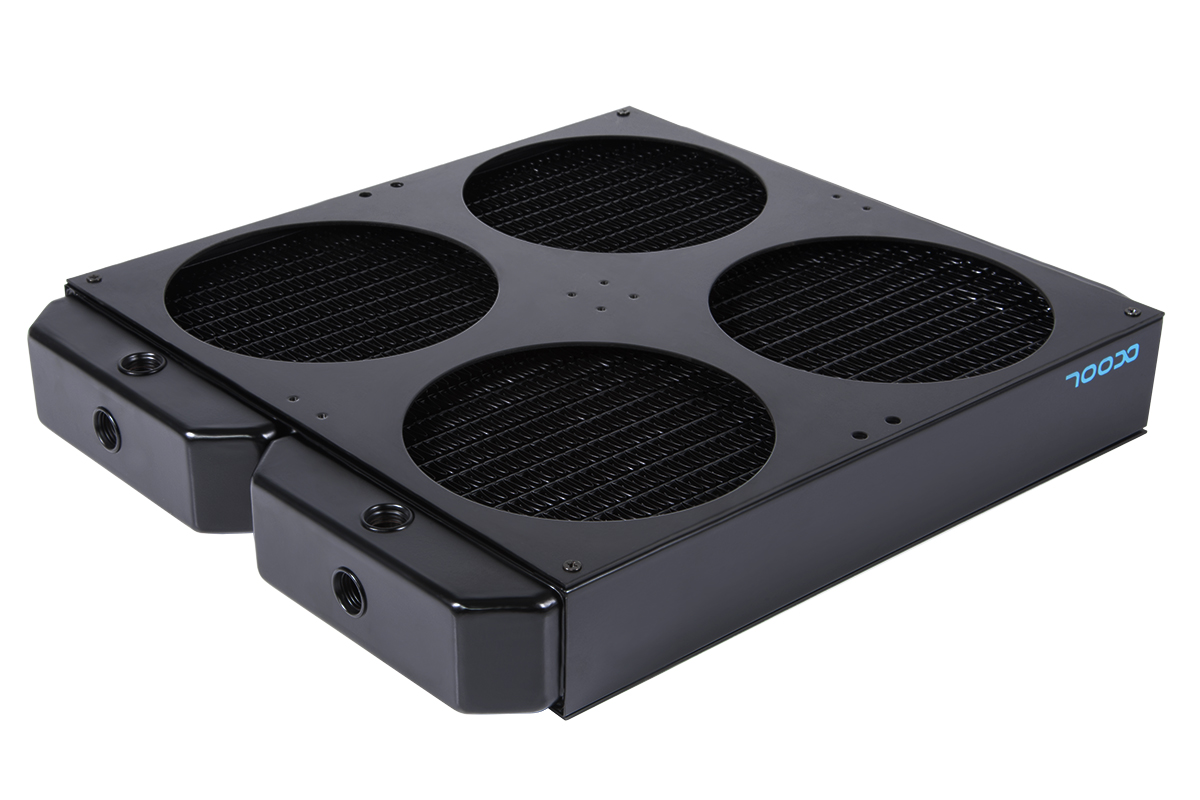

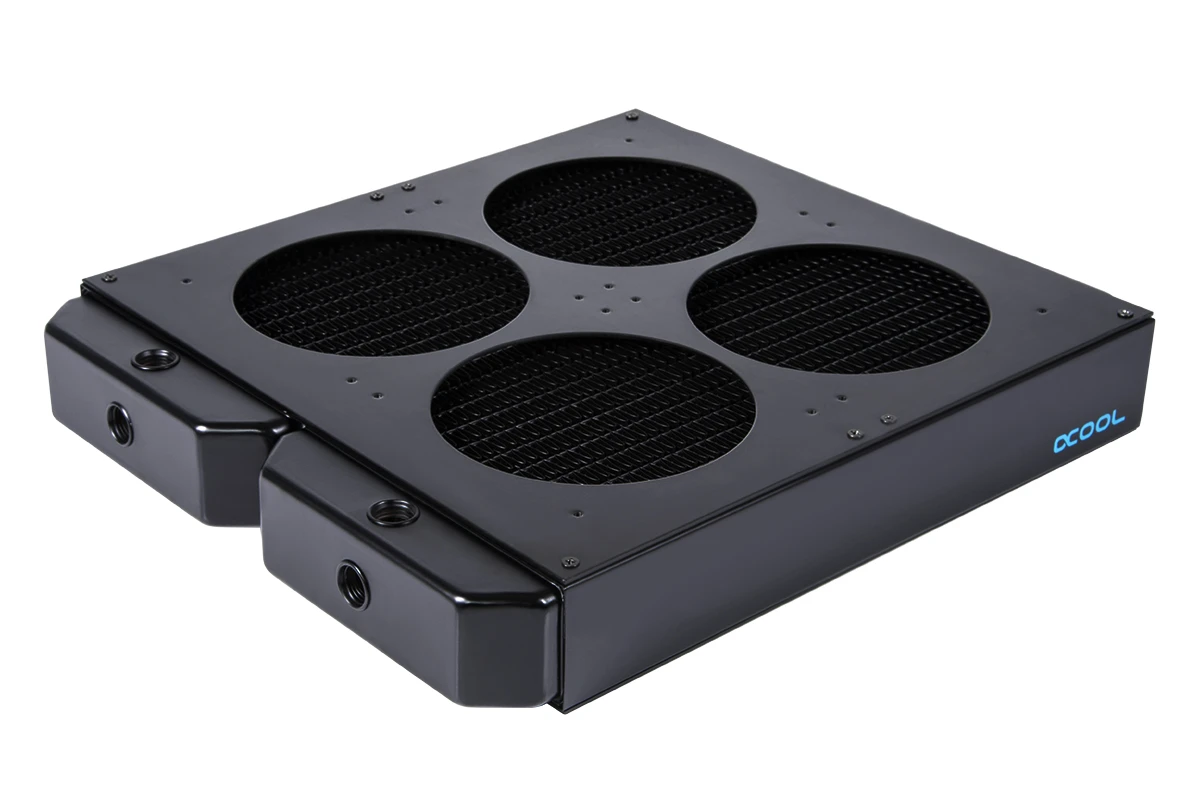

Alphacool NexXxoS XT45 Quad 480 mm / 560 mm! 280 x 280 x 45 mm of pure cooling surface for four 120/140mm single sided or eight fans double sided.



Make No Compromises, Use Copper.

As usual, Alphacool also uses pure copper for the NexXxoS XT45 Quad Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.



Full Cooling Capacity

To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.



Which fans?

The XT45 Quad radiator has space for four 120/140 mm fans single sided or eight fans double sided. If you want to operate the radiator passively, you can remove the mounting plate in order not to obstruct the natural airflow. Of course, the mounting plates for both types of fans can also be interchanged. This gives you more freedom when mounting the fans.



Connection options

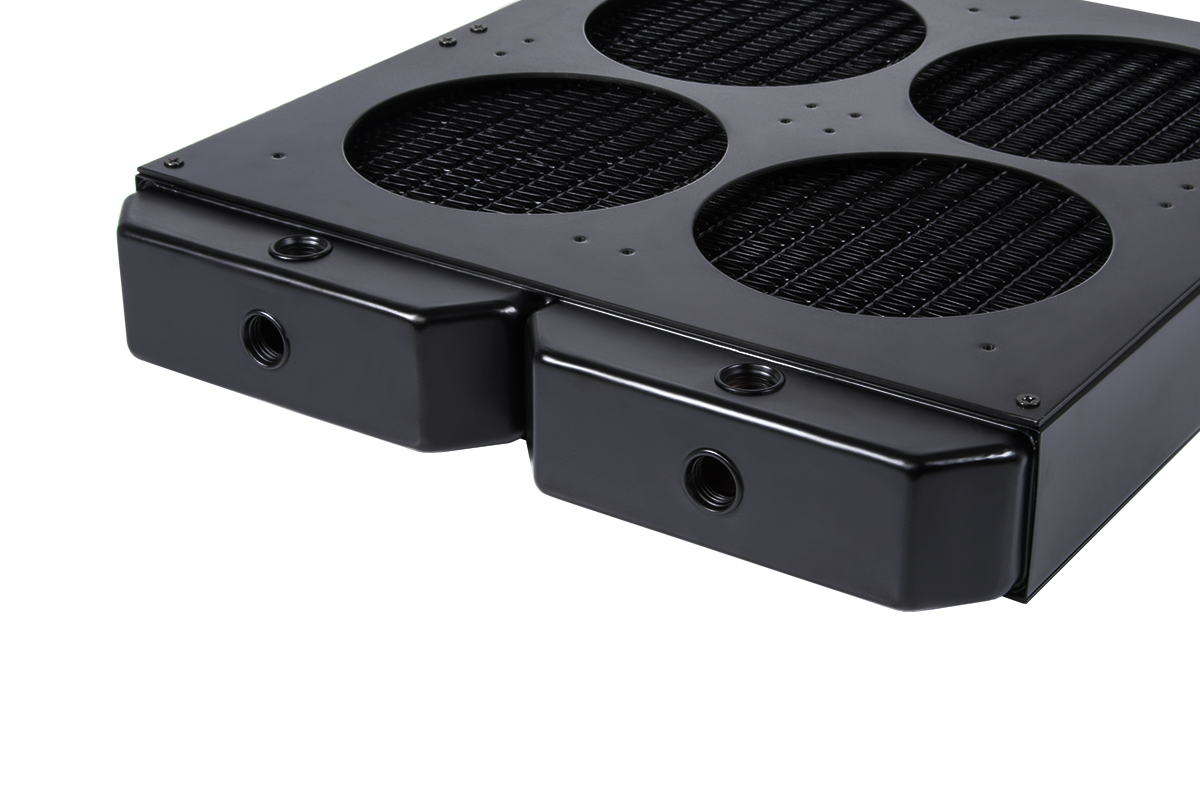

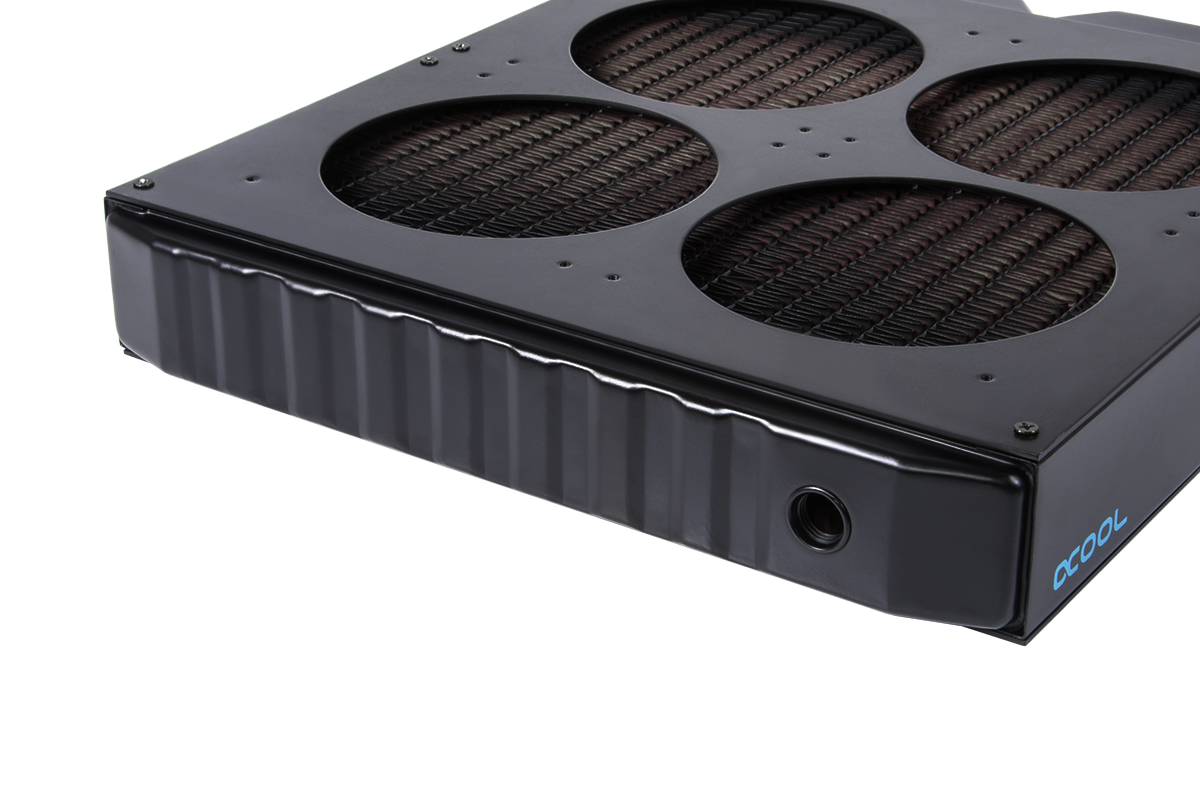

The Alphacool NexXxoS XT45 Quad Radiator offers six G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.



Techncal data

L x W x H: 32,2 x 28 x 4,9 cm

Weight: 2370g

Material cooling fins: Copper

Material cooling channels: Copper

Material prechamber: Copper

Material outer housing: Steel

Fins per Inch: 12

Threads: 7 x G1/4"

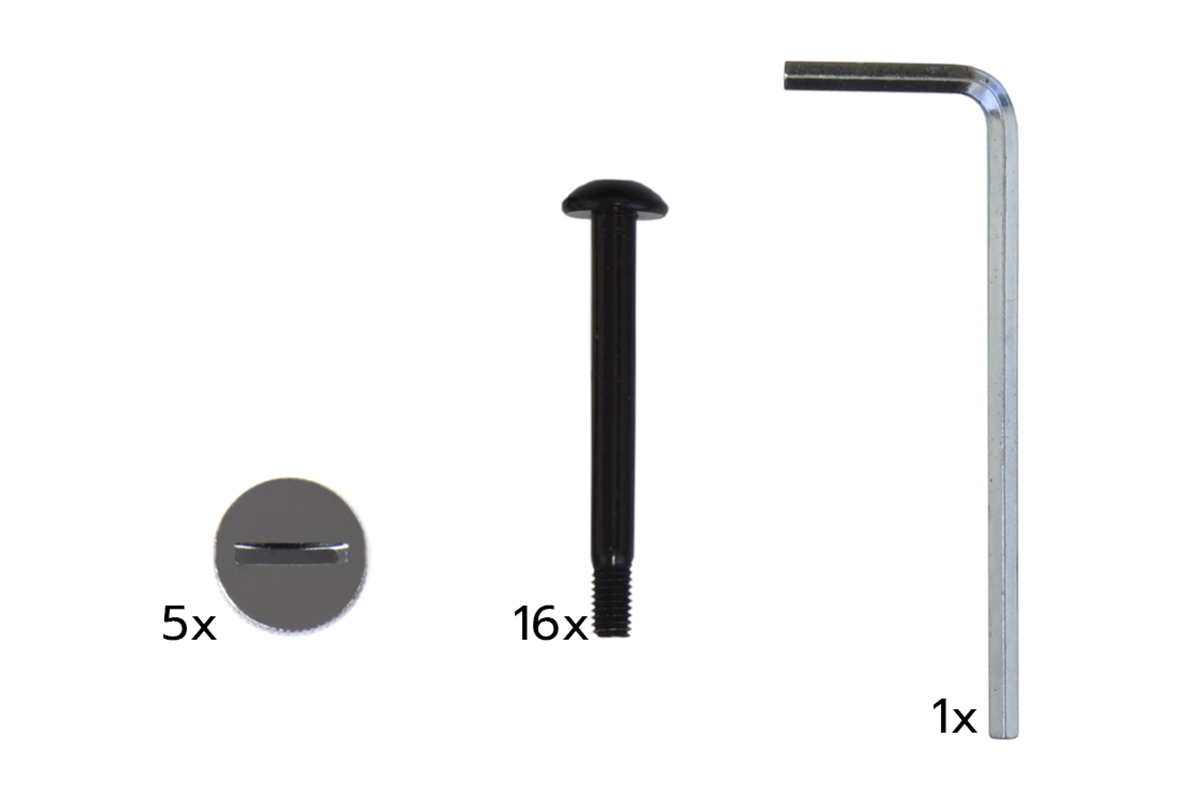

Thread size fan mounting: M3

Fan size: 120 or 140 mm

Pressure tested: 1,5 bar
