Alphacool Temperature Sensor Square Acetal

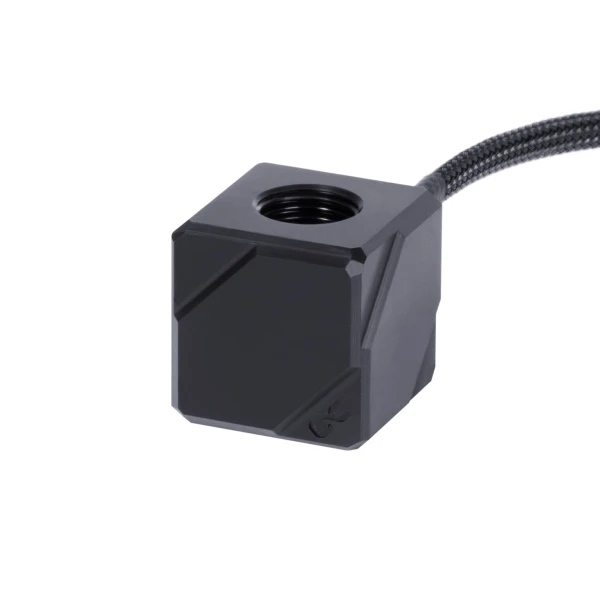

The Alphacool Acetal Acetal temperature sensor is a simple cube-shaped water temperature sensor that can be easily integrated into any water circuit.



Integration made easy

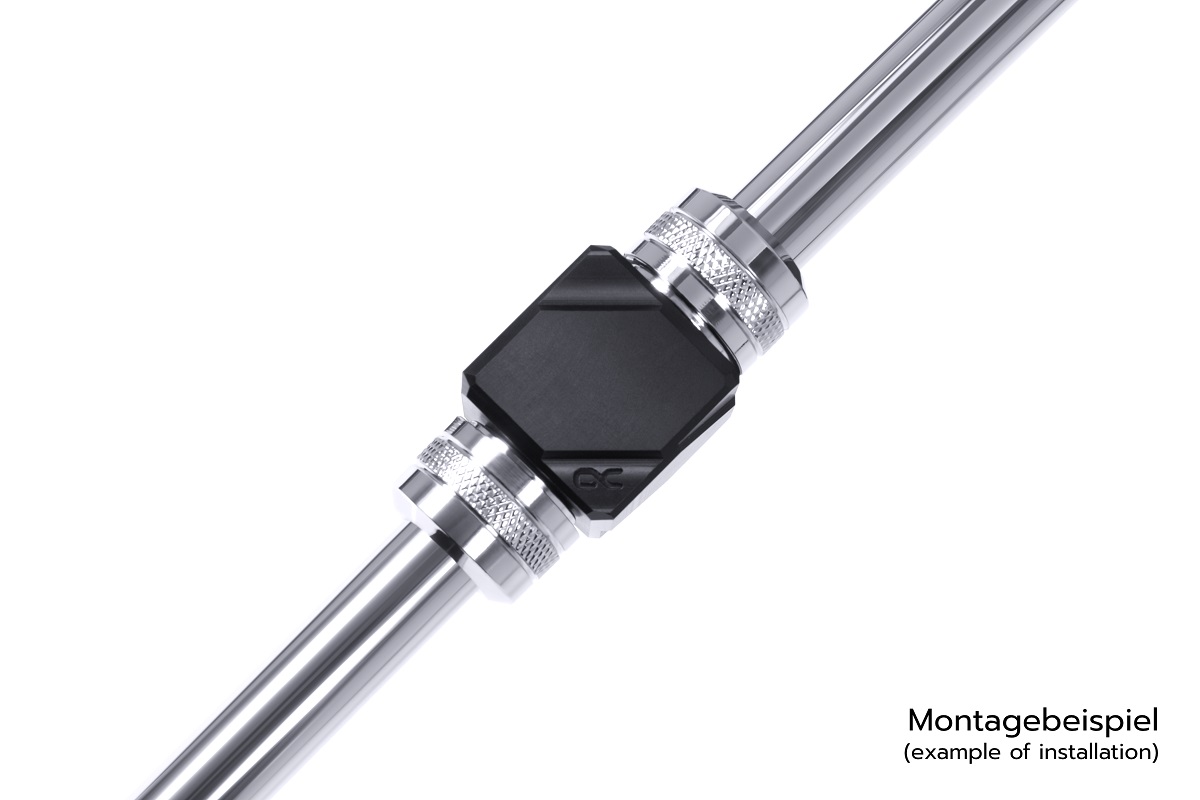

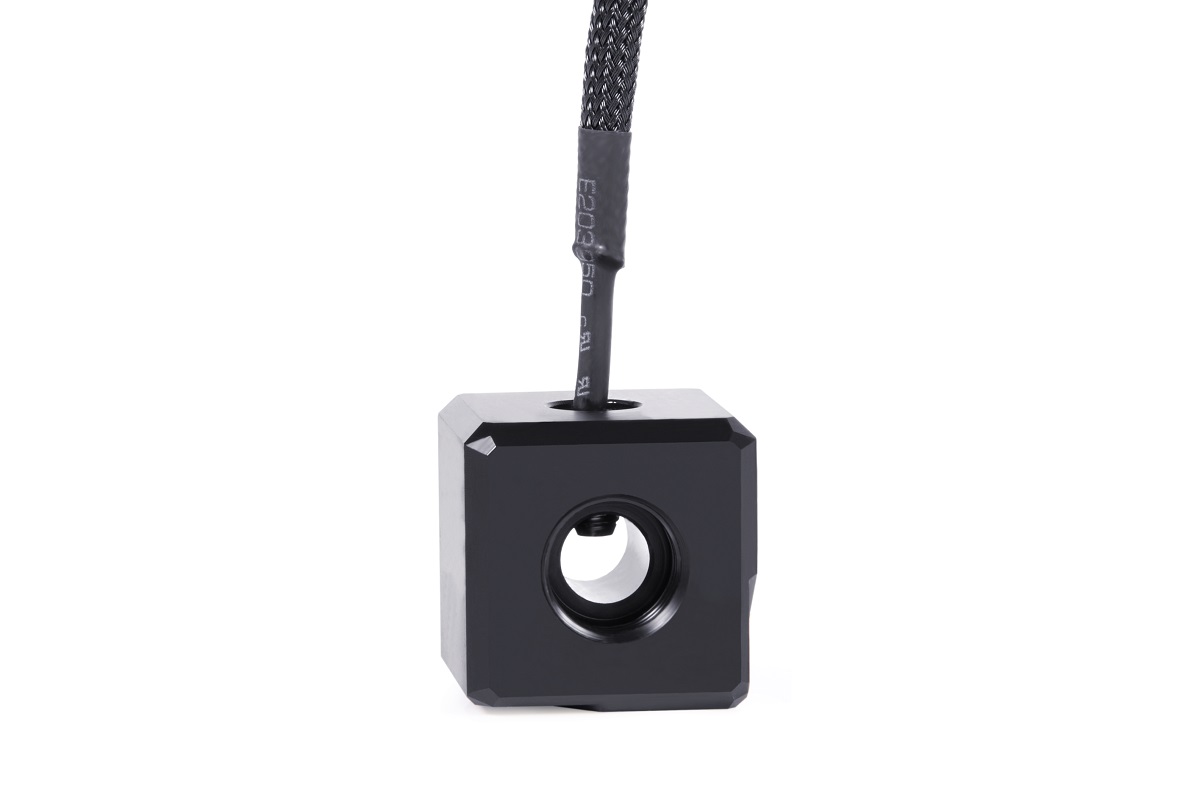

The temperature sensor is very compact and can be integrated into any water circuit thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with hoses or HardTubes. Simply screw the appropriate connections to the sensor and then mount it at any position in the water circuit. Due to the use of acetal, the temperature sensor is extremely light, weighing only 29g.



Sensor

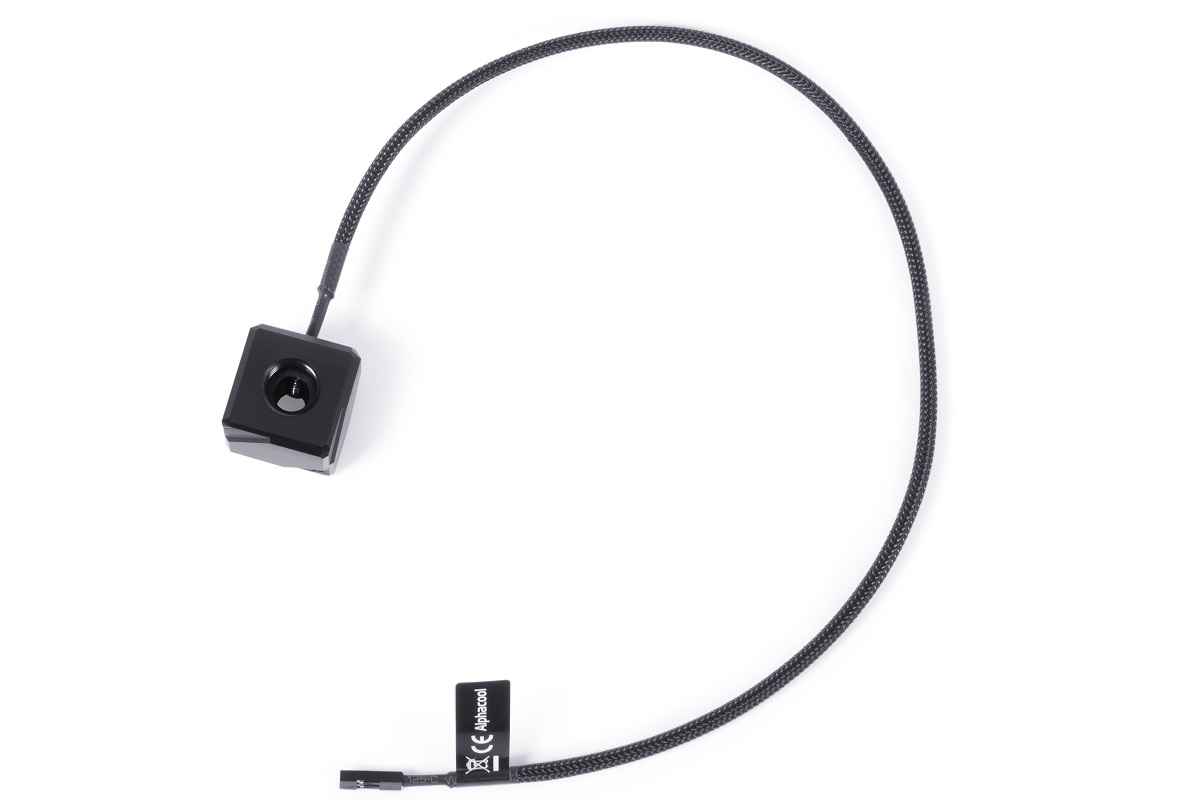

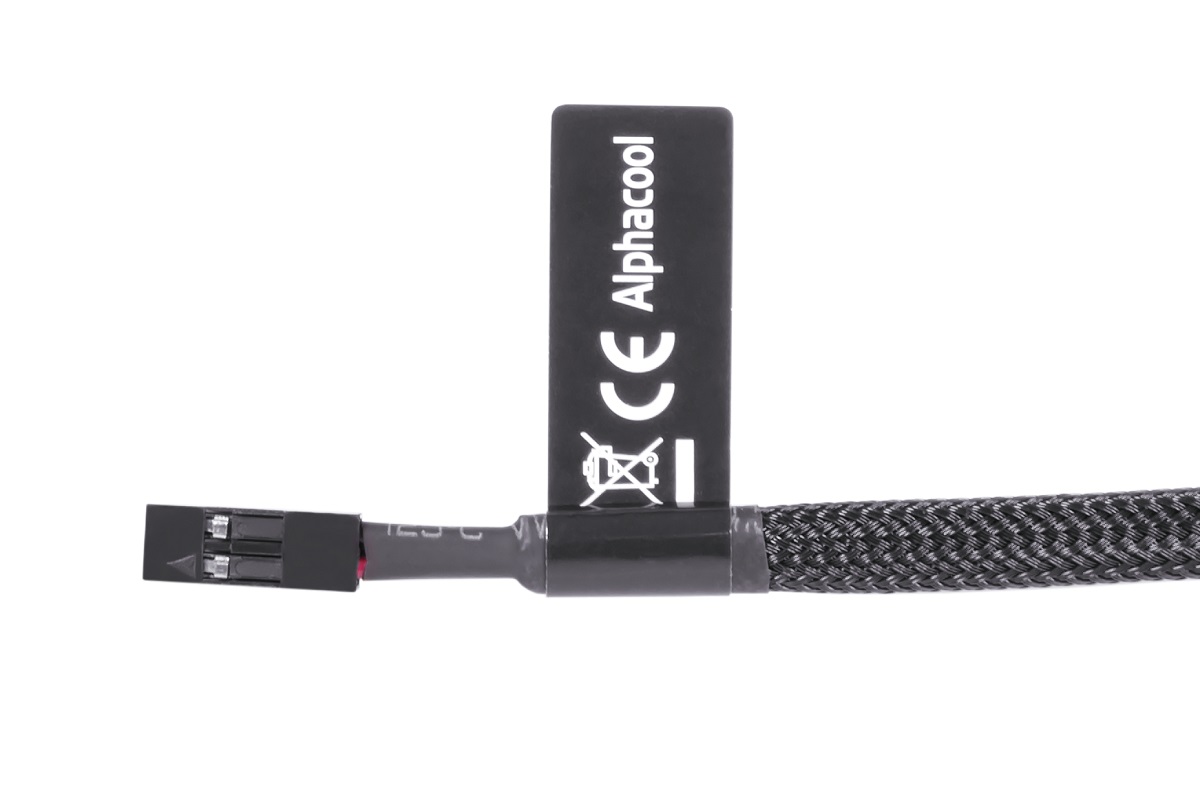

A classic NTC 10 kOhm sensor is used as the sensor. The readable temperature range is between -40 and 125°C. The cable is 40 cm long and terminates in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course, there are also various external controllers that offer a connection for the sensor.



Design

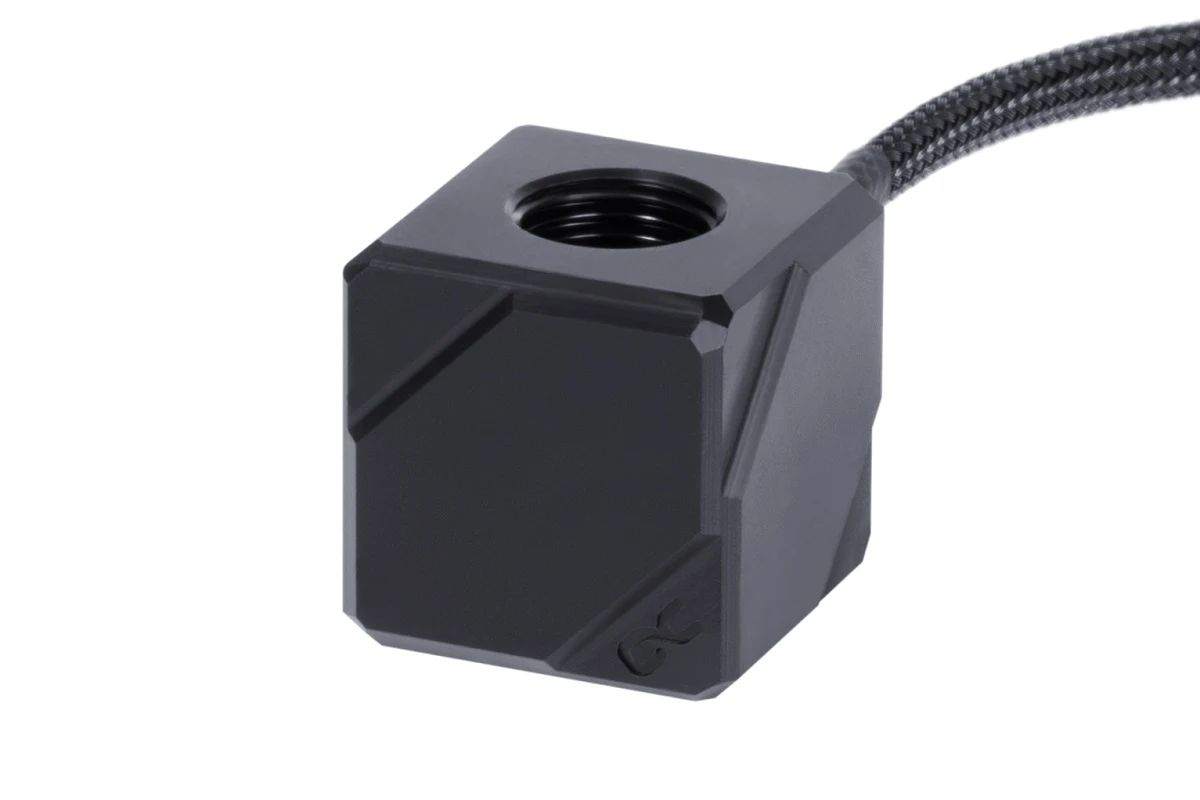

The new square design stands out from the usual, mostly round, sensors. Alphacool does without large logo placements. The product should be in the foreground. The square design fits perfectly with the new Alphacool Eisblock graphics card water cooler series.



Technical data

L x W x H: 26,5 x 26,5 x 26,5 mm

Thermistor: NTX 10 kOhm

Temperatur range: -40 to 125°C

Connector plug: 2-Pin

Cable length: 40 cm

Threads: 2x G1/4" inner threads
