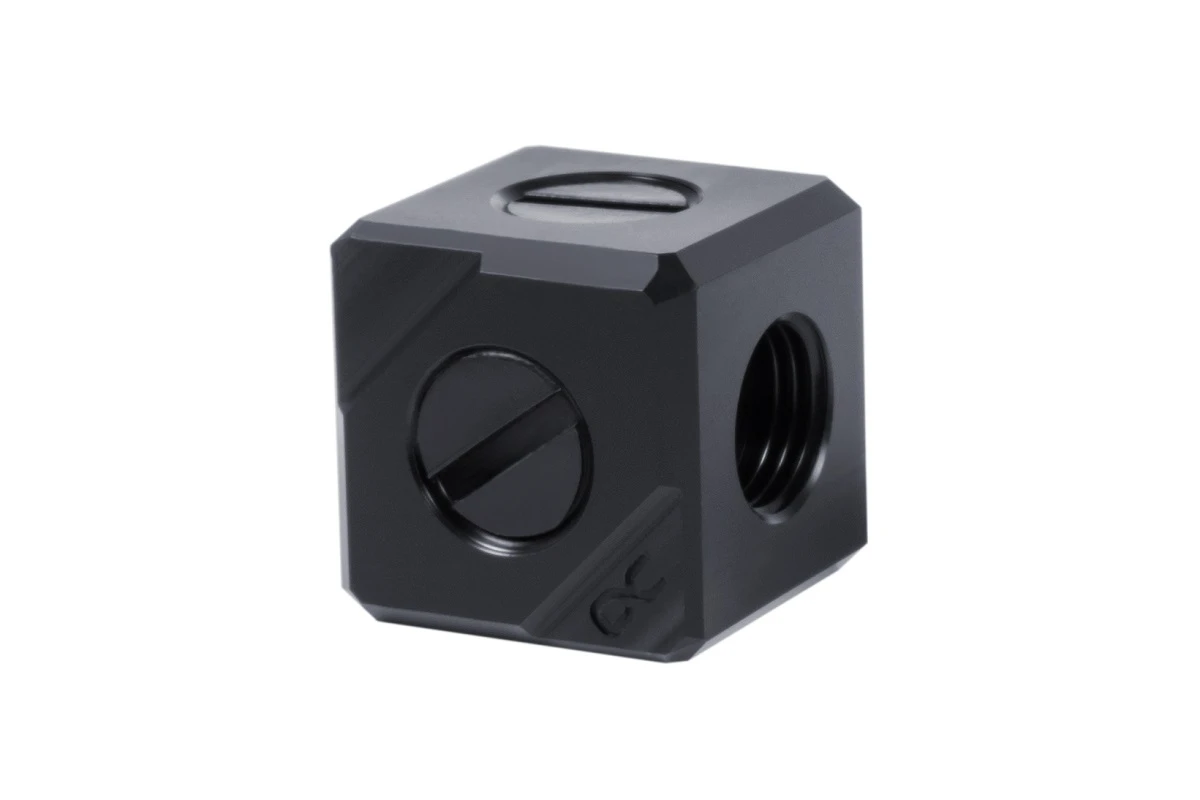

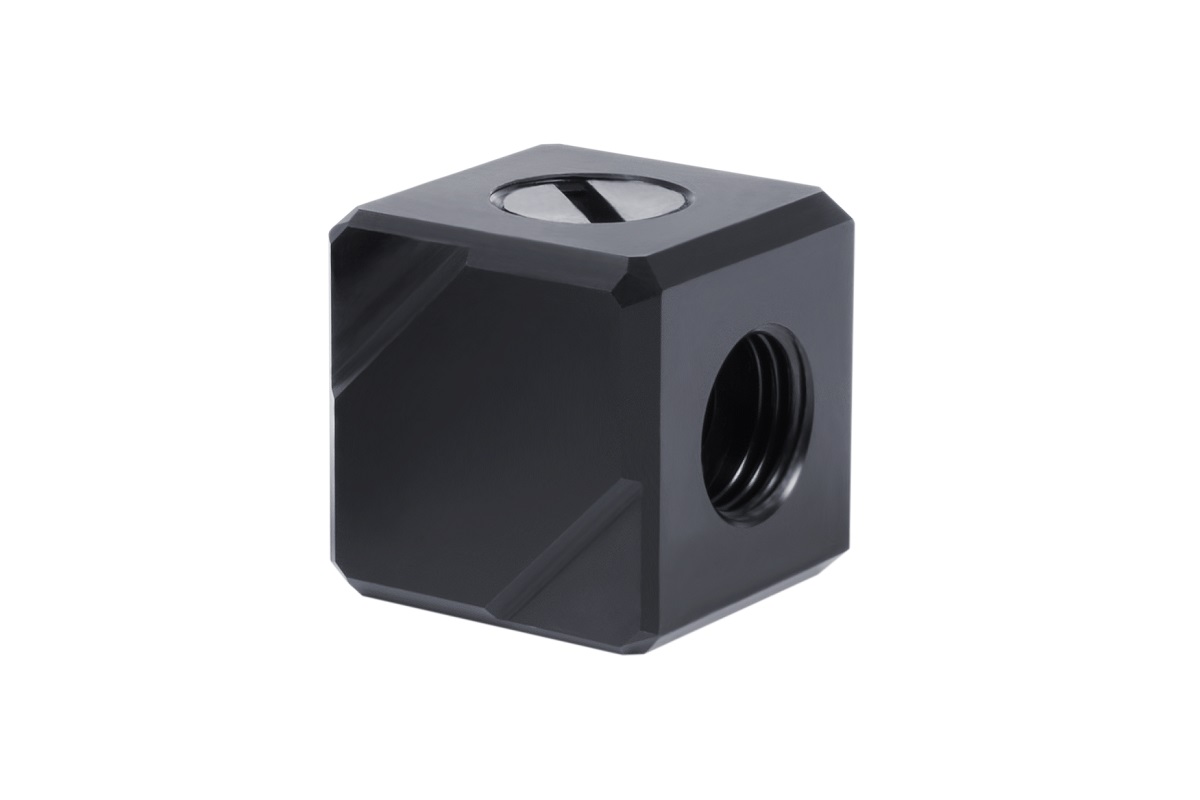

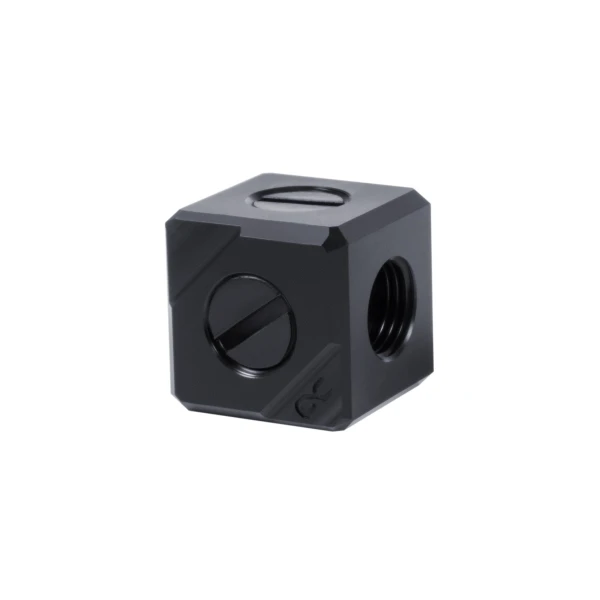

Alphacool Eiszapfen connection terminal 5-way G1/4 IT - Black Acetal

The Alphacool Eiszpafen connection terminal with 5x G1/4" internal threads offers versatile possibilities to expand the water circuit with different components.



Material and patented sealing plugs

In order to save as much weight as possible, the connection terminal is made entirely of acetal, resulting in a total weight of only 20g. Three sealing plugs made of acetal included. To keep the design of the cube-shaped adapter even on all sides, Alphacool uses the patented sealing plugs. These close flush to the surface and are already in use with some Alphacool products.



What can I do with it?

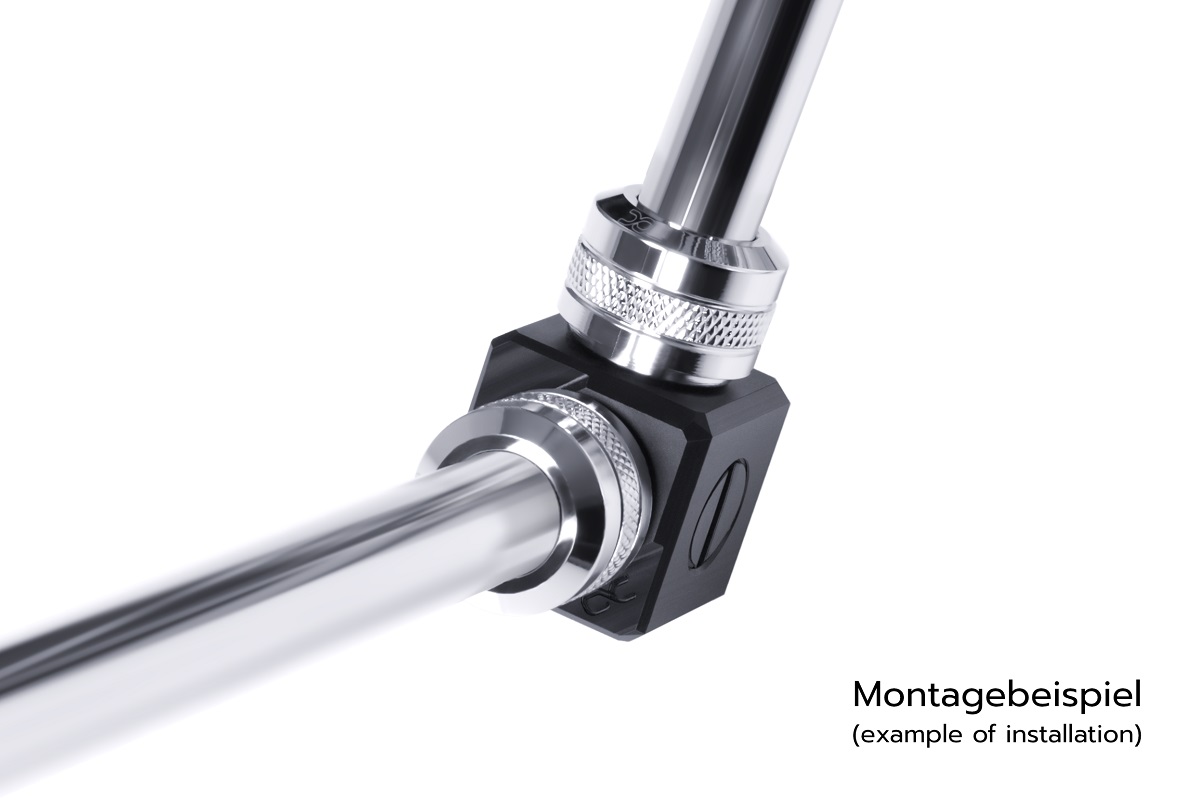

With such an adapter, parallel circuits can easily be realised. Or you can use it to integrate a drain tap into the circuit. Of course, temperature sensors can also be mounted on it. It is also possible to split and merge circuits. You can also simply use the adapter as a fancy elbow. The possibilities are extensive.



Technical data

L x W x H:26,5 x 26,5 x 26,5 mm

Weight: 20 g

Material: Acetal

Connection: 5x G1/4“ inner thread
