Aquacomputer Slot bracket with fill port for LEAKSHIELD
- Producent: Aqua Computer
- Kod producenta: 34143
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

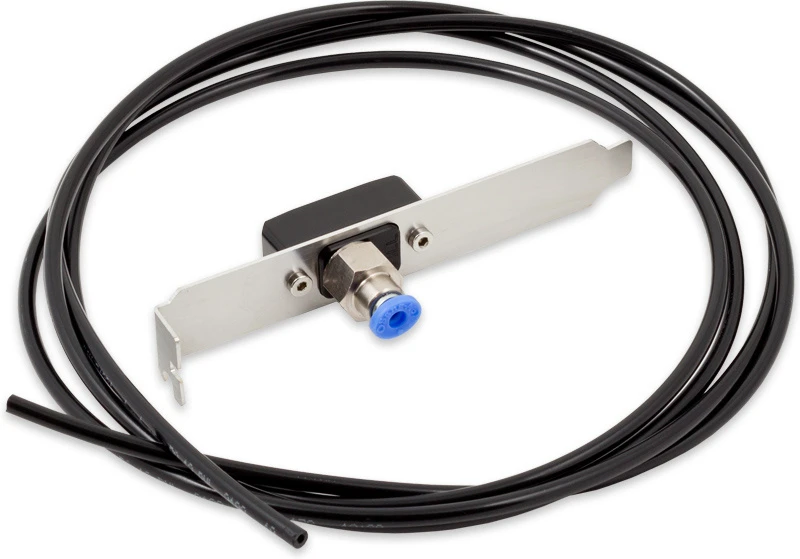

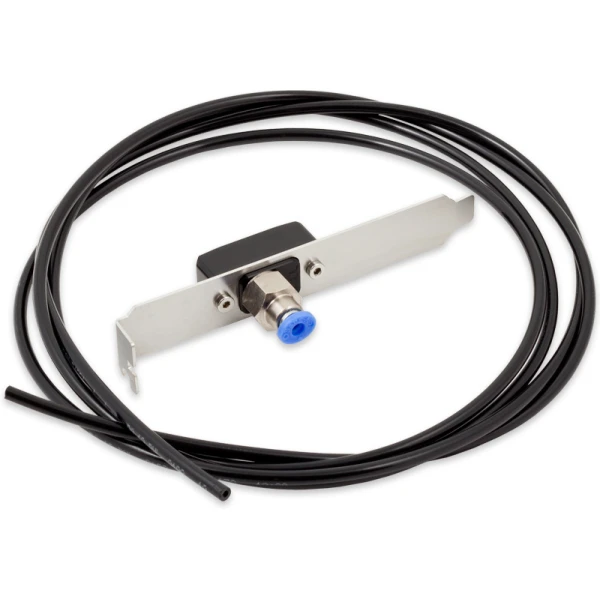

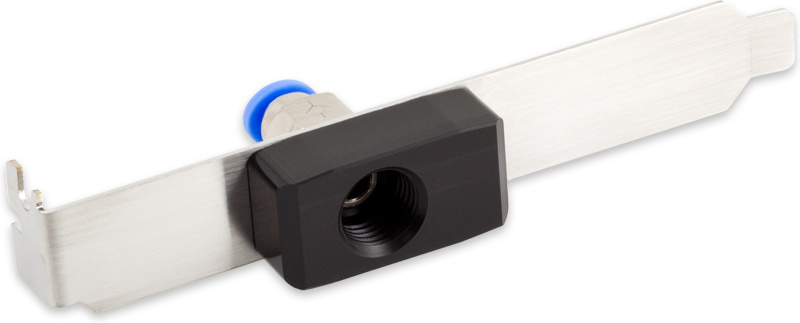

This elegant feedthrough for a vacant PCIe or PCI slot is equipped with an outwards-facing, stop valve tube fitting. The integrated stop valve in this fitting is opened by inserting the tube into the fitting. When the tube is removed, the valve closes automatically. An inwards-facing G1/4 thread can be connected to the liquid cooling loop.
When used in a LEAKSHIELD equipped liquid cooling system, filling and topping up coolant is very easy to do. After activating the fill mode of the LEAKSHIELD, plug in the tube and insert the other end of the tube into a coolant bottle / canister. Coolant will be sucked into the system by negative pressure. Once the desired fill level is achieved, pull the tube out of the coolant bottle / canister. Remaining liquid in the tube will also be sucked into the system. Afterwards, remove the tube from the slot bracket, which automatically shuts off the valve in the fitting.
Scope of delivery:
One stainless steel bracket with acetal feedthrough and stop valve tube fitting
Two meters of suitable tube
Please note: Inward-facing fitting for connection to the coolant loop not included in delivery, please order a suitable fitting for your preferred tube dimensions separately. LEAKSHIELD not included in delivery.
When used in a LEAKSHIELD equipped liquid cooling system, filling and topping up coolant is very easy to do. After activating the fill mode of the LEAKSHIELD, plug in the tube and insert the other end of the tube into a coolant bottle / canister. Coolant will be sucked into the system by negative pressure. Once the desired fill level is achieved, pull the tube out of the coolant bottle / canister. Remaining liquid in the tube will also be sucked into the system. Afterwards, remove the tube from the slot bracket, which automatically shuts off the valve in the fitting.
Scope of delivery:
One stainless steel bracket with acetal feedthrough and stop valve tube fitting
Two meters of suitable tube
Please note: Inward-facing fitting for connection to the coolant loop not included in delivery, please order a suitable fitting for your preferred tube dimensions separately. LEAKSHIELD not included in delivery.
