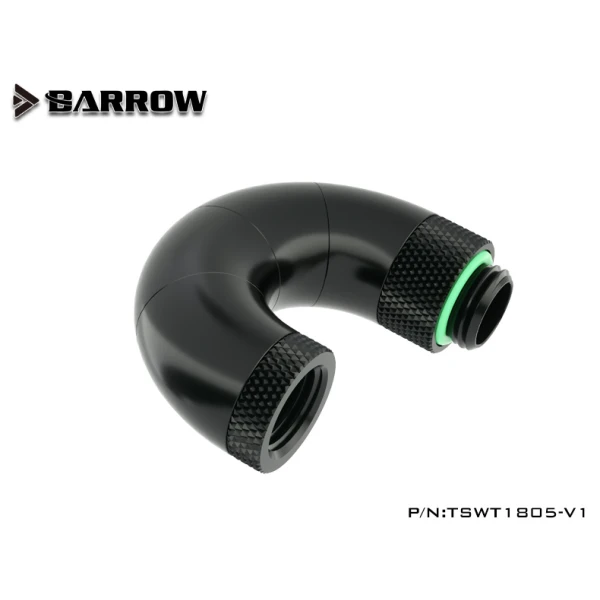

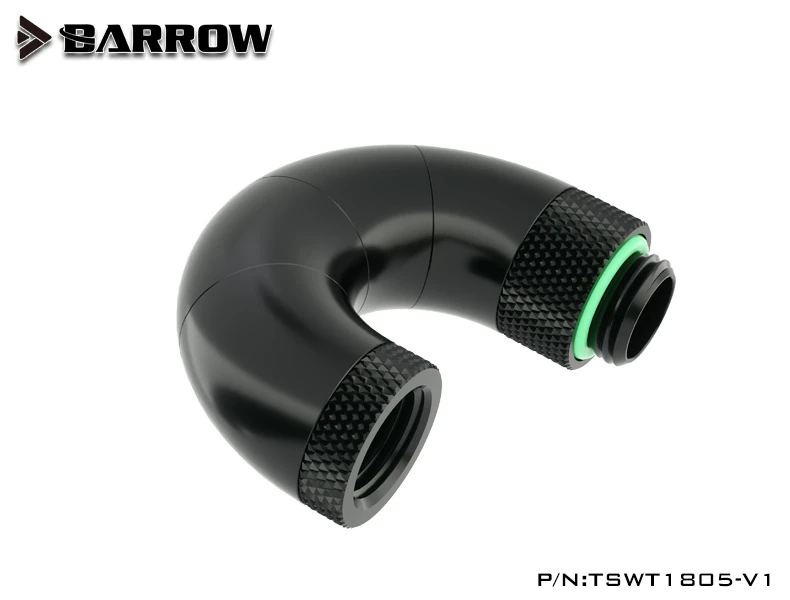

Barrow adapter 180° (Snake), 5-way rotary, internal/external thread G1/4, black

This connector has a G1/4 internal and external thread and can be flexibly and precisely positioned thanks to its four independently rotatable 45° elbows. The internal and external thread connectors are rotatable as well.

If necessary, the connector can be extended as required with additional Barrow components.



Please check if the outer diameter and depth of the inner thread is compatible with your components!



Technical details:

Connection thread: G1/4

Material: brass black coated

Thread length/depth: 5 mm

Dimensions in 180° orientation: 37.4 x 56.7 x 18 mm

Outer diameter: 18 mm



Scope of delivery:

One connector
