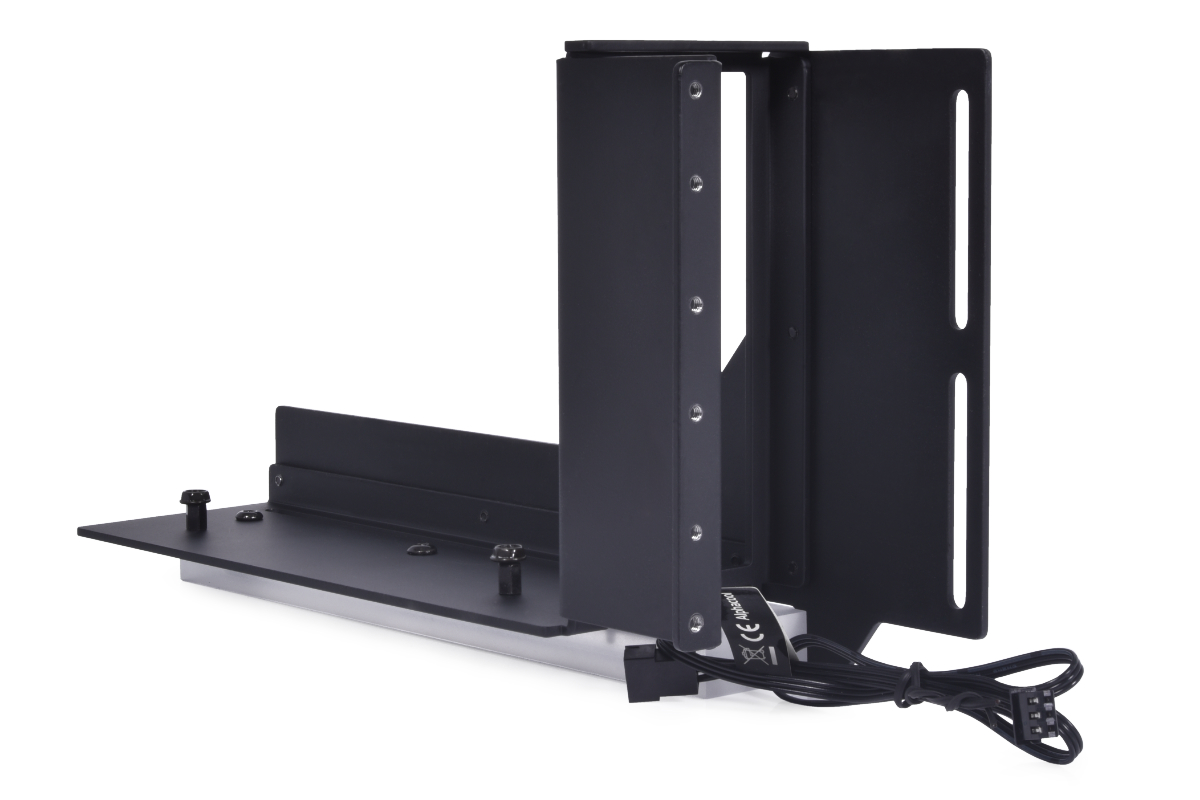

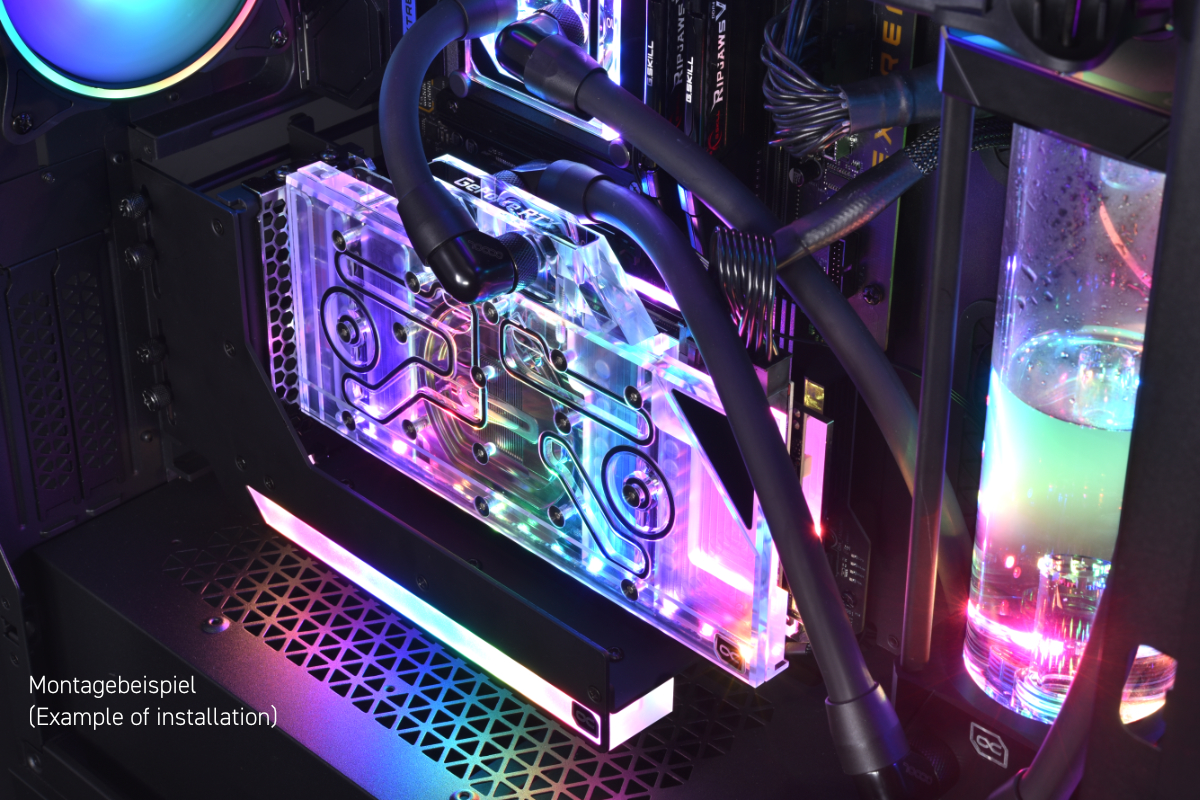

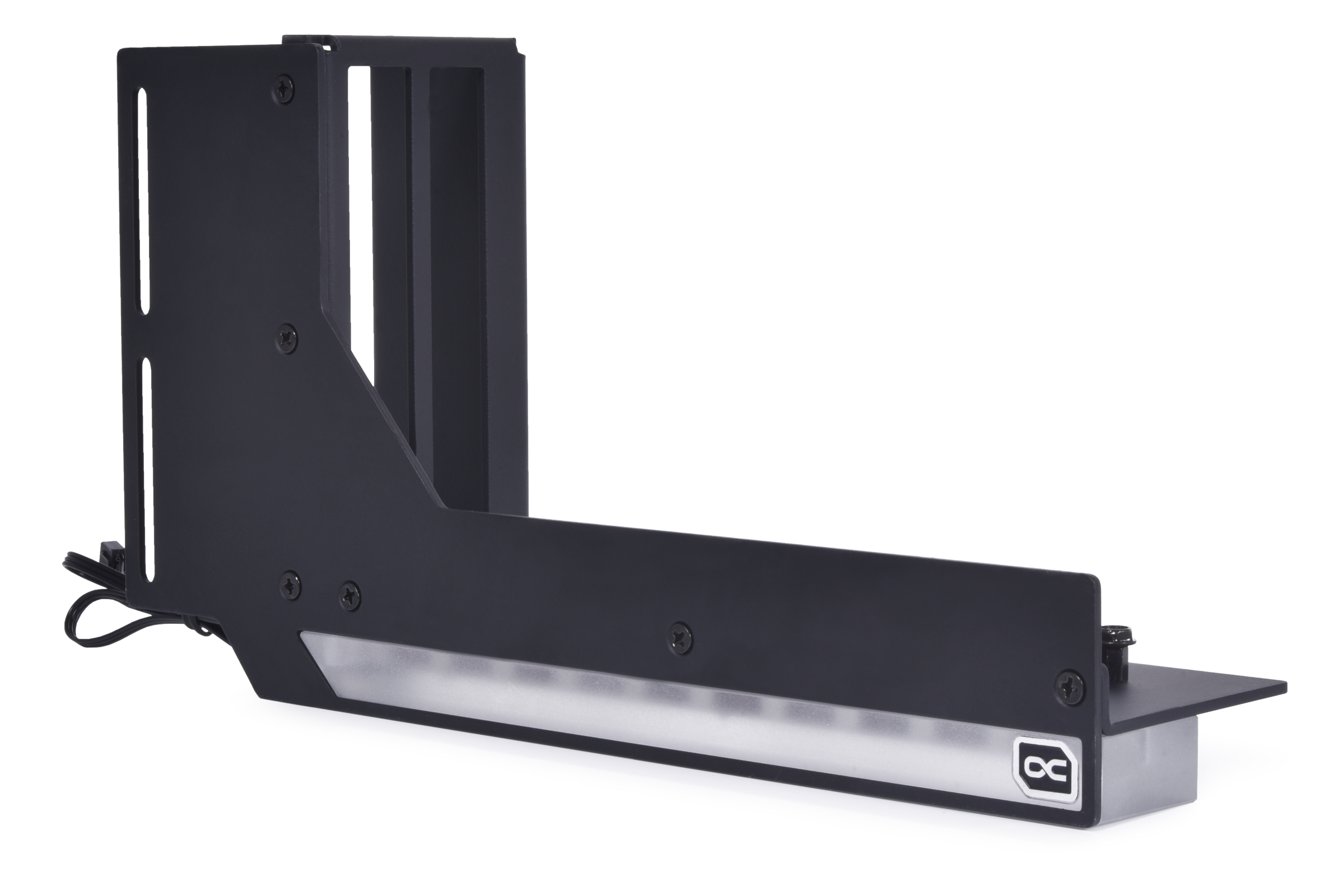

With the Alphacool Aurora Vertical GPU mount including riser cable, a graphics card can be installed vertically in common PC cases. The mount features 11 individually controllable 5V aRGB LEDs that create unique lighting effects.

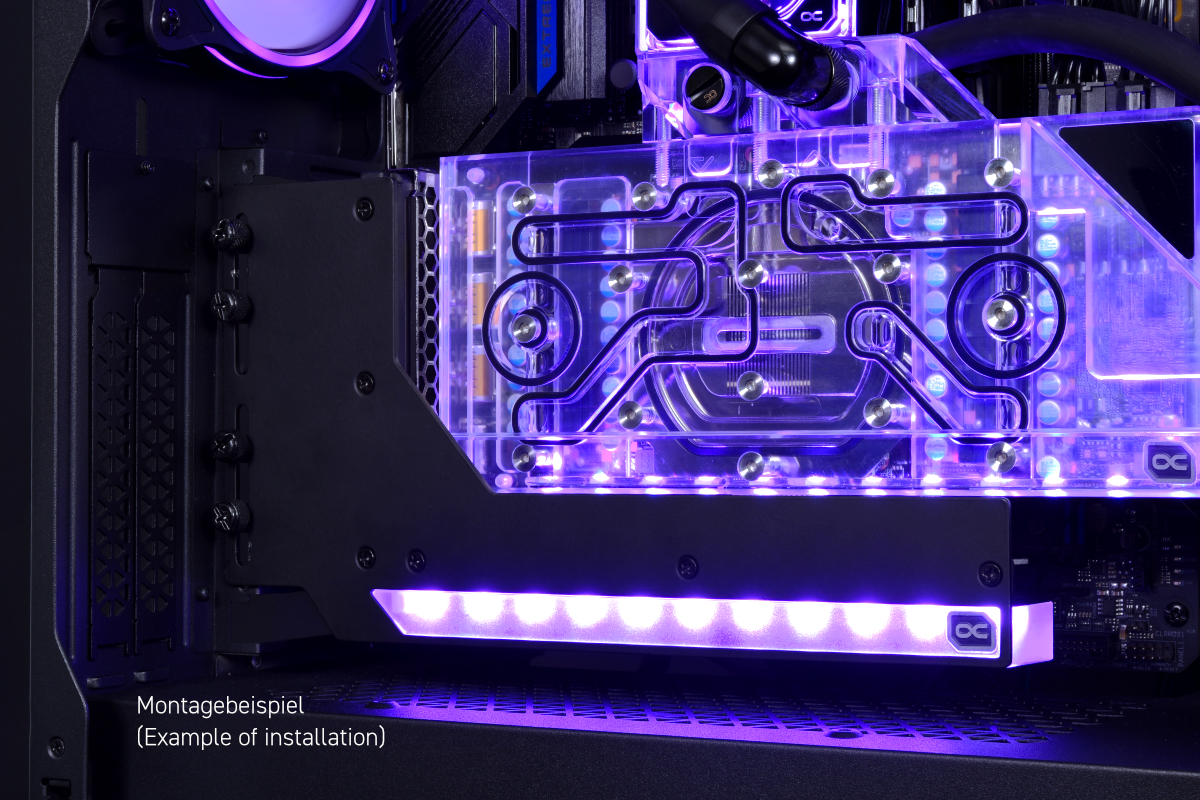

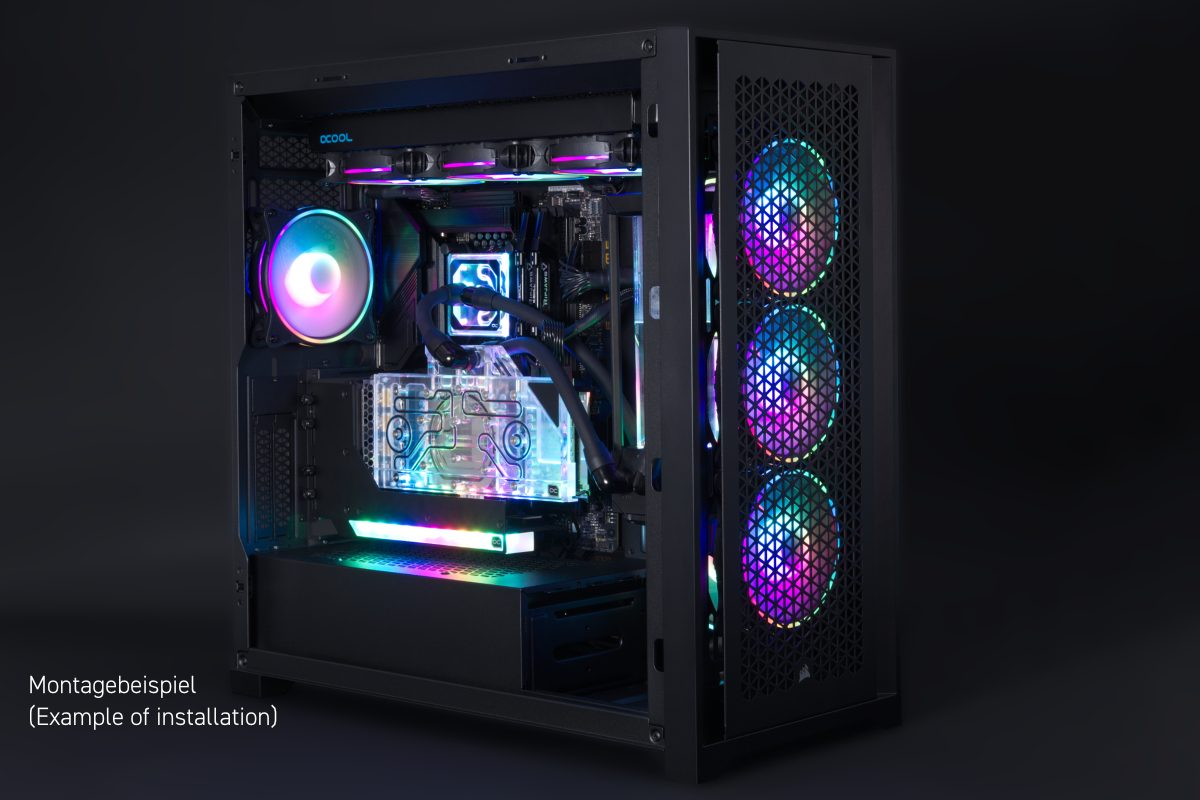

For this, six of the existing slot covers on the back of the case must be removed. The GPU mount including the already mounted graphics card is positioned in the area of the removed slot covers and screwed into the case using the included support clamp and the M3x6 screws.

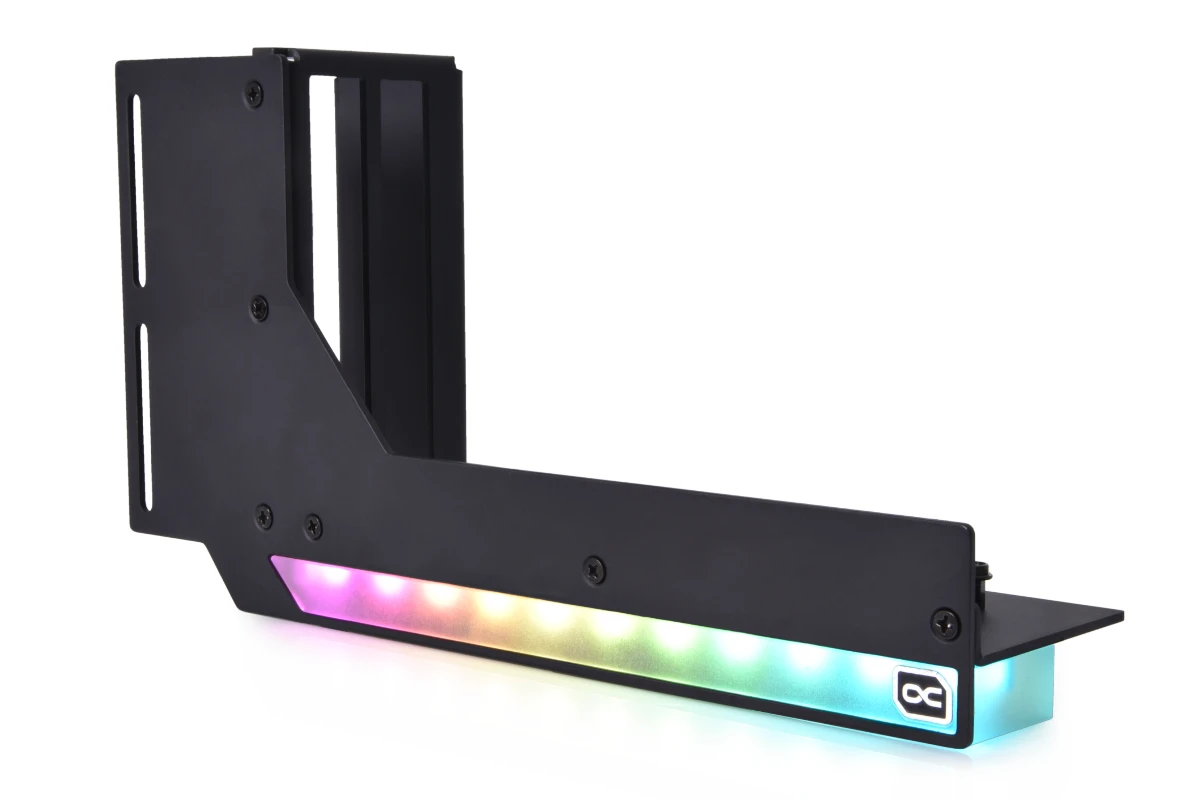

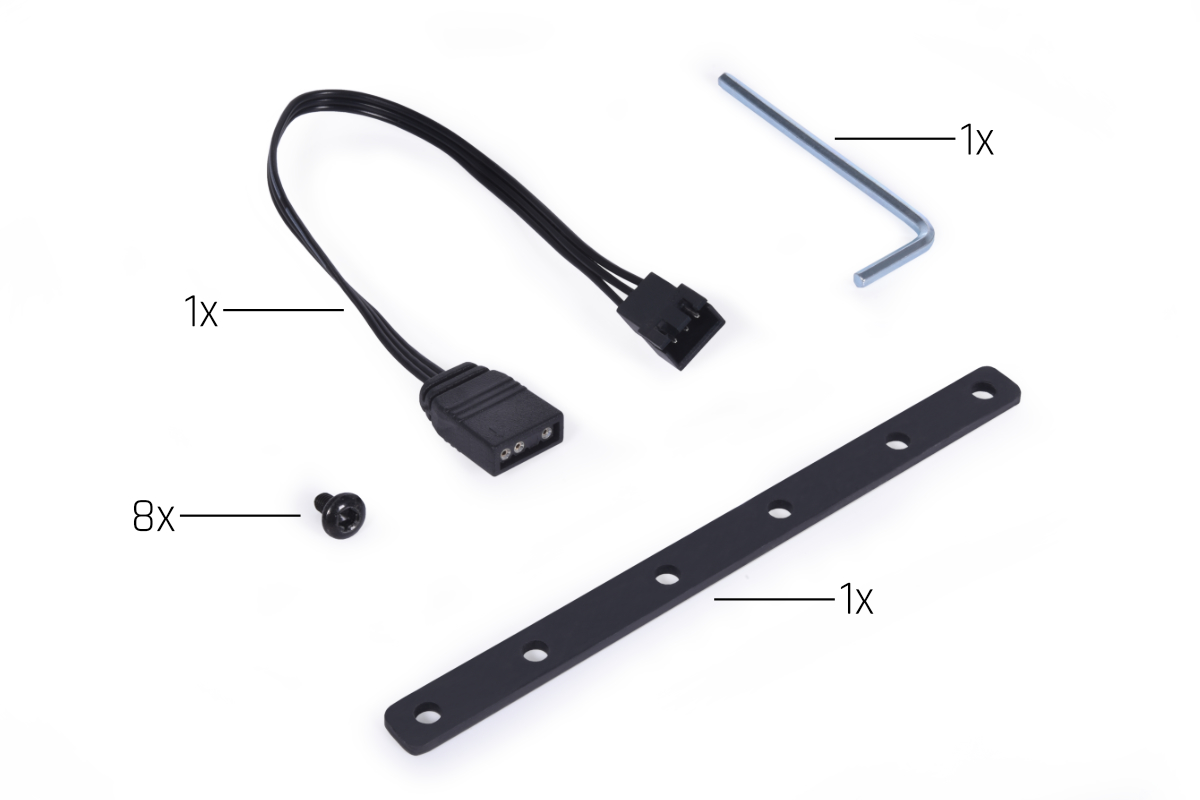

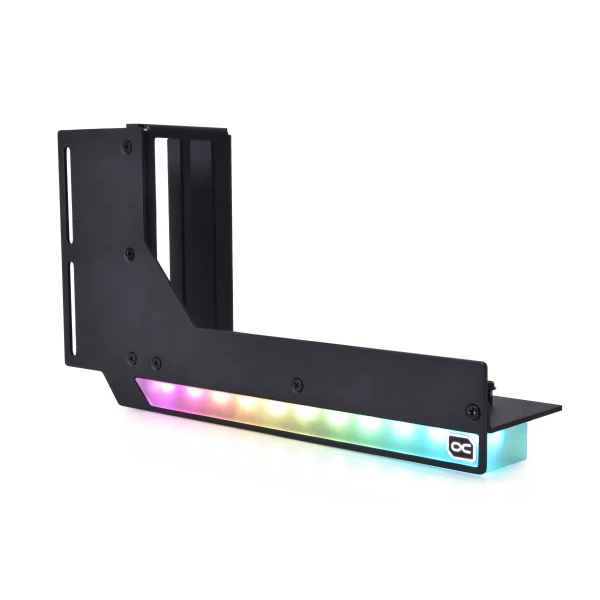

In the lower part of the bracket 11 digitally addressable 5V RGB LEDs are installed, which create a unique, very noble looking illumination. The Digital aRGB LED illumination is connected via a JST 3-pin connector. To control the digital RGB lighting, the included adapter must be plugged into the 3-pin female connector and connected to a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360, not included) or a digital RGB capable motherboard. The remaining 3-pin male connector can be used to connect additional digital RGB LEDs.
|Dimensions (L x W x H)
||241,5 x 133 x 72 mm
||stainless steel, acrylic
|PCI slots required
||3-pin JST (approx. 410 mm cable length)

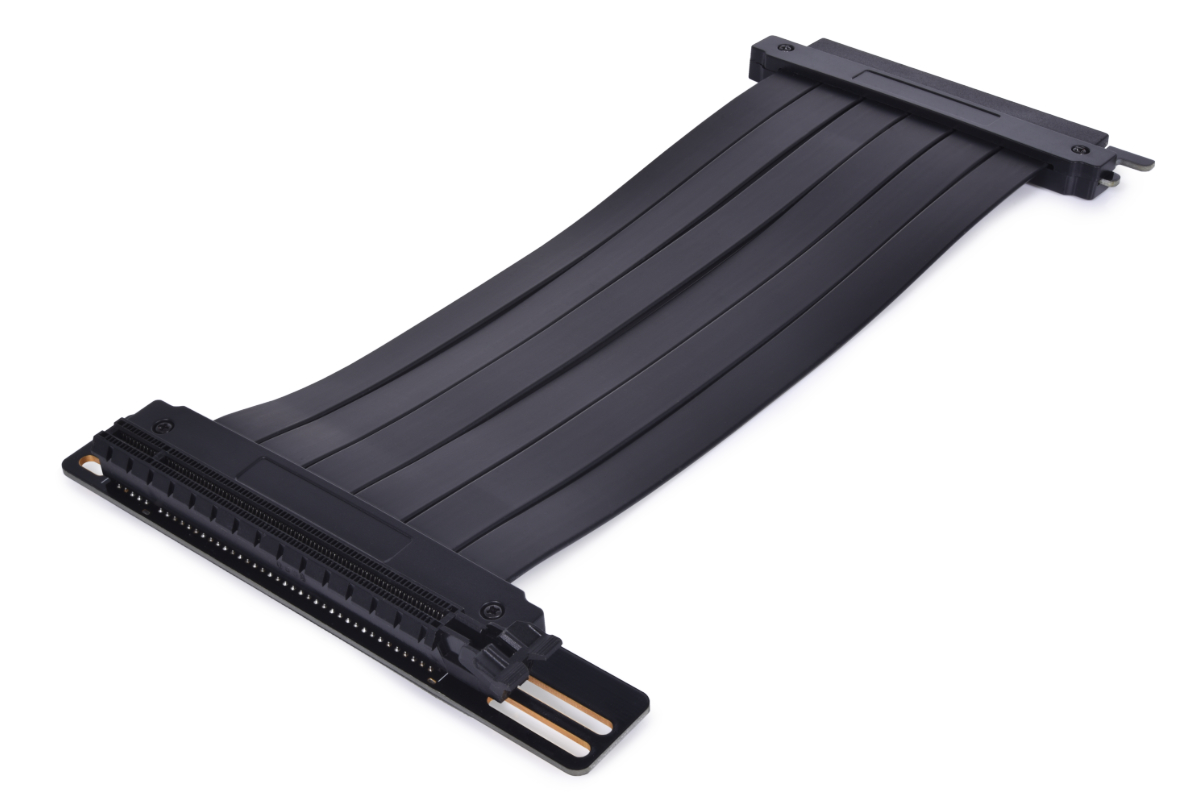

|Compatibility PCI riser cable
||PCI-E 3.0 x16 (highly foldable and flexible)
|Length PCI riser cable
