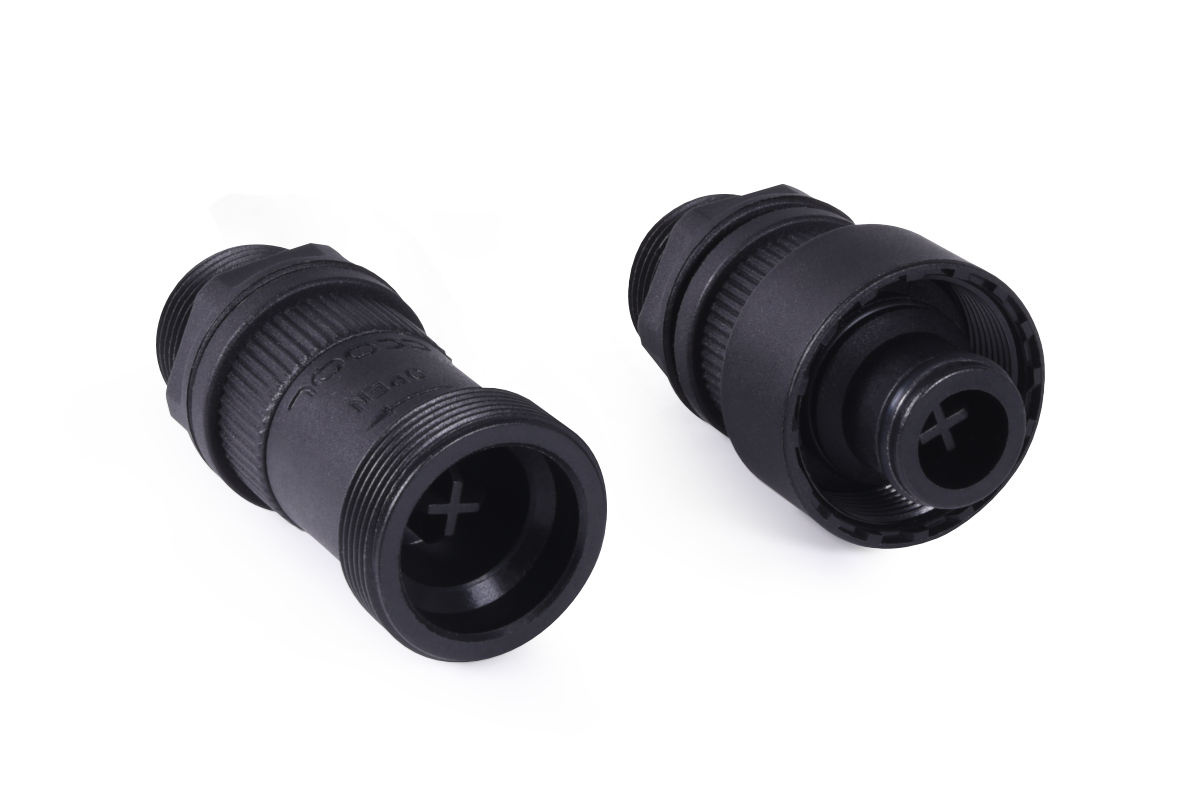

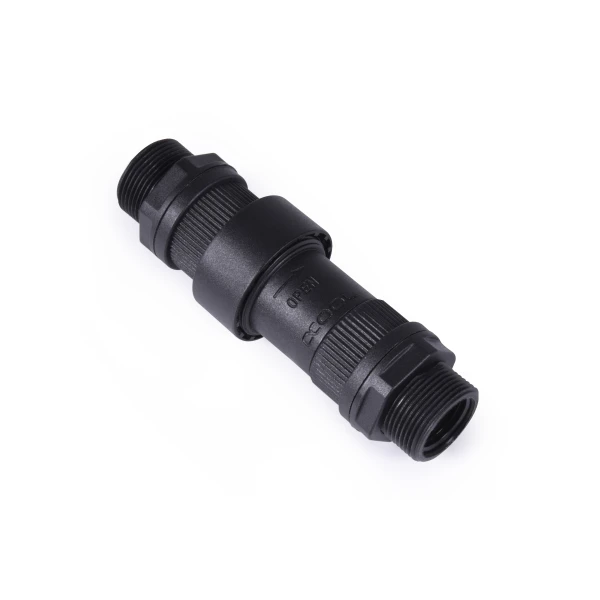

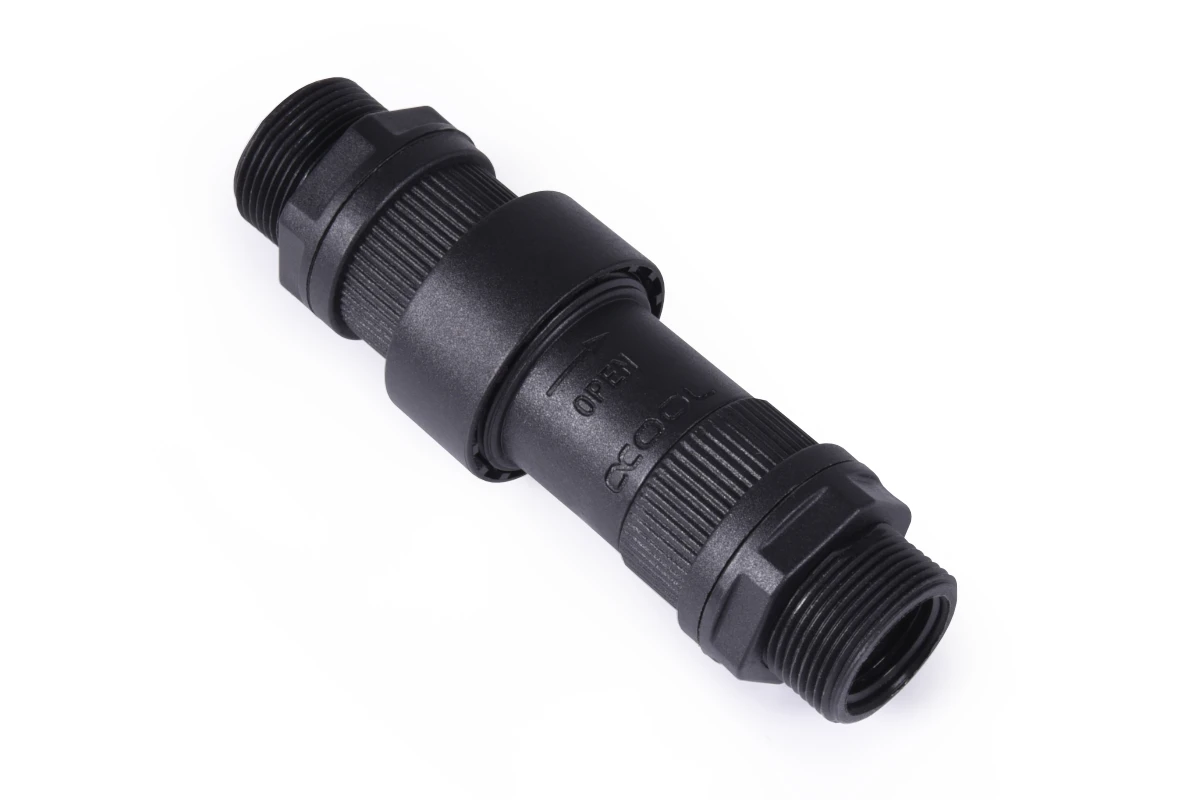

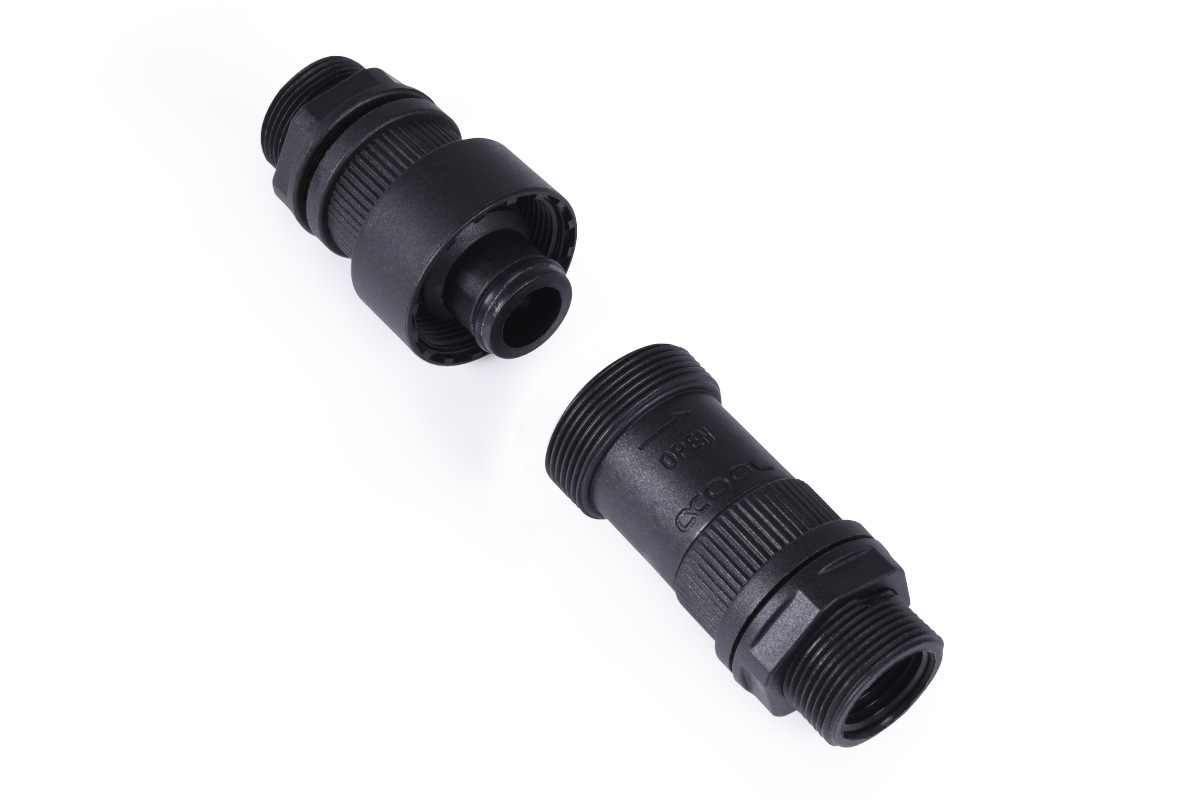

The Alphacool ES quick release coupling set IT/IT is designed for permanent mounting on a PC or server case and works like a bulkhead fitting. The quick release coupling enables quick connection or disconnection of externally connected radiators or cooling systems.

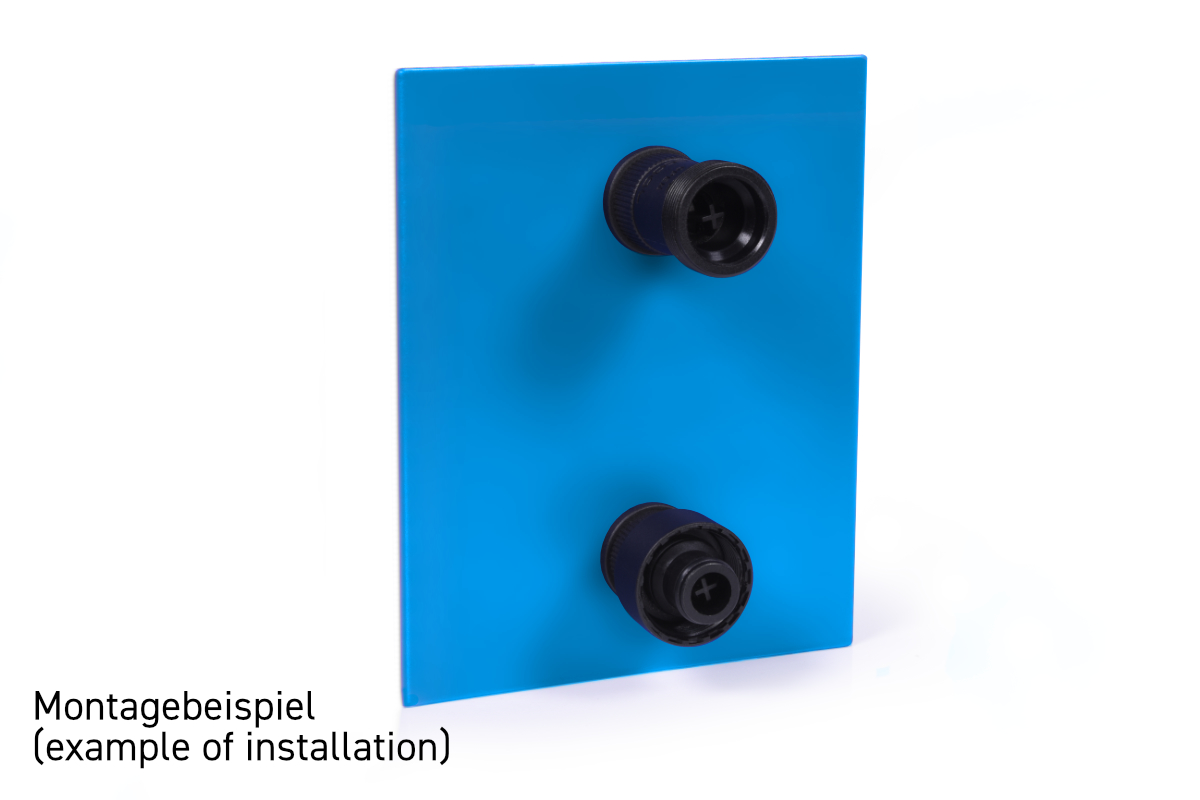

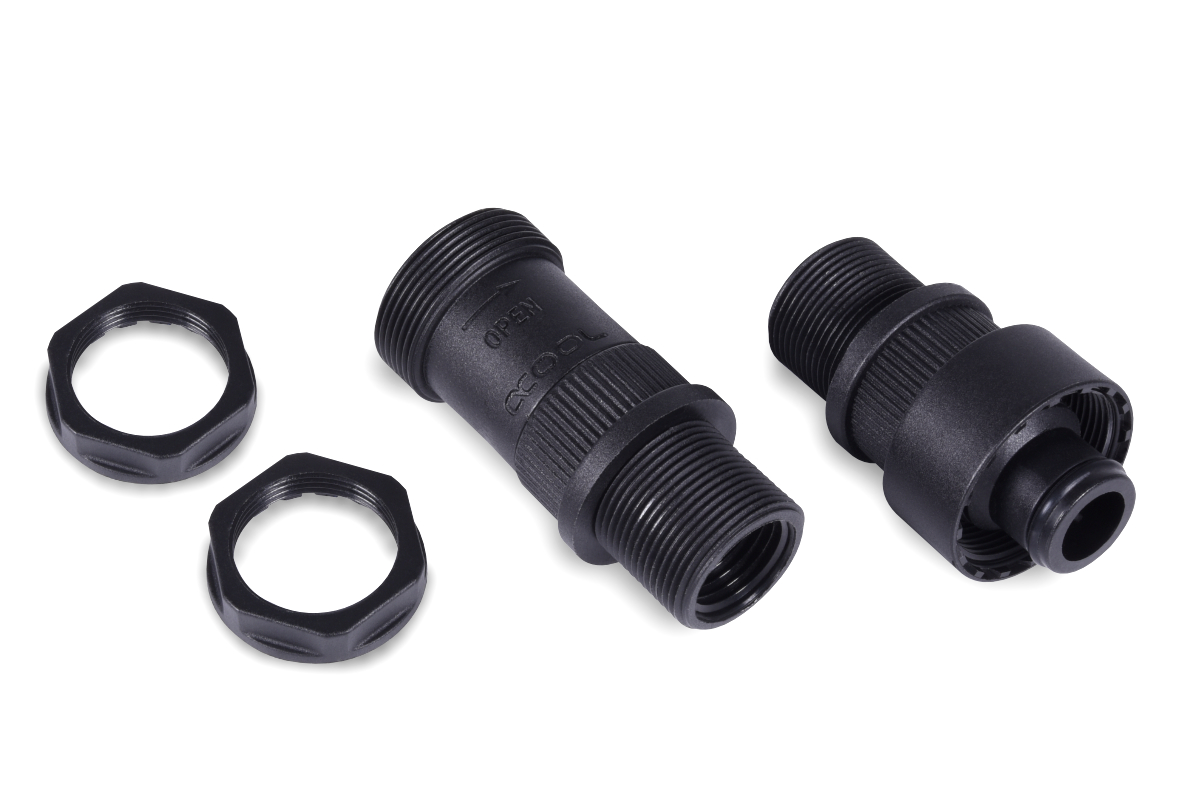

The quick-release coupling set is mounted in two openings in the casing, each with a diameter of 18mm (see mounting example). Male and female connectors are inserted with the threaded side through the round openings and screwed tight with the enclosed lock nuts. The water circuit is then connected on the inside of the case via the two G1/4" internal threads. External radiators or cooling systems can now be easily connected to the water cooling in the housing by using additional quick-release fasteners.
The quick release coupling set comes with a locking ring. This is inserted into the opening mechanism and prevents accidental disconnection of the coupling. An opening aid is also included, which makes it easier to disconnect the coupling in tight systems.
- G1/4" OT connections
- quick release coupling OT/OT (art. 17537)
- quick release coupling IT/IT (art. 17569)
- quick release coupling TPV (art. 17469)
|L x D (total)
||89,5mm x 23mm
|L x D (male connector)
||54mm x 23mm
|L x D (female connector)
||55mm x 23mm
