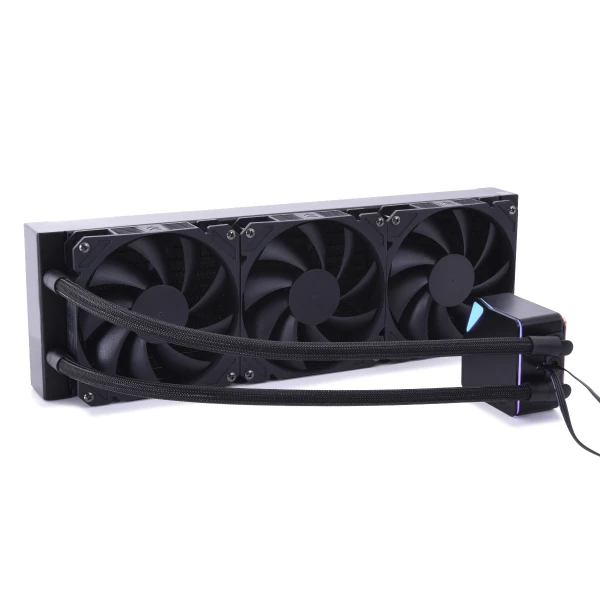

Alphacool Core Ocean T38 AIO 360mm

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 13052
  • Kod EAN: 4250197130523
  • Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

3

    Cena:

    339,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    339.9 In stock Alphacool Core Ocean T38 AIO 360mm

    With the Core Ocean AiO, Alphacool presents an all-in-one solution that, thanks to its excellent price-performance ratio, enables entry into performance-oriented CPU water cooling. The difference to the Eisbaer CPU AiO is that the Ocean All-in-One is not expandable. Adding further components such as GPU coolers, radiators or expansion tanks is not intended here. But also not necessary! The choice of components and the design of the Core Ocean enable a long service life with low maintenance for water cooling of all common mainstream sockets from AMD and Intel.

    Aluminium Radiator
    Compared to Alphacool's full copper models, the T38 aluminium radiator has additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. Due to the low height of 38mm, the radiator with single-sided fan assembly fits into the tightest case and enables high-performance water cooling of the CPU.

    Core fan
    The fan can be regulated from 0 to 2500 rpm via the 4-pin PWM connection. The cable is 40cm long. This allows the fan to be connected to the mainboard or a special controller without the need for additional adapter cables or extensions. At 2500 rpm, it provides an air flow of 62.8 CFM, together with a high static pressure of 2.13mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system.

    Cooler & Pump
    As with all Alphacool products, the radiator base is made of copper and is equipped with very fine cooling fins distributed over the entire base. A nozzle plate ensures an accelerated flow over the cooling fins, which increases the cooling performance. The water flow is optimised so that all areas of the cooler base are cooled evenly. The cooler is compatible with all common mainstream sockets from AMD and Intel. The built-in pump has a speed range of 2500 - 3500 RPM (+/- 10%) and can be controlled via PWM. The pump is connected to the mainboard or to an external controller via the existing 4-pin fan connector. This allows the speed range of the pump to be controlled and monitored.

    Hoses & Connections
    The FEP hoses are 40cm long, sleeved and very flexible. The rotatable 360° connections to the cooler and to the radiator are permanently installed and cannot be replaced. However, the combination of hoses and connectors allows a very variable positioning of the AiO even in the tightest PC case.

    Illumination
    12 digitally addressable 5V RGB LEDs are installed in the pump housing, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector. To control the lighting, the 3-pin female connector must be connected to a digital RGB controller (not included) or a digital RGB-capable mainboard. Additional digital RGB LEDs can be connected to the remaining 3-pin male connector.

    Thermal compound
    The thermal paste included in the delivery has a thermal conductivity of 7.5 W/mK. The thermal grease does not harden, is particularly suitable for high contact pressures and can be applied perfectly due to the optimally selected viscosity.



    Compatibility:
    Intel: LGA 115x / LGA 1200 / LGA 1700 / LGA 2066
    AMD: AM4 / AM5



    Technical data radiator
    L x W x H 397 x 120 x 38mm
    Material cooling fins, channels & prechamber 3003 Aluminium
    Material outer housing & threads 3003 Aluminium
    Fins per Inch 19
    Fan size 120mm
    Fan slots 3 one-sided / 6 double-sided
    Color black

    Technical data fans
    L x W x H 120 x 120 x 25mm
    Bearing Type hydraulic Bearing
    Rated Voltage DC 12V
    Operating Voltage DC 7-14V
    Start-up Voltage 7V
    Rated Current 0.23 (Max. 0.4) A
    Rated Power 2.76 (Max. 4.8) W
    Rated Speed 0 - 2500rpm/min (±10%)
    Max. Air Flow 62.8CFM
    Max.Static Pressure 2.13mm-H2O
    Noise level (rated voltage, mute room, distance 1m) 33.0 (Max. 34.3) dBA
    MTBF 50000hrs at 25°C
    Speed Control Mode PWM
    Connection & control 4-pin PWM (cable 40cm)
    Auto-Restart yes
    Tachometer Output yes
    Color black

    Technical data cooler & pump
    L x W x H 70,2 x 70,2 x 46mm
    Material cooler bottom copper
    Material pump housing Synthetic material (ABS+PC)
    Fin structure cooler bottom 0,1 x 0,1mm
    Material pump bearing & shaft ceramics
    Starting voltage > DC 6V
    Rated power 7.1W
    Noise level 35Db
    Rated Current 0.59A (±10% MAX)
    Speed 2500~3500 (±10% RPM)
    Power supply Digital aRGB 3-pin 5V (male & female, cable length 30cm)
    Number of aRGB LEDs 12
    Power supply pump 4-Pin JST (Kabellänge 30cm)

    Technical data tubes
    Material FEP, black with weave cover
    Length 400mm
