Alphacool Core 140mm fan PWM 3200rpm (140x140x25mm)

Alphacool Core 140mm fan PWM 3200rpm (140x140x25mm)

Brak ocen

Producent: Alphacool
Kod producenta: 24847
Kod EAN: 4250197248471
Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

Koszt wysyłki: od 6,90 zł
Darmowa dostawa od 800,00 zł

Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 140mm model!

Connections

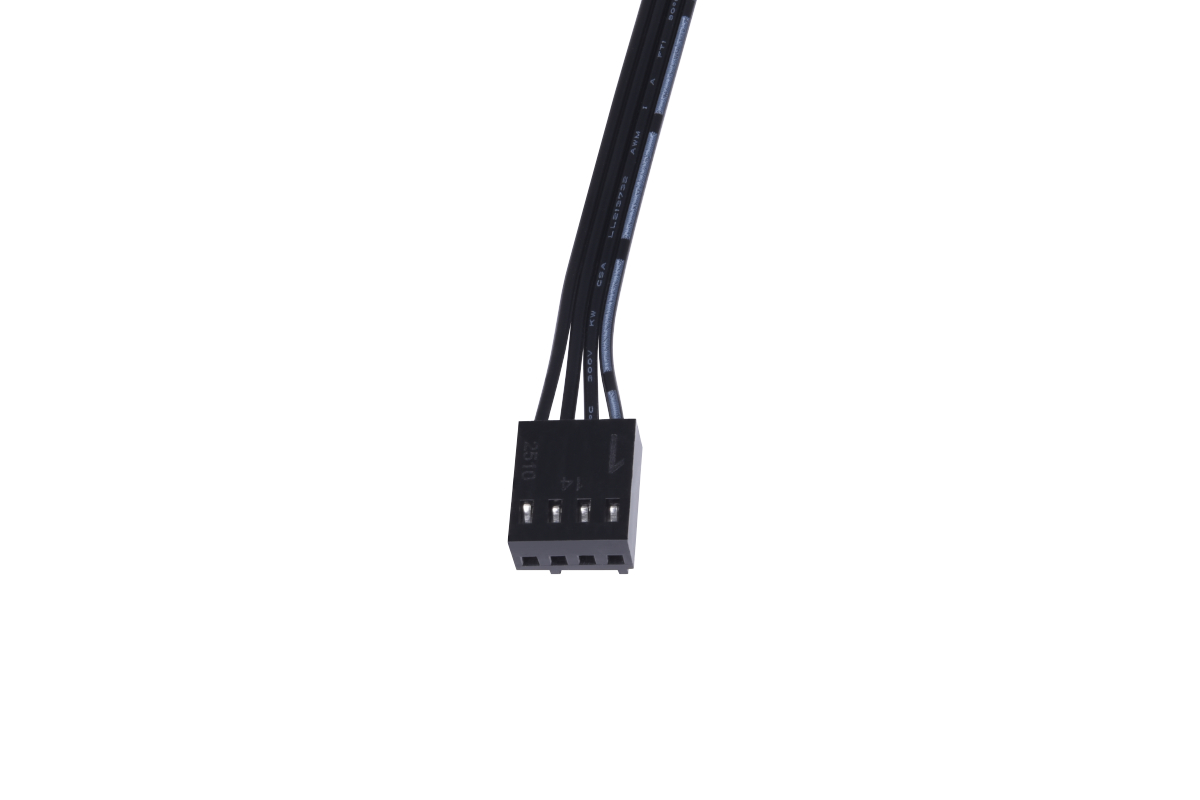

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.

Control range
The fan can be controlled from 0 to 3200 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 153.9 CFM combined with a high static pressure of 6.99 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.

Technical data
Dimension (L x W x H)	140 x 140 x 25mm
Material	synthetic material (PBT UL94V-0)
Bearing Type	Two Ball Bearing
Rated Voltage	DC 12V
Operating Voltage	DC 7-14V
Start-up Voltage	7V
Rated Current	0.66 (Max: 0.75) A
Rated Power	7.92 (Max: 9.00) W
Rated Speed	0 - 3200 rpm/min ±10%
Max. Air Flow	153.9 CFM
Max. Static Pressure	6.99 mm/H2O
Noise level	51.0 (Max: 53.0) dBA
Life Expectance	70000 h at 40 degrees celcius
Connection	4-Pin PWM
Speed Control Mode	via PWM
Operating Temperature	-10~+70 degrees celcius
Other Features	Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22
