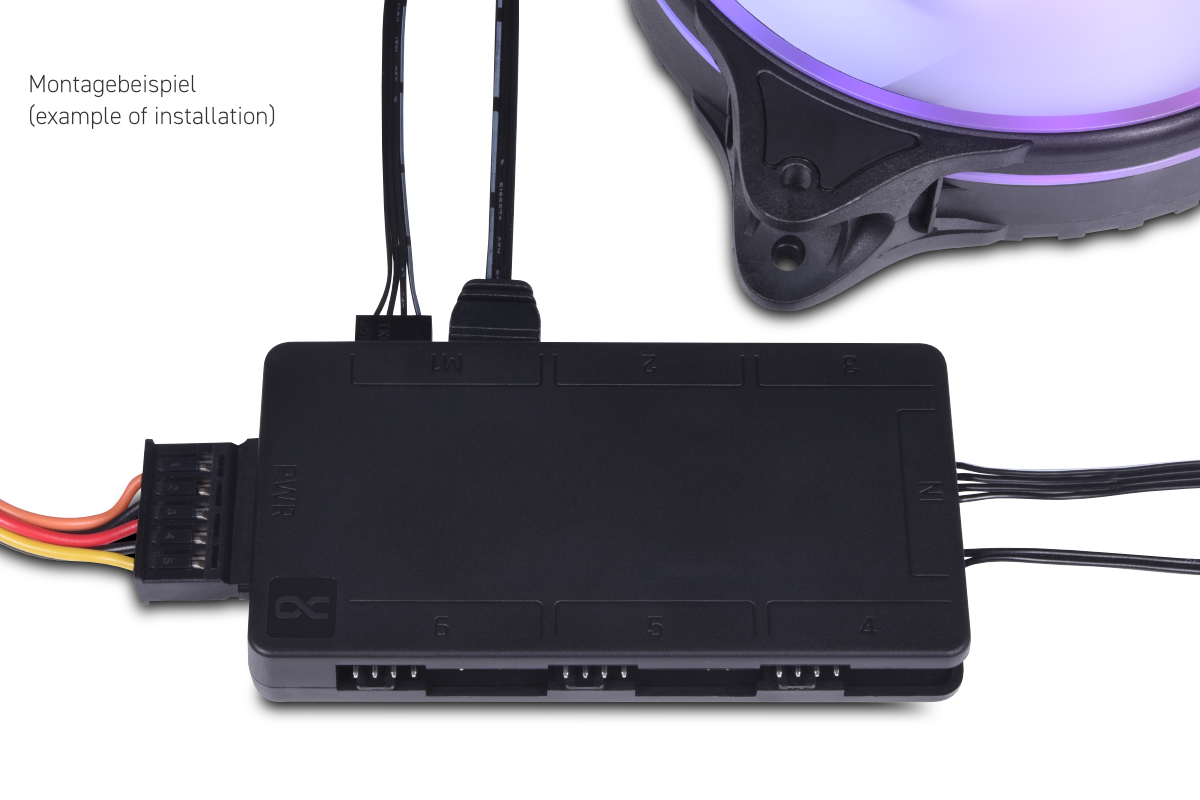

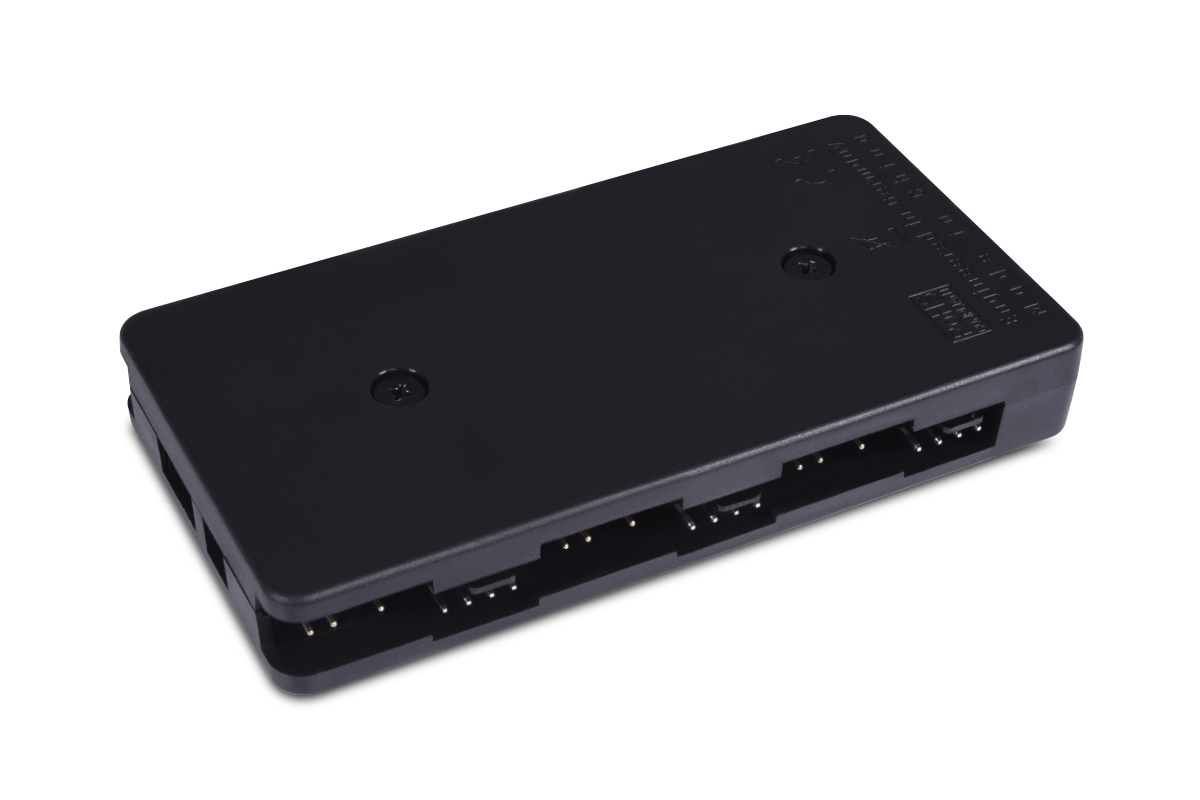

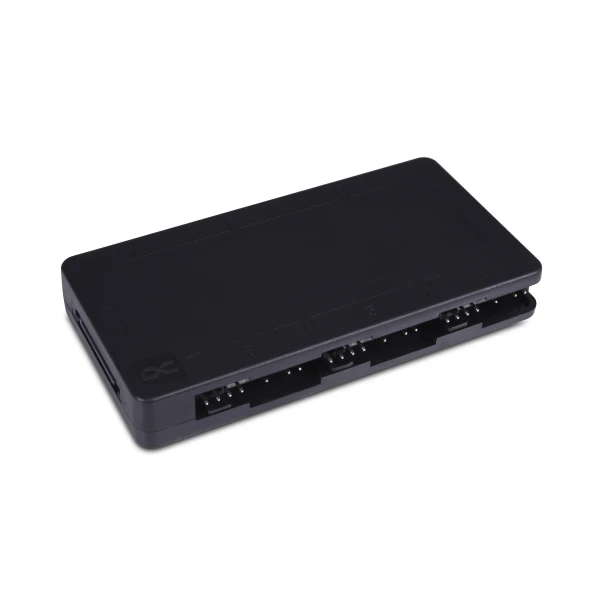

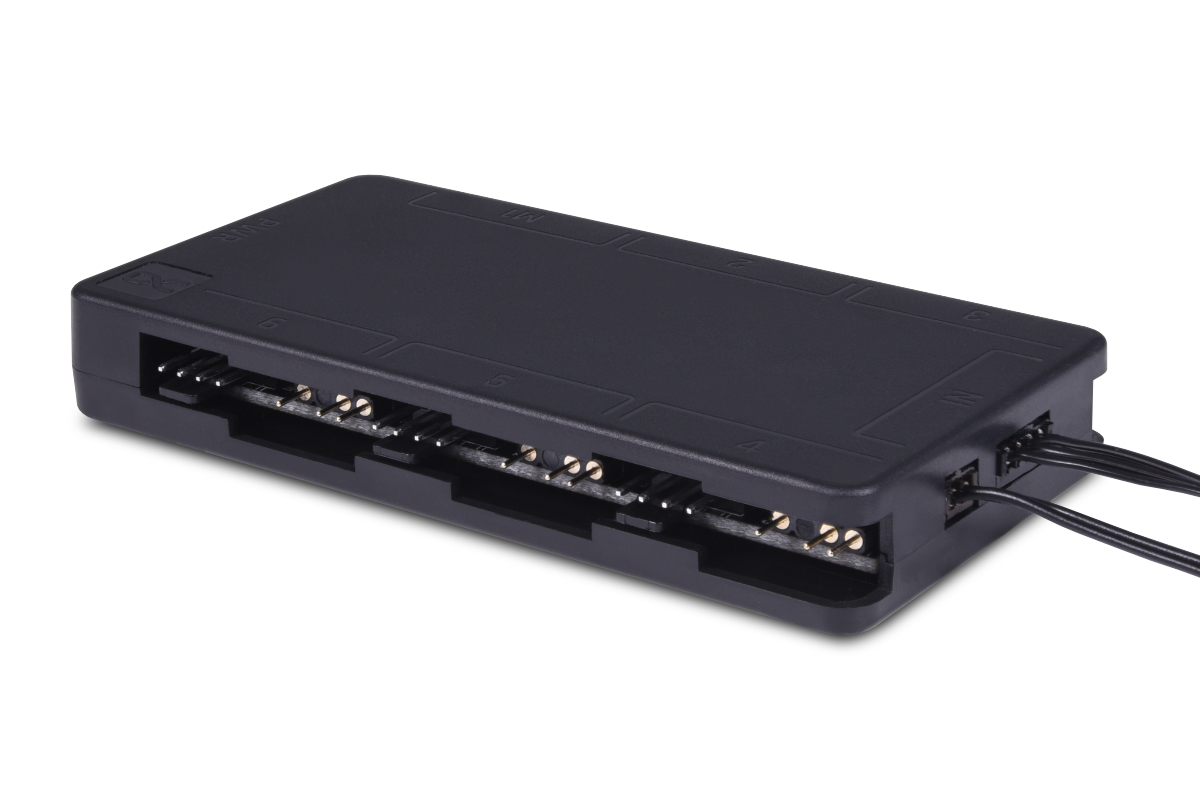

Alphacool's Core PWM/DRGB splitter has six 3-pin ports for controlling digitally addressable RGB elements and six 4-pin ports for controlling fans via PWM. The splitter can be connected via aRGB and PWM mainboard cable (included in the scope of delivery), each via an internal header on the mainboard. A maximum of 6 aRGB illuminated fans with a total power consumption of 22.5W (4.5A) can be connected to the controller and thus sufficiently supplied with power. Power is supplied via the SATA cable of the PC power supply.

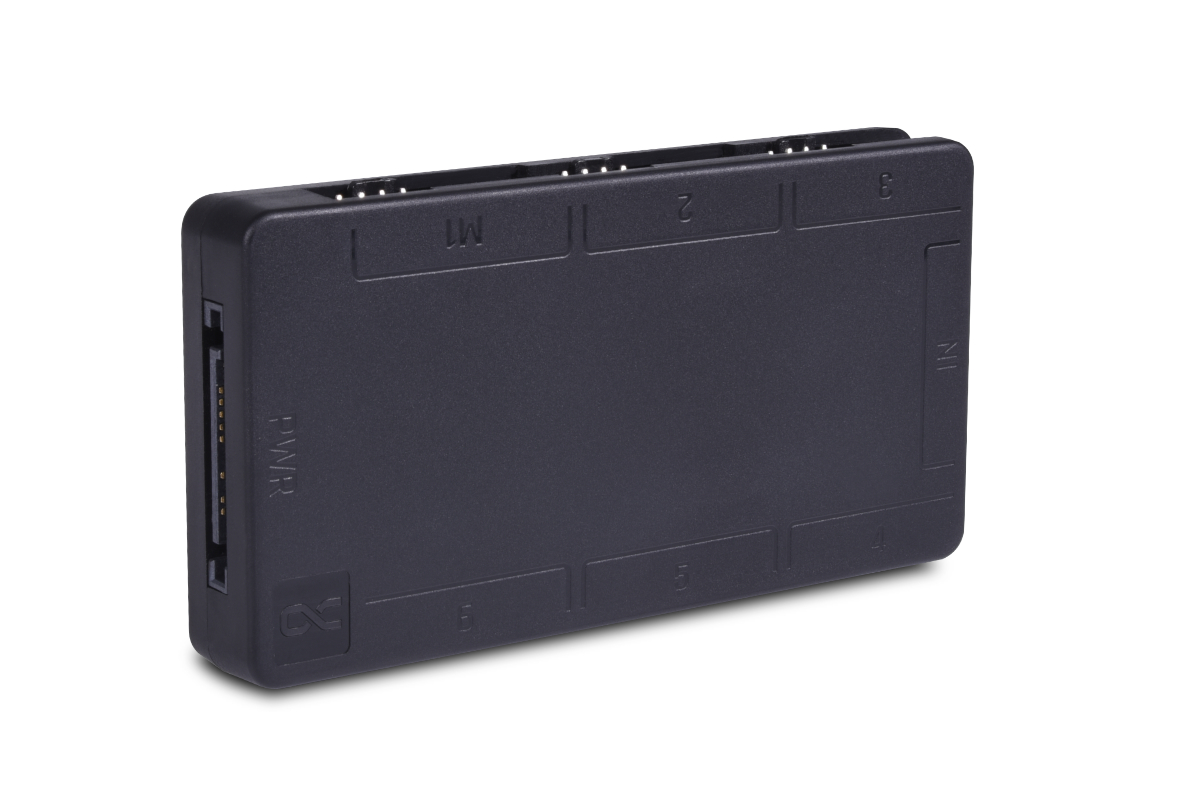

The speed of the connected fans and their aRGB settings will be controlled by the master fan (M1 port).

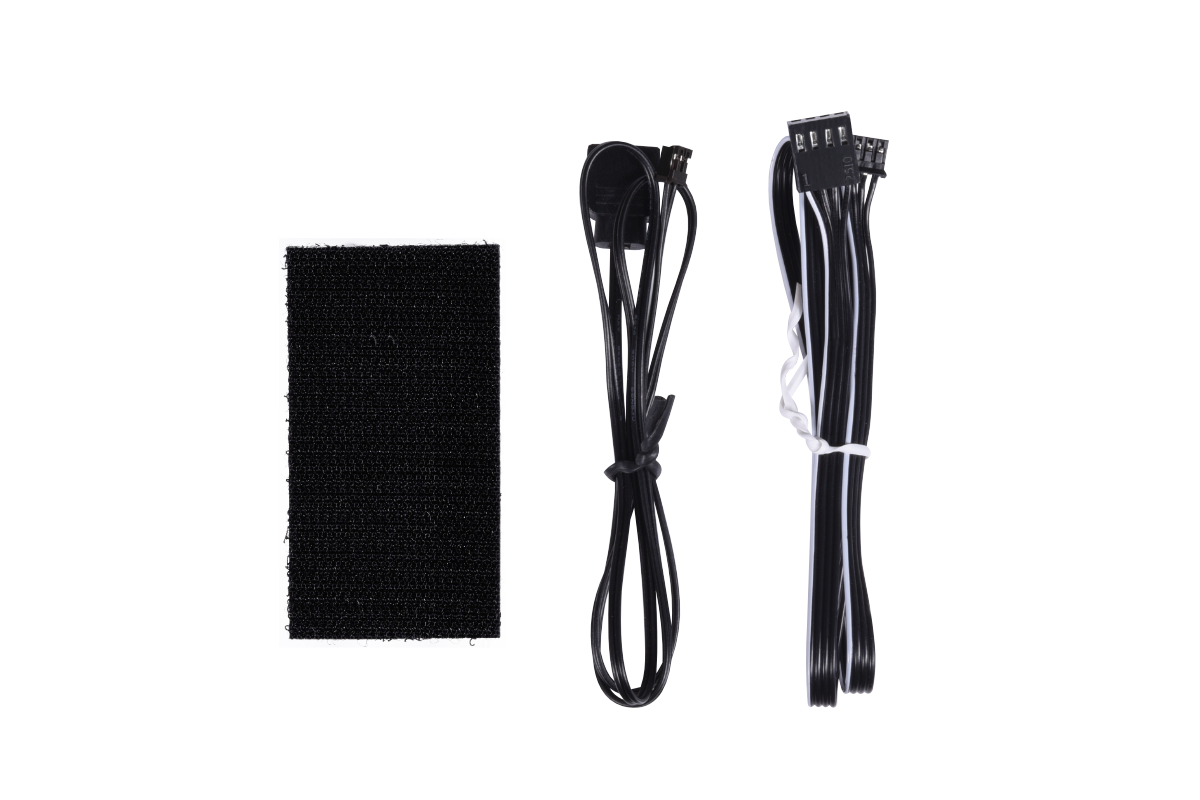

The scope of delivery includes self-adhesive Velcro tape that allows the Core PWM/DRGB Splitter to be positioned anywhere in the case.
|Dimensions (L x W x H)
|95,92 x 49,91 x 14mm
|via SATA Power Connector
|6x 4-Pin PWM | 6x 3-Pin aRGB (5V) | 1x SATA (5V) | 1x 2-Pin (Splitter IN)
|Maximum power consumption
