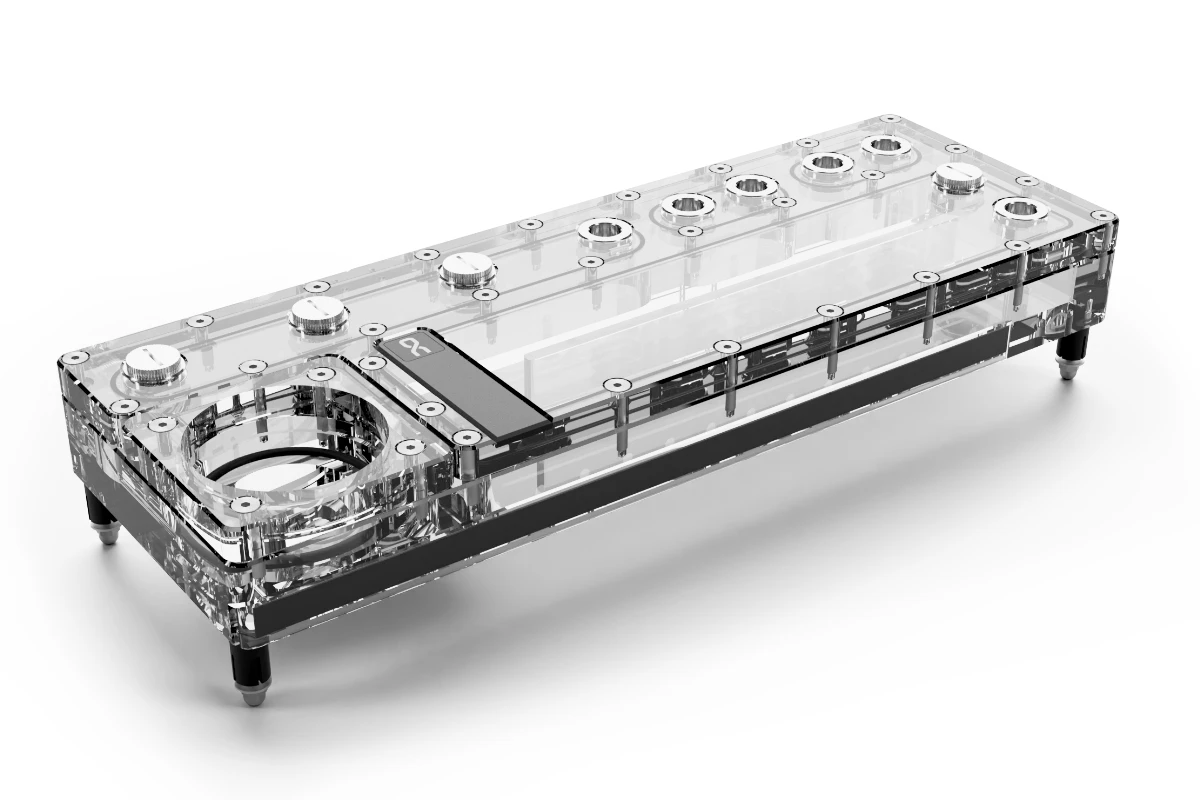

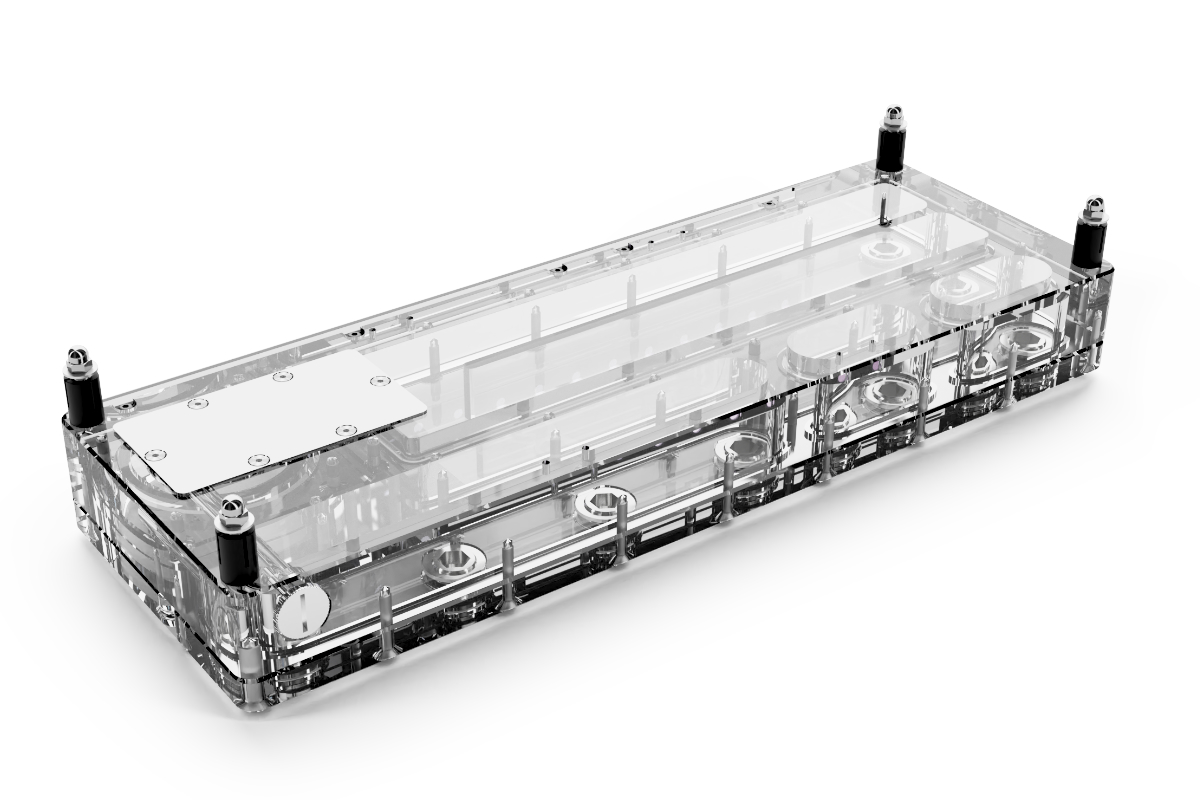

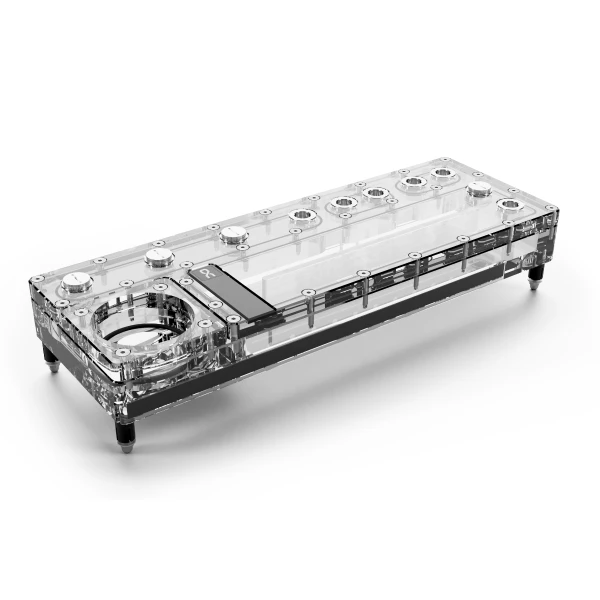

Alphacool Core Distro Plate 360 Left VPP/D5

Brak ocen

  • Producent: Alphacool
  • Alphacool
  • Kod producenta: 15476
  • Kod EAN: 4250197154765
  • Gwarancja: 24 miesiące

Dostępność:

Czas realizacji orientacyjnie 5 dni roboczych

    Cena:

    955,90 zł

    przechowalnia

    • Koszt wysyłki: od 0 zł
    • Darmowa dostawa od 800,00 zł
    955.9 In stock Alphacool Core Distro Plate 360 Left VPP/D5

    Alphacool's Core Distro Plate is a must-have for any performance-oriented custom water cooling system, as it greatly simplifies the planning, setup as well as maintenance of complex water loops.

    Core Design
    A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connectors. With the Core Distro Plate, the ports are recessed instead of screwed into a thread as is usually the case. This allows Alphacool to overcome the problem of potential leakage due to cracking by screwing the connectors directly into the acrylic. The connectors are made of two parts, have an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

    Easy installation

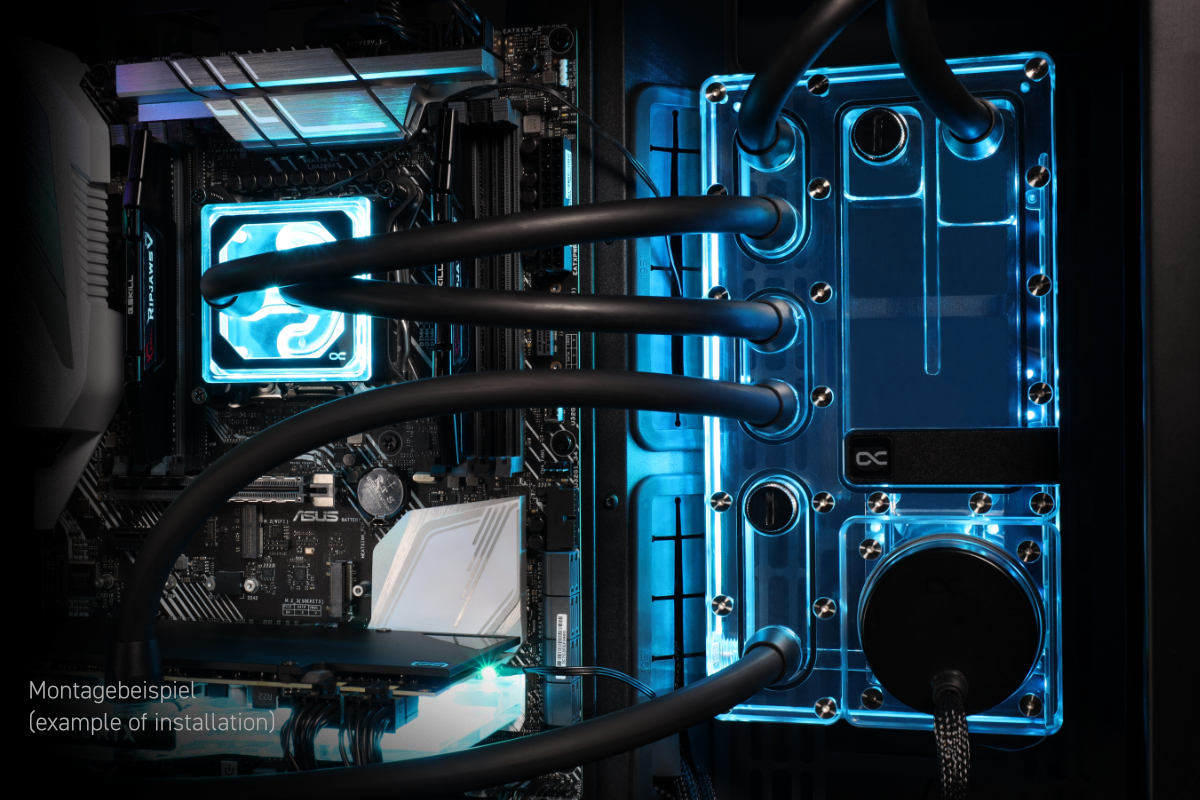

    Using the included Core Push Mounting kit, the Distro Plate can be mounted on the case panel or on a radiator. To do this, the metal pins are attached to the radiator or the panel of the PC case and the matching female sockets are attached to the Distro Plate (see manual). The next assembly step is to simply push the Distro Plate onto the pins without the need for any tools. Alphacool's push-mounting allows for a tight fit of the Distro Plate on the case panel or radiator and allows for easy removal for maintenance or expansion projects.

    Gamechanger
    It has an integrated reservoir as well as a pump top for VPP or D5 pumps and is offered as a 240mm or 360mm variant, each with left or right positioning of the pump top. This makes the Core Distro Plate ideal for custom water loops where CPU and graphics card(s) are to be cooled simultaneously. Due to the arrangement of the G1/4" connections, complicated tubing paths will be a thing of the past in the future. There is an additional drain port on the side, with which the Distro Plate can be drained easily and comfortably.

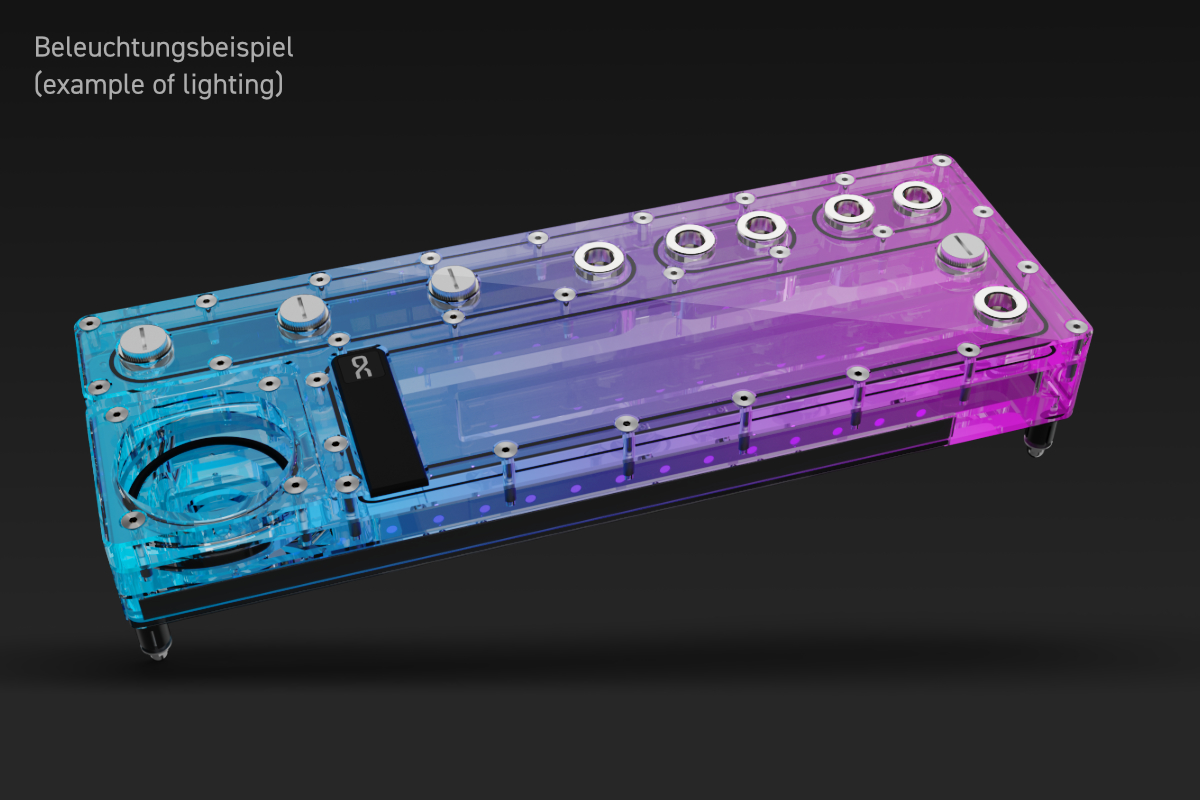

    High-quality material selection & brilliant illumination
    Alphacool's Core Distro Plate is made of high-quality acrylic. This allows an unobstructed view of the coolant and enables brilliant illumination from the built-in digitally addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the mainboard or optionally by Alphacool's Aurora Eiscontrol aRGB controller (item no.: 15360).




    Compatibility:
    - Can be mounted on the radiator or panel



    Technical data Distro Plate
    Dimensions (L x W x H) 360 x 125 x 42mm
    Material acrylic
    Volume 309ml
    Pump compatibility D5/VPP
    Threads 10x G1/4“ inner thread / 1x drain port
    Maximum working temperature 60 °C
    Pressure tested 0,8 Bar
    Quantity of digital aRGB LEDs 18
    Power digital aRGB LEDs 5V
    Power connector digital aRGB LEDs 3-Pin JST + 3-Pin 5V
    Weight 1840g
    Color transparent
