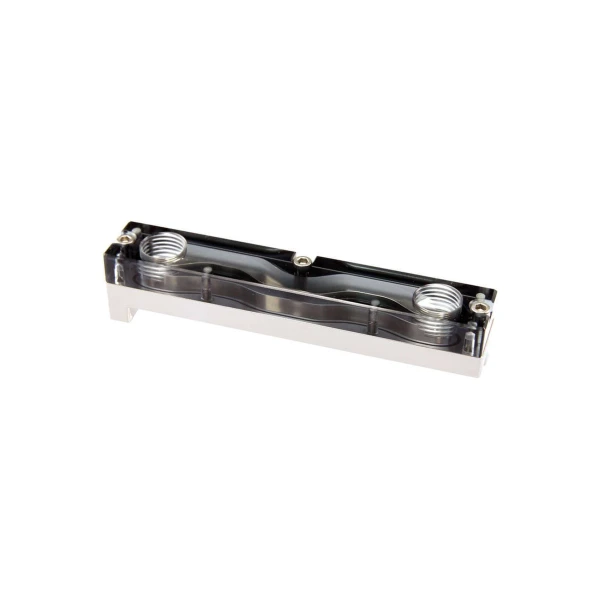

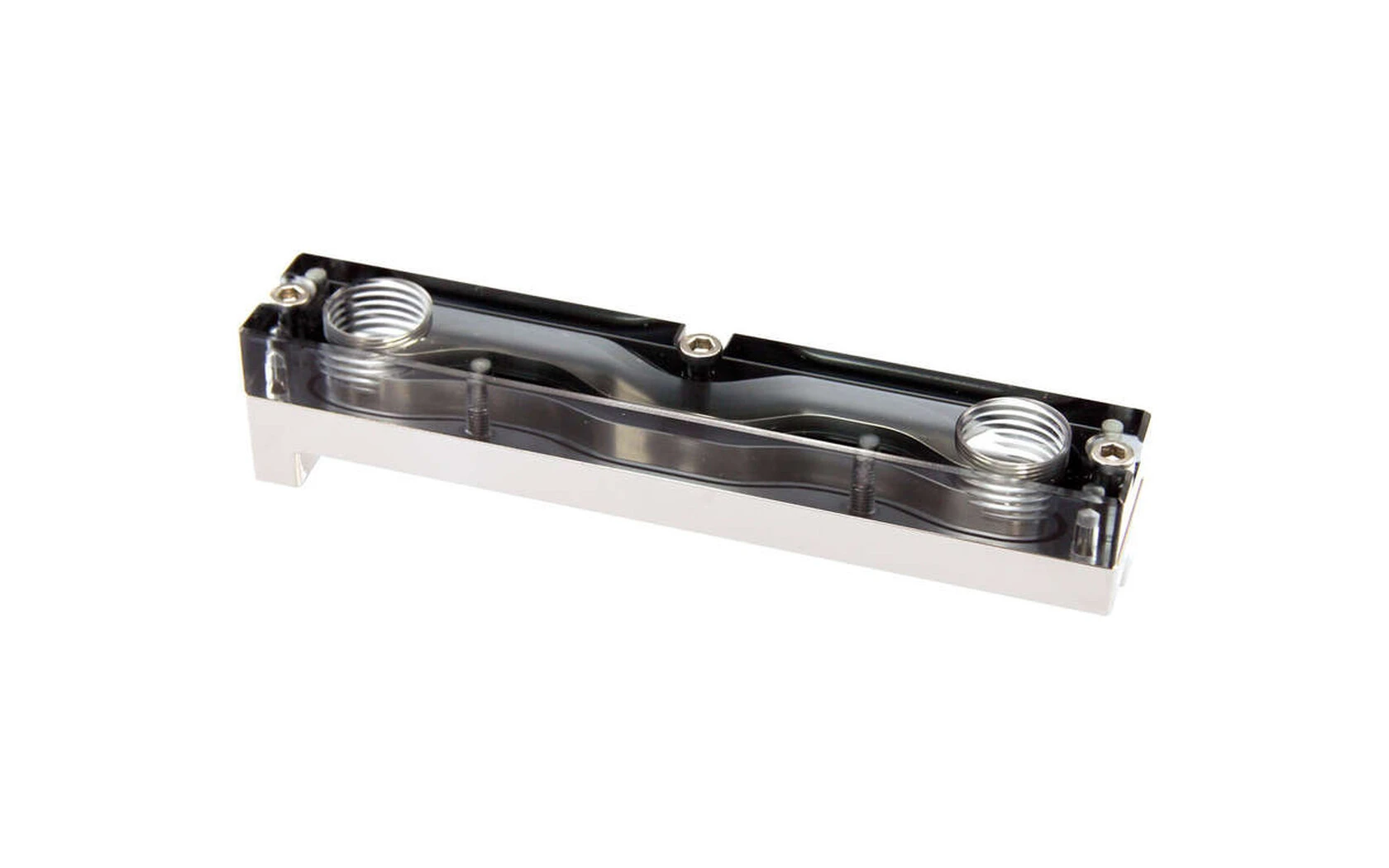

Watercool HEATKILLER MB-X VRM ASUS RAMPAGE VI - DARK ACRYL Ni

The HEATKILLER® MB-X series water blocks are absolutely focused on performance. They are individually designed to fit one specific motherboard and are not modular, like their HEATKILLER® SW-X counterparts. As a result, the customer is treated with exceptional cooling performance while maintaining extremely low resistance (High Flow Design). The HEATKILLER® MB-X water blocks cool both the MOSFET modules and the chokes. This enhances the overclocking potential and boosts stability in borderline stable overclock settings.



All HEATKILLER® MB-X series water blocks come with preinstalled insulating spacers. These provide an easy and tilt-free installation, while electrically decoupling the block from the board.

Watercool use only highest quality materials for manufacturing our HEATKILLER® MB-X series water blocks. The block itself is milled out of 99.9% pure electrolytic copper. The top made from ACRYL (true PLEXIGLAS GS) grants free view on the coolant.



The block can be integrated into the loop via two G1/4'' threads. All mounting material is part of the delivery scope, including pre-cut and fitted thermal pads. No additional thermal interface material is needed.



Material: Nickel plated electrolytic Copper, PLEXIGLAS GS

Measurements (LxBxH): 107 x 19 x 22,5mm (VRM)

Weight: approx. 150g

pressure tested: 5 bar

Seals: NBR70

Ports: G ¼ '' (DIN ISO 228-1)



ASUS ROG RAMPAGE VI APEX

ASUS ROG RAMPAGE VI EXTREME



1x HEATKILLER® MB-X VRM ASUS RAMPAGE VI - DARK ACRYL Ni

1x Passive Heatsink for Installation with R6 Extreme

1x Mounting Material

1x Precut thermal pads

1x Installation manual
