Alphacool Eisbaer Pro ES 2U 80mm Triple HPE + 3x ES PWM fans (AMD TR4/sTRX4/SP3/sWRX8/Intel 3647)
- Producent: Alphacool
- Kod producenta: 11972
- Kod EAN: 4250197119726
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

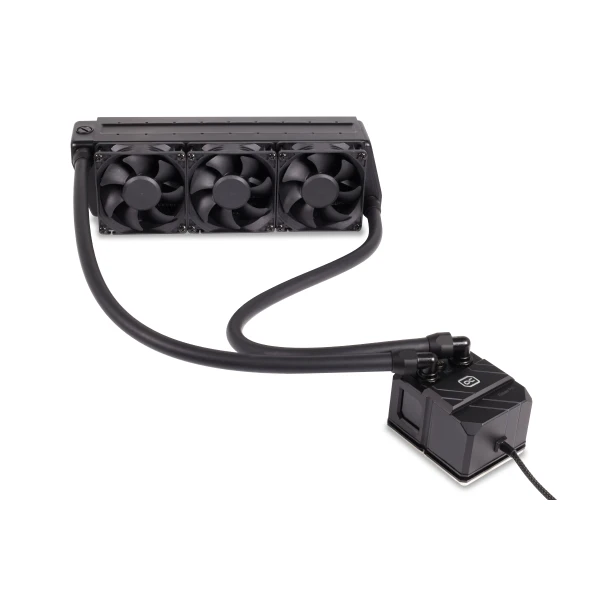

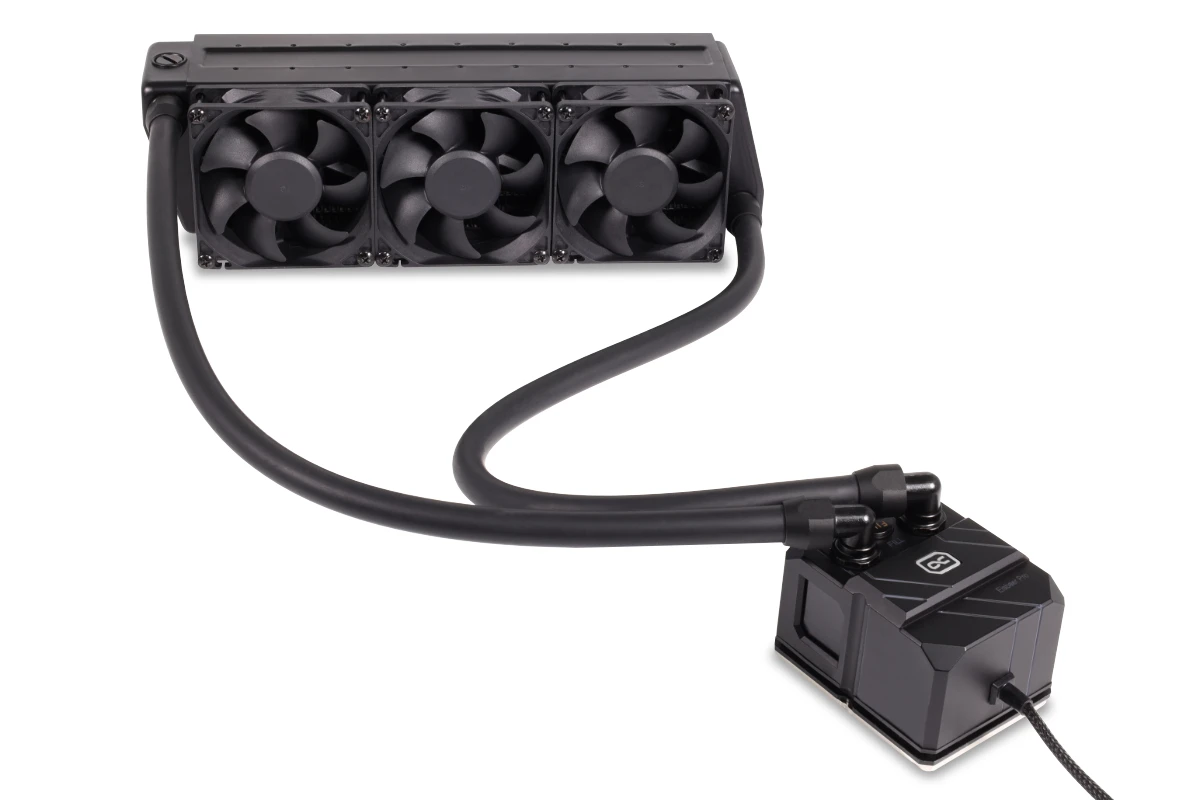

The Eisbaer Pro ES 2U 80mm Triple HPE AIO water cooling system features an extremely powerful NexXxos 80mm Triple full copper radiator equipped with high-throughput 80mm ES fans. All components are from the Enterprise Solutions water cooling range. The Eisbaer Pro ES 2U 80mm Triple HPE AIO is a professional all-in-one water cooling solution that is easy to install and offers the performance of a custom loop.

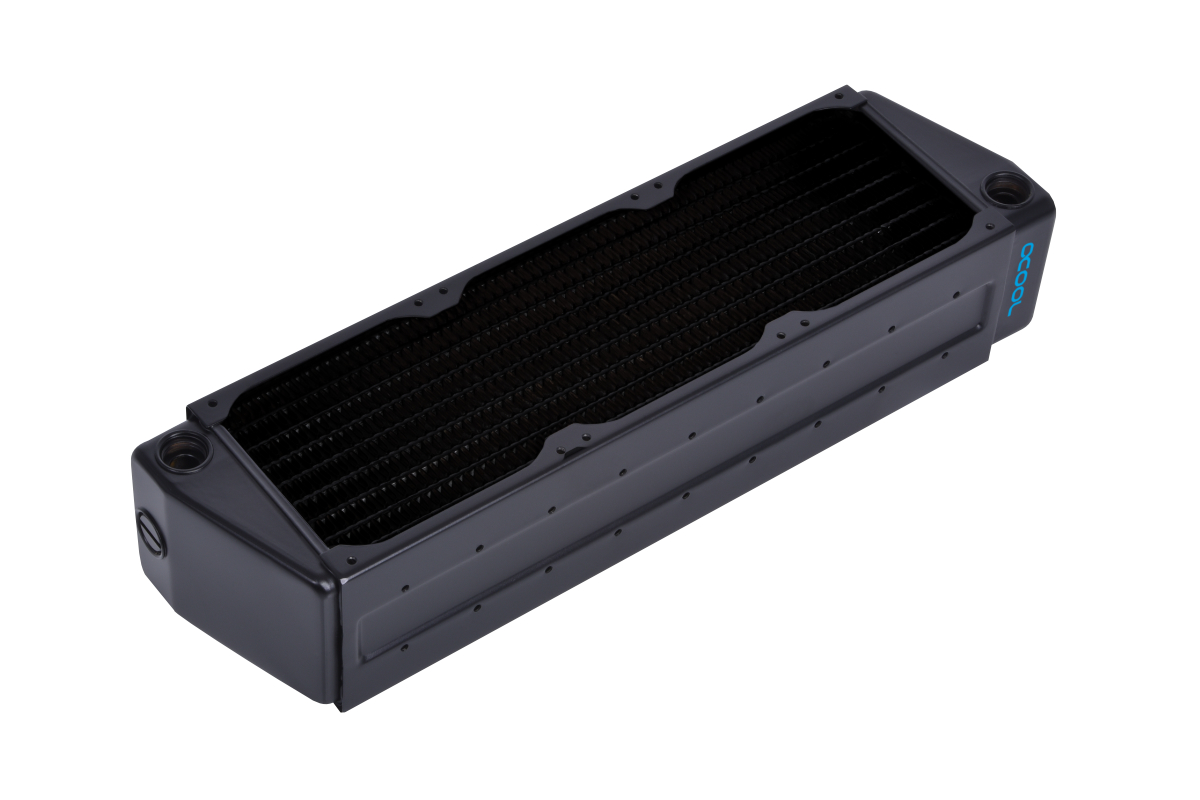

High-Performance Full Copper Radiator

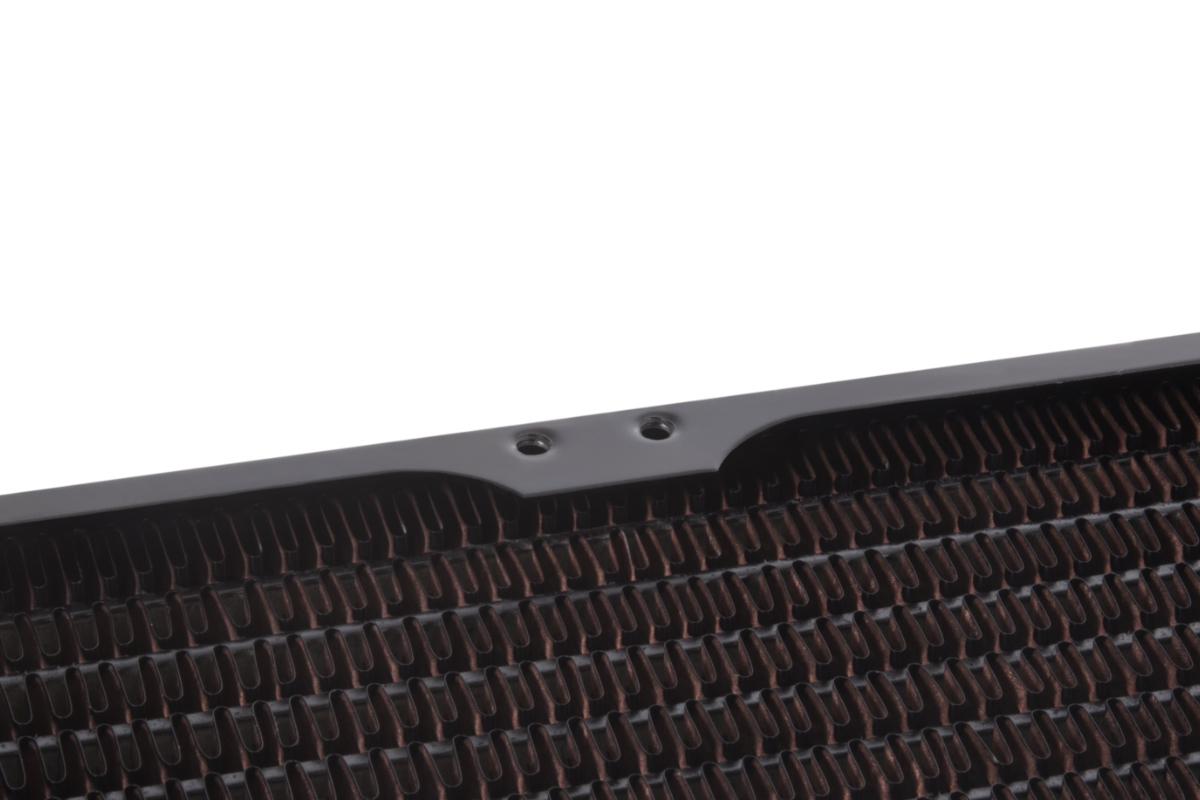

The 80mm NexXxoS radiators have been specifically designed for server racks and workstations. With the special M3 mounting holes on the top and bottom and a height of just 80mm, the radiator fit perfectly into 2U server racks. The copper cooling fins are extremely thinly coated compared to other manufacturers, in order to not reduce the cooling performance. The fin spacing of 10 FPI has been optimally chosen, so the fins are close enough to provide plenty of cooling surface area, but far enough apart to not impede the airflow. Additionally, all cooling fins are covered with flaps to ensure controlled air turbulence, allowing the flowing air to better absorb and carry away heat from the cooling fins.
Optimal Cooling

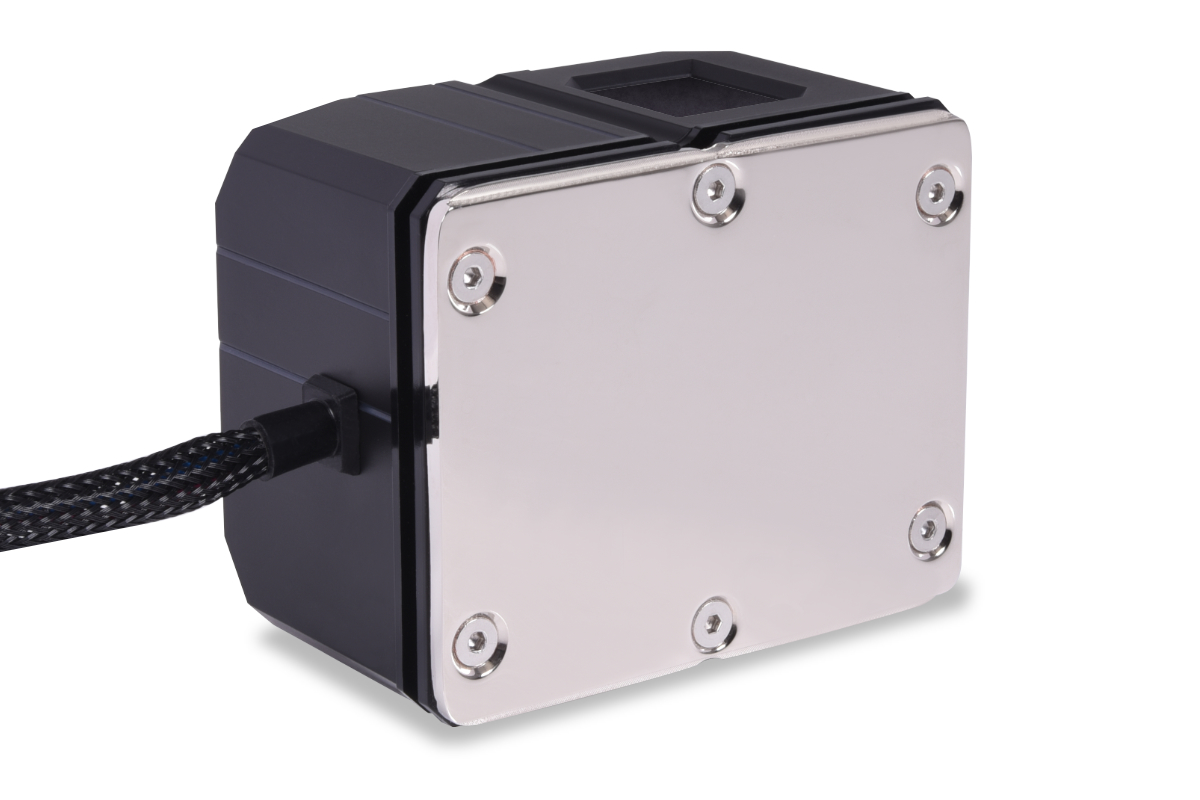

The cooler base covers the entire surface area of the respective processors. The cooling fins have a surface area of around 55 x 42mm, surpassing all known processor cores. This ensures that all CPU hotspots are directly and optimally cooled. The cooling fins are 0.4mm thick and are optimally spaced 0.4mm apart. There are a total of 58 cooling fins on the cooler base. The cooler base is only 3mm thick, allowing the heat to quickly reach the water and be carried away.

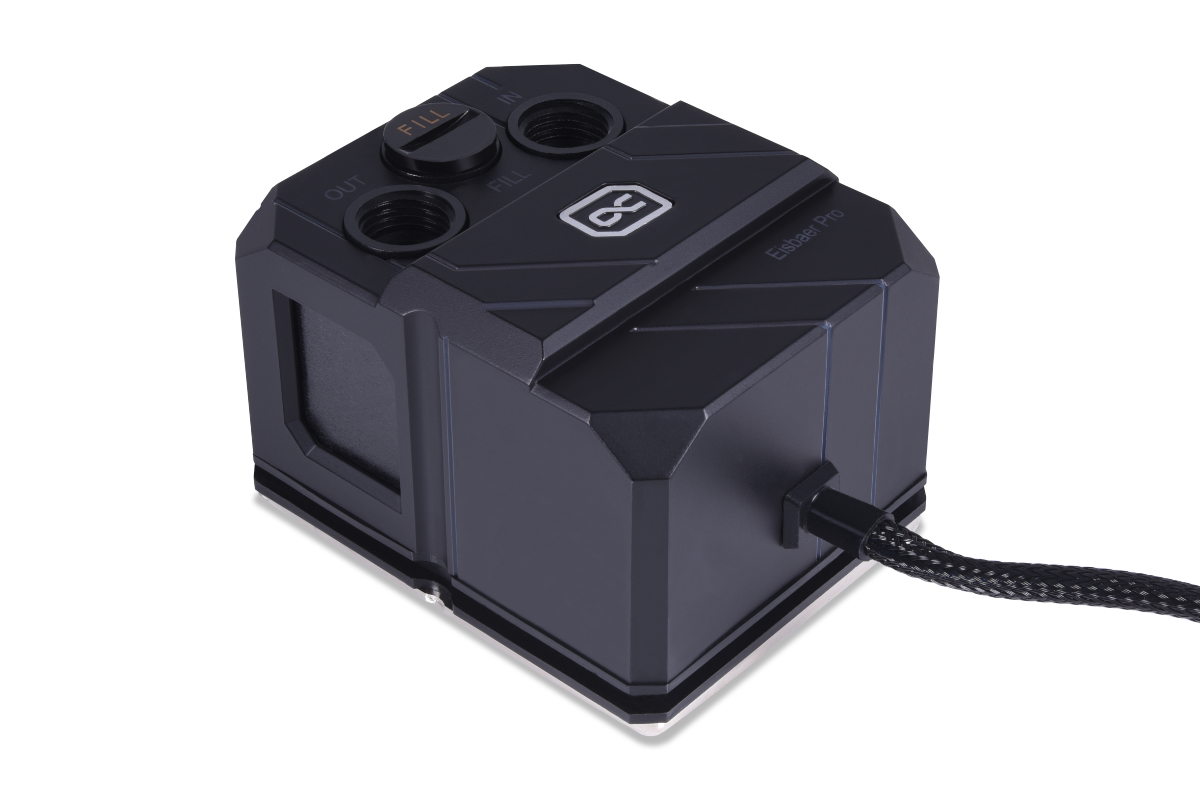

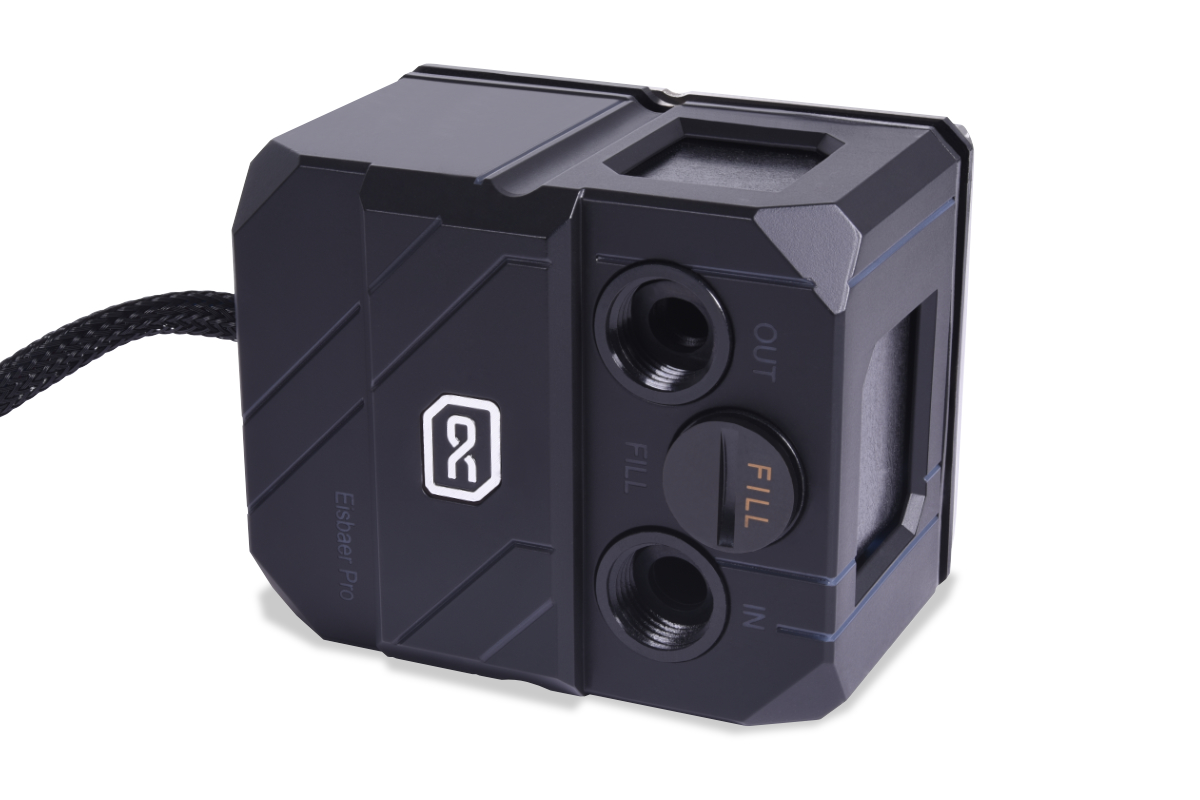

Reliable Pump
The Eisbaer Pro ES cooler uses the very compact DC-LT 2 pump, which provides enough power to include additional components such as GPU water coolers or radiators in the water loop.
High-Quality TPV Hoses
The hose connectors come from the normal DIY segment and use a G1/4" thread, making them easily replaceable. The TPV hose does not contain plasticizers and does not deform at high temperatures, unlike classic PVC hoses.

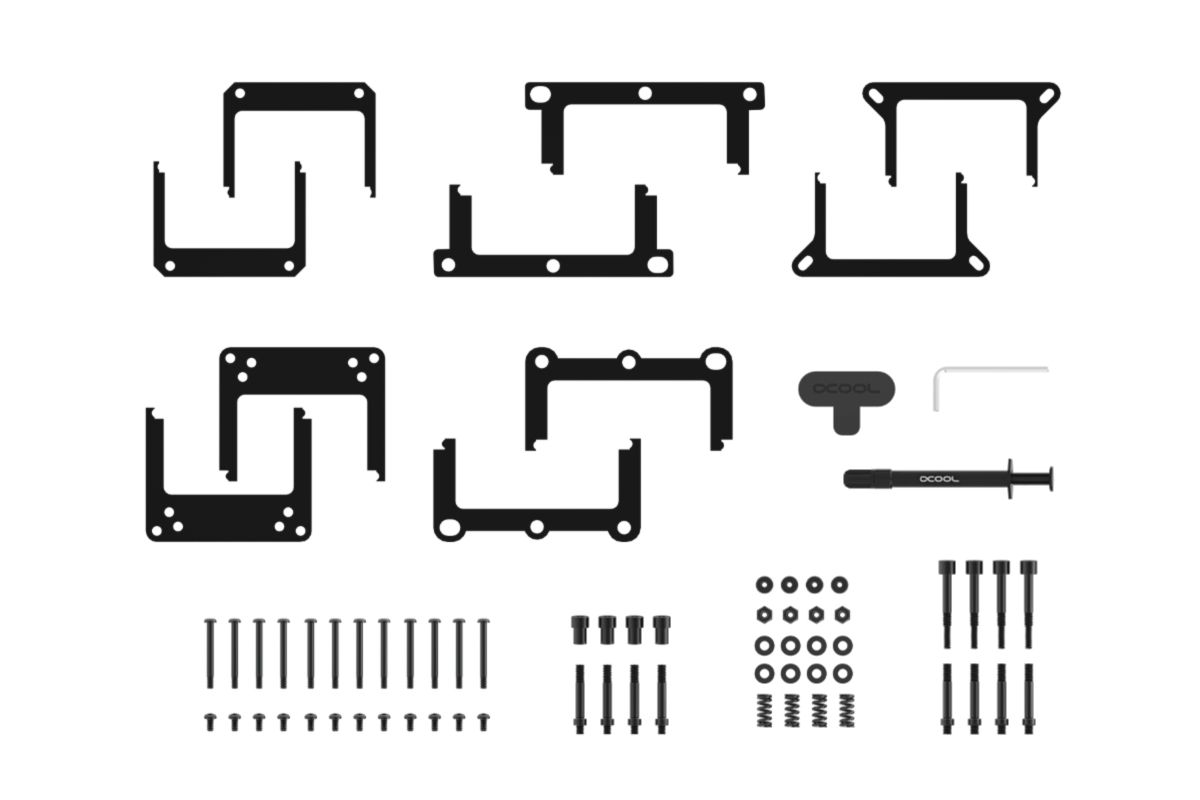

Compatibility:
Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
AMD: TR4 / sTRX4 / SP3 / sWRX8 / AM4 / AM5
Technical data cooler with pump | |
Dimensions (L x W x H) | 64 x 79 x 54,3mm |
Material cooler bottom | nickel plated copper |
Material cooler top | Acryl |
Threads | 2x G1/4“ (+ 1x Fillport G1/4“) |
Pump type | DC-LT2 |
Pump speed | 2600 rpm (+/- 10%) |
Head of delivery | 1m |
Maximum flow | 72 L/h |
Voltage | 6-13,5V DC |
Power consumption | 3,2W |
Pressure tested | 0,8 Bar |
Maximum working temperature | 60°C |
Color | black |
Technical data radiator | |
Dimensions (L x W x H) | 284 x 80 x 60mm |
Material cooling fins, prechambers & cooling channels | Copper |
Pressure tested | 1,5 Bar |
Connector | G1/4" |
Color | black |

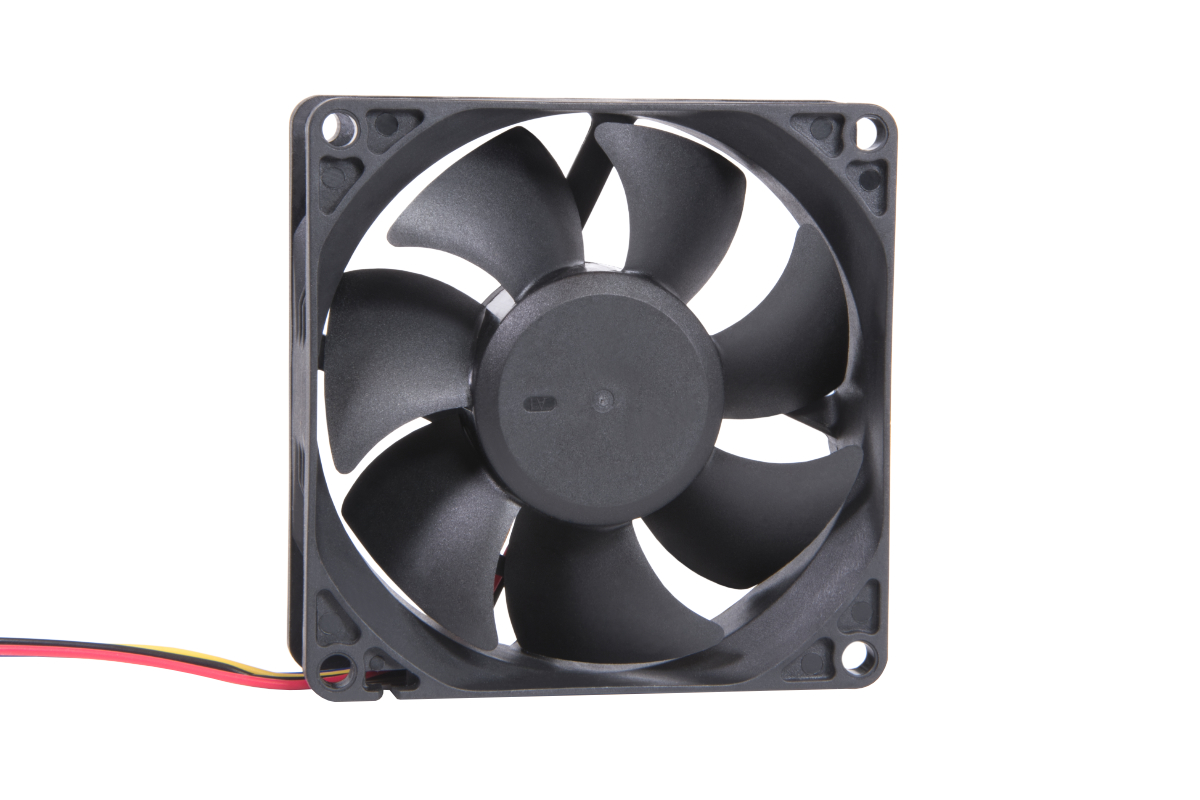

Technical data fan | |
Dimensions (L x W x H) | 80 x 80 x 25mm |
Air flow | 130,93 m³/h |
Rated speed range | 800 - 6000 rpm |
RPM signal transmission | Yes |
Color | black |
Technical data tube | |
Material | TPV (EPDM/PP) |
Tube size | 12,7/7,6mm |
Hardness grade | 35 Shore-A to 50 Shore-D |
Maximum working temperature | -50 to +155°C |
Color | black |
