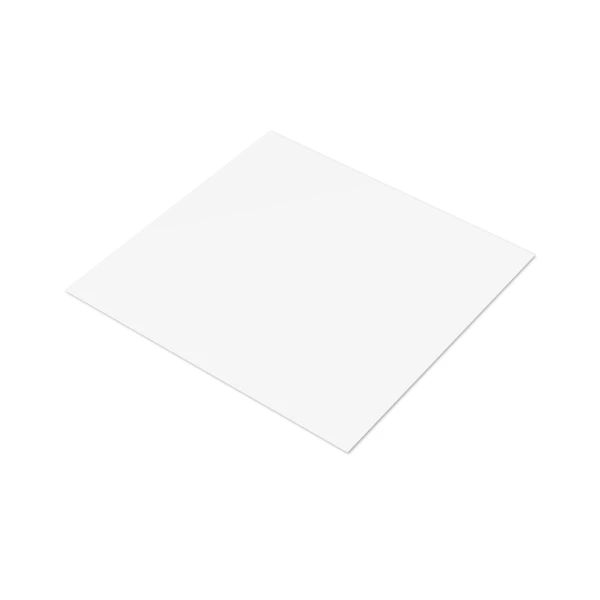

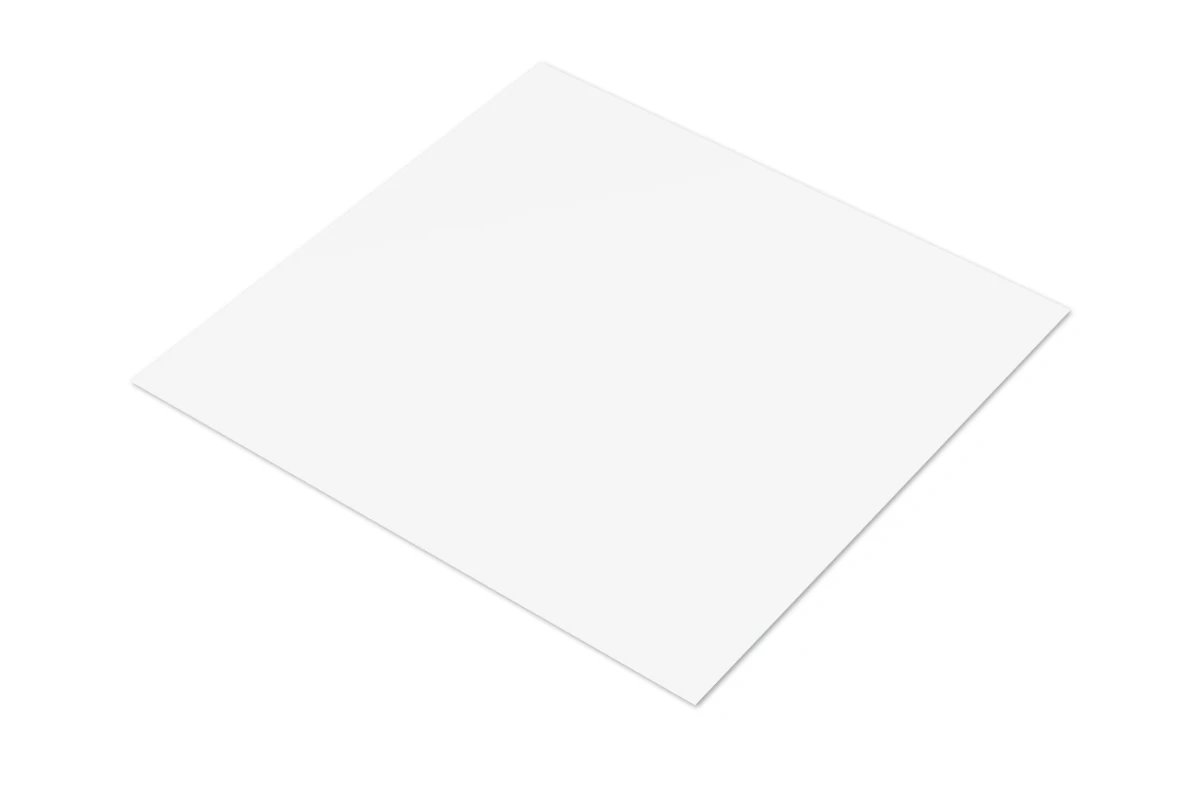

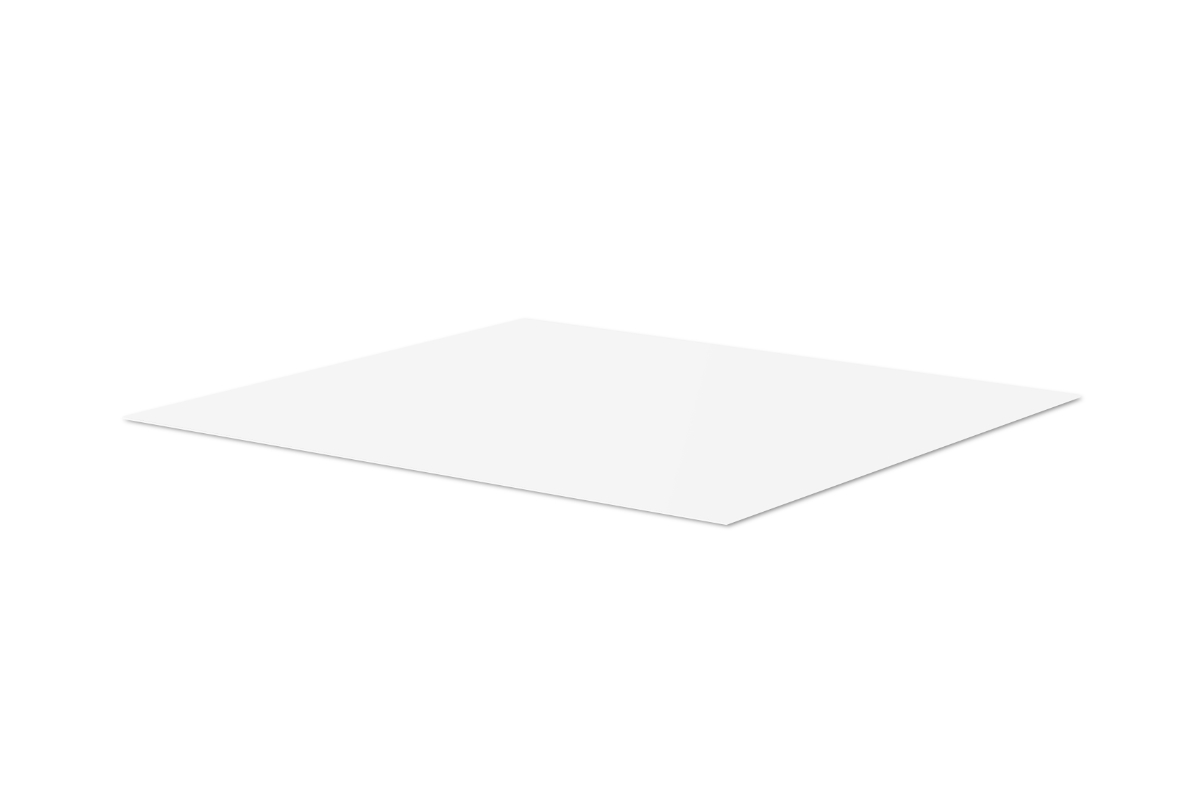

Alphacool Core double sided adhesive thermal pad 100x100x0.25mm
- Producent: Alphacool
- Kod producenta: 13523
- Kod EAN: 4250197135238
- Gwarancja: 24 miesiące
Dostępność:
Dostępny
Dostępna ilość:
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Alphacool's double-sided adhesive Core thermal pad can be used to cool electronic components of all kinds where it is important to effectively dissipate waste heat. This significantly improves the performance and durability of the components. The assembly is significantly simplified by the material-related tackiness.
Flexible and Powerful.
Due to its material composition, the thermal conductive pad is reliable and powerful. With its low thickness, it offers a wide range of application possibilities. It can be flexibly cut to size for individual needs. The adhesive nature allows effortless mounting of electrical components such as DDR modules, motherboard components or power supplies.
Technical data | |
Dimensions (L x W x H) | 100x100x0.25mm |
Thermal Conductivity (ASTM D5470) | 1 W/mK ±10% |
Thickness (ASTM D374) | 0.25 mm |
Reinforcement Carrier | Fiberglass mesh |
Continuous Working Temperature | -30~+120 °C |
Short time use temperature (30sec) | 180 °C |
Density (ASTM D792) | 1.2 g/cm³ |
Holding Power 1000g@25° Cusing 1 in² (PSTC-7) | >3000 min |
180° Peeling Strength (aluminum) (PSTC-101) | >16 N / 25mm |
Dielectric Breakdown Voltage (AC) (ASTM D149) | 3 KV ±10% |
Thermal Impedance @10psi (ASTM D5470) | 1.26 C-in² / W |
Thermal Impedance @30psi (ASTM D5470) | 1.06 C-in² / W |
Thermal Impedance @50psi (ASTM D5470) | 1.05 C-in² / W |
Color | white |
