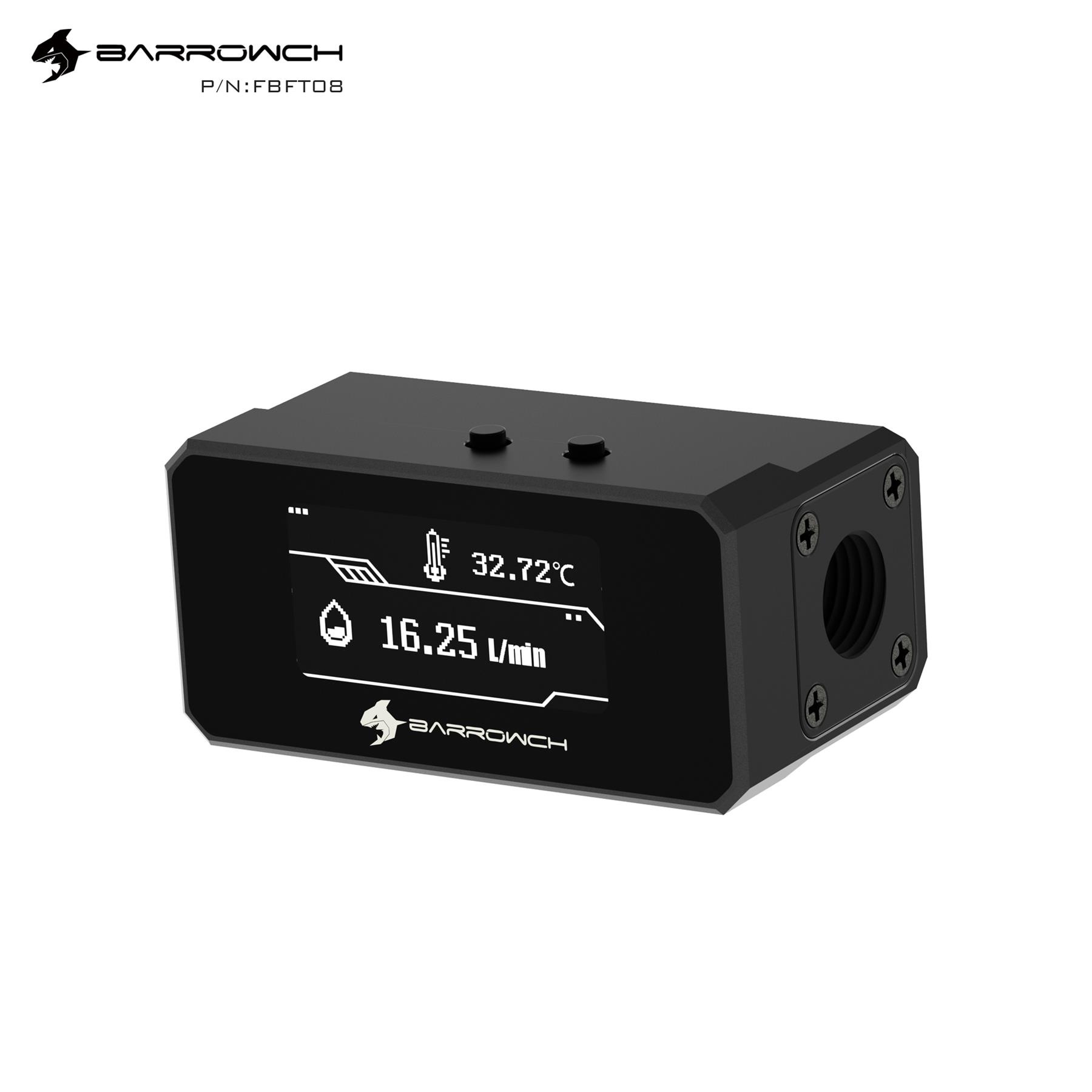

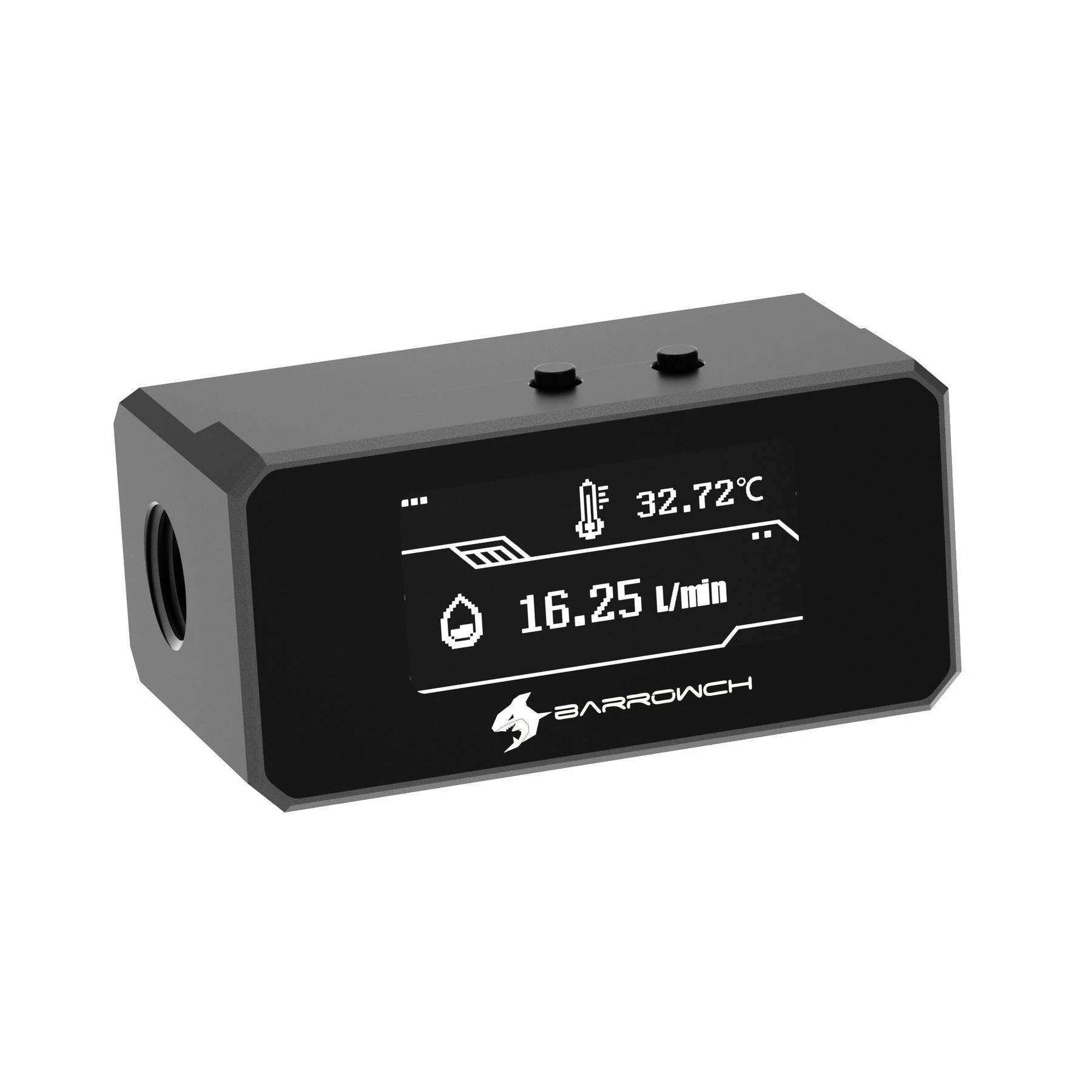

BarrowCH G1/4 Multimode OLED Display, Flow / Overheat Alarm With Intelligent Shutdown - Black

By installing this high quality OLED Display anywhere in your loop, you can set a shut down temperature, which when connected to your motherboards fan header, in combination with your PWR header can shut down the PC at any temperature you set as a fail safe. It will also display the system flow rate on one of the multiple screens you can choose from.



Features:

- Either side can be used for IN/OUT

- 40mm Screen Size

- Temperature read out

- Flow rate read out

- 80CM cable length

- High production quality and strict QC ensure 100% no cracks or leaks

- G1/4 ports for ultimate flexibility

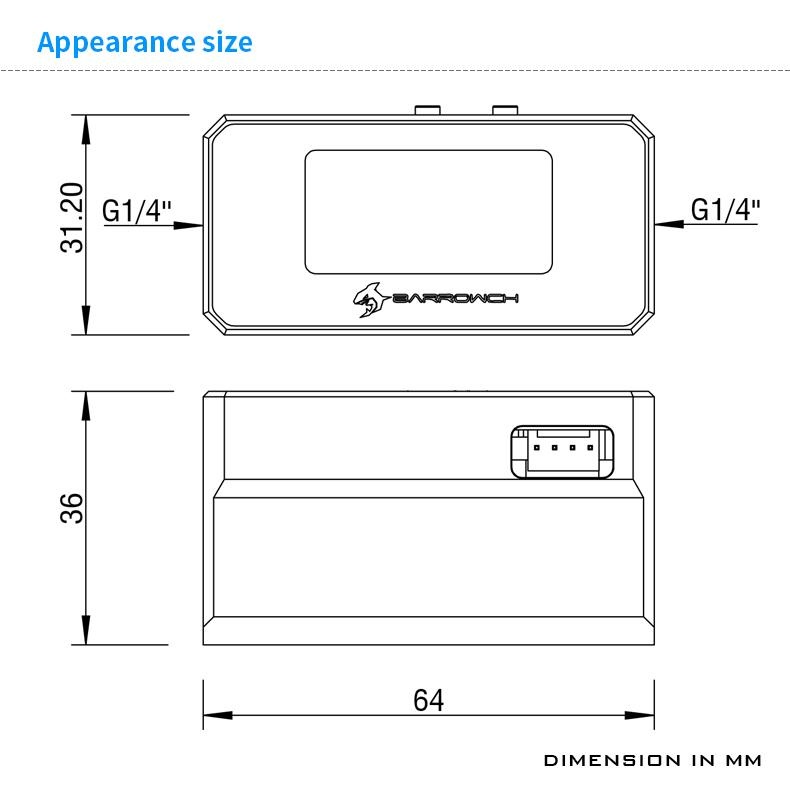

Technical Data:

Material: POM Body, Black Aluminium Panel

Thread Size: G1/4



Connection:

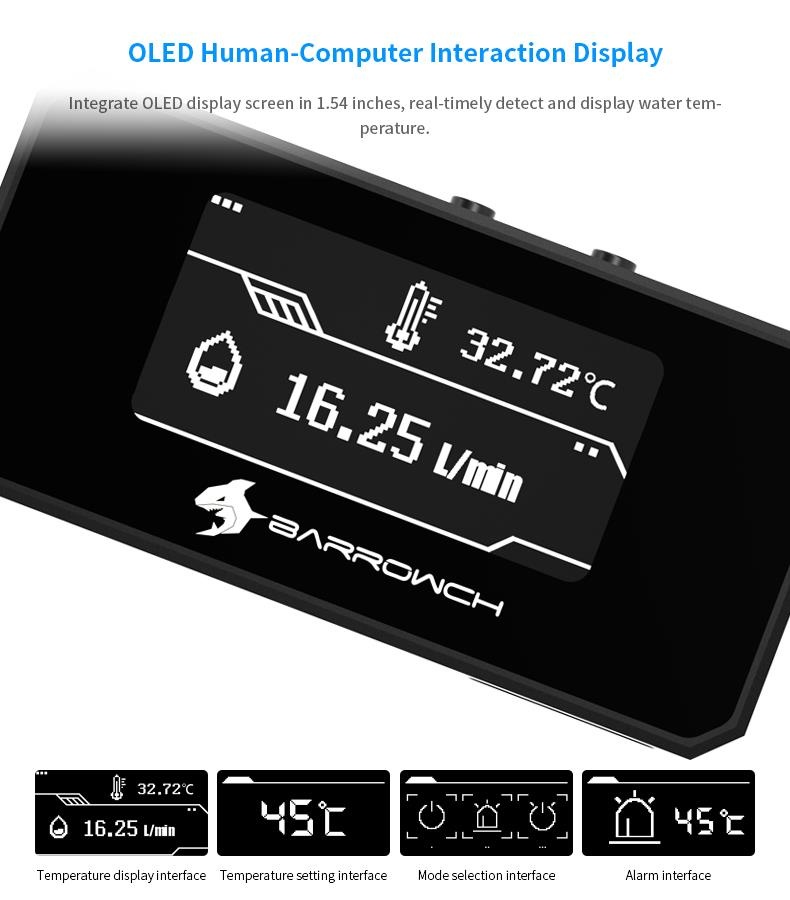

Function:

Click the A Button: Enter the high temperature warning setting interface, press B button to set the range of temperature from 0c to 99c, long press the B button to operate quickly.



Double-click the A button: Enter the alarm mode to select the interface, press B button to set, select three modes between the following, after finishing setting, click A button to save and exit.



Under Mode 1 or Mode 2, when alarm in the high temperature, press A button to stop buzzing, then press A and B buttons to reset interface.



Mode 3, when alarm is the high temperature, Click A button to cancel shutdown.

(After triggering alarm and protection functions, it needs to reset the warning display value.)



Included:

1x BarrowCH G1/4 Multimode OLED Display, Flow / Overheat Alarm with Intelligent Shutdown - Black
