Aquacomputer kryoM.2 evo PCIe 5.0/4.0/3.0 x4 adapter for M.2 NGFF PCIe SSD, M-Key with water block

Aquacomputer kryoM.2 evo PCIe 5.0/4.0/3.0 x4 adapter for M.2 NGFF PCIe SSD, M-Key with water block

Brak ocen

Producent: Aqua Computer
Kod producenta: 53304
Kod EAN: 4260473314905
Gwarancja: 24 miesiące

Dostępność:

Dostępny

Dostępna ilość:

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

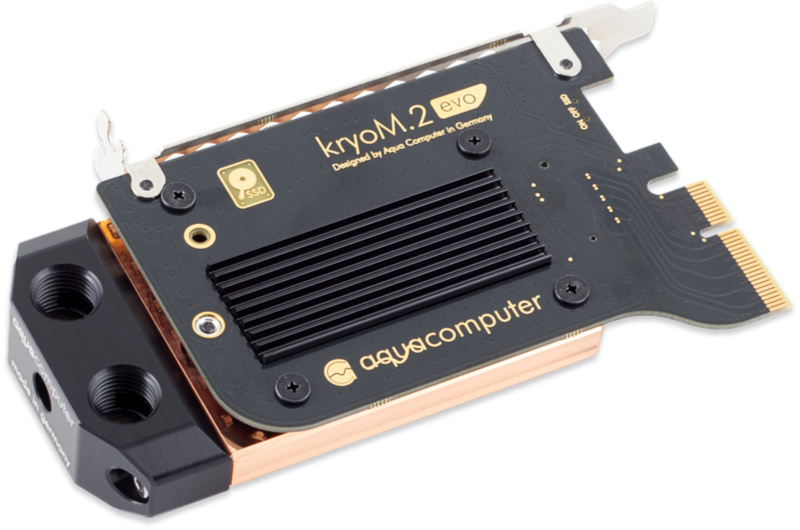

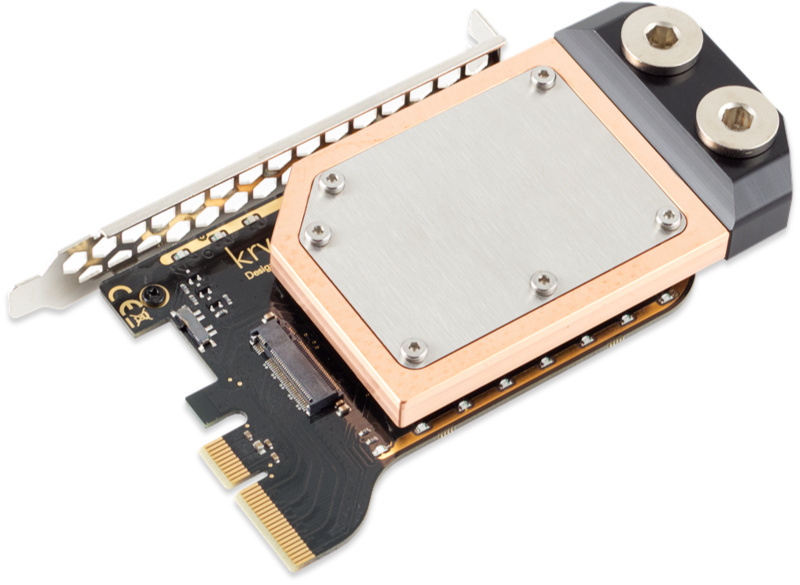

The kryoM.2 evo is a PCIe 5.0 x4 adapter for single sided M.2/M-Key NGFF PCIe SSDs and is compatible with the form factor 2280.

Special features of the kryoM.2 evo:
- Water block made from copper for the top side of the SSD
- Combatible with PCIe 5.0 / 4.0 / 3.0
- Integrated passive heat sink for the rear side of the SSD
- Configurable LED lighting and additional activity indicator
- Impedance controlled PCIe Lanes for high signal quality, high data rates and prevention of data errors
- PCIe plug with gold coating
- Gold coated PCB
- Slot bracket for optimized air flow

During installation, the SSD is sandwiched between the water block and rear heat sink using thermal pads for optimum heat dissipation. The water block is made from copper, the rear heat sink is made from aluminum and anodized in black color. LEDs in a warm orange color are located along the edges of the adapter. The illumination can either be switched on or off or alternatively light up upon activity of the installed SSD. An additional SSD logo with background lighting on the rear side (facing upwards in ATX cases) shows SSD activity.

All components have been selected for perfect quality: The PCIe contacts and the PCB are completely coated with gold. For the M.2 connector, quality brand connectors made by Amphenol or Kyocera are used and the circuit paths are impedance controlled.

The adapter works at the full available speed of PCIe 5.0 and is downwards compatible with PCIe 4.0 and 3.0.

Dimensions ca. 153 x 93 x 23 mm including bracket

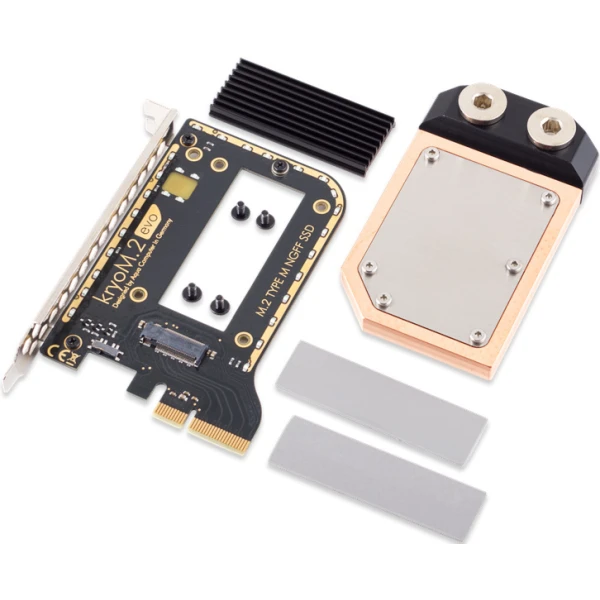

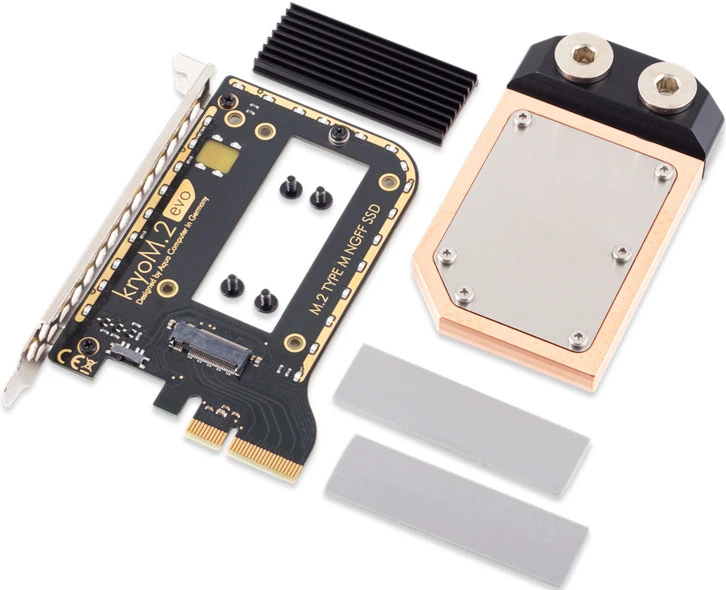

Scope of delivery:
PCIe adapter board
Water block for top side made from copper with stainless steel lid and connections terminal made from acetal.
Passive heat sink for rear side made from aluminum, black anodized
Mounting material including thermal pads

Please note: SSD not included in delivery. Compatible with M.2 form factor 2280 (width 22 mm, length 80 mm), heights S1/S2/S3 (single sided, maximum component height 1.2/1.35/1.5 mm, corresponding to max. 2.3 mm including PCB), M key.
