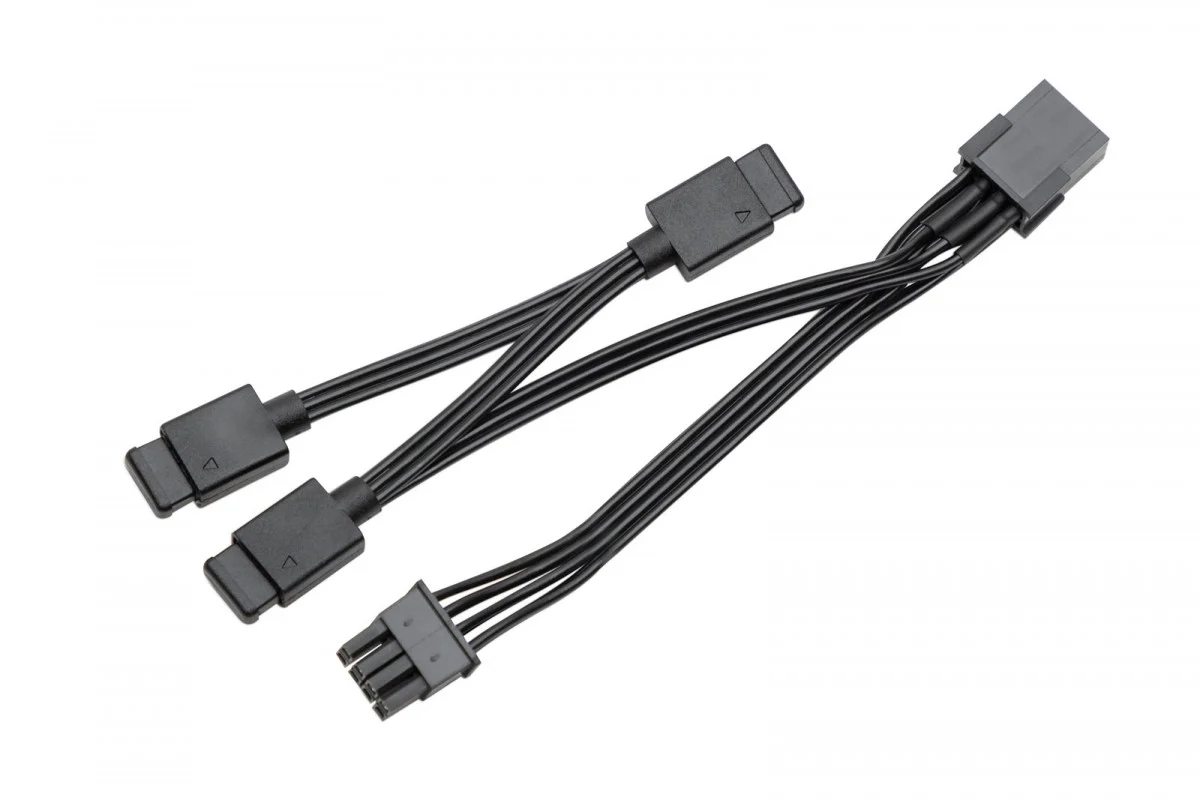

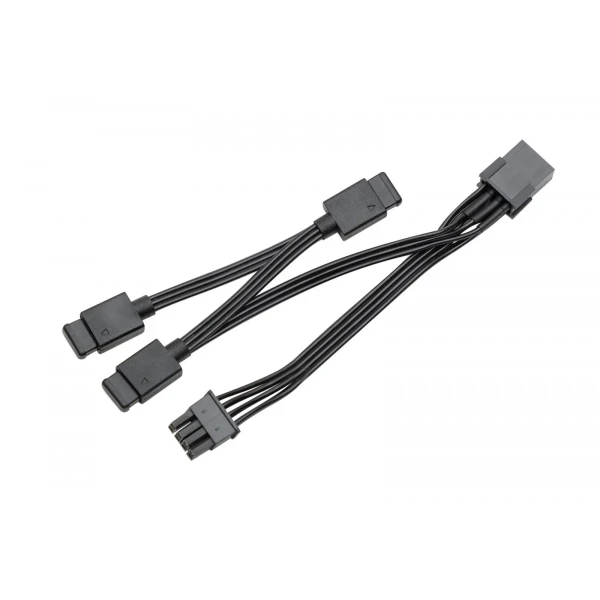

EK Water Blocks EK-Loop OmniLink D-RGB 3-Way Signal Splitter

The EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable allows the user to connect and power up to three D-RGB LED devices and continue the OmniLink cable harness. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

Suitable for adding EK D-RGB water blocks, reservoirs, distribution plates, and other D-RGB LED products to an OmniLink cable harness.

Content:

- EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Male connector to:

• 1x Molex Micro-fit 3.0 8-pin Female connector
• 3x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

- Cable length: 100±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.

Designed in Slovenia, made in China
