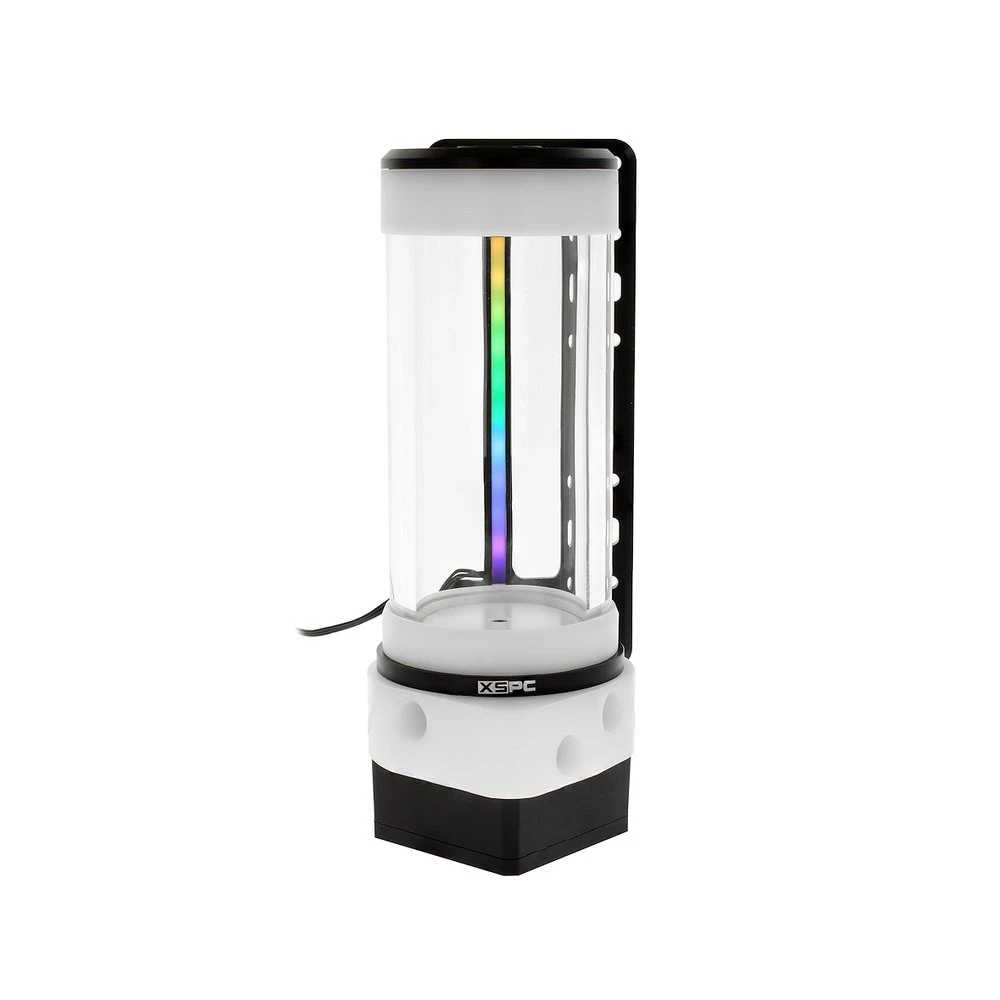

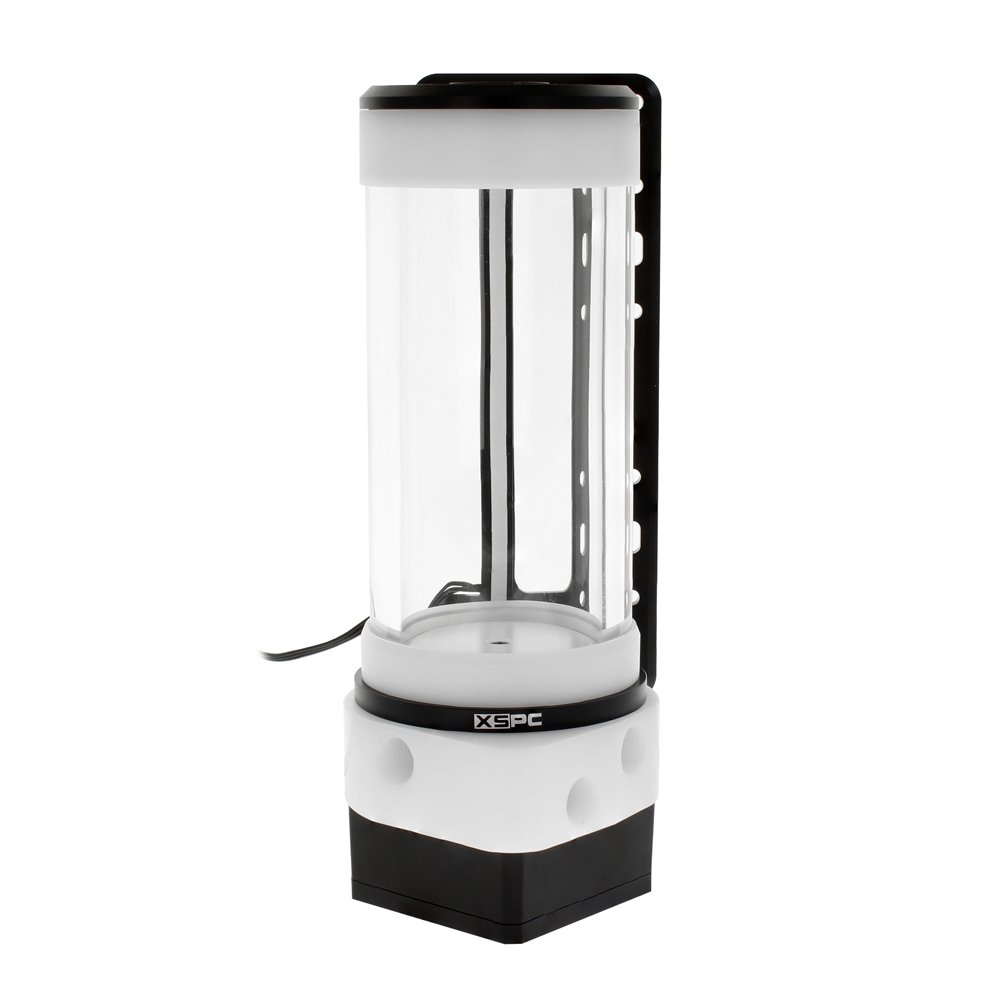

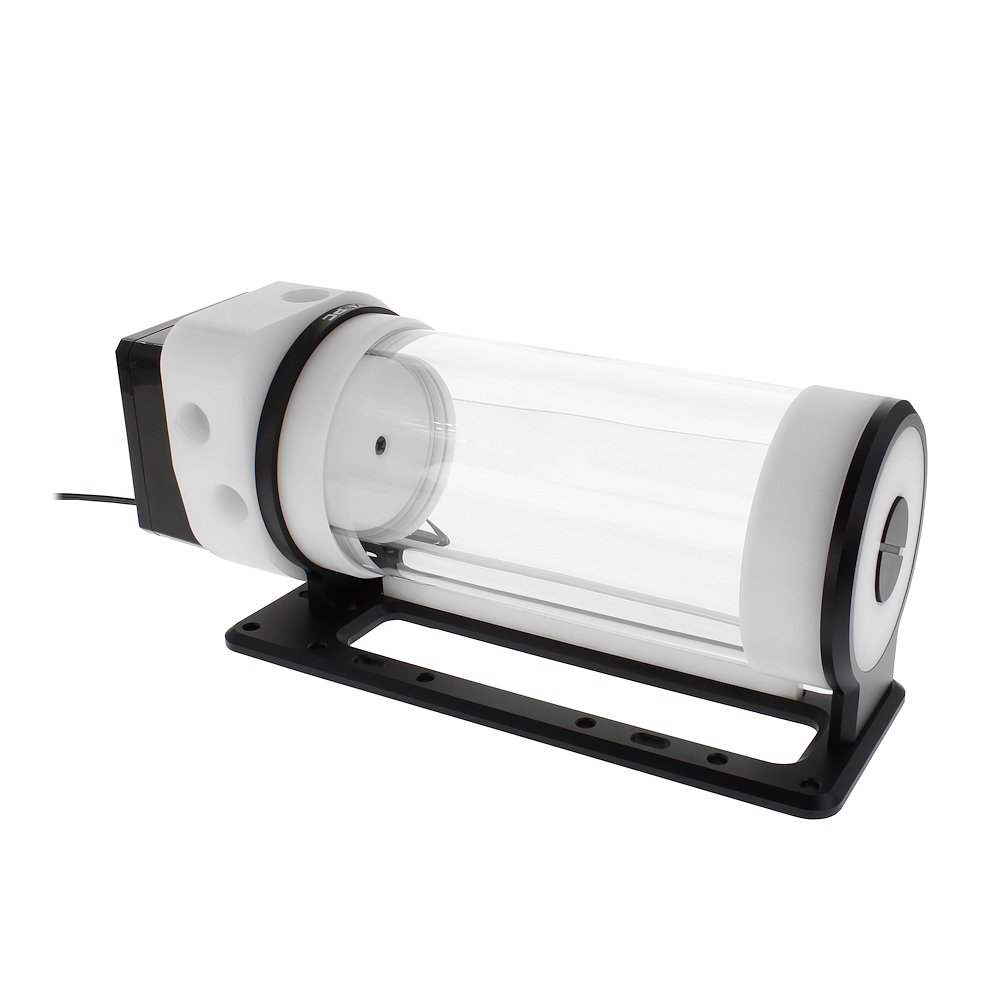

XSPC QX5 Photon 170 aRGB Reservoir / Pump Combo - White

The new QX5 Photon Reservoir/Pump Combo builds on the Photon D5, allowing for a much versatile performance with its PWM speed control and refined reservoir material.



The QX5 PWM pump features exceptional performance and unrivalled reliability. The XSPC QX5 speed control comes from the 4 PIN PWM Header, and is adjustable in the Bios or by PWM controllers.

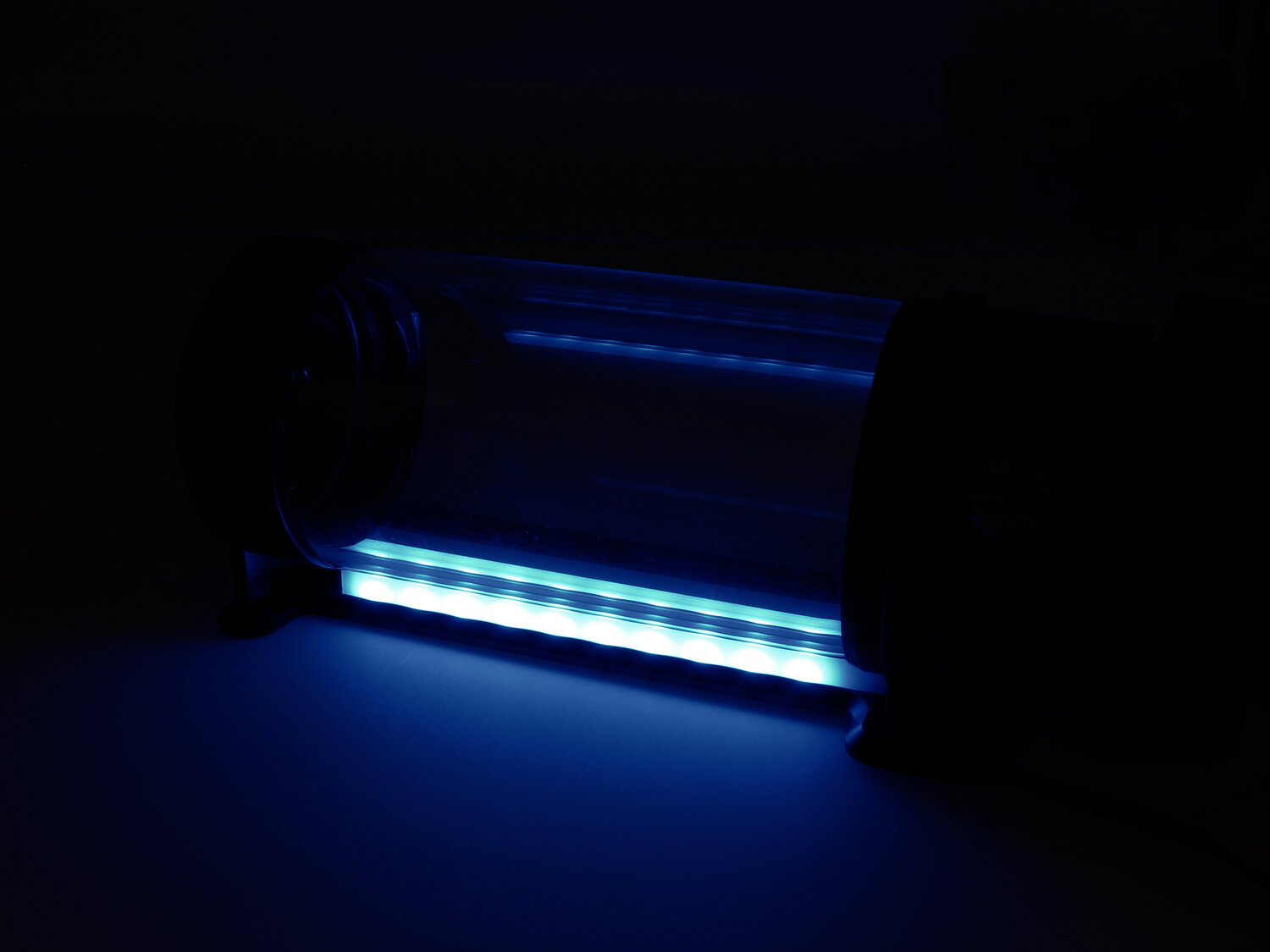

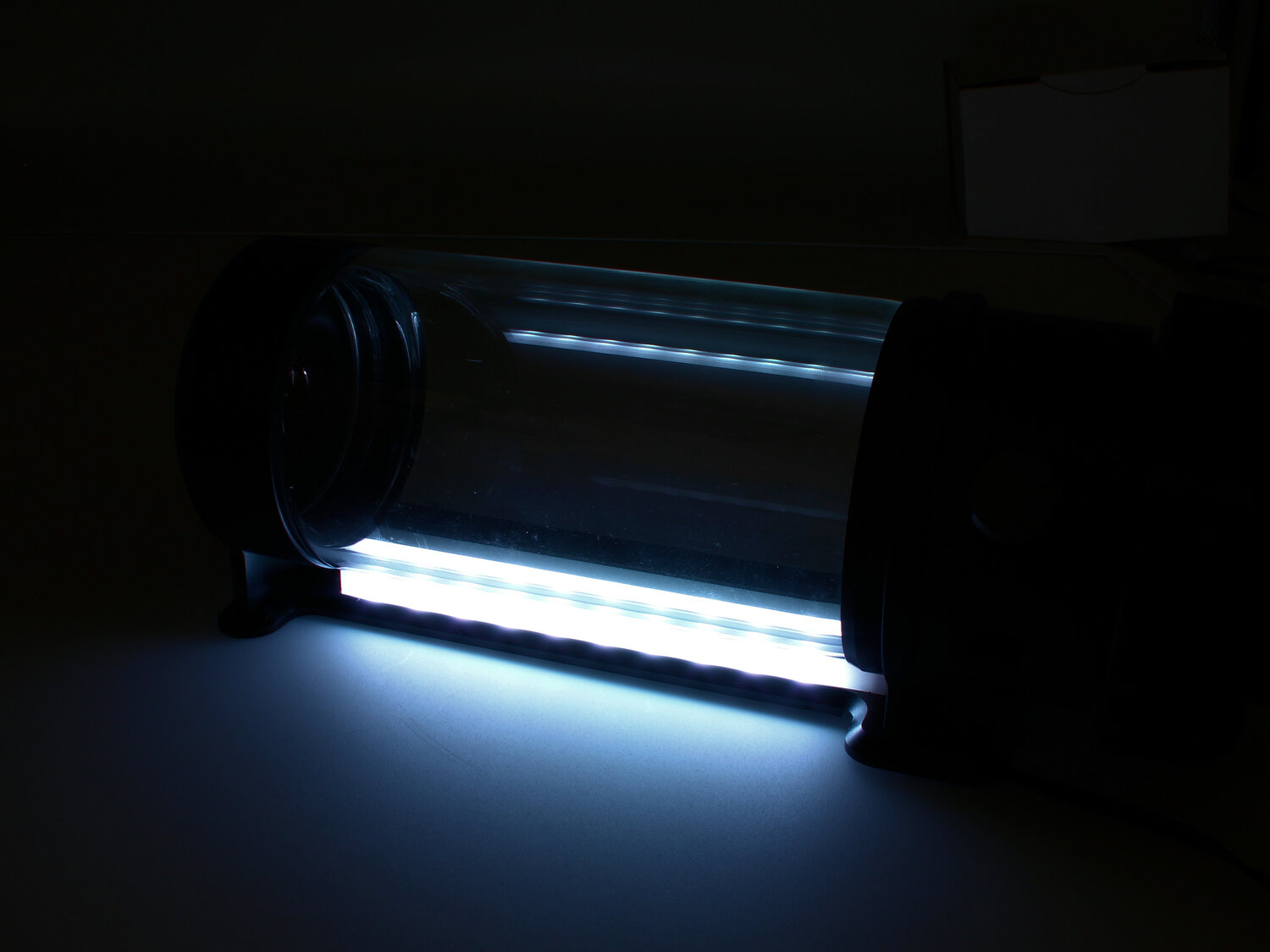

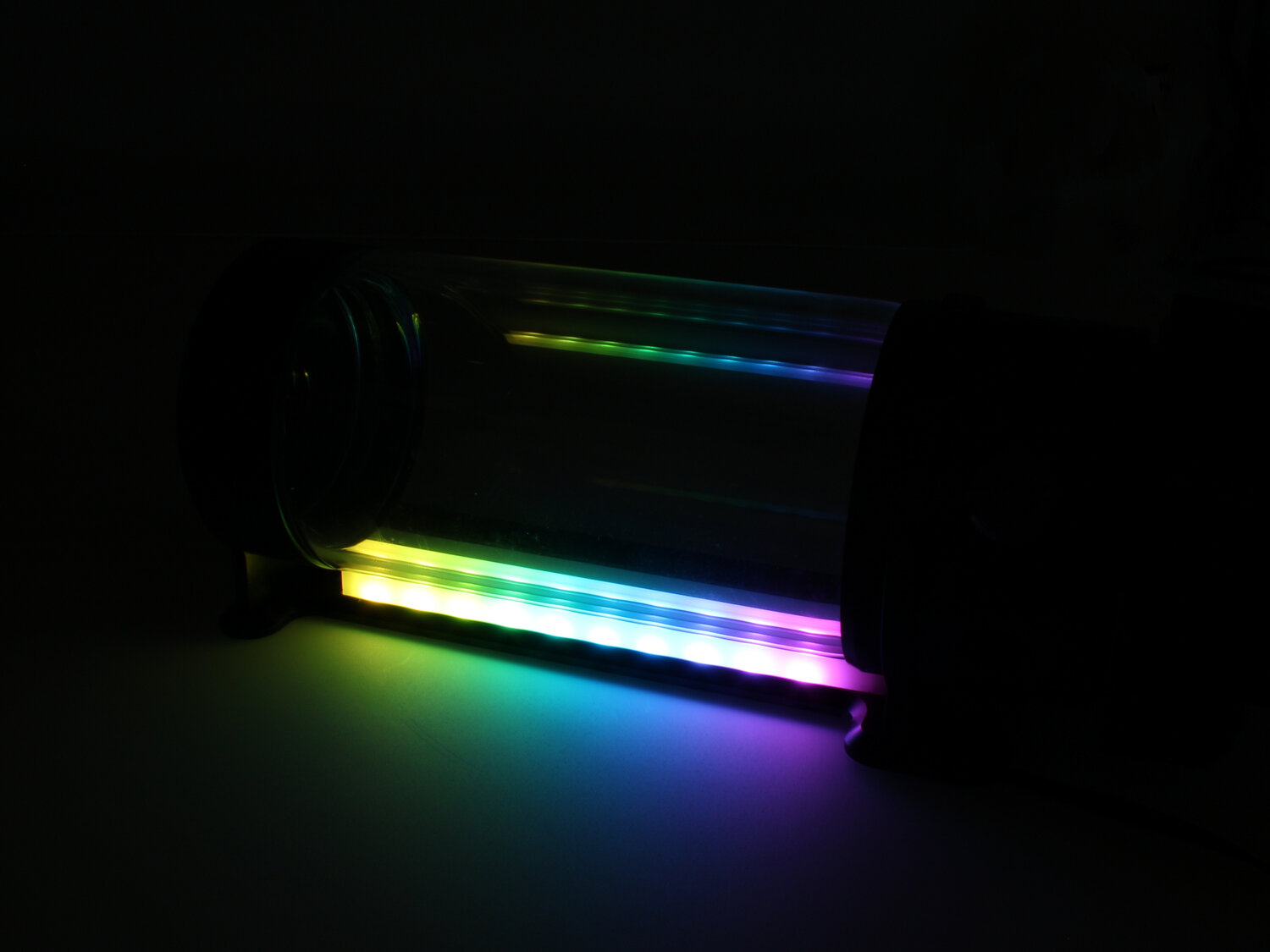

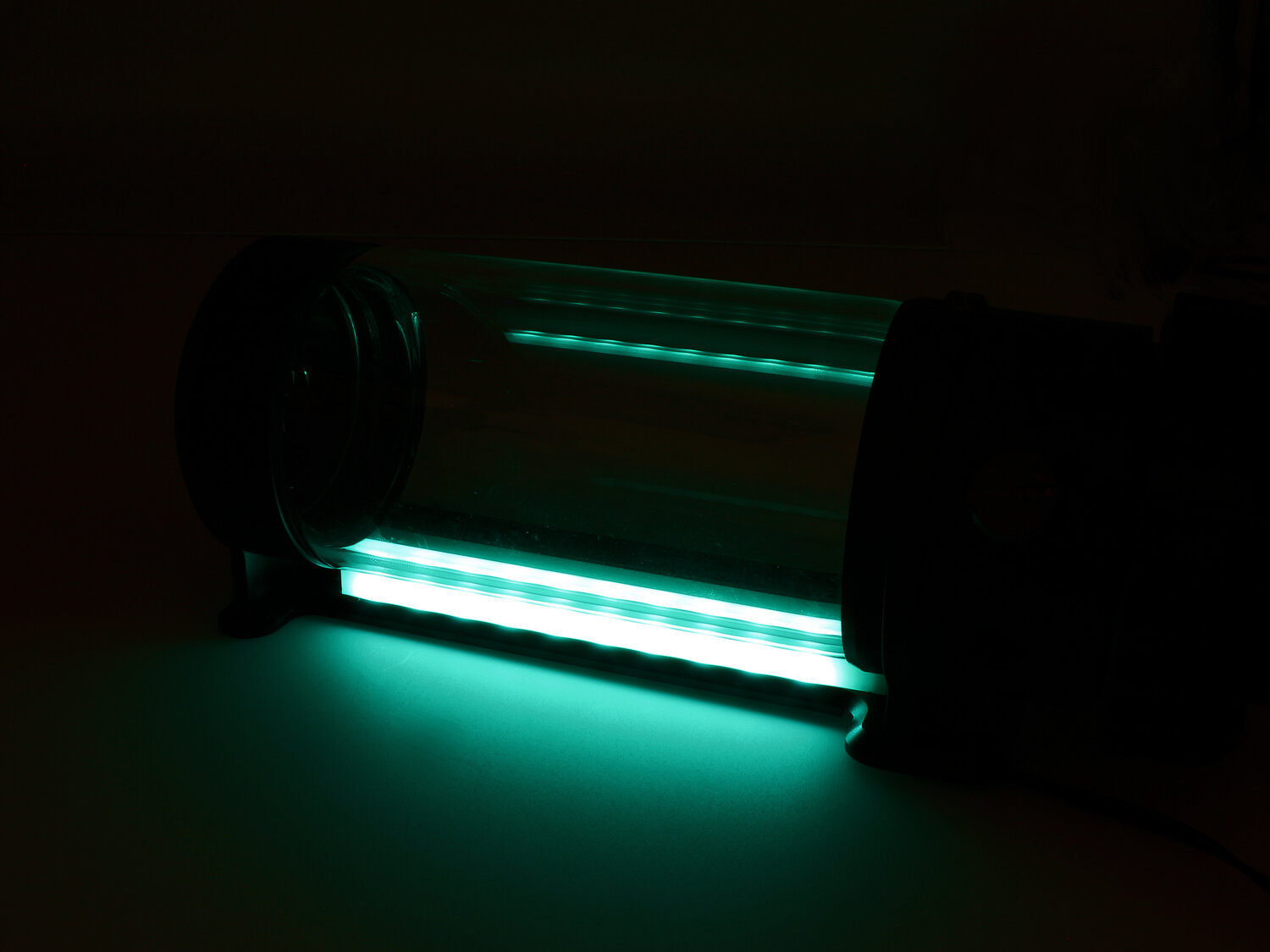

The tube is made from a high quality and ultra clear Acrylic, which when compared to a Glass Photon, you cannot tell the difference in clarity.. Both crystal clear and highly resistant to staining. The aRGB lighting is now at the back of the reservoir and features a diffuser strip for a more professional look to your build.

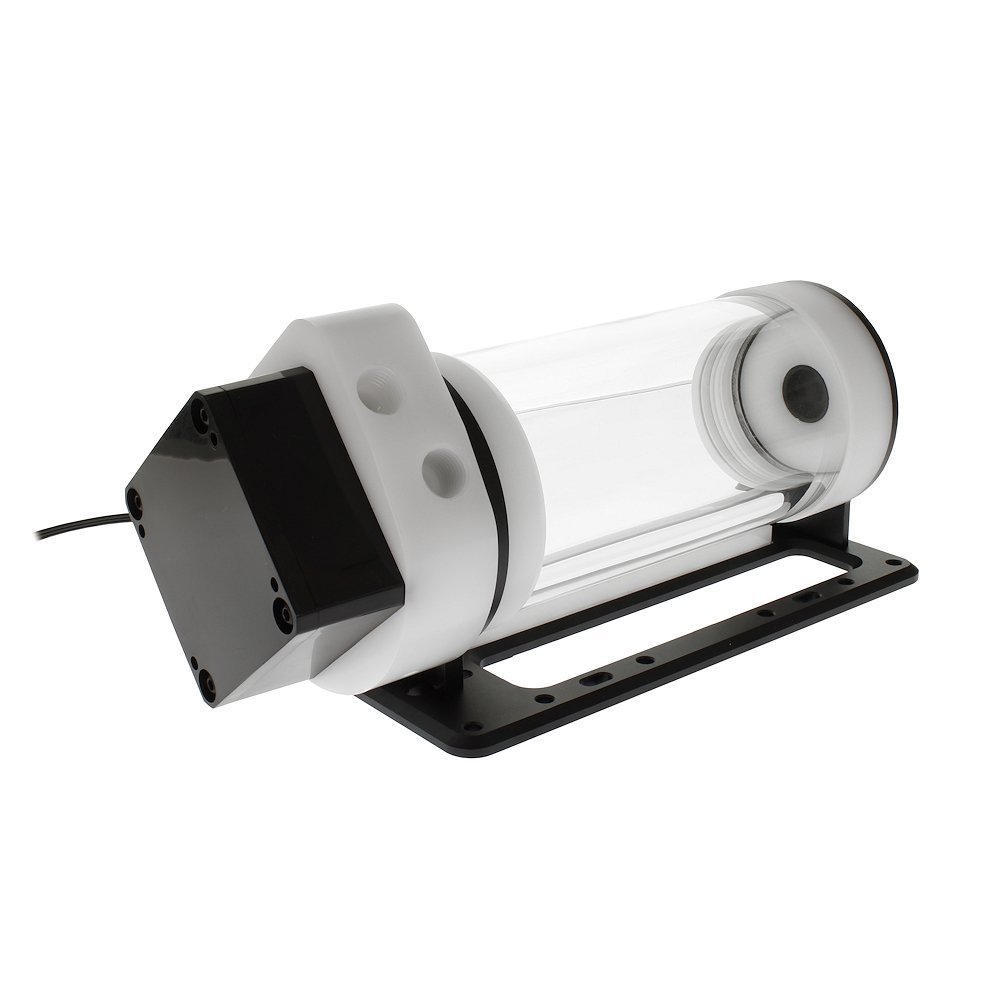

Unlike other tube reservoirs, which use cheap plastic brackets, the XSPC Photon has high quality CNC cut aluminium bracket. The bracket connects to both ends of the reservoir, which give a solid hold without blocking the view of the tube.

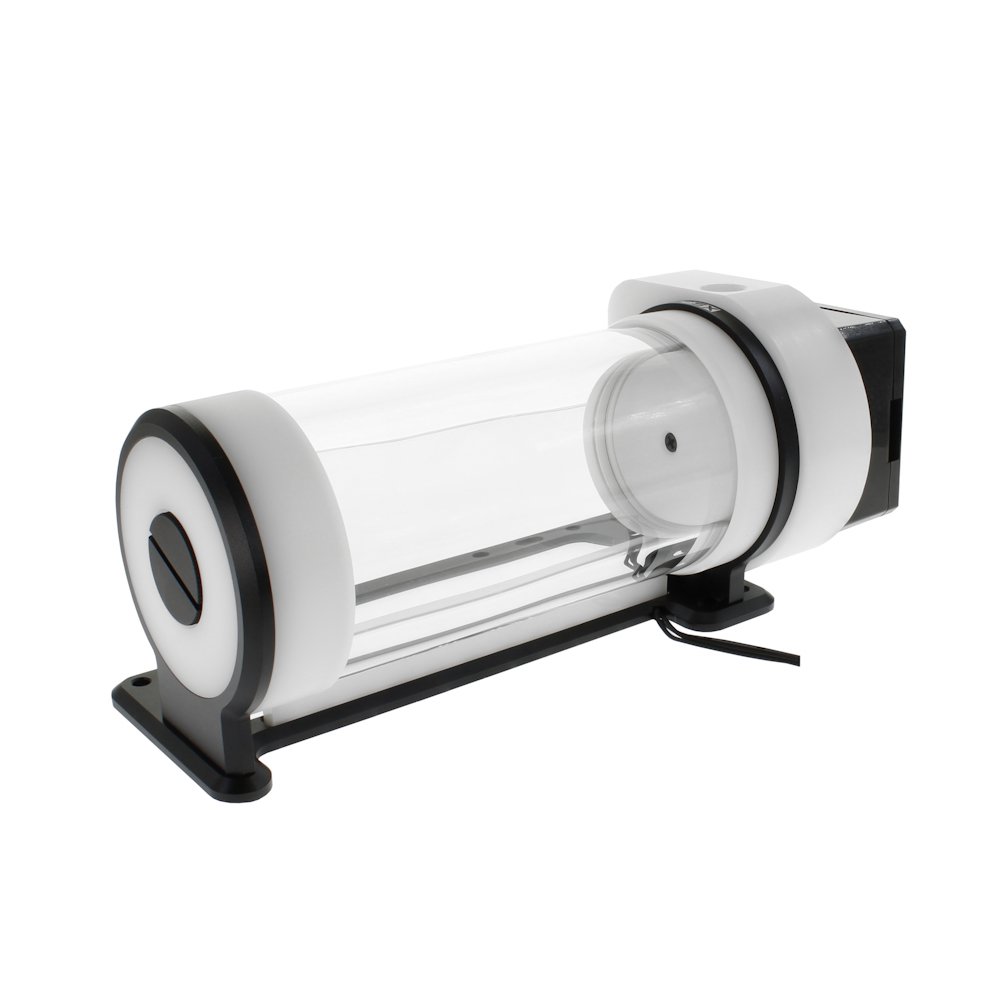

Photon reservoirs can be mounted either horizontally or vertically. If using the Photon horizontally, make sure to keep the reservoir topped up to the top, or air can get sucked into the loop.



Each reservoir/pump combo is hand assembled and pressure tested before sale to ensure reliability.



The QX5 Photon reservoirs include a new bracket which attaches directly to 120mm and 140mm radiators. It also has an improved fillport with lower restriction, to make filling the reservoir easier.



Details:

Tube Material: Acrylic

Cap Material: Acetal

Bracket Material: Aluminium (No liquid contact)

Dimensions: 220 x 85 x 92mm (Including Pump + Bracket)

Capacity: 425ml

Lighting: 10x Individual aRGB bulbs

Ports: 3x G1/4" (2x In, 1x Out)

Individually Pressure Tested



QX5 Pump Specification:

- 4 Pin PWM Power

- Load speed: Max 4000rpm

- Maximum Flow: 960 lph (12V)

- Maximum Head Delivery: 5-6m (12V)

- Voltage: 12V (17W Max)



RGB Compatibility:

- All 3Pin 5v Addressable RGB Motherboards, Controllers and Hubs including...

- Asus AURA Sync (3Pin 5v Headers only)

- Gigabyte RGB Fusion (3Pin 5v Headers only)

- MSI Mystic Light Sync (3Pin 5v Headers only)



NOTE: Do not attempt to plug the 3Pin 5V aRGB cable into anything other than an aRGB 5V Motherboard header pin, Controller or Hub. Each aRGB strip is tested prior to shipping, user damage by misuse is not covered under warranty.



Included:

XSPC Photon aRGB QX5 Reservoir and Pump Combo - White

Integrated aRGB diffused lighting

Mounting Bracket (Matte Black)

G1/4" Blank Plug (Matte Black)

M20 Fill Cap (Matte Black)
