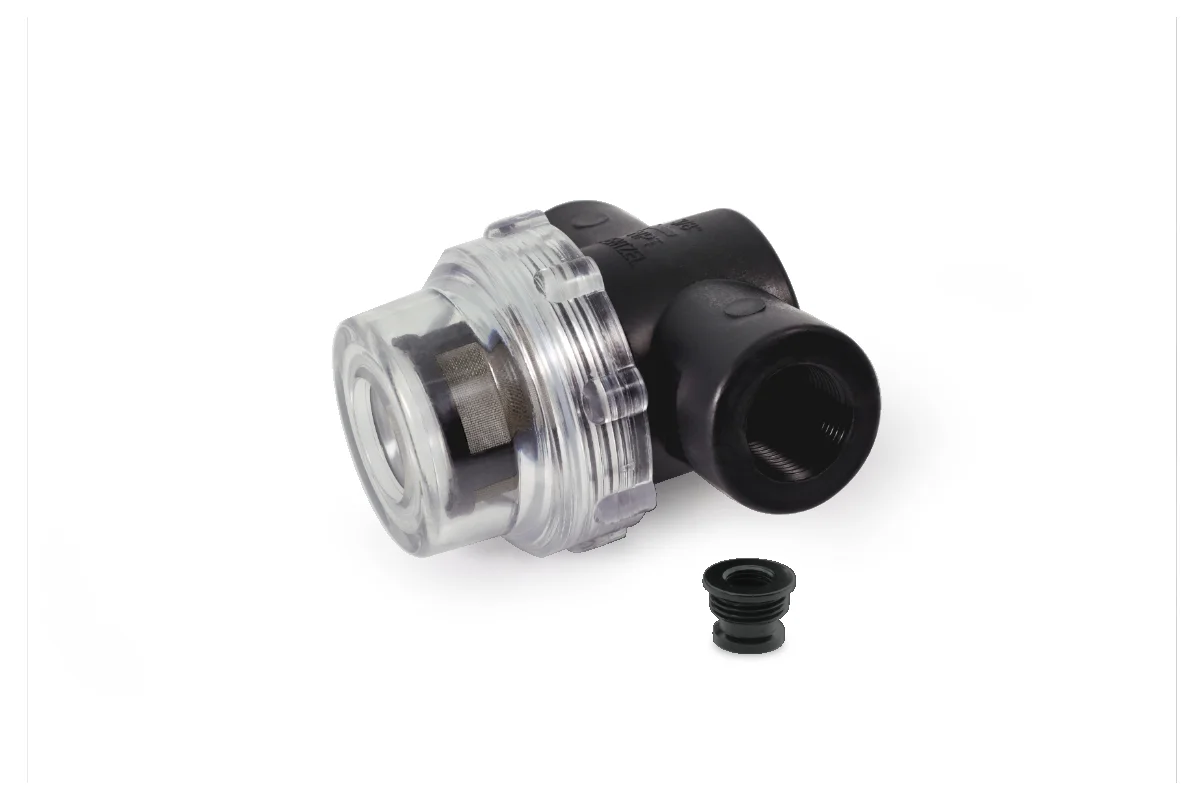

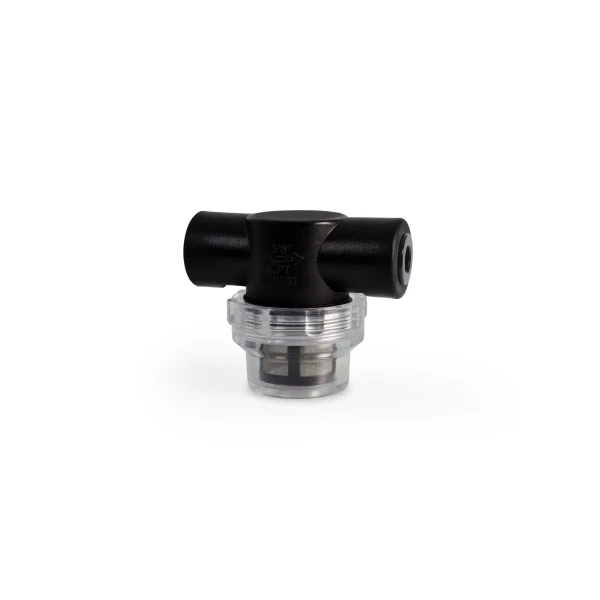

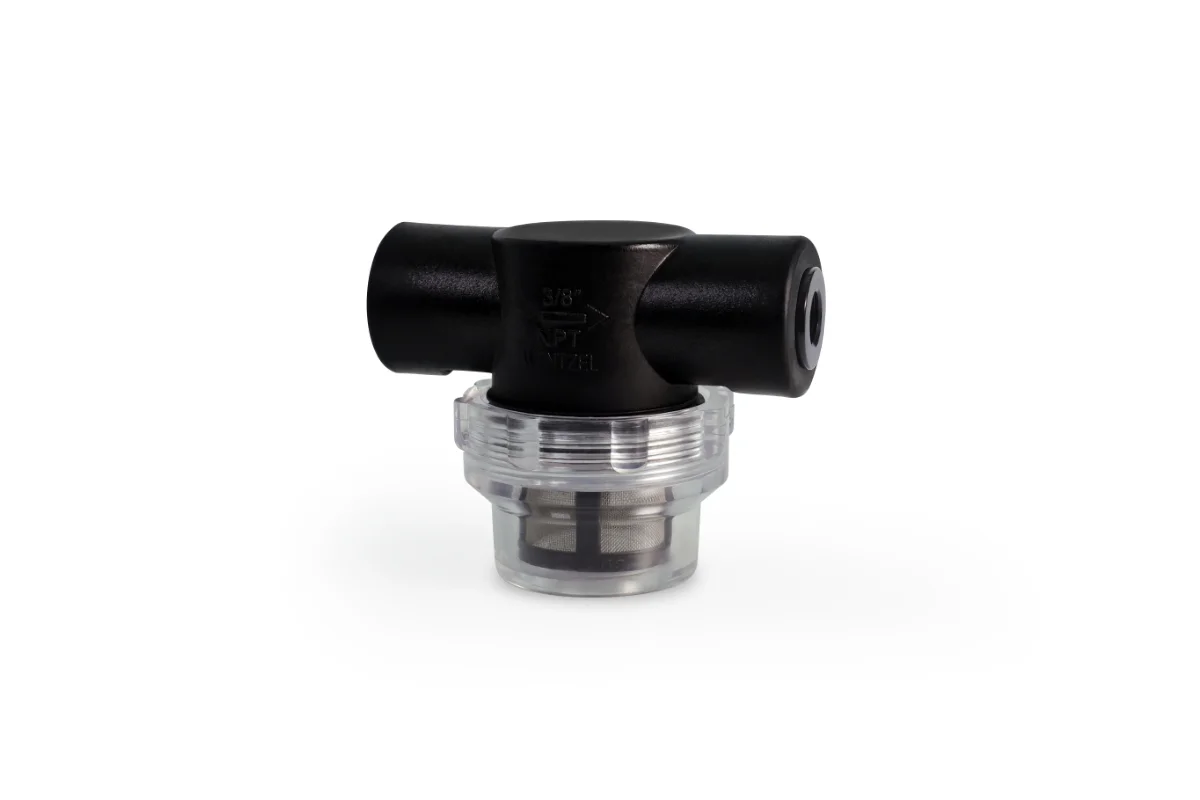

Alphacool ES Inline particle filter 2x G1/4" IG
- Producent: Alphacool
- Kod producenta: 13888
- Kod EAN: 4250197138888
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
The Alphacool inline particle filter from the Enterprise Solutions product range catches dirt particles from the cooling loop. This protects sensitive components such as pumps or the fine cooling fins.
Flexible installation
The "ES Inline Particle Filter 2x G1/4" IG" from Alphacool can be integrated at any point in the cooling loop. Thanks to the two supplied G1/4" connectors, it is compatible with all Alphacool connectors. However, it is important to ensure that the filter is facing downwards after installation.
Function

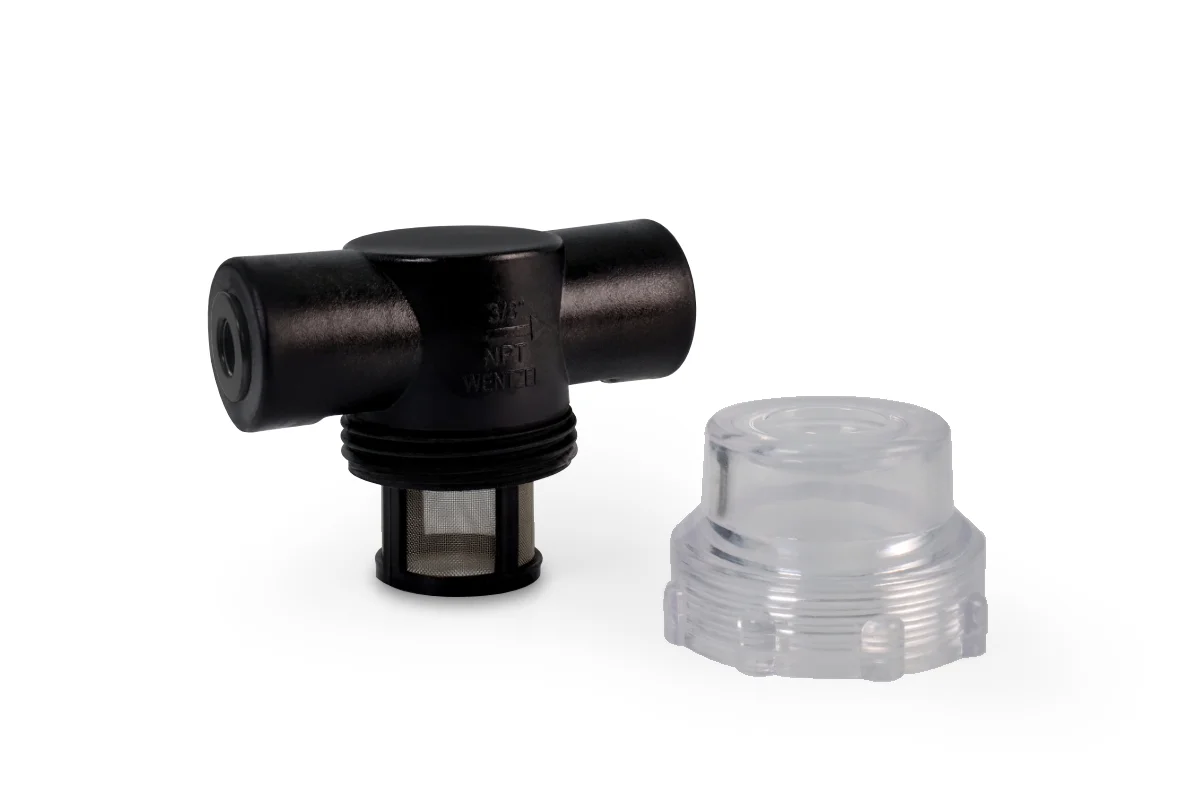

Due to the large surface area of the screen filter, the flow rate of the coolant inside the particle filter decreases, allowing the suspended particles to settle to the bottom. Lowering the flow rate within the filter has no adverse effect on the general flow rate of the cooling loop.
Flexible installation
The "ES Inline Particle Filter 2x G1/4" IG" from Alphacool can be integrated at any point in the cooling loop. Thanks to the two supplied G1/4" connectors, it is compatible with all Alphacool connectors. However, it is important to ensure that the filter is facing downwards after installation.
Function
Due to the large surface area of the screen filter, the flow rate of the coolant inside the particle filter decreases, allowing the suspended particles to settle to the bottom. Lowering the flow rate within the filter has no adverse effect on the general flow rate of the cooling loop.
| Technical data | |
| Dimensions (L x W x H) | 95 x 50 x 63mm |
| Material | Plastic, acrylic |
| Material (Sieve filter) | Metal |
| Weight | 70g |
| Maximum operating temperature | 60 °C |
| Maximum pressure | 0,8 Bar |
| Threads | 2x 3/8G" (with enclosed adapters to 2x G1/4") |
| Flow direction | Specified (see manual) |
| Color | black/transparent |
