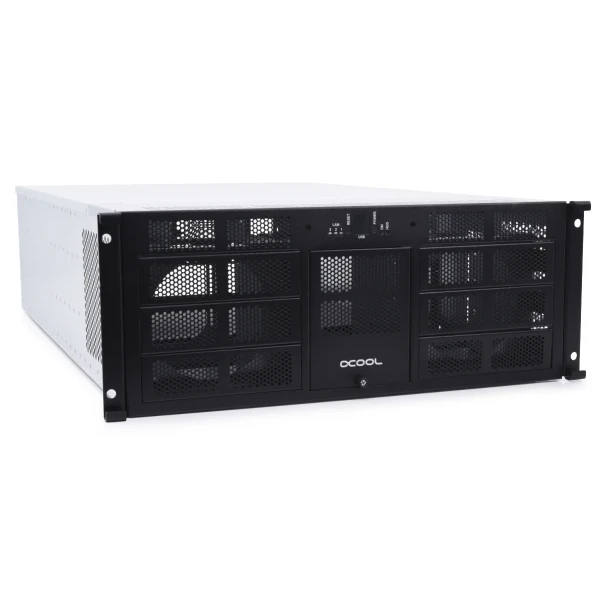

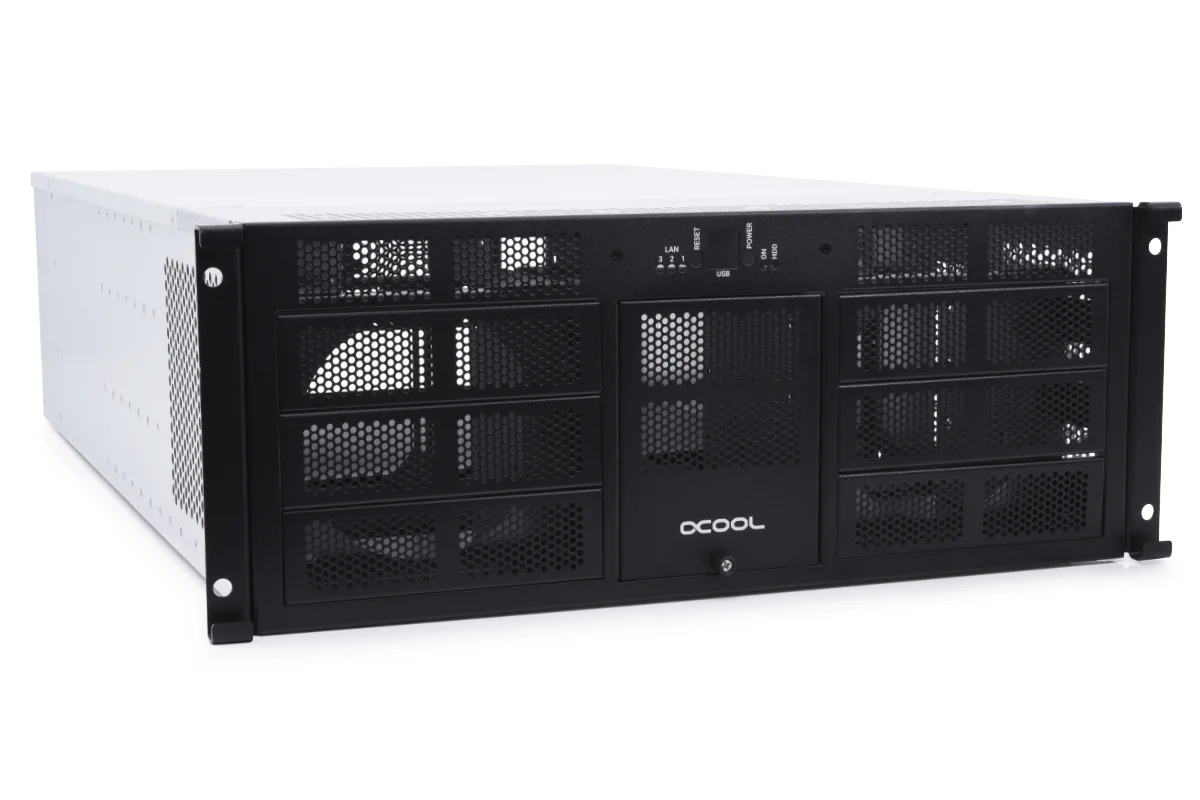

Alphacool ES 4U - 19" - ServerRack - Watercooling ready
- Producent: Alphacool
- Kod producenta: 50167
- Kod EAN: 4250197135672
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- NOWOŚĆ
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

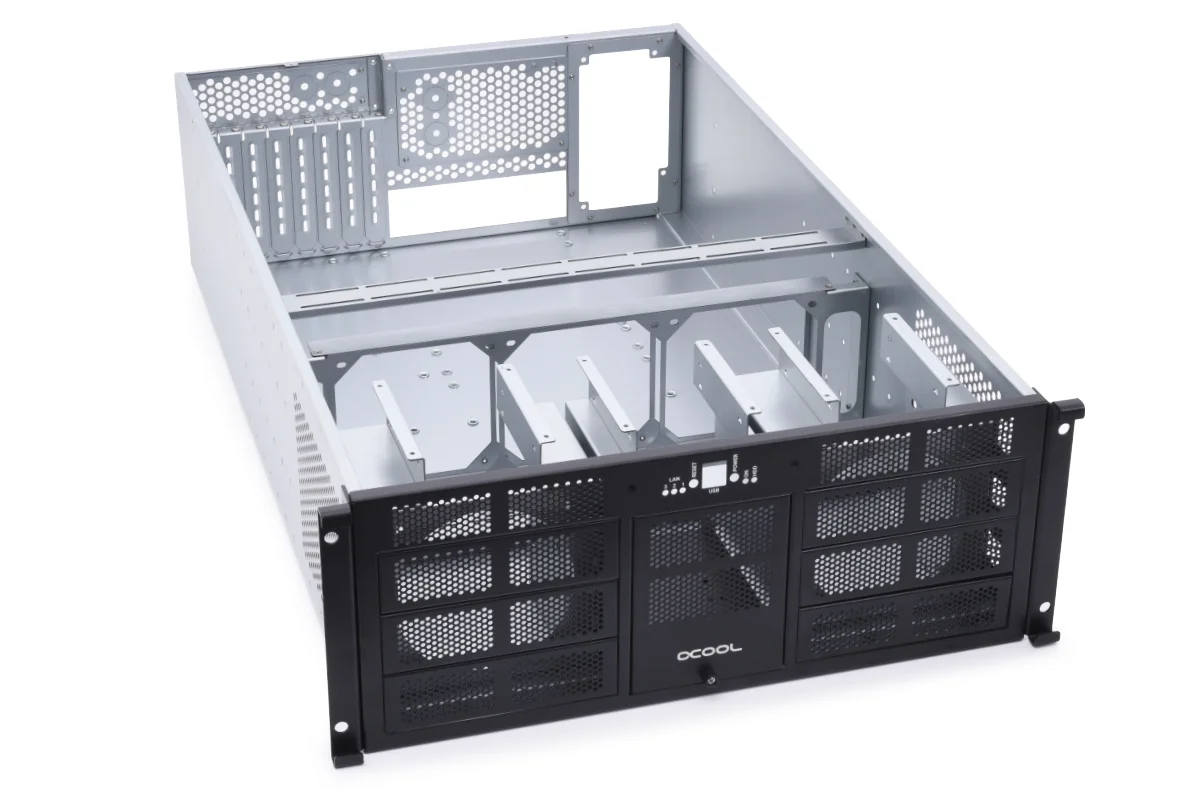

The Alphacool ES 4U ServerRack has been specifically optimized to accommodate water cooling sets, which can dissipate up to 2400W of waste heat in this case. The case not only offers a mounting frame for a maximum of one 3x120mm solid copper radiator from the Alphacool NexXxoS series. The optionally available Alphacool ES 120 mm fans with PWM control ensure optimal cooling performance.
Drives

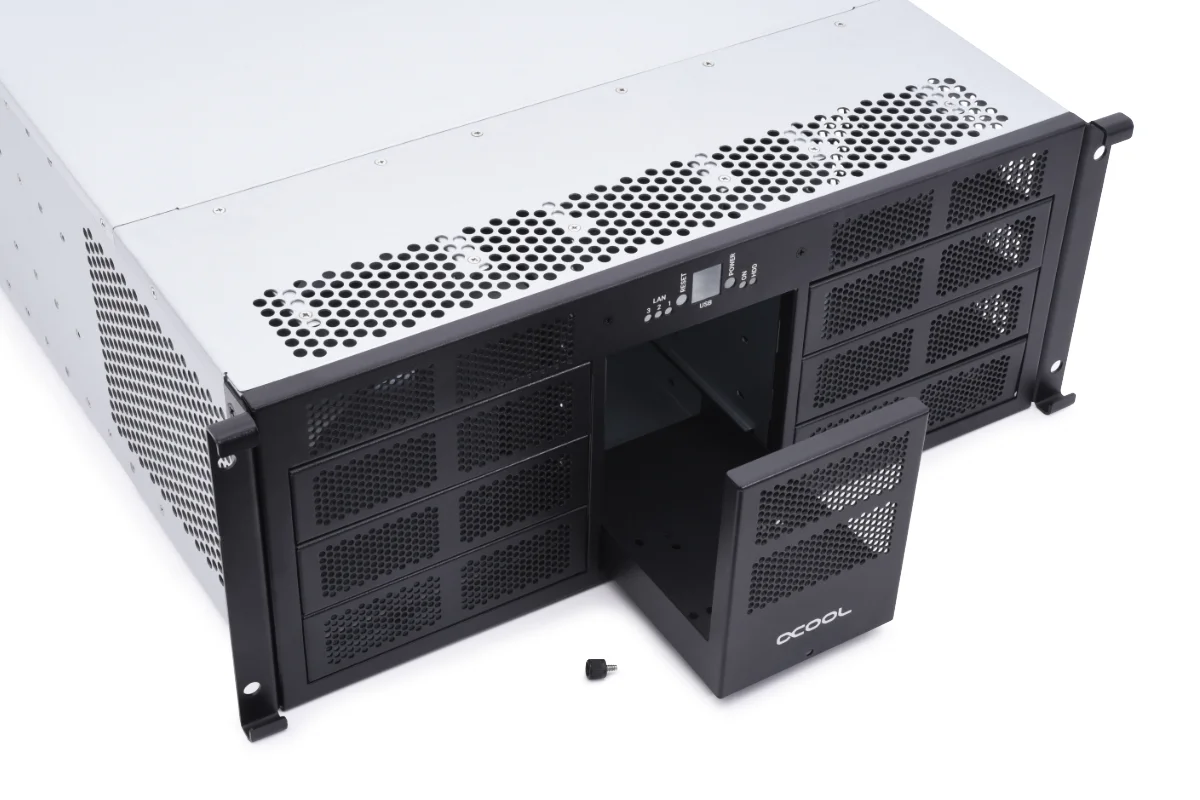

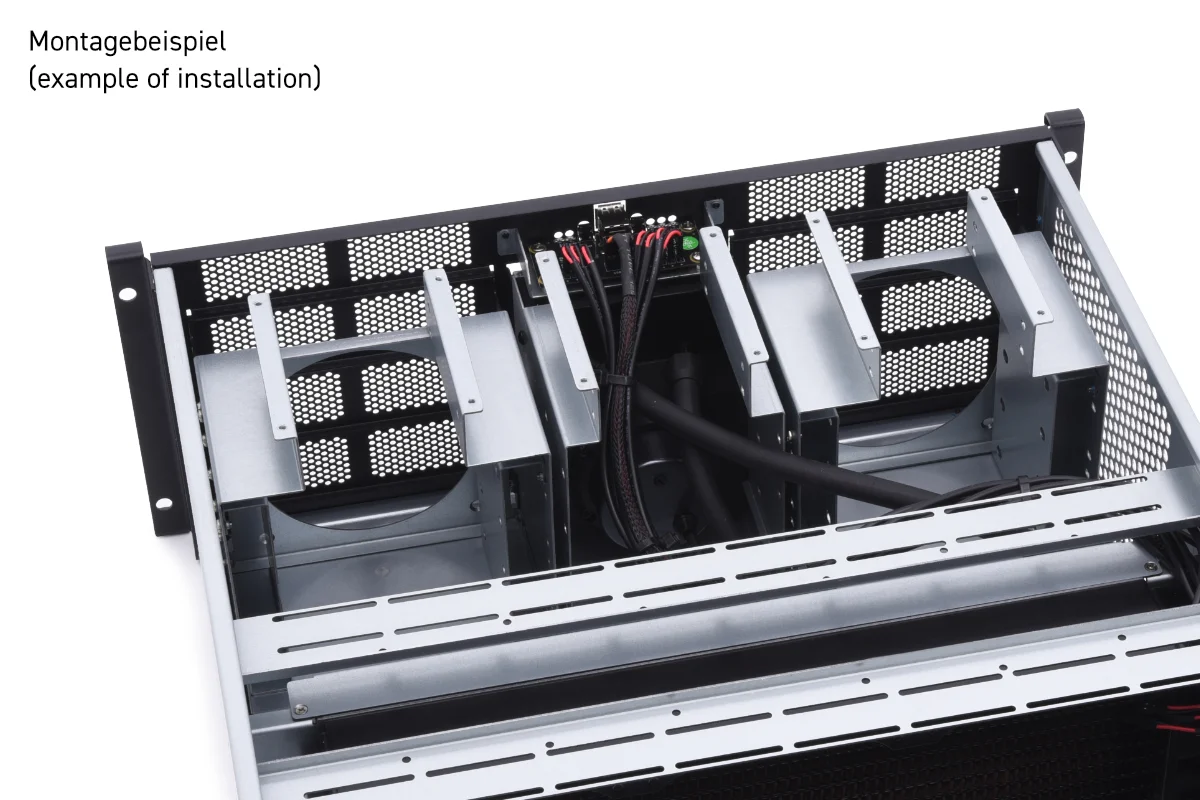

The 4U server rack offers mounting options for six 5.25" drives on the left and right side of the front. Six mounting locations for 2.5" drives are located in the upper area of the front. Three 3.5" drives or an expansion tank with pump can be mounted in the middle.
Mainboard

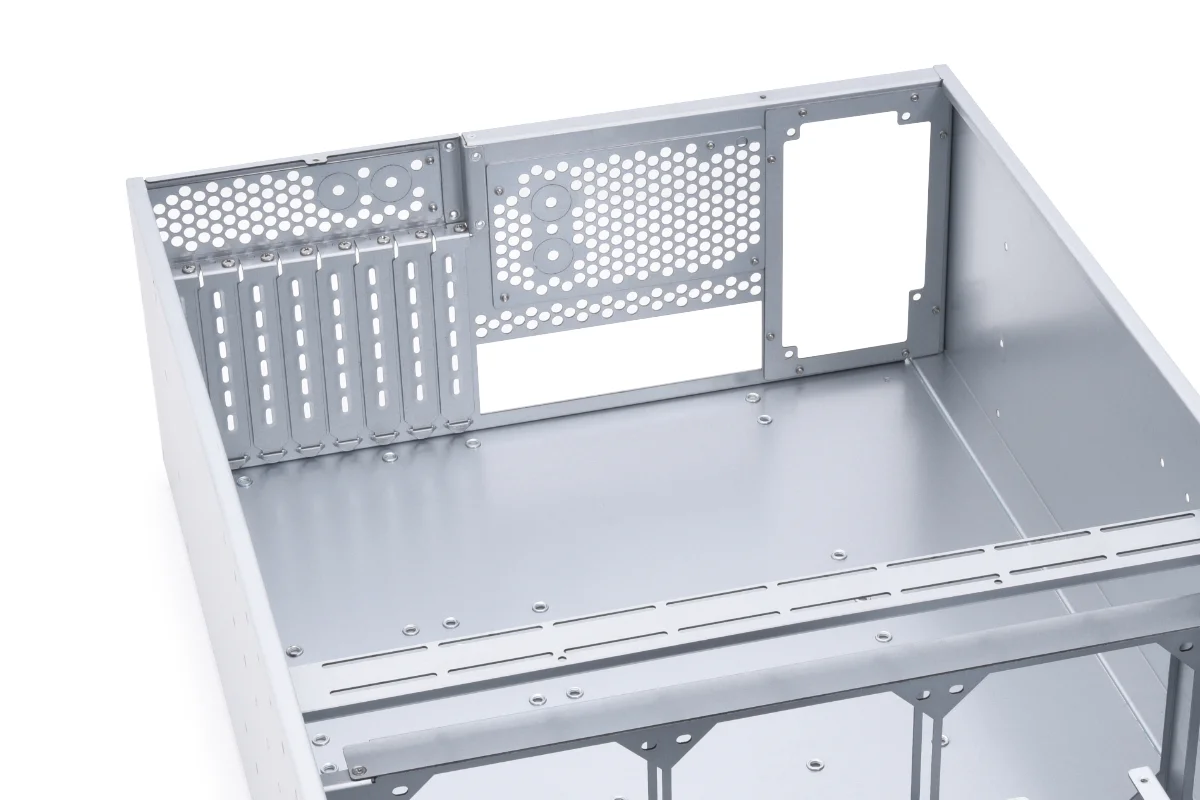

All the usual screwing options in the classic ATX format are available for mounting an SSI-EBB mainboard. This includes all mounting holes for Mini-ITX to EE-ATX.

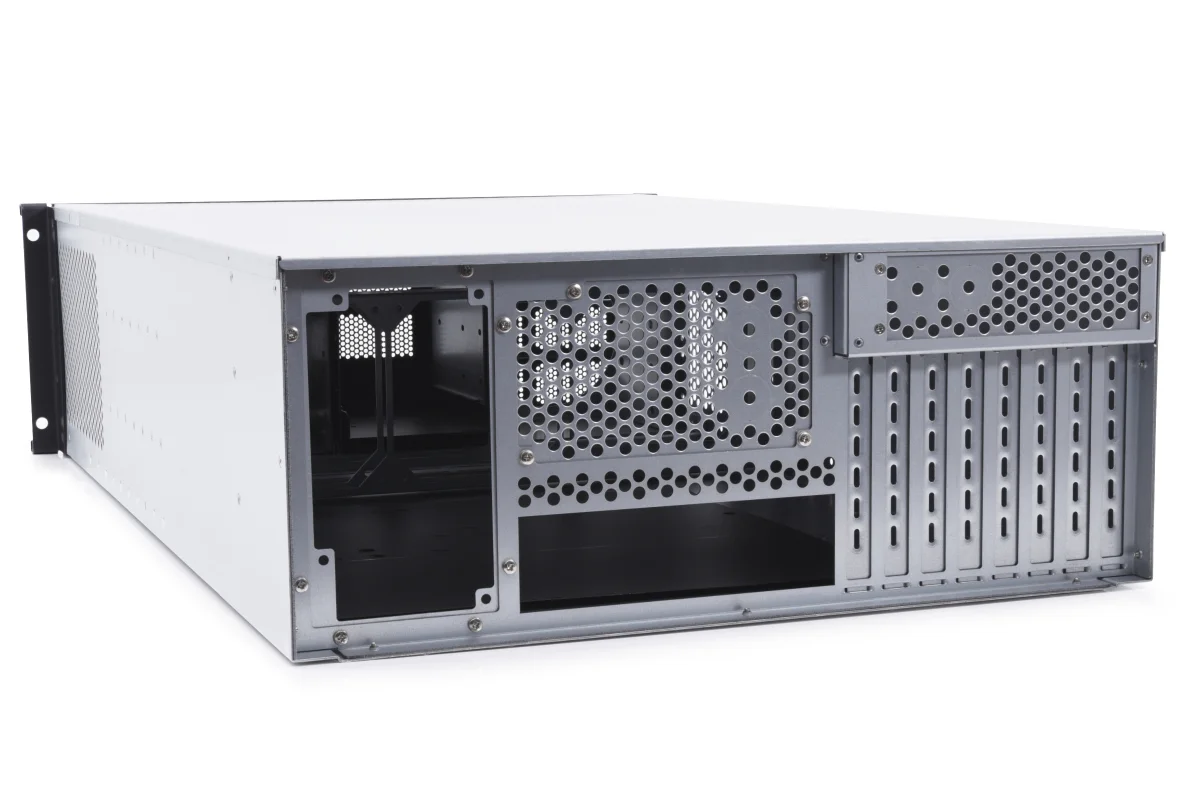

The case has space for up to eight PCIe cards.
Water cooling for 2400W waste heat

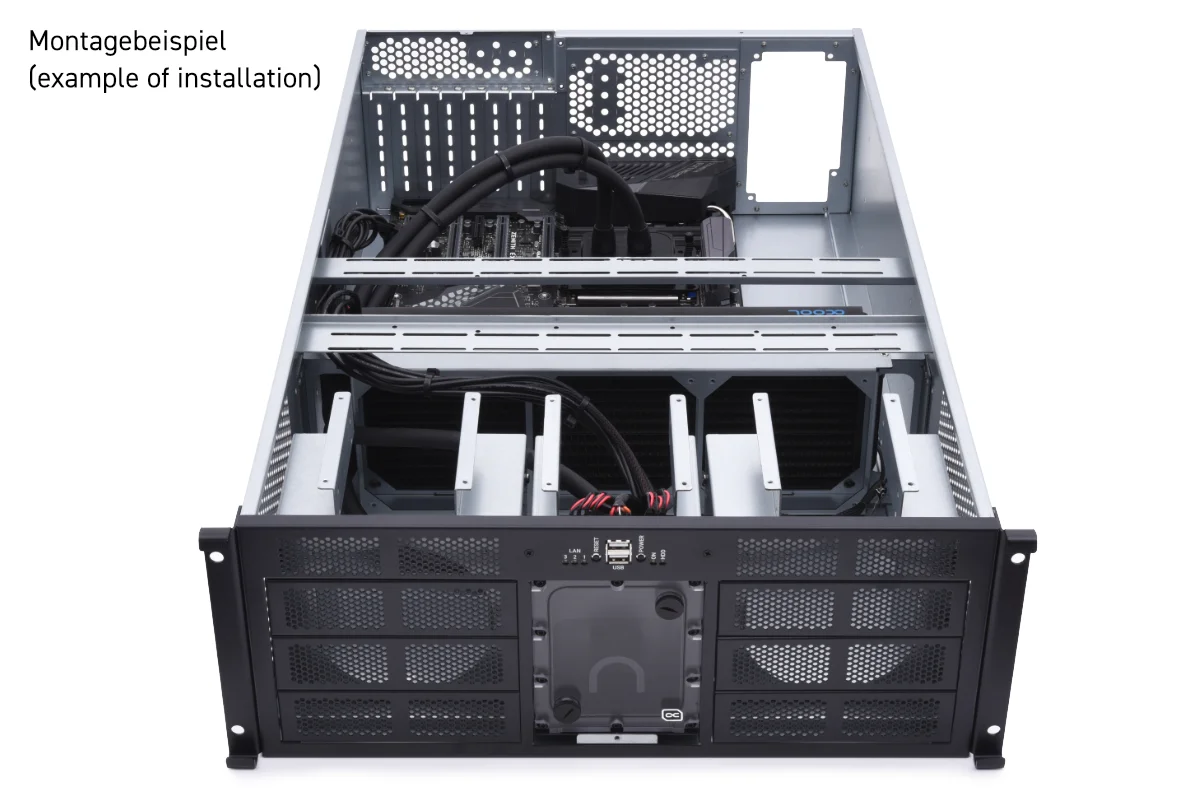

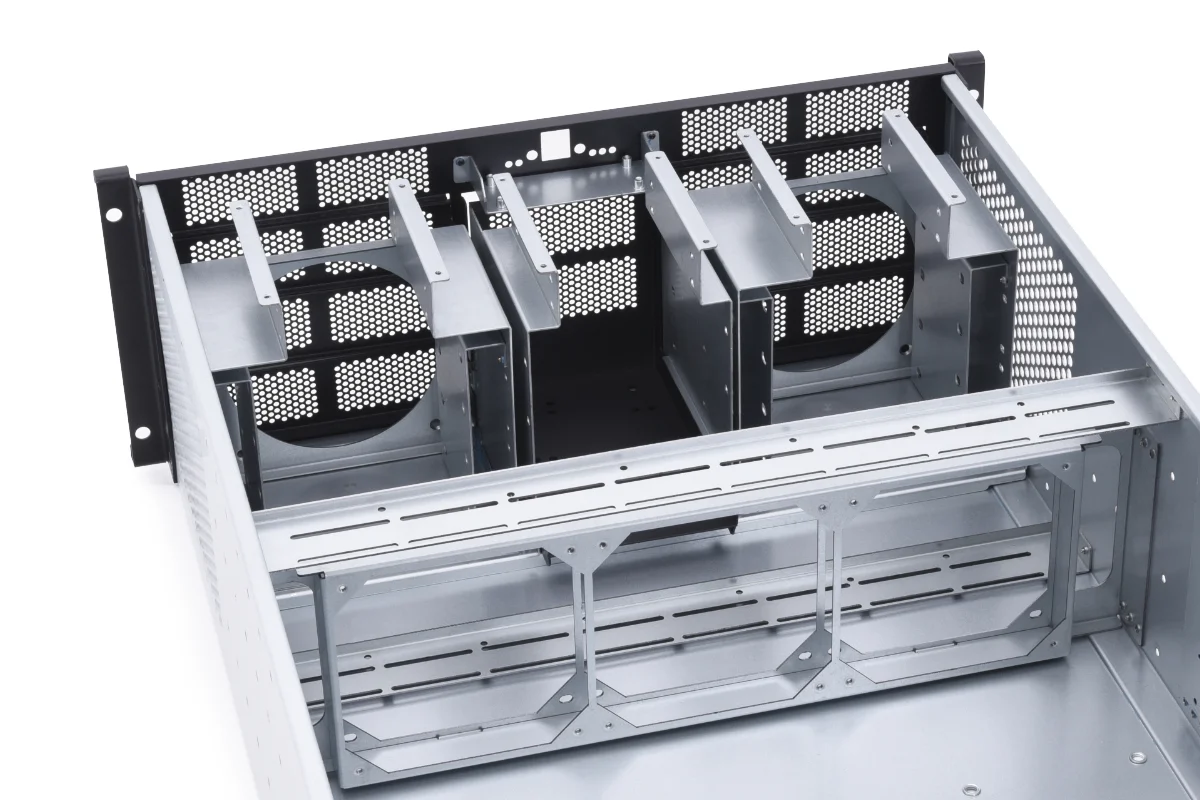

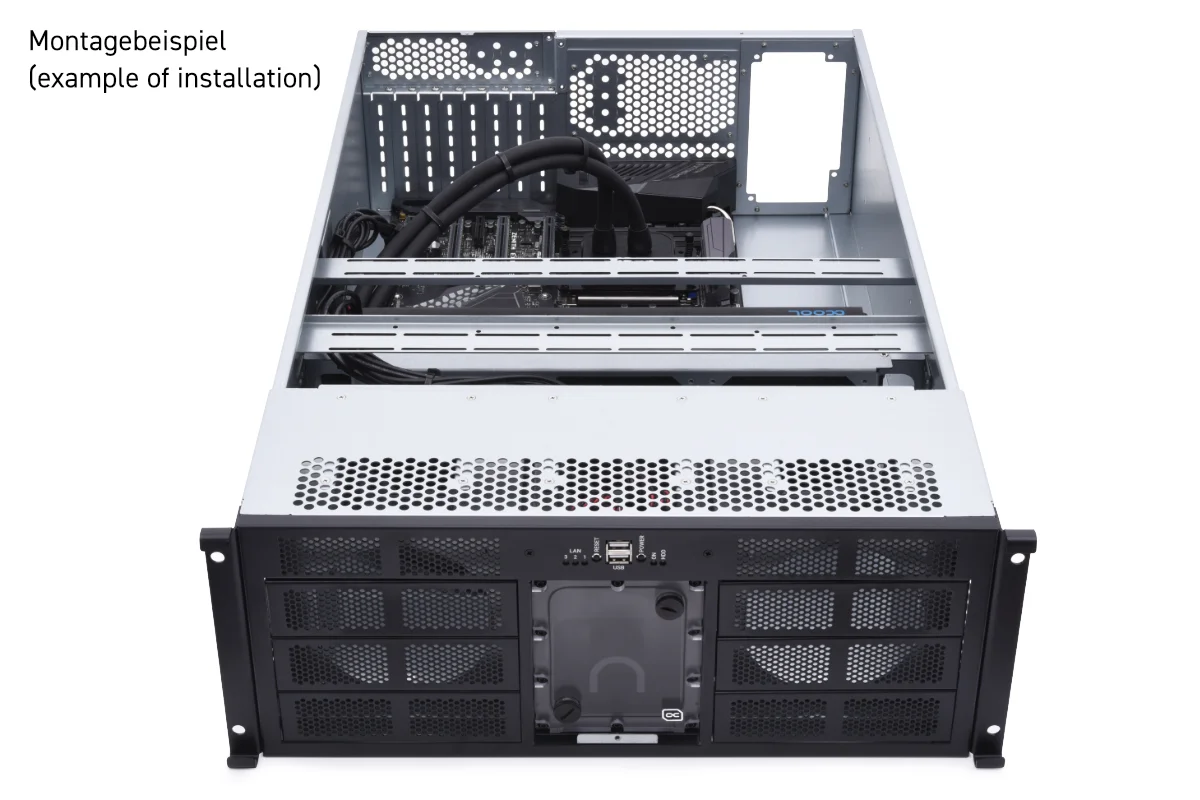

With appropriate water cooling, up to 2400W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this, which can be individually configured and are delivered to customers pre-filled. The mounting frame for the radiator and the fans can be moved within the case to suit any setup.

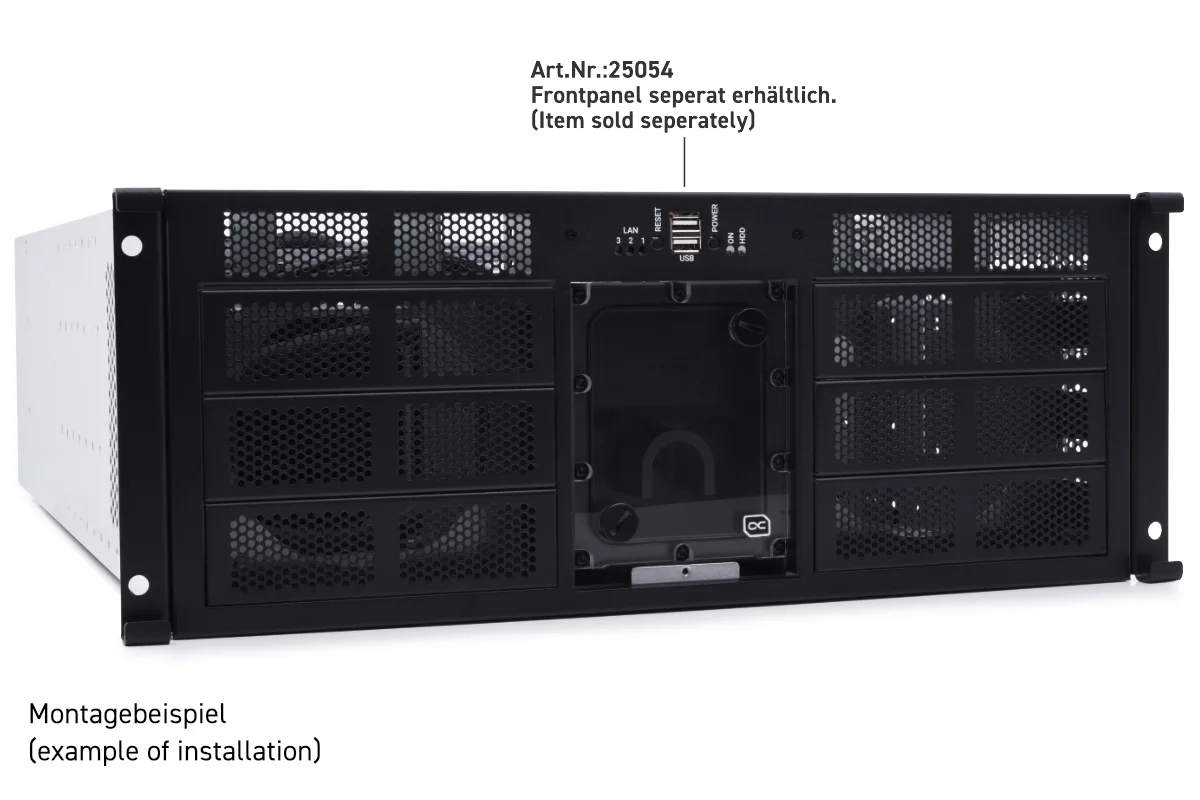

Attention: The I/O panel must be purchased separately. You can find a suitable one under the manufacturer number 25054
Note: The maximum height of the CPU cooler is 140mm
Technical data | |
Dimensions (L x W x H) | 736,85 x 478,50 x 177,8mm |
Weigth (only case without common rails) | 17,22 kg |
Hose passage | 4x20 mm |
Form factor | 4U |
Material | Galvanised sheet steel |
Material thickness | 1,2 mm |
Mainboard form factor | Mini-ITX, Micro-ATX, ATX, E-ATX, EE-ATX |
Fan/radiator bracket | 3 x 80 mm |
Color Case | Grey |
Color Front | Black |
