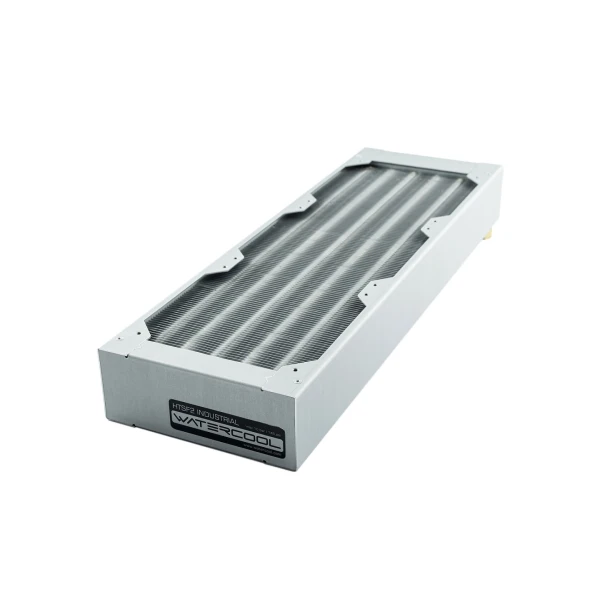

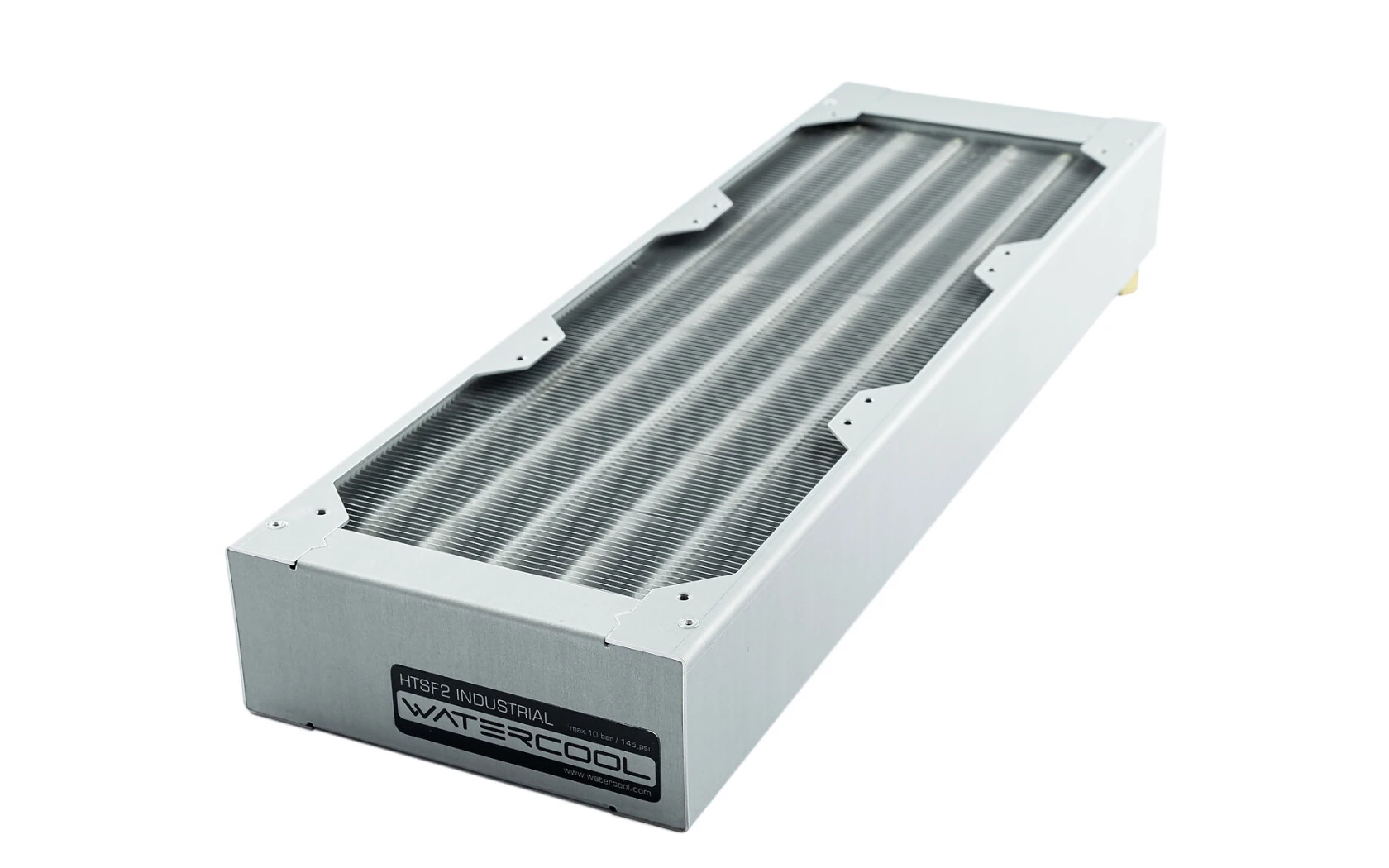

Watercool HTSF2 3x120 Industrial Line Vz (10 bar)

The HTSF2 Industrial Line is a series of very compact and efficient tube heat exchangers. Their triple parallel layout ensures high performance and low flow-resistance. The round tubing allows operation at high pressures, up to 10 bar for this type.

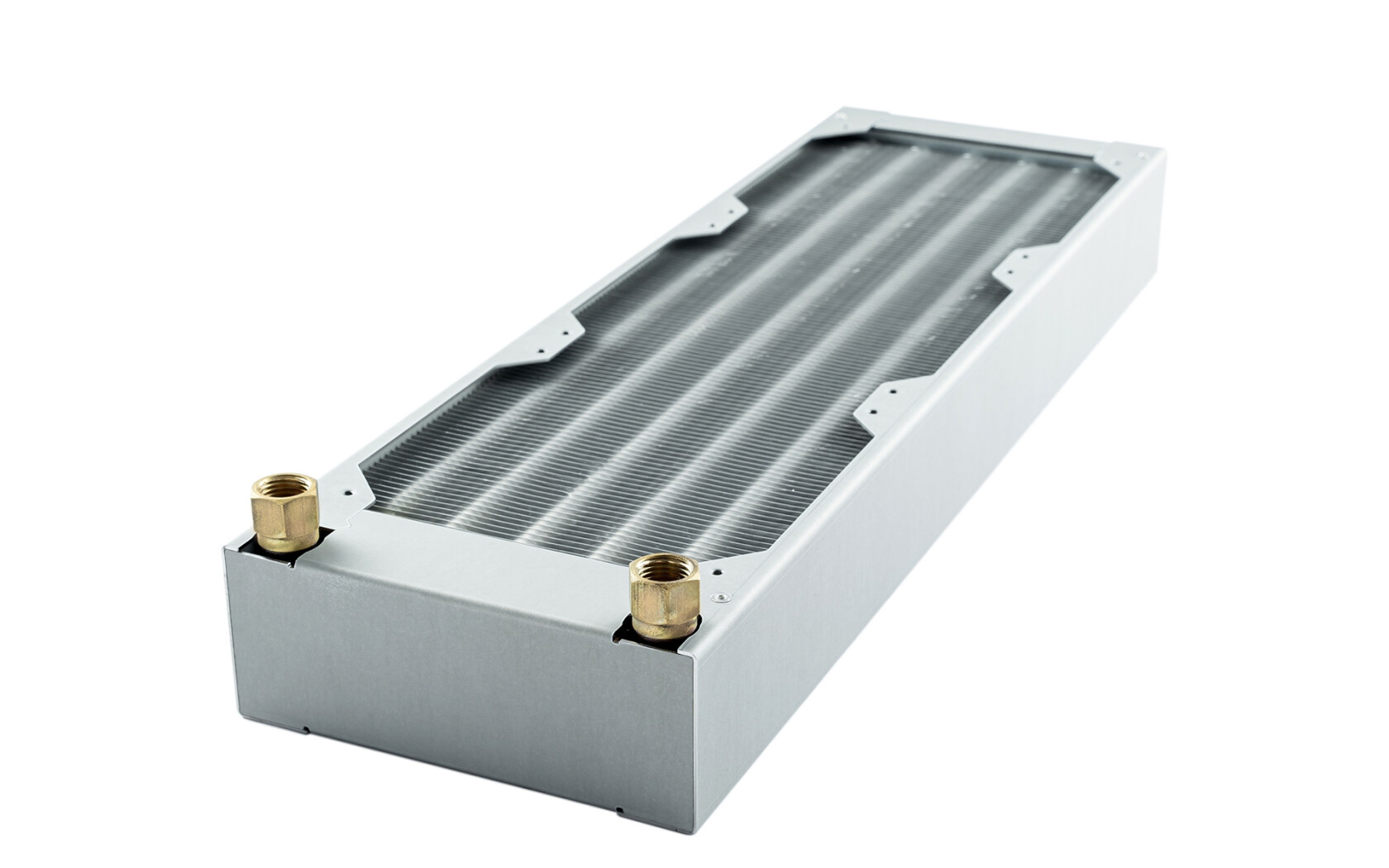

This version is optimised for low rpm fans but offers excellent cooling performance for high rpm fans as well. The symmetrical layout features integrated M3 threads on both sides for mounting of 120 mm fans. Two G 1/4“ allow the use of various fittings.



Only high quality materials are used producing the HTSF2. The tubes are made from pure copper, the fins from high quality aluminium. To further improve performance, the fins consciously remain uncoated while a robust powder coating protects the casing against external influences. Only minimal traces of soldering residue can be found inside the heat exchanger due to a highly optimised production.



The HTSF2 is produced in Europe, and the bulk of the components are manufactured in Germany. Development and final assembly exclusively take place in Germany.



Long-time availability is an outstanding characteristic of the Industrial Line and can be stipulated by contract.



Individual customisation (e.g. material/colour/casing) is possible on request.





Specifications:

Material heat exchanger: Copper (tubes), aluminium (fins)

Material casing: Zinc-coated steel panels

Dimensions (L x W x H): 410 x 130 x 50 mm

Weight: approx. 1550 g

Pressure tested: 10 bar

Threads: 2x G 1/4”



Included:

1x HTSF2 3x120 Industrial Line Vz
