Phanteks D30 PWM Reverse Airflow, D-RGB Fan - 140mm, black
- Producent: Phanteks
- Kod producenta: PH-F140D30R_DRGB_PWM_BK01
- Kod EAN: 0886523003298
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 8-14 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Premium D-RGB performance fan
The Phanteks D30-140 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-140 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
D30 REGULAR
Air moves from rear to front.

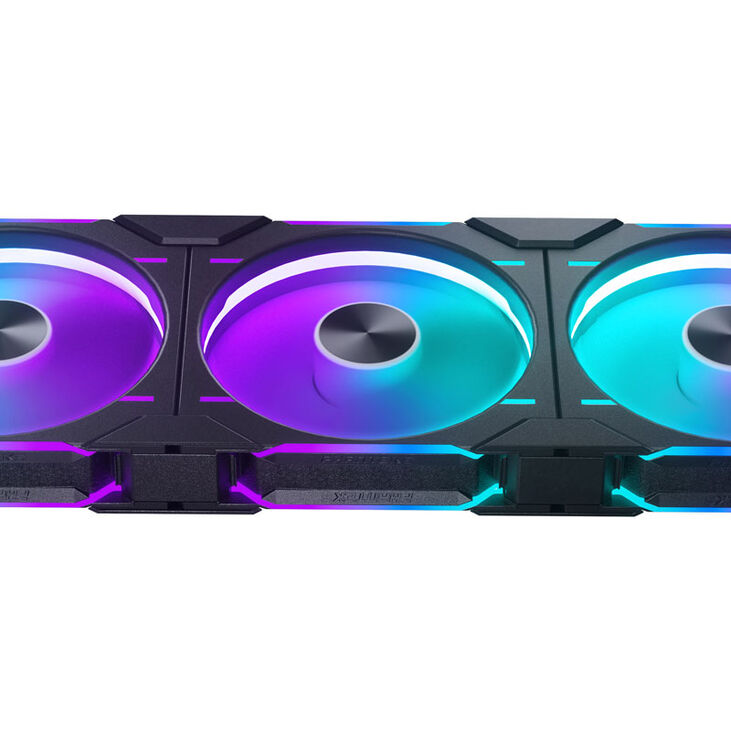

Link Together as One

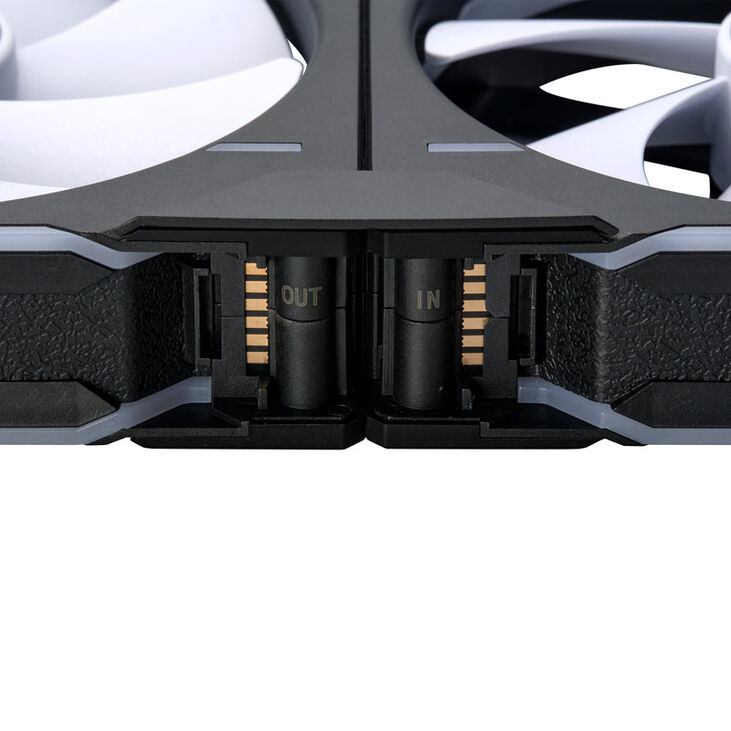

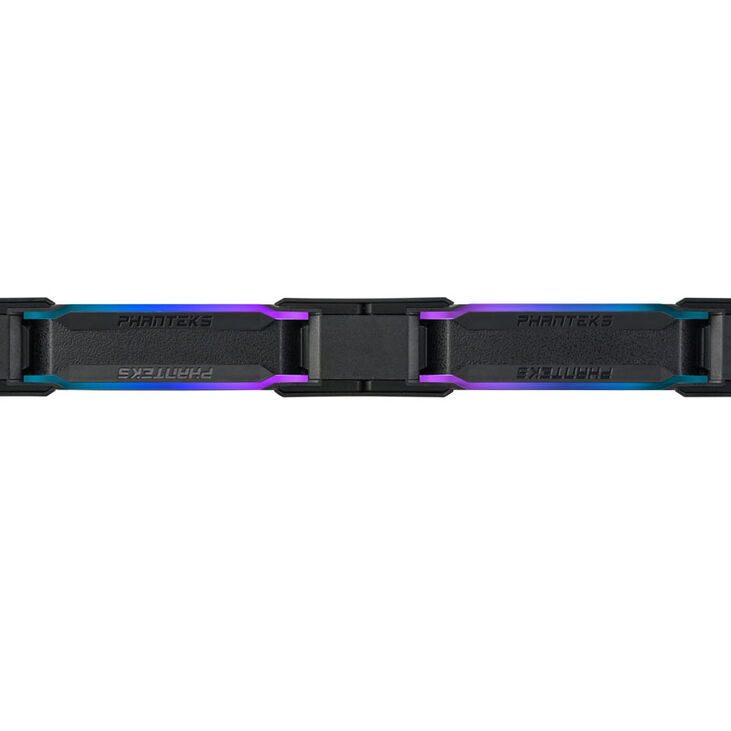

- Connect up to four D30 fans together with the bridge connectors.
- Hide the fan screws with the screw covers for a super-clean look.
- Standard PWM fan header to control directly from the motherboard.
30 mm of Performance
- Increased thickness improves noise-normalized performance.
- Designed to excel on radiators and mesh / dust filters.

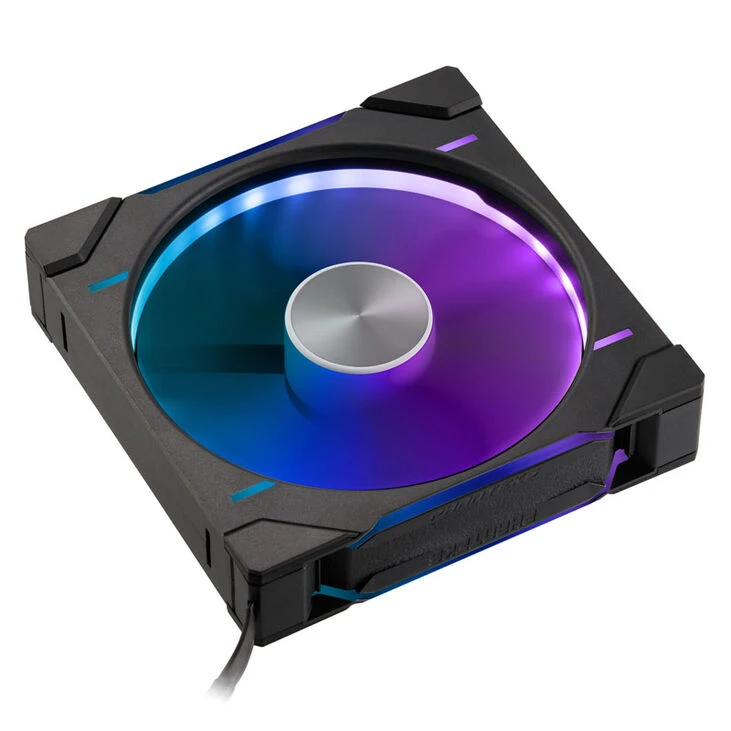

D-RGB All the Way
- The integrated D-RGB lighting is visible from all sides of the D30 frame.
- The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
- Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
| Frame Size | 140 x 140 x 30 mm | 5.51 x 5.51 x 1.18 in |
| Blade Geometry | Seven blades design |

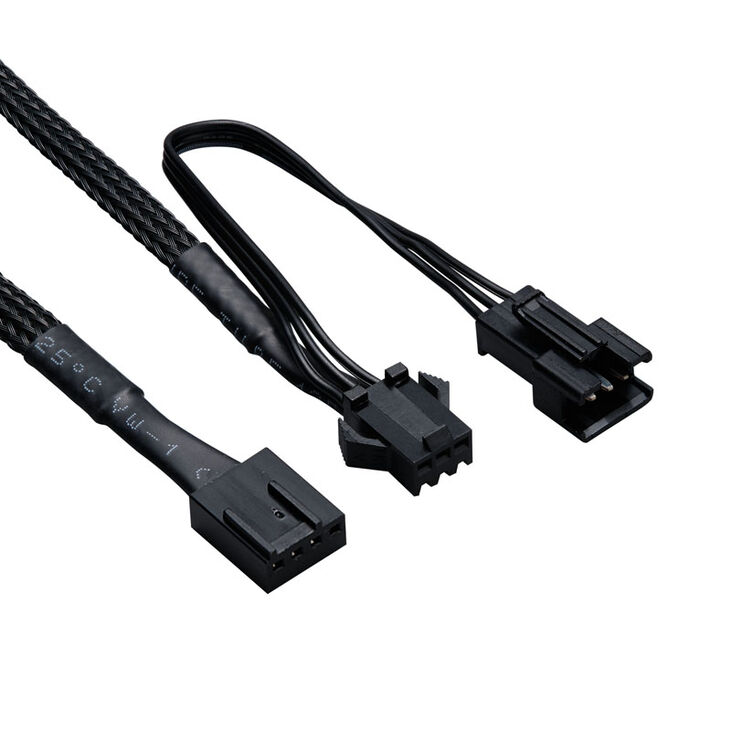

| PWM Connector | 4-Pin Daisy-chain |
| PWM Cable Length | 700 mm | 27.56 in |
| D-RGB Connector | 3-Pin JST Daisy-chain |
| D-RGB Cable Length | 600 + 100 mm | 23.62 + 3.94 in |
| Bearing Type | FDB (Fluid Dynamic Bearing) |
| Rated Voltage | 5~13.2V |
| Noise Level | 32,1 dBA |
| Max. Airflow | 71.76 CFM |
| Max. Air Pressure | 3.08 mm H2O |
| Speed | 250~1800 ± 10% RPM |
| MTFB | 50.000 hours |
| Max Current | 0.15A |
| Max Power | ≦ 1.8W |
| Operating Voltage Range | DC 5 ~ 13.2V |
| LED Number | 30 |
| LED Rated Current | Max. 0.45A |
| Net Weight | 350 g | 12.34 oz |
| Gross Weight | 430 g | 15.16 oz |
| Warranty | 3 Years limited |

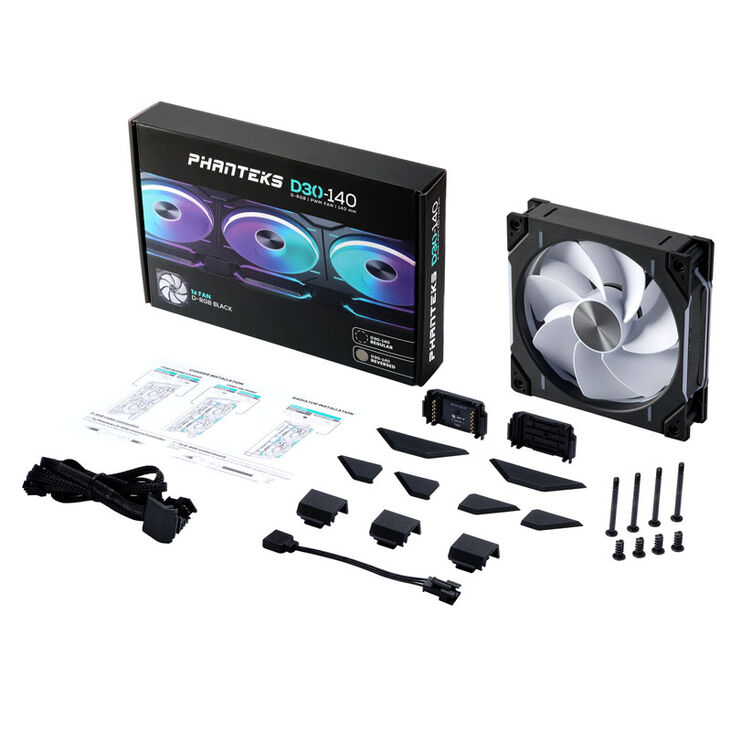

| Scope of Delivery | 1x D30-140 fan |
| Accessory | 1x D-RGB mainboard adapter |
| Screws | 12x Fan screw |
| 12x UNC 6-32 radiator Ssrew 36mm | |
| 12x M4 radiator screw 36mm | |
| 2x Corner clip cable | |
| 6x Corner clip | |
| 2x Bridge clip connector | |
| 2x Bridge clip | |
| 8x Screw cover corner (4L|4R) | |
| 4x Screw cover bridge |
