Aquacomputer ULTITOP DUAL D5 MIRROR BLACK pump cover for two D5 pumps, G1/4
- Producent: Aqua Computer
- Kod producenta: 41136
- Kod EAN: 4260473314264
- Gwarancja: 24 miesiące
Dostępność:
Towar sprowadzany na zamówienie
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

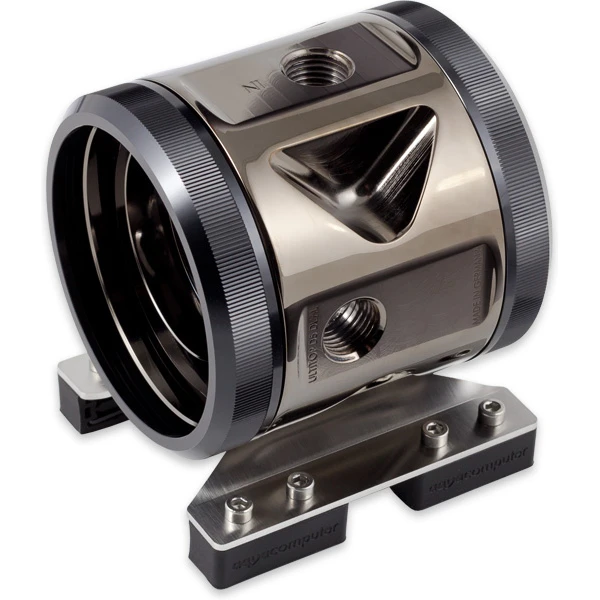

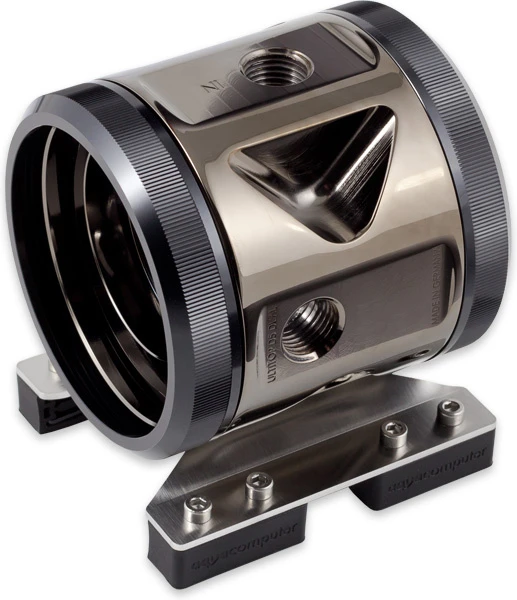

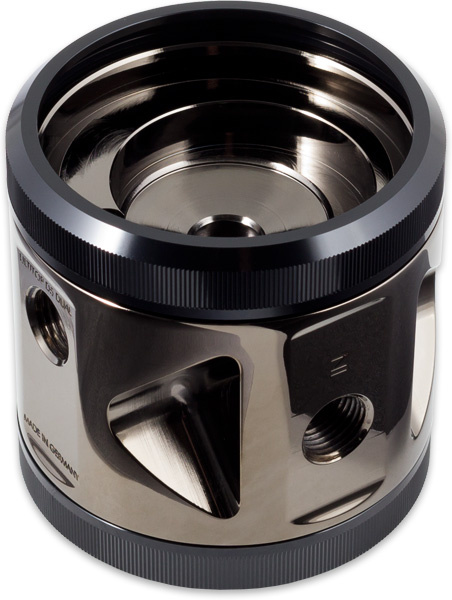

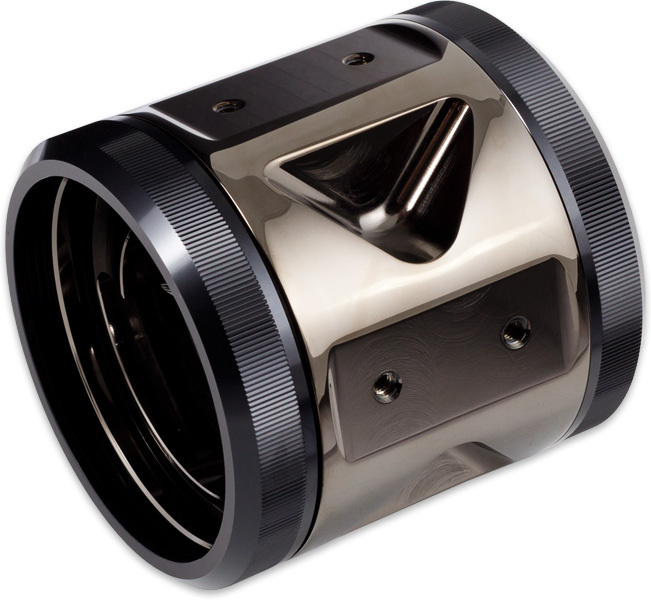

Exceptionally compact top for two D5 pumps, manufactured from solid brass, manually polished and with a dark nickel plating. Coolant flow is directed through both pumps consecutively, thereby doubling pressure and ensuring redundant operation in case of a pump failure. Main focus during development of the ULTITOP DUAL D5 were optimum flow characteristics, reducing noise and vibration to a bare minimum.

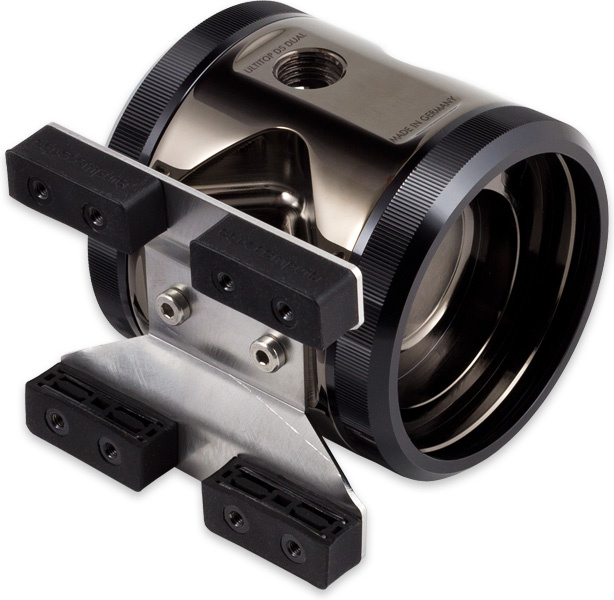

Two fastening rings made from anodized aluminum and two gaskets are supplied to attach two D5 pumps (not included in delivery) to the ULTITOP DUAL. The mounting bracket is equipped with silicone decouplers specifically designed for the ULTITOP, effectively preventing remaining vibrations from being transmitted to the PC case. Stainless steel plates with M3 threads inserted into the decouplers ensure convenient installation.
Dimensions:
72 x 72 x 74 mm without bracket/decouplers, without pumps
72 x 88 x 74 mm with bracket/decouplers, without pumps

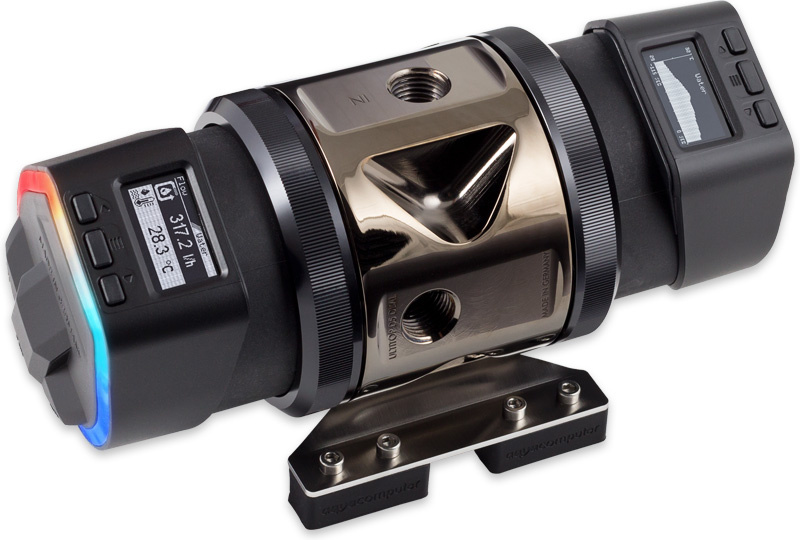

72 x 88 x 172 mm with bracket/decouplers, with two D5 NEXT pumps (not included in delivery)
Scope of delivery:
Pump adapter
Two pump fastening rings
Two O-ring gaskets
Stainless steel bracket with silicone decouplers
Mounting material
Compatible with:
Aqua Computer D5 pump motor with speed signal (art. no. 41091)
Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
Aqua Computer D5-Pumpenmechanik mit USB- und aquabus Schnittstelle (art. no. 41093)
Aqua Computer D5 NEXT (art. no. 41118)
Laing D5 series pumps and OEM versions identical in construction
Please note:
Pumps and fittings are not included in delivery!
Due to the high weight, a hanging mounting with the supplied silicone decouplers is not possible. An upright mounting is recommended.
Two fastening rings made from anodized aluminum and two gaskets are supplied to attach two D5 pumps (not included in delivery) to the ULTITOP DUAL. The mounting bracket is equipped with silicone decouplers specifically designed for the ULTITOP, effectively preventing remaining vibrations from being transmitted to the PC case. Stainless steel plates with M3 threads inserted into the decouplers ensure convenient installation.
Dimensions:
72 x 72 x 74 mm without bracket/decouplers, without pumps
72 x 88 x 74 mm with bracket/decouplers, without pumps
72 x 88 x 172 mm with bracket/decouplers, with two D5 NEXT pumps (not included in delivery)
Scope of delivery:
Pump adapter
Two pump fastening rings
Two O-ring gaskets
Stainless steel bracket with silicone decouplers
Mounting material
Compatible with:
Aqua Computer D5 pump motor with speed signal (art. no. 41091)
Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
Aqua Computer D5-Pumpenmechanik mit USB- und aquabus Schnittstelle (art. no. 41093)
Aqua Computer D5 NEXT (art. no. 41118)
Laing D5 series pumps and OEM versions identical in construction
Please note:
Pumps and fittings are not included in delivery!
Due to the high weight, a hanging mounting with the supplied silicone decouplers is not possible. An upright mounting is recommended.
