Alphacool ES RTX 5090 Reference 1-Slot-Design with backplate
- Producent: Alphacool
- Kod producenta: 10262
- Kod EAN: 4250197102629
- Gwarancja: 36 miesięcy
Dostępność:
Oczekujemy na dostawę
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.

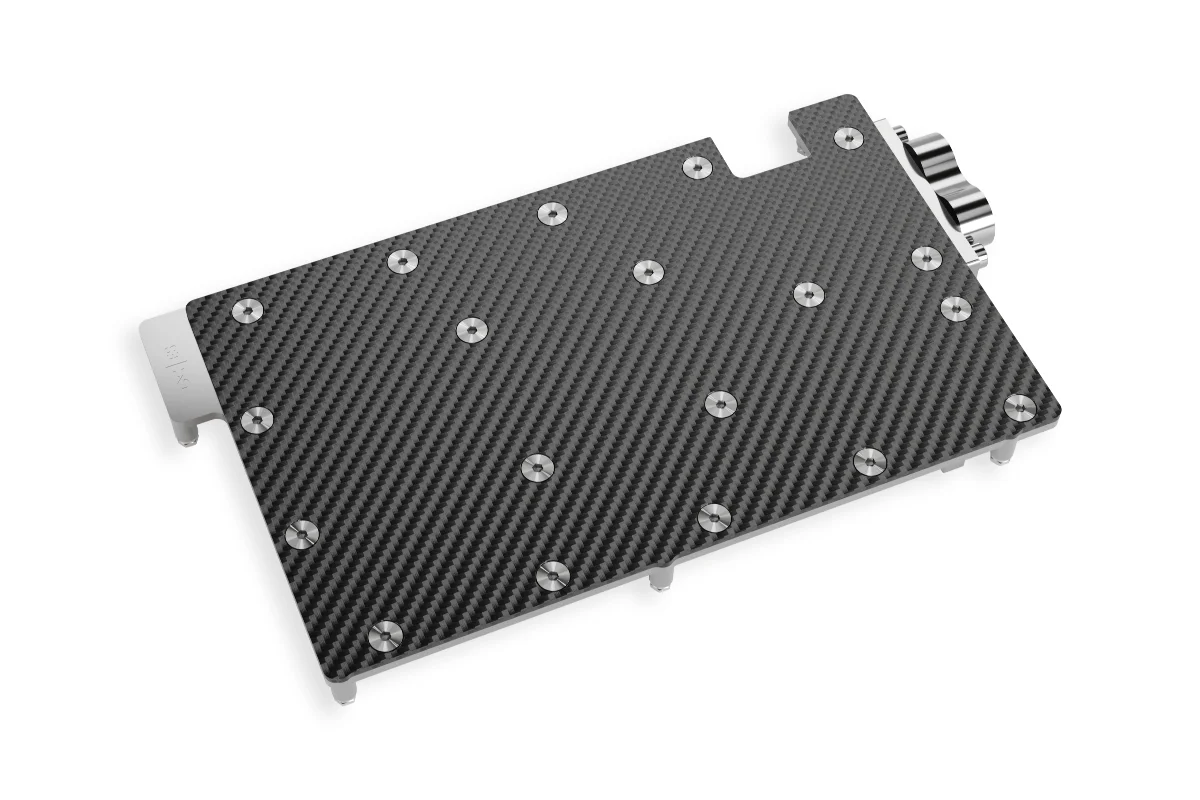

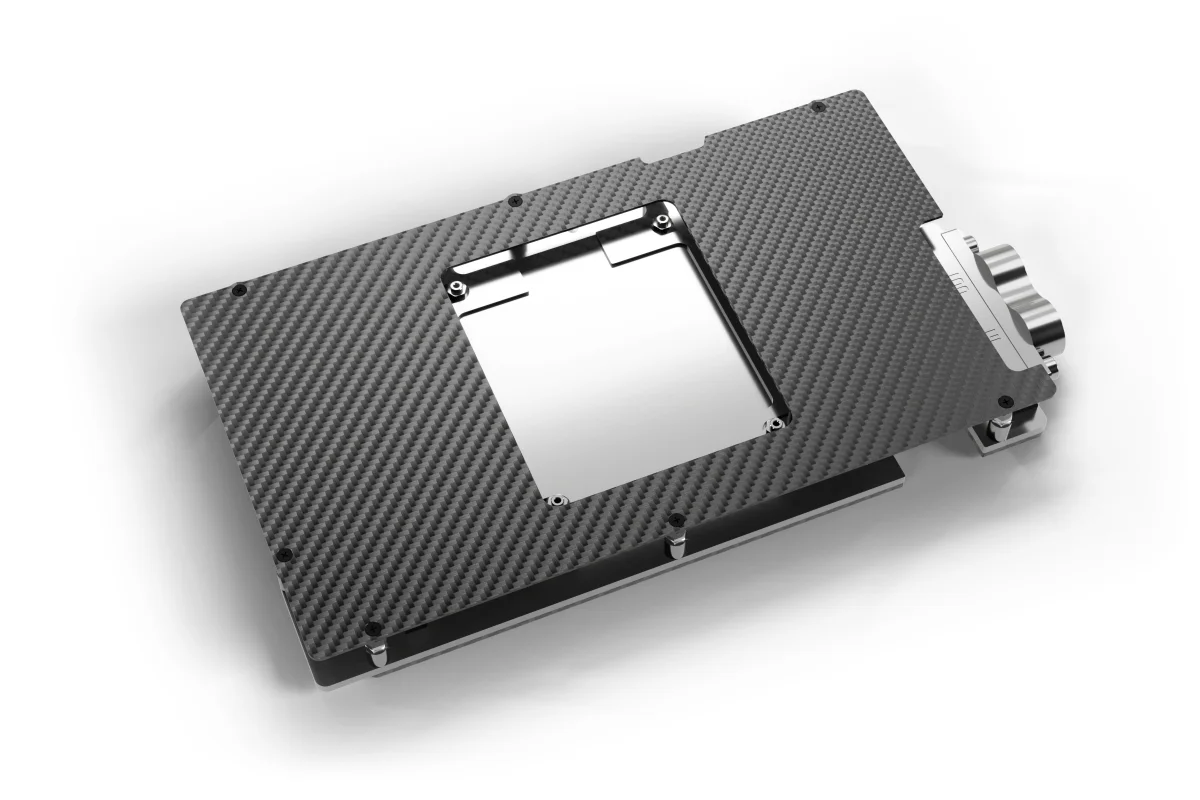

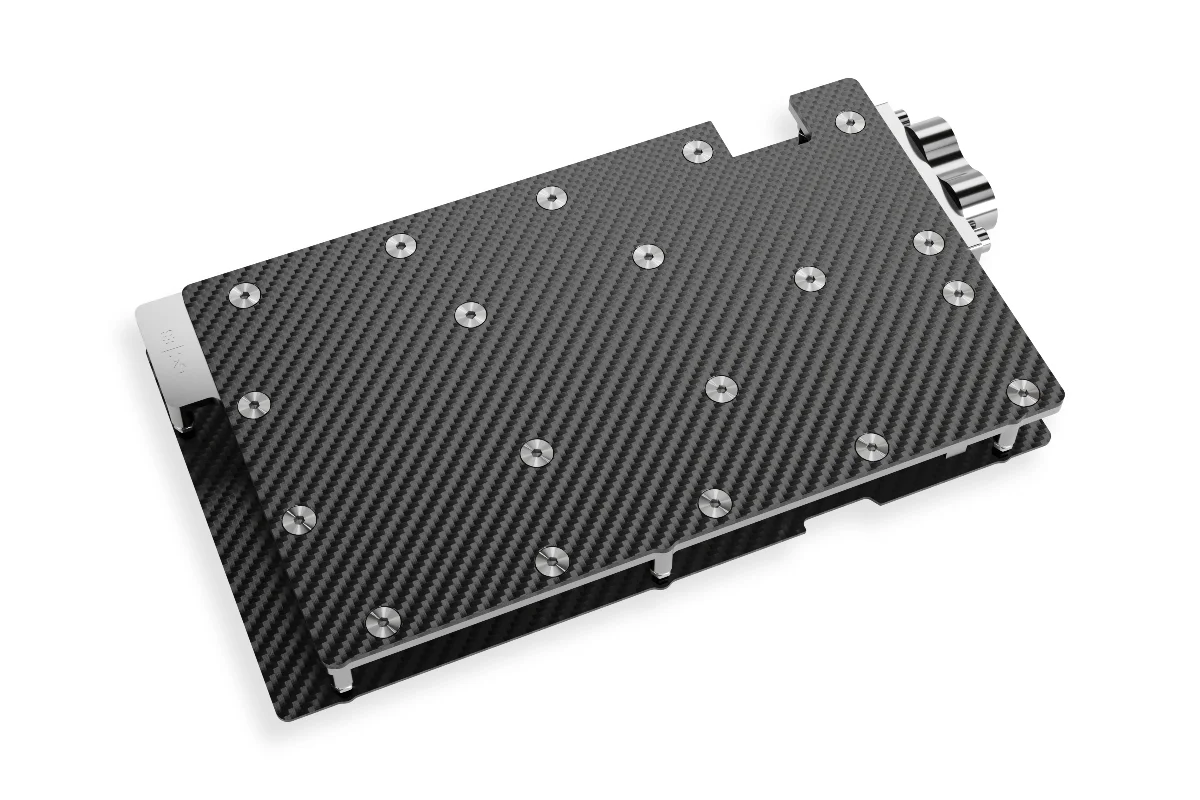

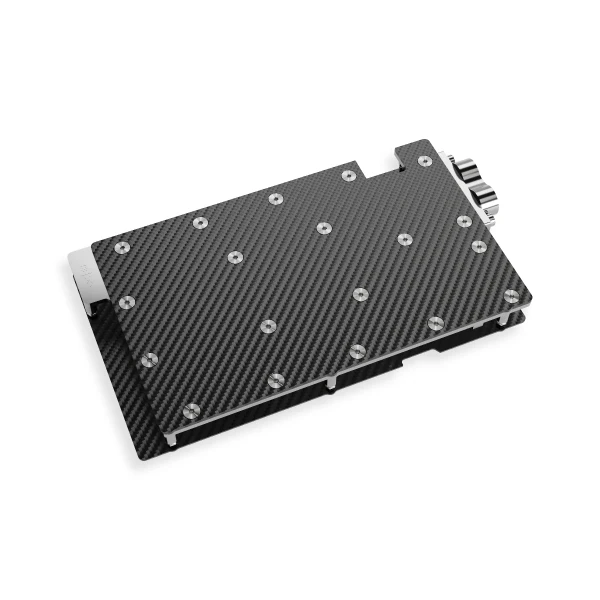

By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.

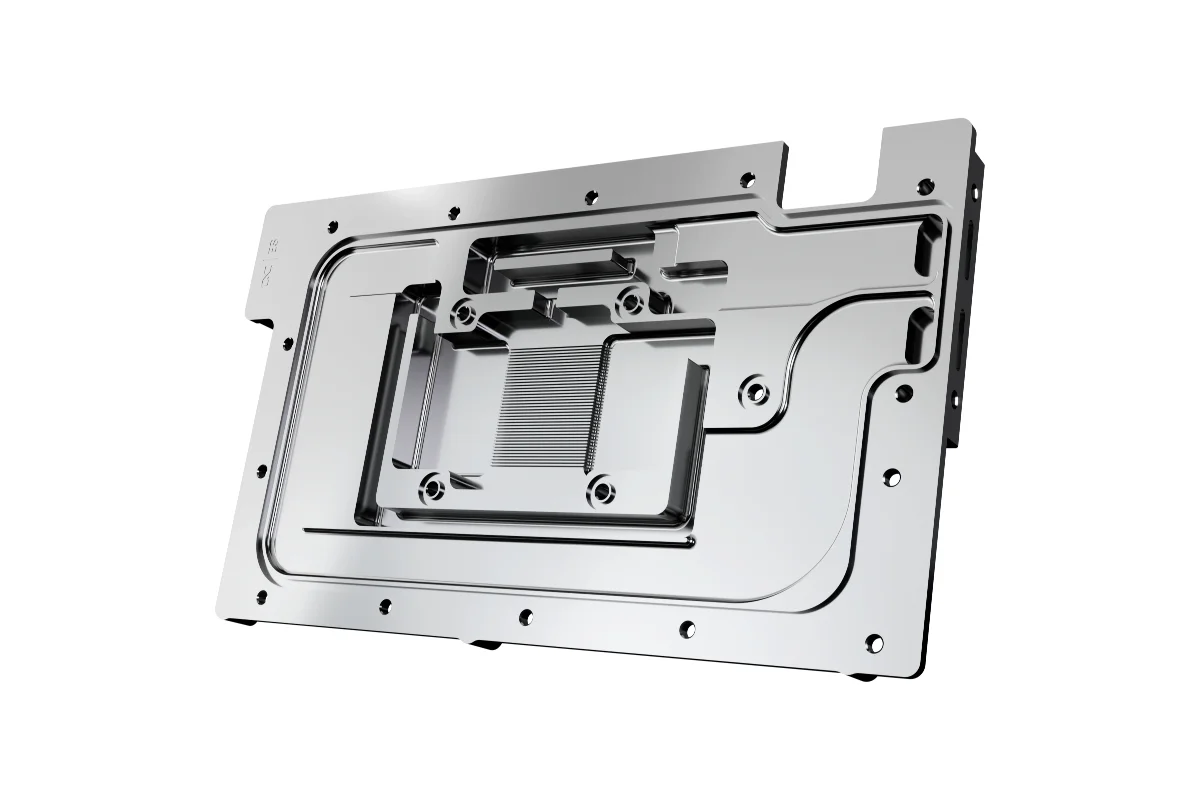

All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.
The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- Inno3D GeForce RTX™ 5090 iChill Frostbite (C50903-32D7X-1759FB)
- Inno3D GeForce RTX™ 5090 iChill X3 (C50903-32D7X-175967H)
- Inno3D GeForce RTX™ 5090 X3 (N50903-32D7-17593928)
- Inno3D GeForce RTX™ 5090 X3 OC (N50903-32D7X-17593928)
- MSI GeForce RTX™ 5090 32G VENTUS 3X OC (MS-V530 VER:1.1)
By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.
All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.
The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- Inno3D GeForce RTX™ 5090 iChill Frostbite (C50903-32D7X-1759FB)
- Inno3D GeForce RTX™ 5090 iChill X3 (C50903-32D7X-175967H)
- Inno3D GeForce RTX™ 5090 X3 (N50903-32D7-17593928)
- Inno3D GeForce RTX™ 5090 X3 OC (N50903-32D7X-17593928)
- MSI GeForce RTX™ 5090 32G VENTUS 3X OC (MS-V530 VER:1.1)
| Technical data cooler | |
| Dimensions total (L x W x H) | 224,29 x 119,32 x 21,34mm |
| Material cooler | chrome-plated copper |
| Material cooler top | Acrylic |
| Material terminal | Acetal |
| Material Connection thread | Brass |
| Max working temperature | 60°C |
| Pressure tested | 0,8 bar |
| Threads | 4 x G1/4" |
| Thickness cooler bottom | 3,25mm |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 9 |
| Color | transparent |

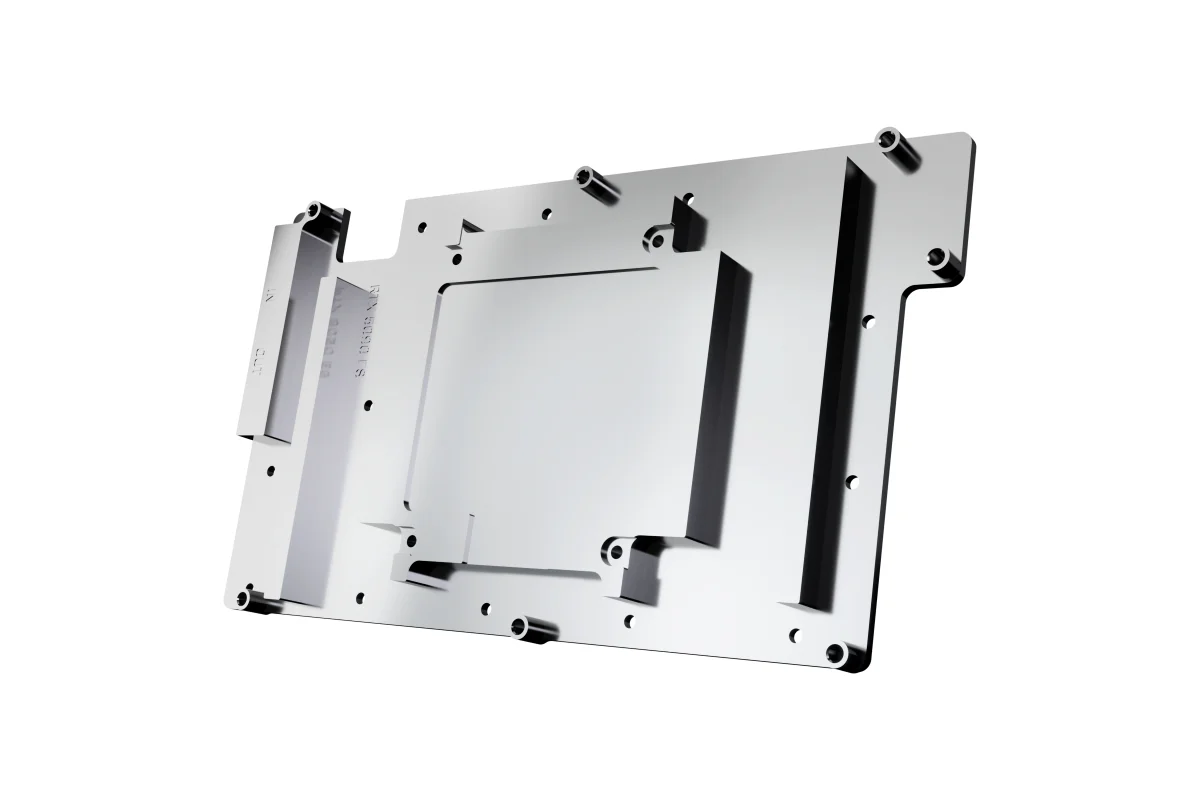

| Technical data backplate | |
| Dimensions (L x W x H) | 224,29 x 119,32 x 3mm |
| Thick backplate without spacers | 1mm |
| Material | Aluminium |
