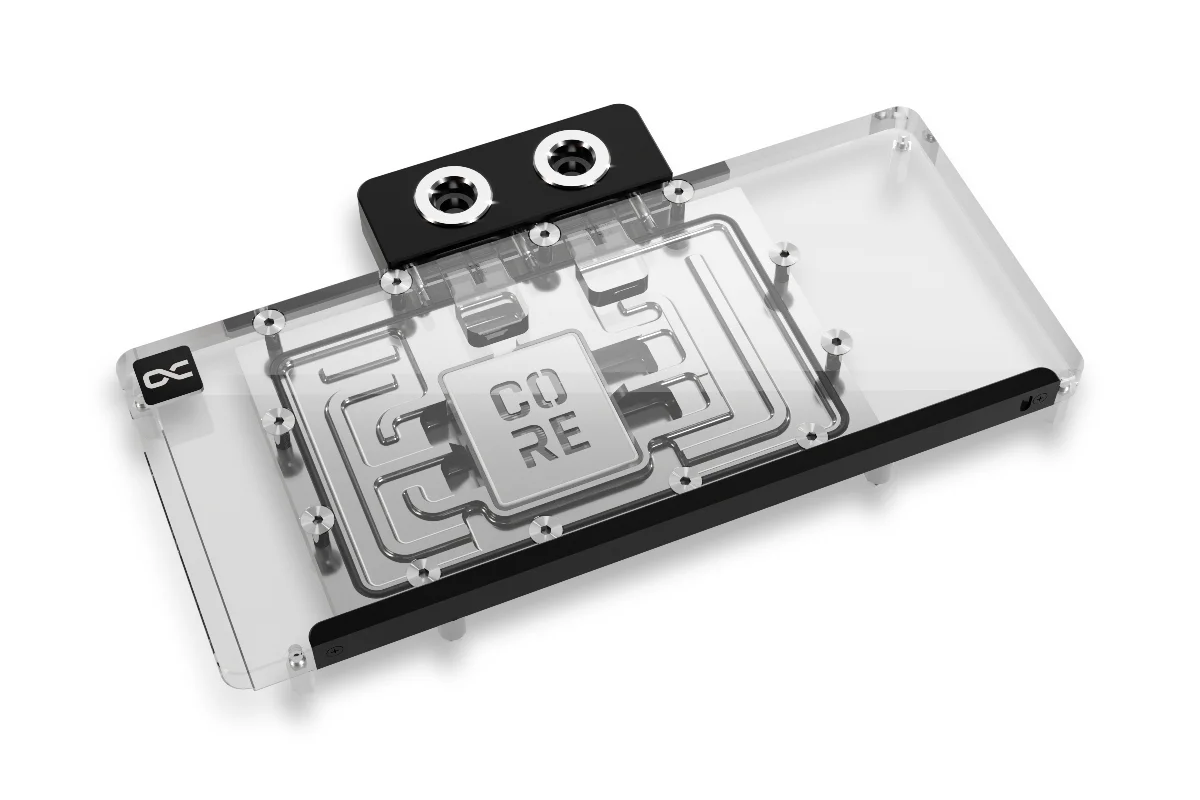

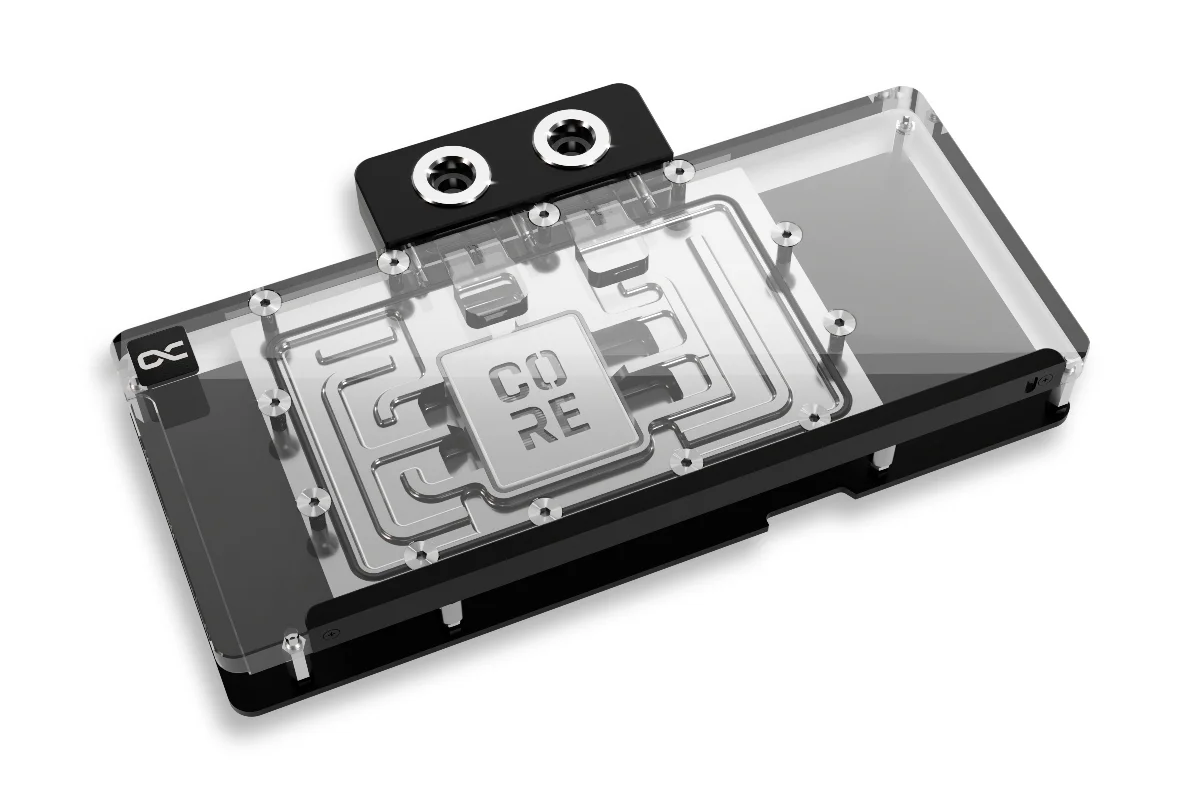

Alphacool Core Geforce RTX 5080/5070 Ti Solid Core with Backplate

Alphacool presents its new graphics card water coolers for the latest Nvidia GeForce RTX generation. They are part of the Core product series and combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers offer outstanding cooling performance.

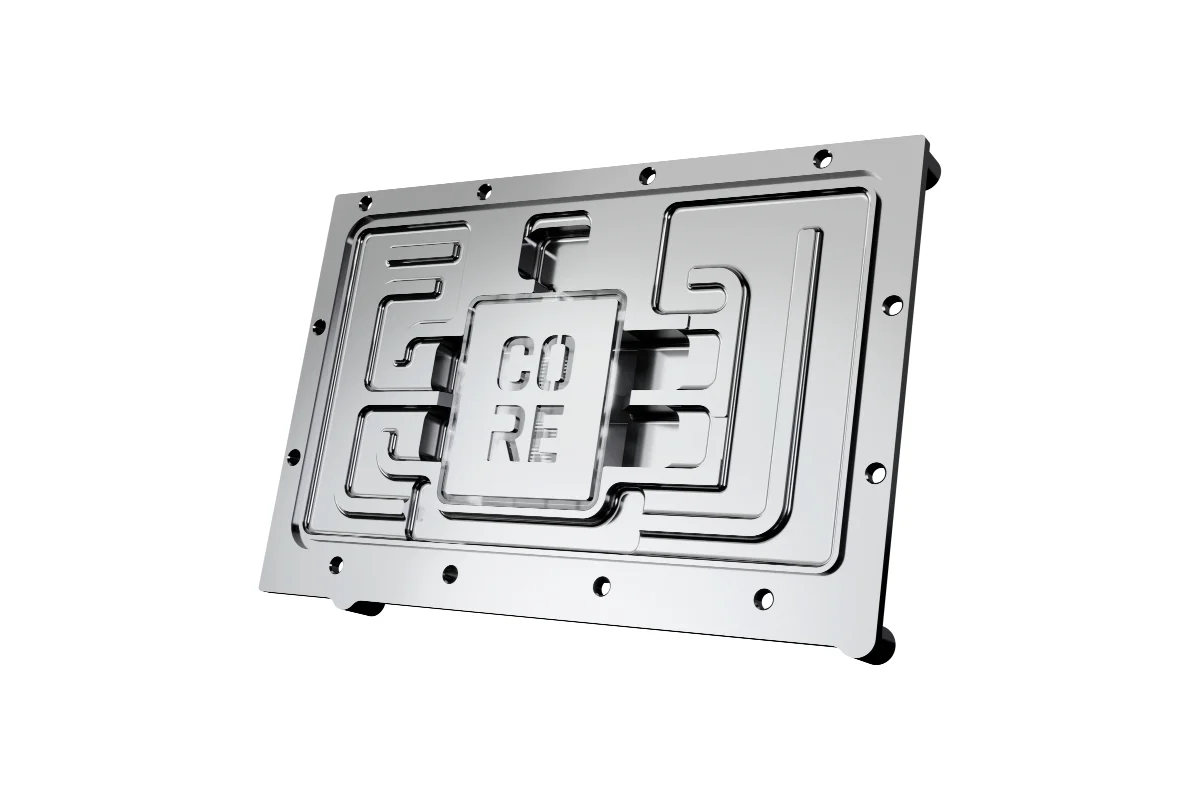

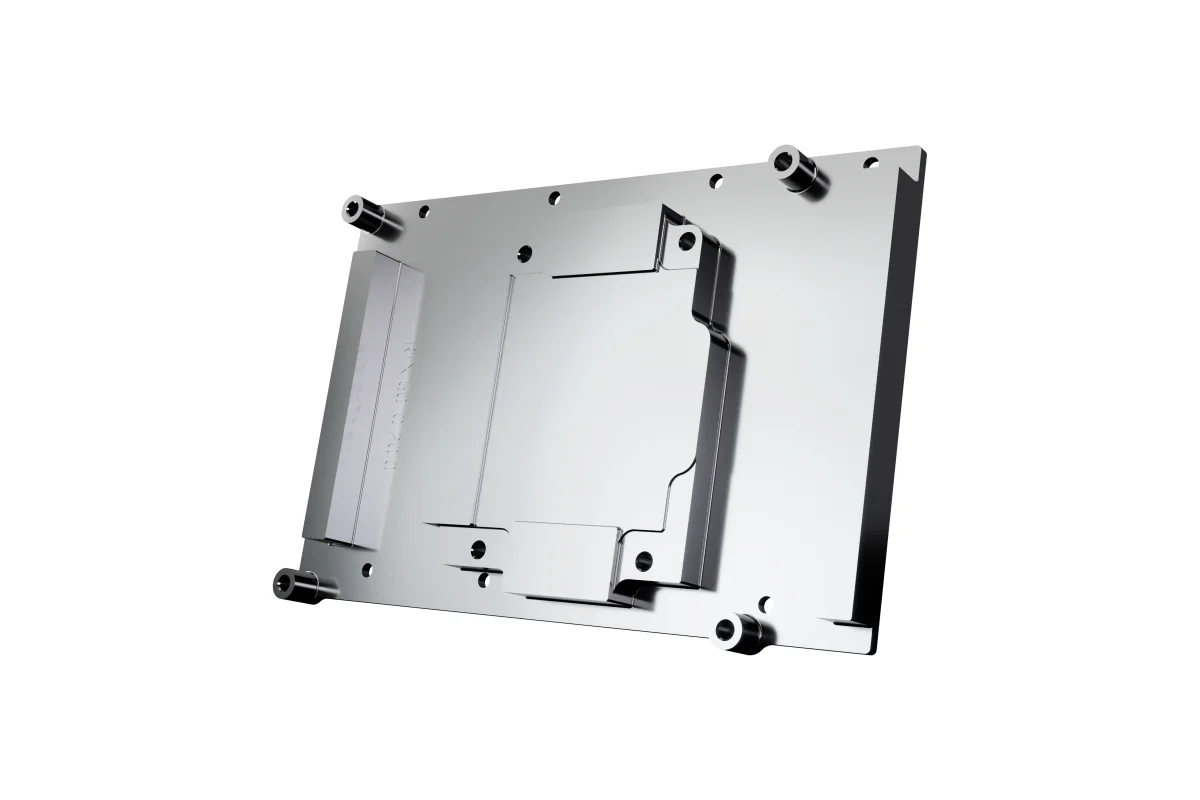

At the center of the cooler is the single-piece copper cooler, complemented by a precision-machined brass connection terminal with a nylon cover. Chrome plating makes the copper cooler more durable and provides a smoother and brighter surface than conventional nickel plating.

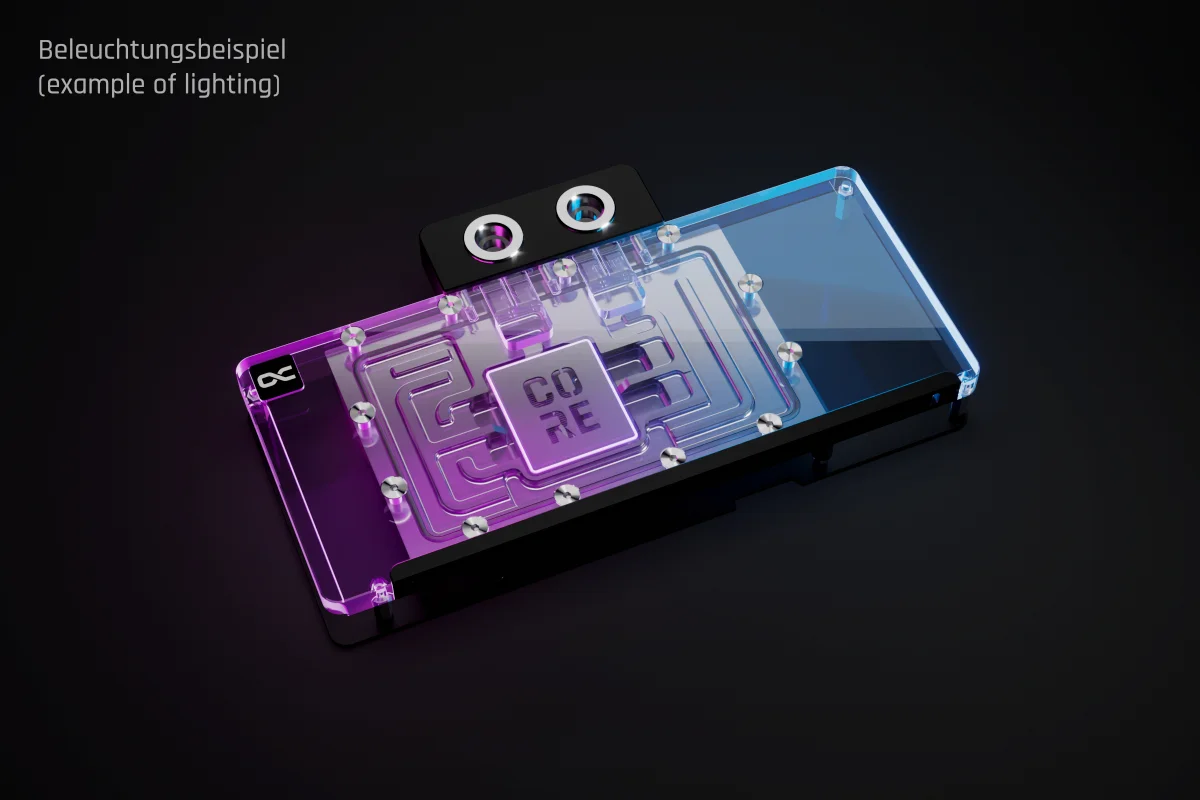

The visual design of the GPU water cooler has been only slightly changed. A special highlight is the newly added Core emblem above the jet plate, which underscores its affiliation with the Core series and visually enhances the design. The series continues to rely on high-quality brass connectors, guaranteeing optimal quality and safety. The specially adapted aluminum backplate covers the entire back of the copper cooler and ensures a clean and uniform appearance. The acrylic, combined with the aRGB lighting, enables even and impressive illumination of the entire cooler.



Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.



Compatibility:

- Zotac GeForce RTX 5070 Ti SOLID CORE (ZT-B50710D2-10P)

- Zotac GeForce RTX 5070 Ti SOLID CORE OC (ZT-B50710J2-10P)

- Zotac GeForce RTX 5080 SOLID CORE (ZT-B50800D2-10P)

- Zotac GeForce RTX 5080 SOLID CORE OC (ZT-B50800J2-10P)



Cooler Specifications

Complete Dimensions (L x W x H) 227.50 x 128.33 x 34.07mm

Cooler Bottom Material: Chrome-Plated Copper

Cooler Top Material: Acrylic

Terminal Material: Nylon

Connection Thread Material: Brass

Maximum Operating Temperature: 60°C

Pressure Tested to 0.8 bar

Connectors: 4 x G1/4"

Cooler base thickness: 3.25mm

Cooling fin thickness: 0.4mm

Cooling fin spacing: 0.4mm

Illumination: Digital aRGB LEDs

Power connector: Digital aRGB LEDs: 3-pin JST

Voltage: Digital aRGB LEDs: 5V

Number of digital aRGB LEDs: 10

Color: Transparent

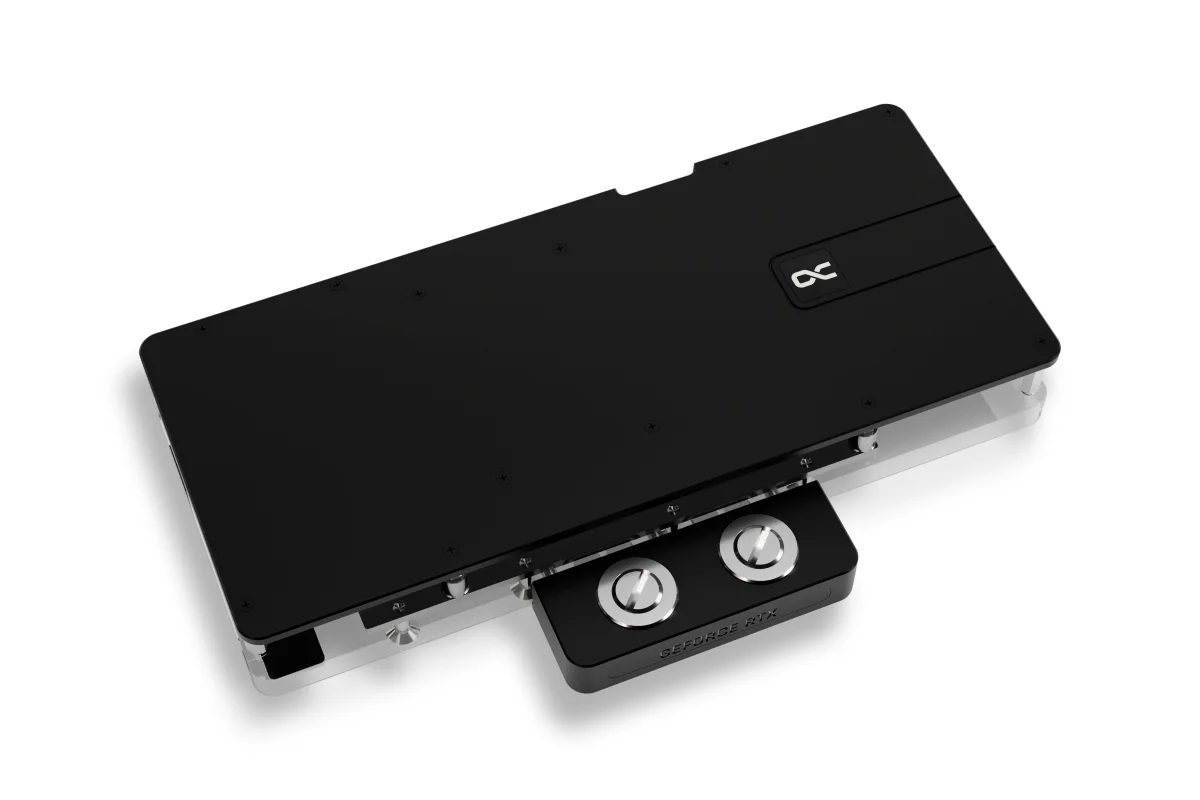

Backplate specifications:

Dimensions (L x W x H): 227.50 x 99.80 x 6.00mm

Backplate thickness without spacers: 3mm

Material: Aluminum
