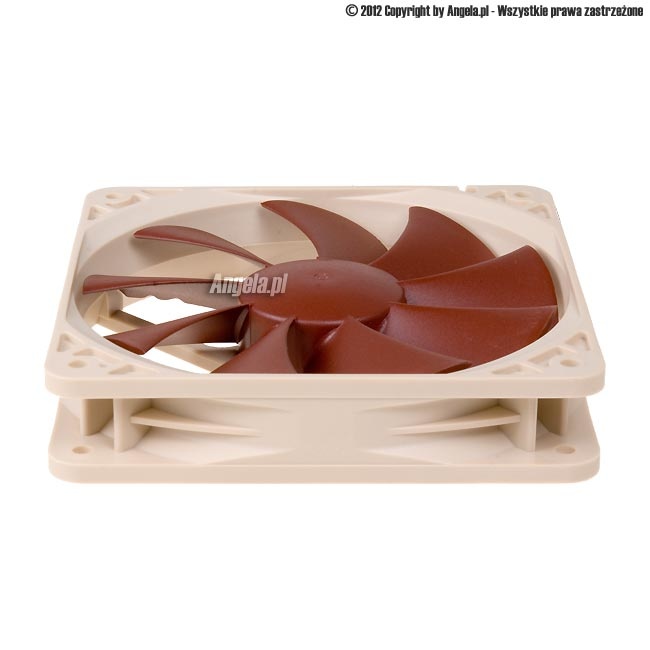

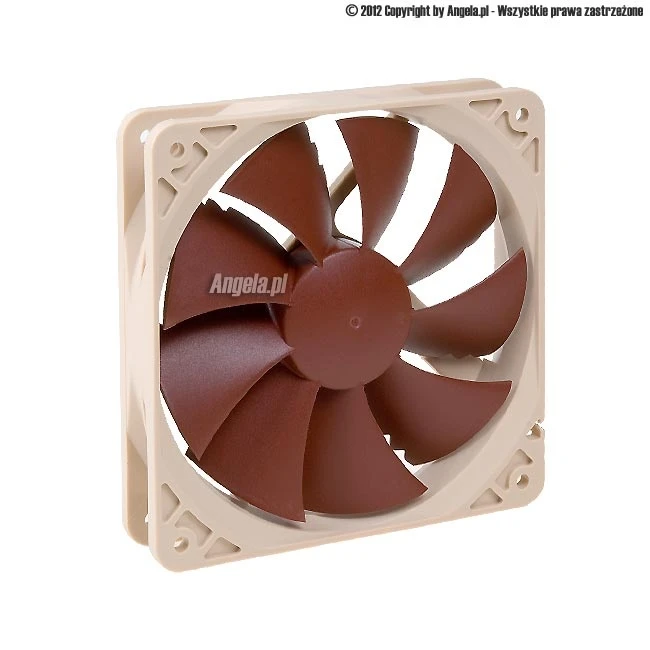

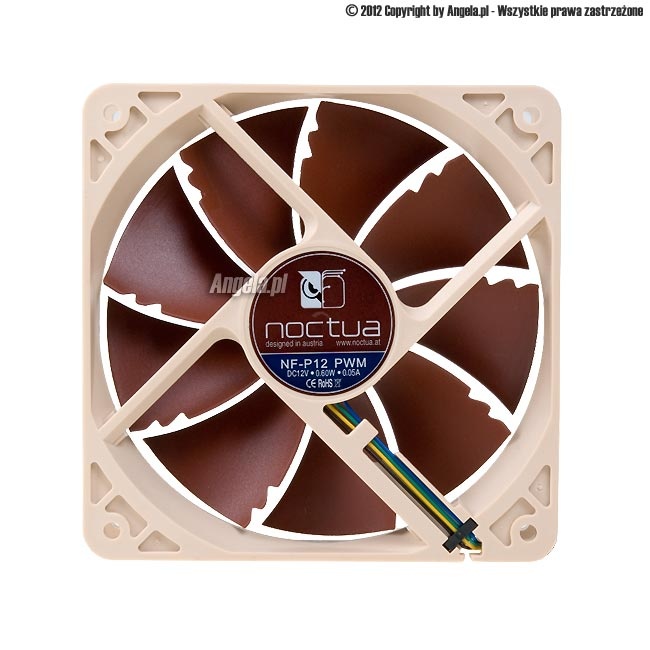

Noctua 120mm NF-P12 PWM

Brak ocen

Producent: Noctua
Kod producenta: NF-P12 PWM
Kod EAN: 4716123314745
Gwarancja: 60 miesięcy

Dostępność:

Czas realizacji orientacyjnie 1-3 dni robocze

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Specifically conceived for pressure demanding applications such as CPU cooling, the classic NF-P12 120mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO-Bearing and topped off with a 6 years manufacturer’s warranty, the NF-P12 PWM is a proven premium choice for the highest demands.

Details

Proven NF-P12 Design

Tens of thousands of quiet cooling enthusiasts swear by Noctua's classic NF-P12. Its impressive quietness, excellent performance and impeccable, time-tested quality made the P12 a default choice for 120mm quiet cooling.

Pressure-optimized Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 PWM provides outstanding pressure and airflow performance.

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the NF-P12 PWM sound more pleasant to the human ear.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Ultra-Low Power Consumption

The NF-P12 PWM draws only 0.6W, which is more than 50% less than many other PWM fans. This doesn't only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-P12 after 5 years of continuous use.

Low-Noise Adaptor

The NF-P12 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1300 to 900rpm. The L.N.A. can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.

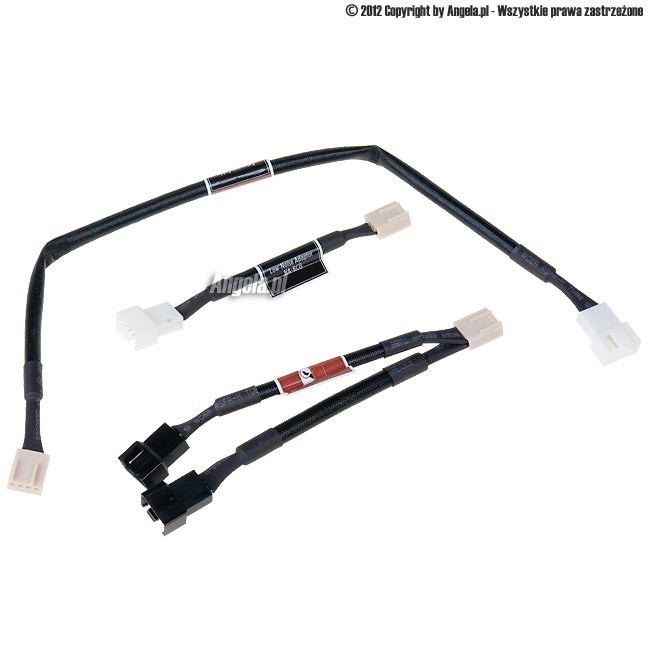

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-P12 fan to the same PWM fan header for automatic control.

SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-P12 PWM features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

FAN Specification

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

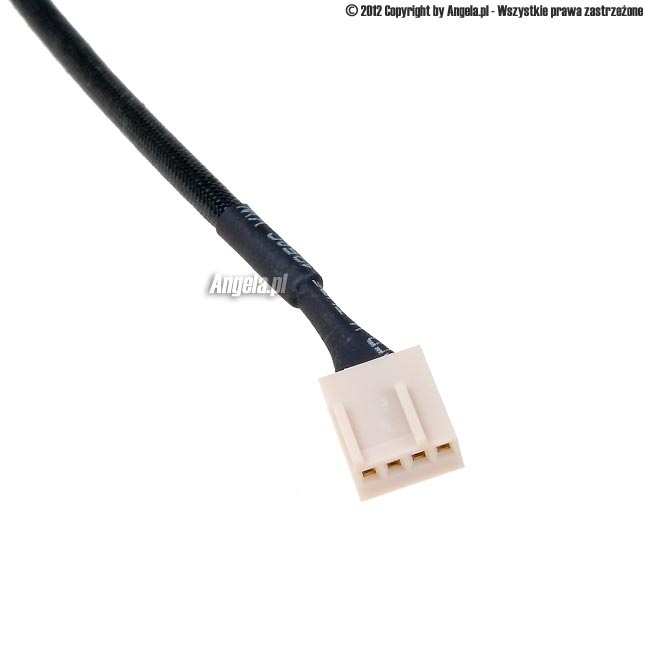

Connector

4-Pin PWM

Bearing

SSO-Bearing

Blade Geometry

Presure-optimized Nine Blade Design with Vortex-Control Notches

Rotational Speed (+/- 10%)

1300 RPM

Rotational Speed with L.N.A. (+/- 10%)

900 RPM

Min. Rotational Speed (PWM, +/-20%)

300 RPM

Airflow

92,3 m³/h

Airflow with L.N.A.

63,4 m³/h

Acoustical Noise

19,8 dB(A)

Acoustical Noise with L.N.A.

12,6 dB(A)

Static Pressure

1,68 mm H₂O

Static Pressure with L.N.A.

1,21 mm H₂O

Max. Input Power

0,6 W

Max. Input Current

0,05 A

Voltage

12 V

MTTF

> 150.000 h

Scope of Delivery

Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable

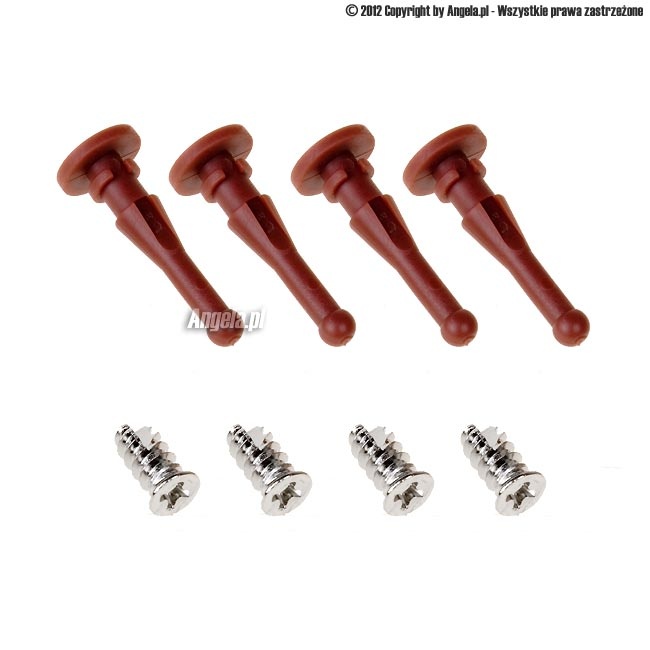

4 Vibration-Compensators
4 Fan Screws

Warranty

6 years
