Alphacool Apex Monoblock PRO X870-P WIFI (AM5)
- Producent: Alphacool
- Kod producenta: 14721
- Kod EAN: 4250197147217
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- NOWOŚĆ
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
The Alphacool Apex Monoblock is the ultimate all-in-one cooling solution for your system, combining brutal thermal performance with an elegant design tailored perfectly to your motherboard. Engineered specifically for your board, this monoblock reliably cools your CPU and actively integrates the hot voltage regulators (VRMs) and the M.2 NVMe SSD located directly below the CPU socket into your custom loop. All critical motherboard components are kept ice-cold, even under full load.
Just like the award-winning Apex 1 CPU cooler, this monoblock features an offset cold plate. This means the coolant flow hits the thermal hotspot of your AM5 CPU directly. In combination with the proven cross-slot structure and the innovative 3D Jetplate 2.0, this design generates high water pressure for extremely efficient heat dissipation. Ideal for heavy overclocking or demanding 24/7 operation.
Quality you can feel: The cooler is CNC-milled from a solid block of copper and then chrome-plated. The robust G1/4" connection terminal is made of durable brass. Together with the chrome-plated copper base, this guarantees outstanding thermal conductivity and extreme durability.
The sleek Apex design blends seamlessly into your motherboard's aesthetics. A true highlight: The monoblock features a perfectly integrated I/O cover. This ensures a highly harmonious overall look and merges optically as one with the design of your motherboard.
This monoblock is the perfect symbiosis of performance, premium looks, and maximum functionality – the ultimate highlight for your custom loop!
MSI PRO X870-P WIFI AM5
Just like the award-winning Apex 1 CPU cooler, this monoblock features an offset cold plate. This means the coolant flow hits the thermal hotspot of your AM5 CPU directly. In combination with the proven cross-slot structure and the innovative 3D Jetplate 2.0, this design generates high water pressure for extremely efficient heat dissipation. Ideal for heavy overclocking or demanding 24/7 operation.
Quality you can feel: The cooler is CNC-milled from a solid block of copper and then chrome-plated. The robust G1/4" connection terminal is made of durable brass. Together with the chrome-plated copper base, this guarantees outstanding thermal conductivity and extreme durability.
The sleek Apex design blends seamlessly into your motherboard's aesthetics. A true highlight: The monoblock features a perfectly integrated I/O cover. This ensures a highly harmonious overall look and merges optically as one with the design of your motherboard.
This monoblock is the perfect symbiosis of performance, premium looks, and maximum functionality – the ultimate highlight for your custom loop!
Features at a Glance:

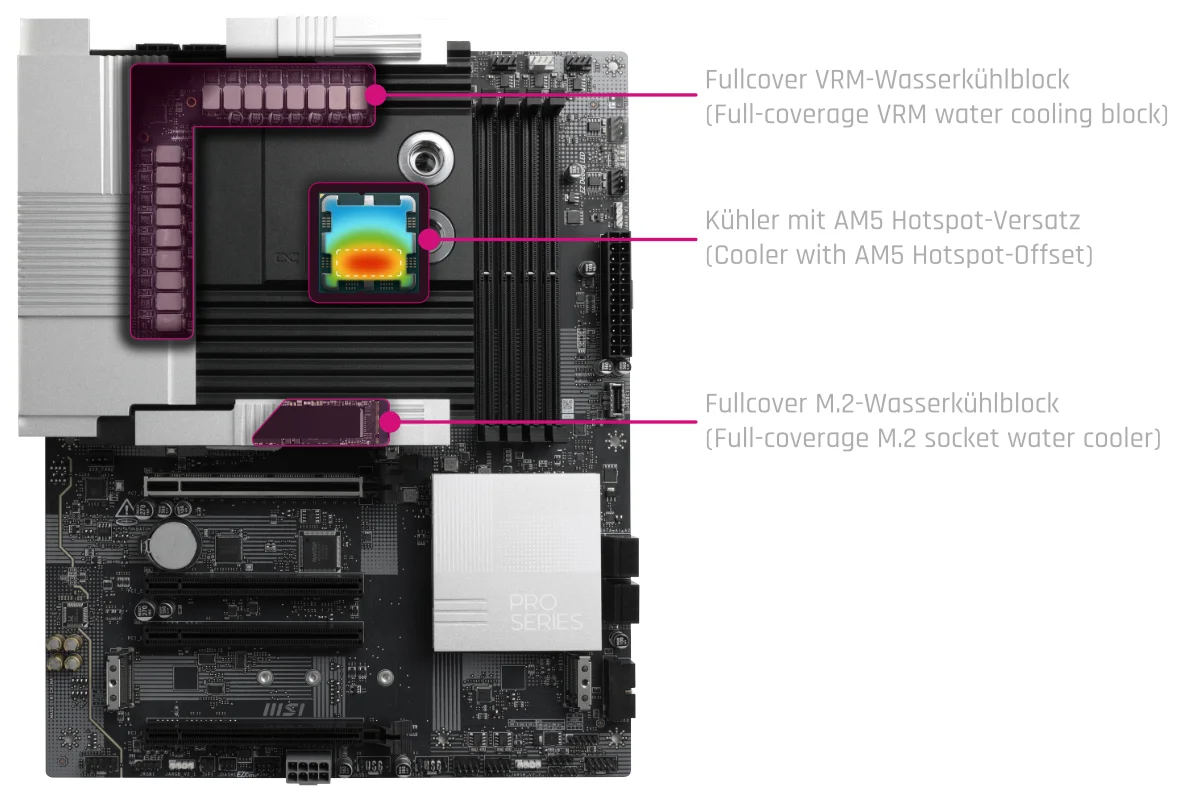

- Full-Cover Cooling: CPU, VRMs, and M.2 SSD actively water-cooled
- Apex Performance: Offset cold plate for perfect contact with the AM5 hotspot
- High-Flow Design: Cross-slot structure & 3D Jetplate 2.0 for maximum flow rate
- Premium Materials: Chrome-plated copper base, elegant aluminum cover, and durable brass terminal
- Clean Aesthetics: Elegant top made of transparent acrylic and a perfectly integrated I/O cover for a clean look
MSI PRO X870-P WIFI AM5
Technical Specifications:
| Dimensions (L x W x H) | 172.85 x 174.46 x 48.10 mm |
| Cold Plate Material | Chrome-plated copper (Cu-HCP) |
| Cover Material | Aluminum (AlMg0.7Si) |
| Cooler Top Material | Acrylic (LXN865) |
| Terminal Material | Brass (CuZn39Pb3) |
| Threads | 2x G1/4" |
| Max. Torque G1/4" | 1.00 Nm |
| Max. Torque M3 / M4 | 0.48 Nm / 1.12 Nm |
| Operating Temperature | -20°C to 60°C (recommended: 20°C) |
| Max. Tested Pressure | 2.00 bar (recommended working pressure: 0.00 - 1.00 bar) |
| Cooling Fins (Thickness / Spacing) | 0.40 mm / 0.40 mm |
| Cooling Technology | Jet Engine |
Technical Specifications Thermal Pads:
- Thermal Conductivity: 7 W/mK
- Hardness (ASTM 2240): 35 Shore 00
Technical Specifications Thermal Paste (1g, Grey):
- Operating Temperature: -40°C to 120°C
- Density: 3.2 g/cm³ (ASTM D2196)
- Thermal Impedance: 0.1 +/- 0.01 °C in²/W (ASTM D5470)
