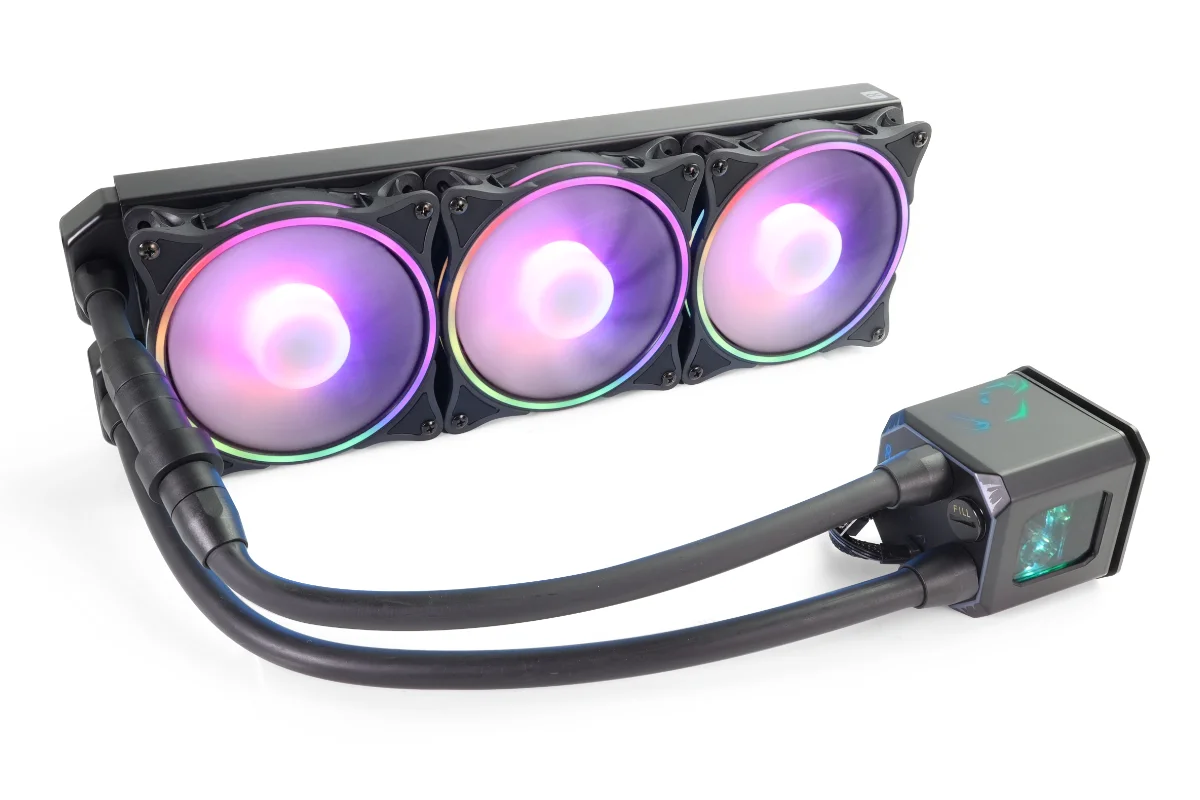

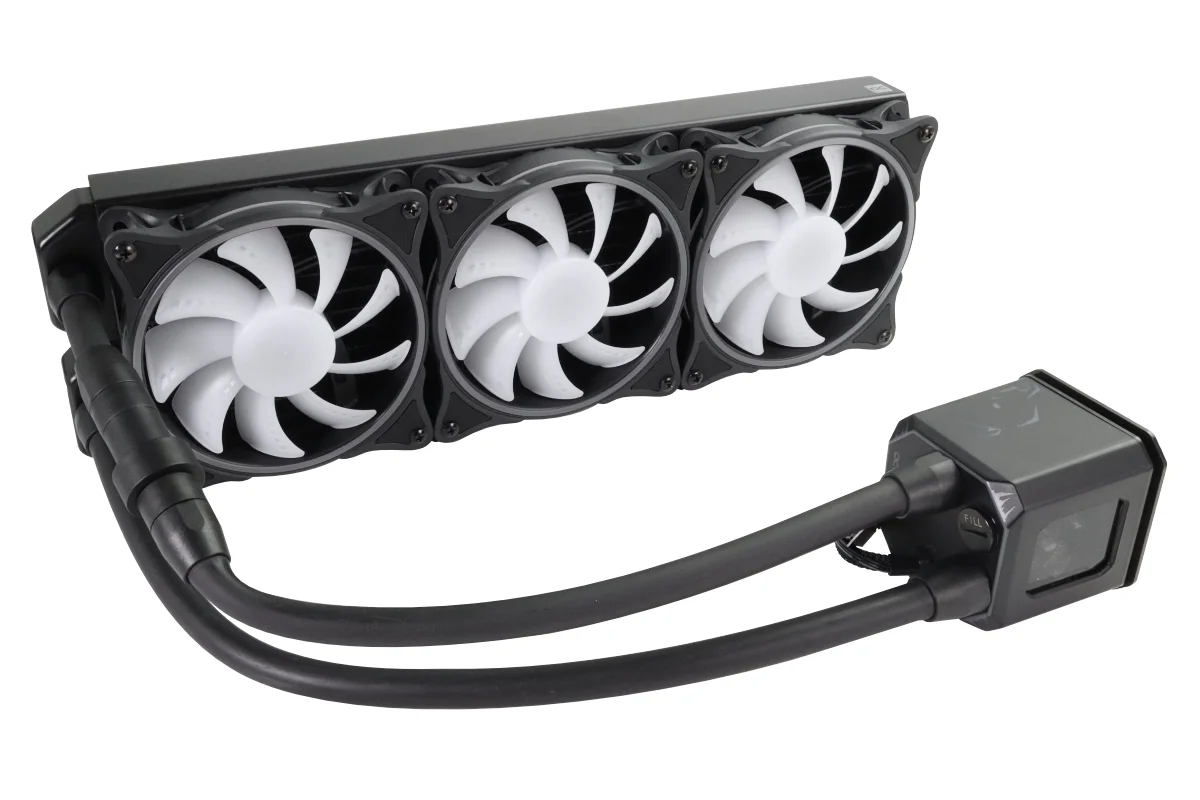

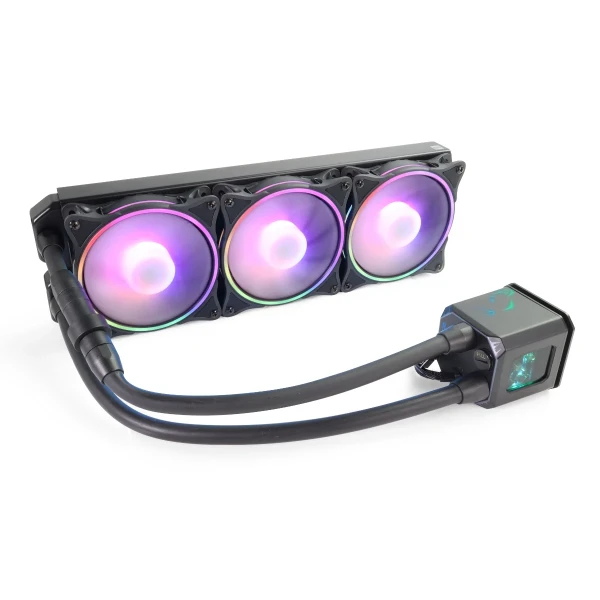

Alphacool Eisbaer Aurora 360 CPU - Digital RGB V1.1
- Producent: Alphacool
- Kod producenta: 10231
- Kod EAN: 4250197102315
- Gwarancja: 36 miesięcy
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
The Alphacool Eisbaer Aurora AIO CPU water cooler is an evolution of the popular and well-known Eisbaer cooler. Alphacool has improved many details while keeping certain standards. Above all, the expandability via quick connectors and the high-quality copper radiators remain core features. The large reservoir and the ability to refill the system are two more beloved features that have been retained.

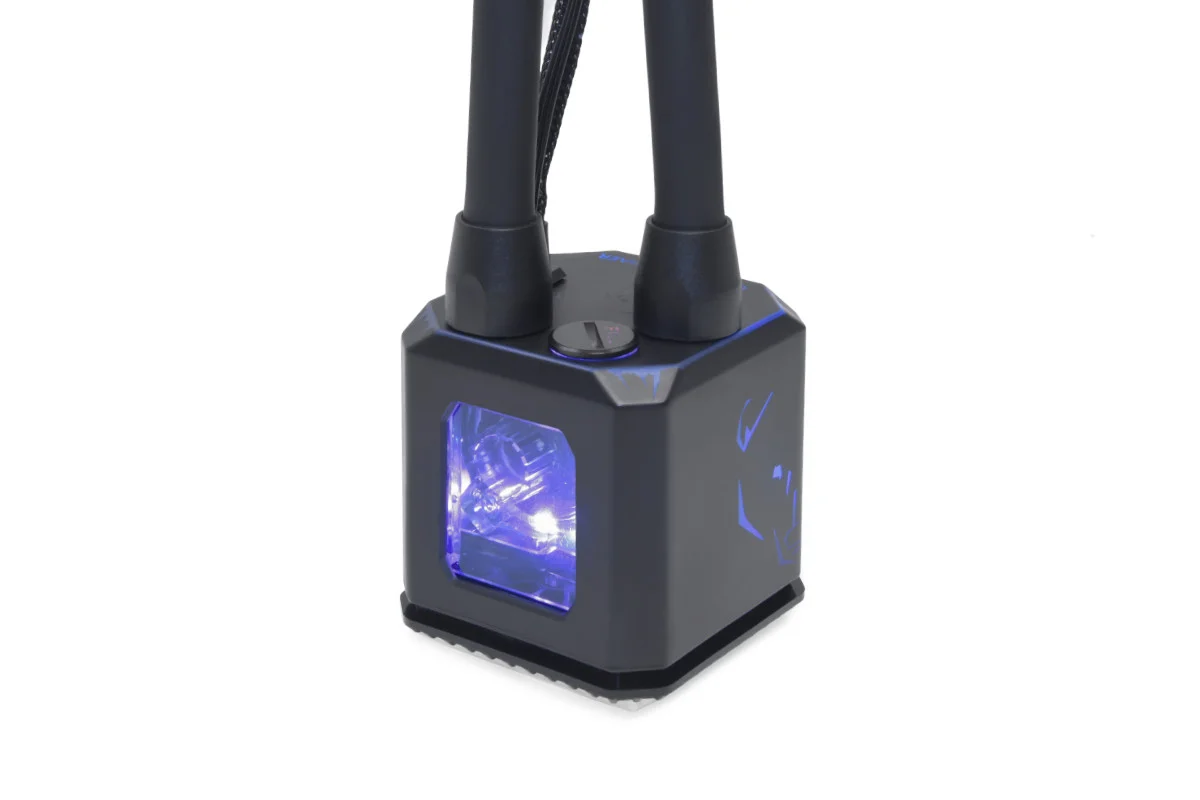

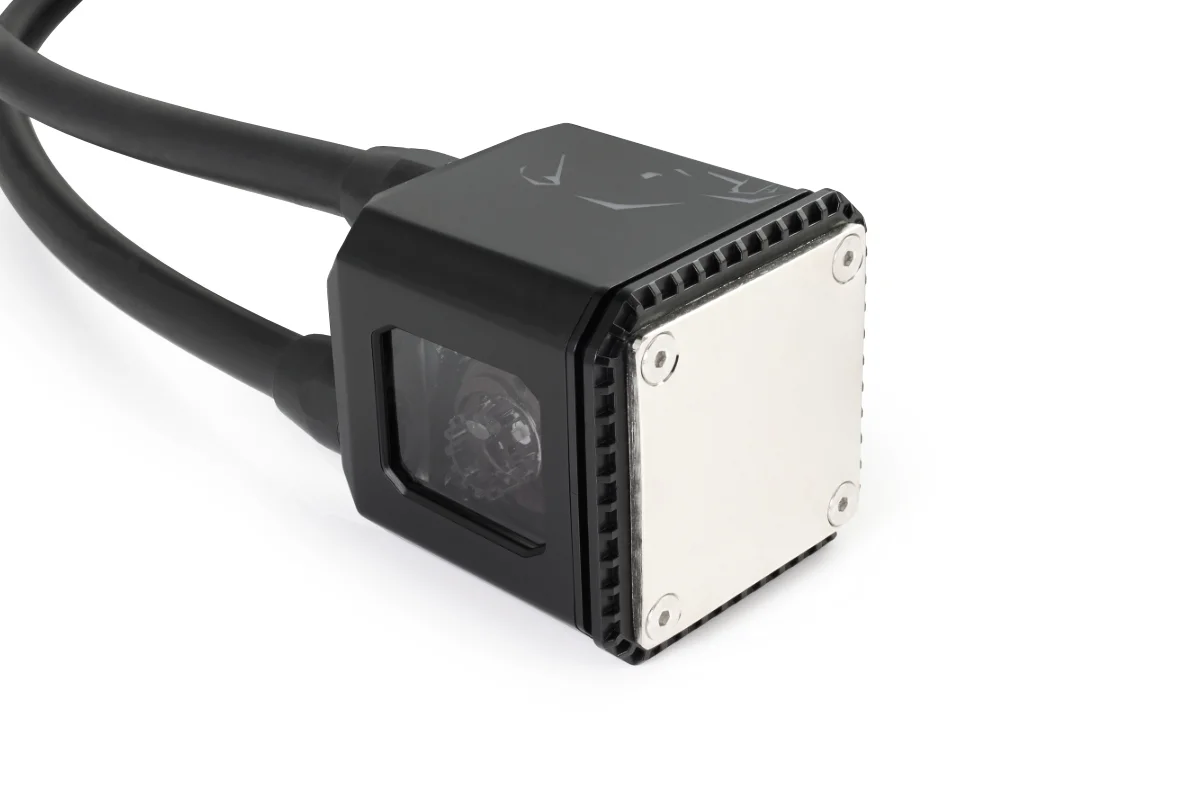

The heart is the cooler with its pump

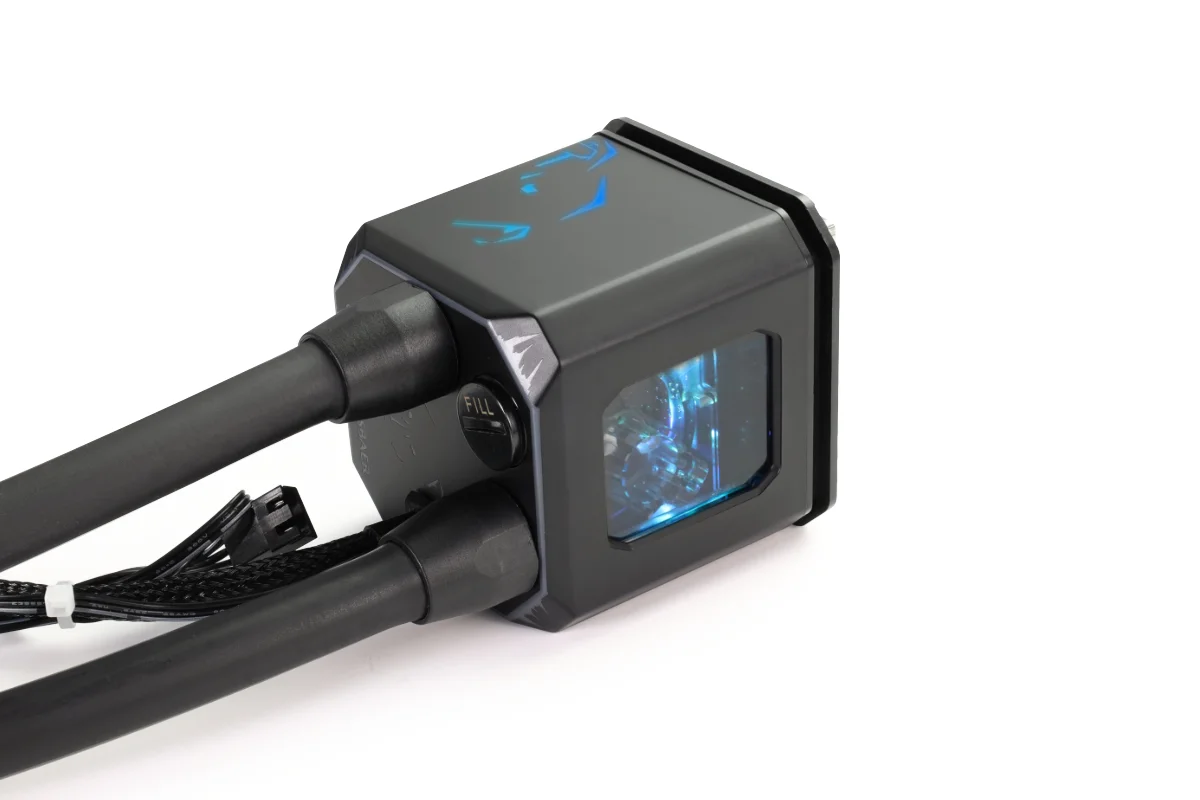

The cooler base is made of copper and features a fine slot structure. The surface has been enlarged compared to the previous model to fully cover the larger die areas of AMD and Intel processors. The DC-LT pump has also been redesigned and is now approximately 10% more powerful while operating even more quietly. The reservoir is many times larger than those found in conventional AIO systems, which ensures longer lifespan. In addition, the cooler unit features a fill port, allowing liquid to be added if necessary—especially useful when expanding the loop via quick connectors.
DIY components wherever you look

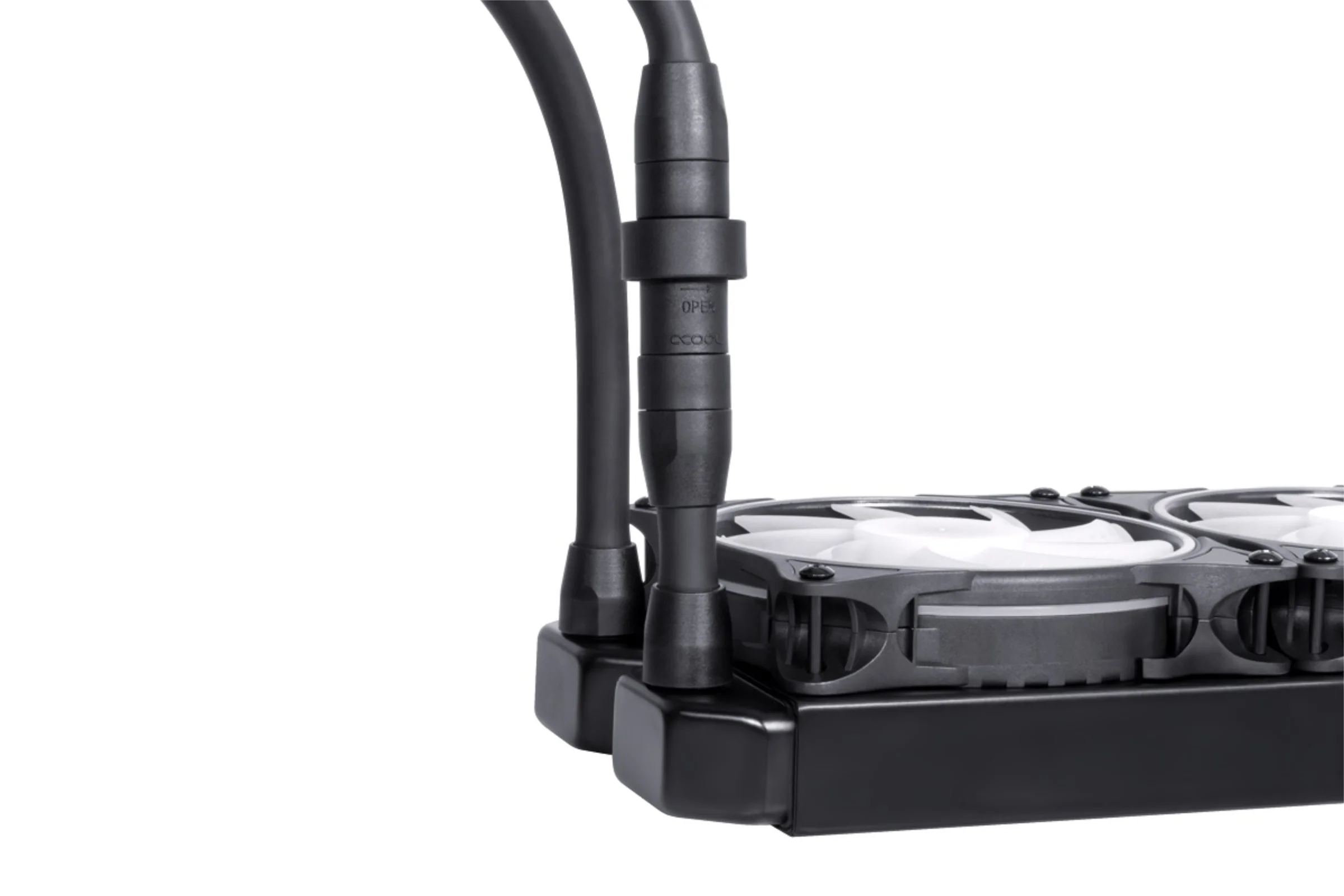

A major advantage of the Eisbaer Aurora series is its expandability through so-called Eisbaer-Ready quick connectors. These have also been redesigned to appear smoother and more discreet than those on the previous model. Despite the new design, they remain 100% compatible with all Eisbaer Ready products, such as pre-filled radiators, the Eiswolf AIO GPU water cooler, and the well-known Alphacool HF quick connectors available separately for standard DIY loops. The fittings come from Alphacool’s Enterprise Solution series and use a standard G1/4" thread, allowing them to be swapped for any other compatible fitting. The TPV tubing is extremely durable and also used in the Enterprise Solution range for servers and workstations.
Copper radiator
As is typical for Alphacool, the radiators are made entirely of copper. Alphacool was the first manufacturer worldwide to consistently use copper in all water-carrying components—such as end chambers, cooling fins, and the soldered cooling channels. Only the connection threads are made of brass for technical hardening reasons. The cooling fins are only lightly coated, allowing the copper to subtly shine through when viewed closely. This is to avoid a thick layer of paint that could reduce cooling performance. The fin density is an optimal 15 FPI, allowing the radiator to work perfectly even with low airflow. A higher density would require faster fans, while a lower density wouldn’t benefit from higher fan speeds. Alphacool has found the perfect balance here.
Fans and lighting
The entire Eisbaer Aurora cooler is equipped with addressable digital RGB LEDs. The pump housing features a fully illuminated Eisbaer pattern all around, making it a true eye-catcher inside your case. The Alphacool Rise Aurora 120 mm fans are also fully lit with 5V aRGB LEDs. The fan frame has a unique pattern with many small cut-outs, creating a particularly elegant lighting effect. No individual LEDs are visible, and the lighting is far more impressive than a simple LED ring. Of course, all digital RGB LEDs can be controlled individually, and depending on the controller, nearly all lighting effects are possible.

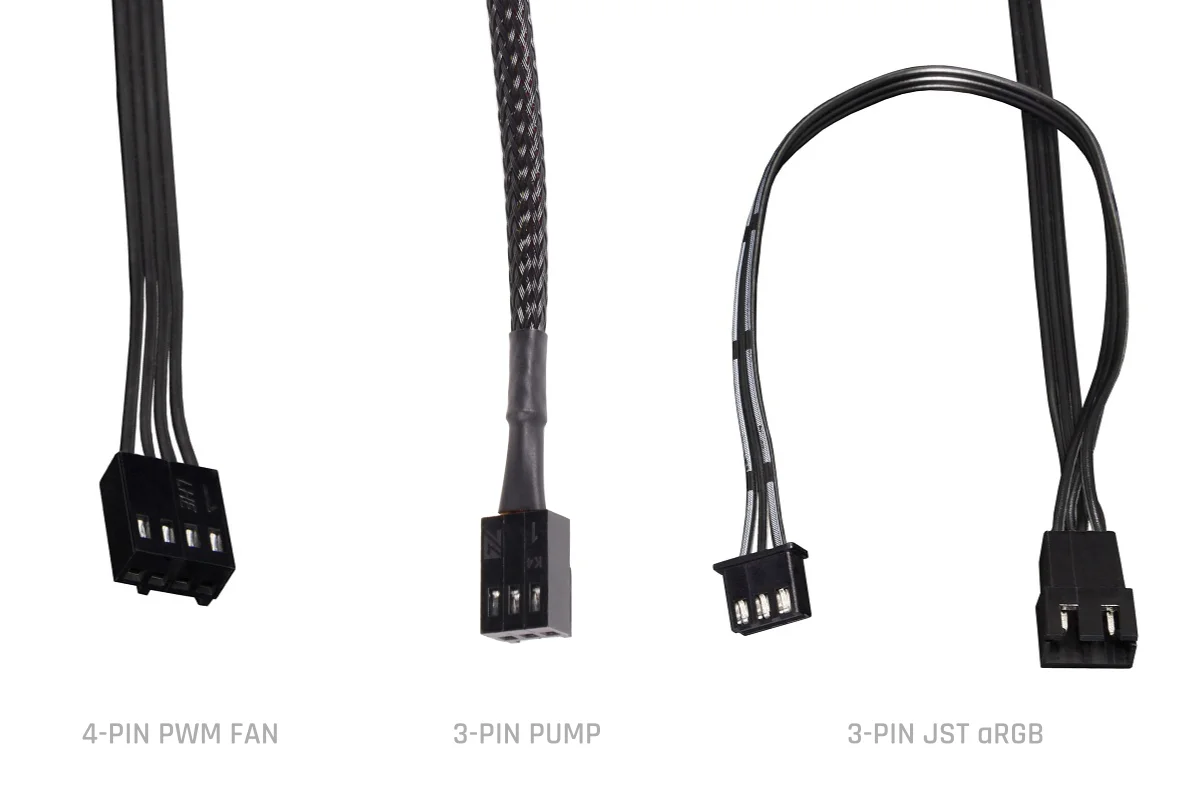

How everything connects
The fans are controlled via a standard 4-pin PWM connector. To avoid connecting each fan individually to the motherboard, a matching Y-cable is included. The RGB lighting uses a 3-pin JST connector. Each cable also has a built-in Y-adapter, allowing the fans to be easily daisy-chained. A 3-pin 5V adapter is also included, so you can connect the fans to any compatible motherboard and control the lighting. Alternatively, the included digital RGB controller can be used. The Eisbaer Aurora pump uses a 3-pin Molex connector, which can also be connected directly to the motherboard.
The Eisbaer Aurora CPU AIO water cooler is a worthy successor to the well-known Eisbaer line, improving on many of the details that matter in water cooling.
Compatibility:
AMD: AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 / FM1 / FM2 / FM2+ / sTRX4 / TR4
Intel: LGA 1150 / LGA 1151 / LGA 1155 / LGA 1156 / LGA 1200 / LGA 1700 / LGA 1851 / LGA 2011 / LGA 2011-3 / LGA 2066 / LGA 755
The heart is the cooler with its pump
The cooler base is made of copper and features a fine slot structure. The surface has been enlarged compared to the previous model to fully cover the larger die areas of AMD and Intel processors. The DC-LT pump has also been redesigned and is now approximately 10% more powerful while operating even more quietly. The reservoir is many times larger than those found in conventional AIO systems, which ensures longer lifespan. In addition, the cooler unit features a fill port, allowing liquid to be added if necessary—especially useful when expanding the loop via quick connectors.
DIY components wherever you look
A major advantage of the Eisbaer Aurora series is its expandability through so-called Eisbaer-Ready quick connectors. These have also been redesigned to appear smoother and more discreet than those on the previous model. Despite the new design, they remain 100% compatible with all Eisbaer Ready products, such as pre-filled radiators, the Eiswolf AIO GPU water cooler, and the well-known Alphacool HF quick connectors available separately for standard DIY loops. The fittings come from Alphacool’s Enterprise Solution series and use a standard G1/4" thread, allowing them to be swapped for any other compatible fitting. The TPV tubing is extremely durable and also used in the Enterprise Solution range for servers and workstations.
Copper radiator
As is typical for Alphacool, the radiators are made entirely of copper. Alphacool was the first manufacturer worldwide to consistently use copper in all water-carrying components—such as end chambers, cooling fins, and the soldered cooling channels. Only the connection threads are made of brass for technical hardening reasons. The cooling fins are only lightly coated, allowing the copper to subtly shine through when viewed closely. This is to avoid a thick layer of paint that could reduce cooling performance. The fin density is an optimal 15 FPI, allowing the radiator to work perfectly even with low airflow. A higher density would require faster fans, while a lower density wouldn’t benefit from higher fan speeds. Alphacool has found the perfect balance here.
Fans and lighting
The entire Eisbaer Aurora cooler is equipped with addressable digital RGB LEDs. The pump housing features a fully illuminated Eisbaer pattern all around, making it a true eye-catcher inside your case. The Alphacool Rise Aurora 120 mm fans are also fully lit with 5V aRGB LEDs. The fan frame has a unique pattern with many small cut-outs, creating a particularly elegant lighting effect. No individual LEDs are visible, and the lighting is far more impressive than a simple LED ring. Of course, all digital RGB LEDs can be controlled individually, and depending on the controller, nearly all lighting effects are possible.
How everything connects
The fans are controlled via a standard 4-pin PWM connector. To avoid connecting each fan individually to the motherboard, a matching Y-cable is included. The RGB lighting uses a 3-pin JST connector. Each cable also has a built-in Y-adapter, allowing the fans to be easily daisy-chained. A 3-pin 5V adapter is also included, so you can connect the fans to any compatible motherboard and control the lighting. Alternatively, the included digital RGB controller can be used. The Eisbaer Aurora pump uses a 3-pin Molex connector, which can also be connected directly to the motherboard.
The Eisbaer Aurora CPU AIO water cooler is a worthy successor to the well-known Eisbaer line, improving on many of the details that matter in water cooling.
Compatibility:
AMD: AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 / FM1 / FM2 / FM2+ / sTRX4 / TR4
Intel: LGA 1150 / LGA 1151 / LGA 1155 / LGA 1156 / LGA 1200 / LGA 1700 / LGA 1851 / LGA 2011 / LGA 2011-3 / LGA 2066 / LGA 755
| Technical data radiator | |
| L x W x H | 397 x 124 x 30 mm |
| Material | full copper |
| Threads | 2x G1/4” |
| Max working temperature | 60 °C |
| Pressure tested | 0,8 Bar |
| Technical data pump housing | |
| L x W x H | 66 x 66 x 69 mm |
| Material reservoir | transparent nylon |
| Threads | 2x G1/4” |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
| Quantity Digital aRGB LED | 10 |
| Technical data pump | |
| Speed | 2600 RPM |
| Voltage | 6-13.5V DC |
| Power consumption: | 3,2 W |
| Maximum flow rate | 72 L/h |
| Maximum head | 1 m |
| Technical data fans | |
| Speed | 0 - 2500 RPM (+/- 10%) |
| Static pressure | 3,17 mm H2O |
| Air flow rate | 118,9 m³/h |
| Volume max | max. 31,5 dB(A) |
| Fan connector | 4-Pin PWM |
| Connection Digital aRGB | 3-Pin JST + 3-Pin 5V |
