Alphacool Eisblock Aurora Terminal flat straight - Acetal
- Producent: Alphacool
- Kod producenta: 12987
- Kod EAN: 4250197129879
- Gwarancja: 36 miesięcy
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

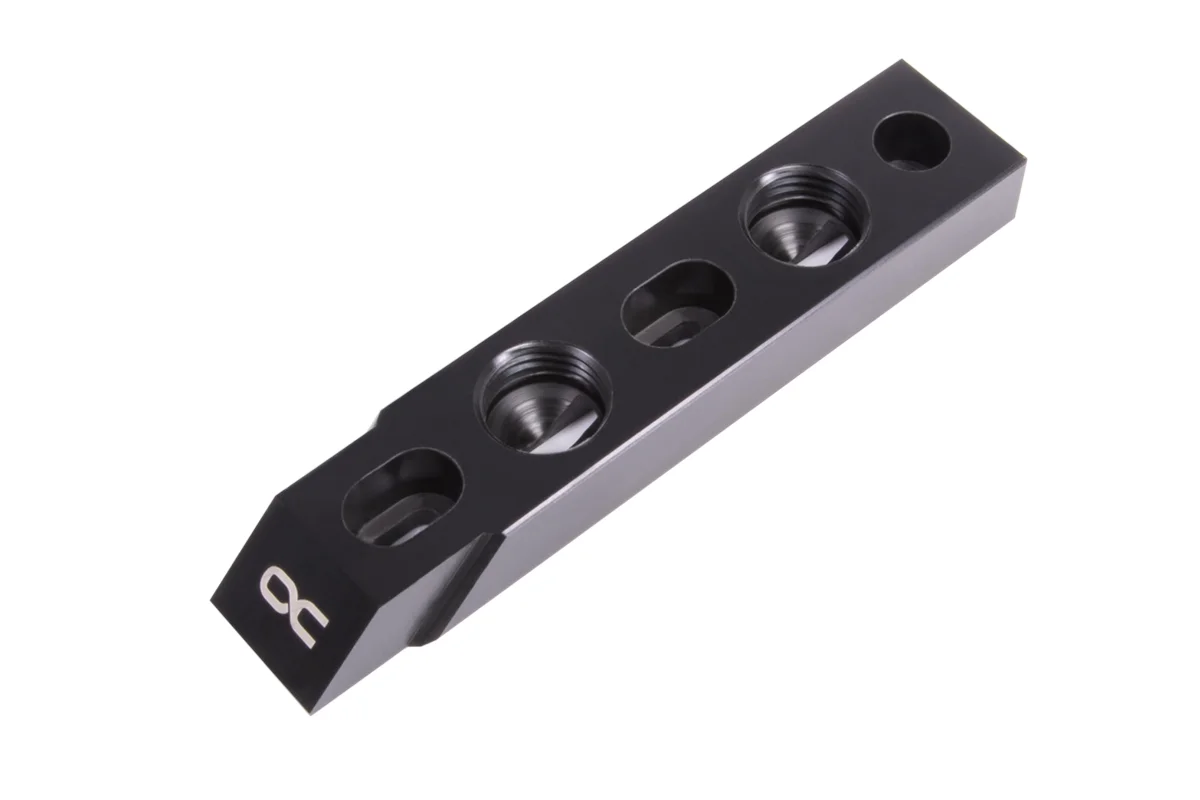

The classic orientation of the connection options on the Alphacool graphics card water coolers is vertical. If you prefer a horizontal orientation, you can now make your wish come true with the Alphacool GPU Terminal Flat. The terminal made of Acetal.

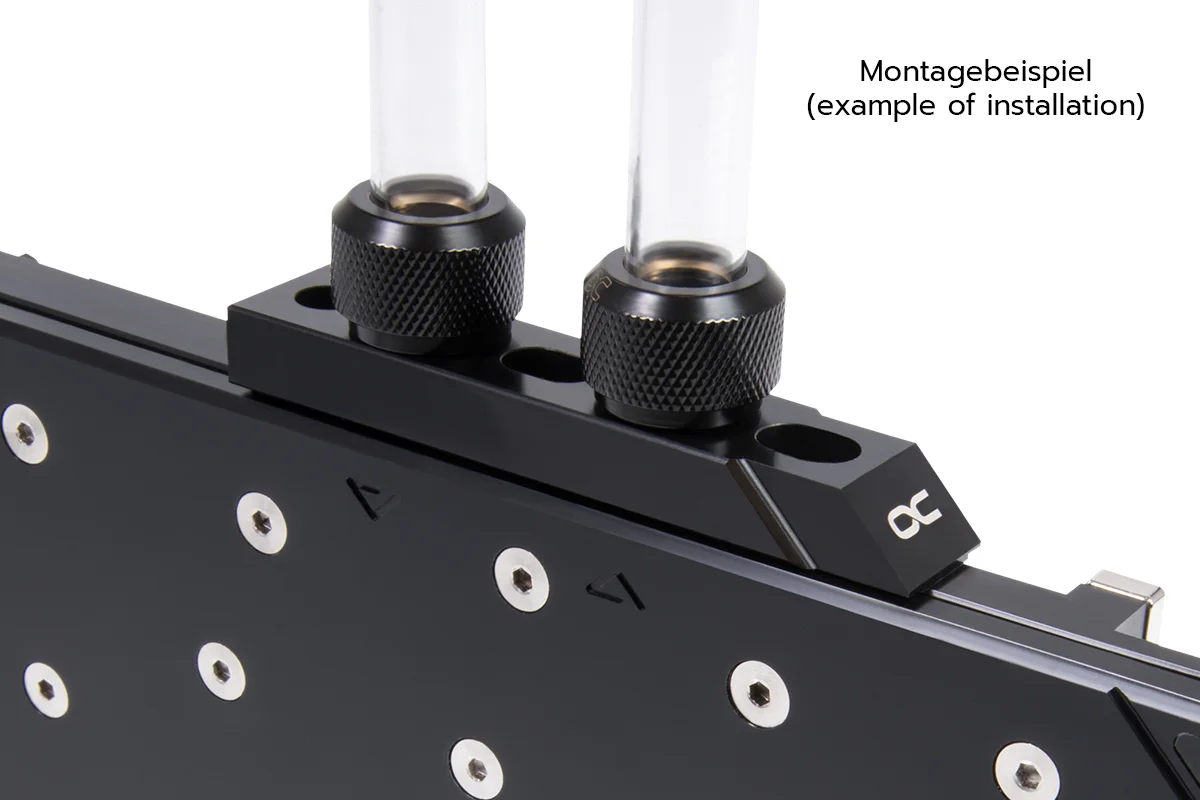

The terminal is only 19 mm wide and fits snugly against the graphics card water cooler. The connectors are far enough apart to provide enough space for the use of connectors with a total diameter of up to 28 mm without them colliding with each other.

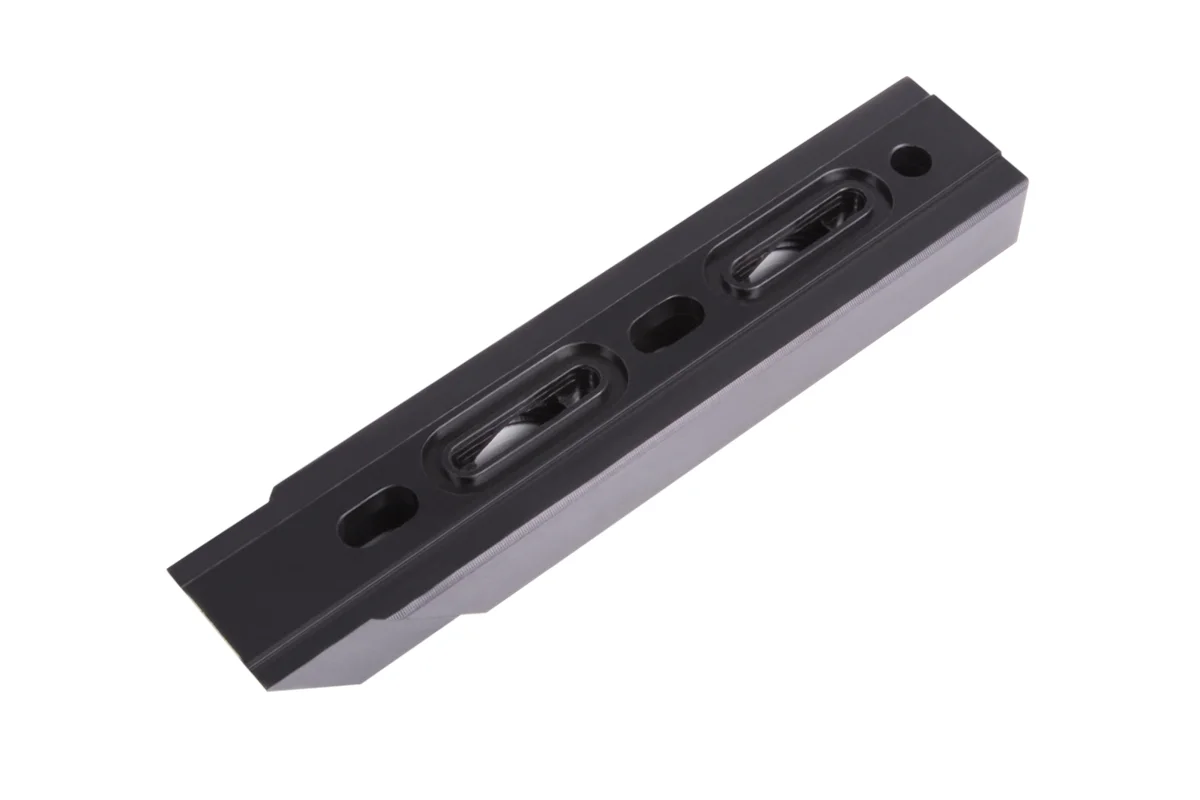

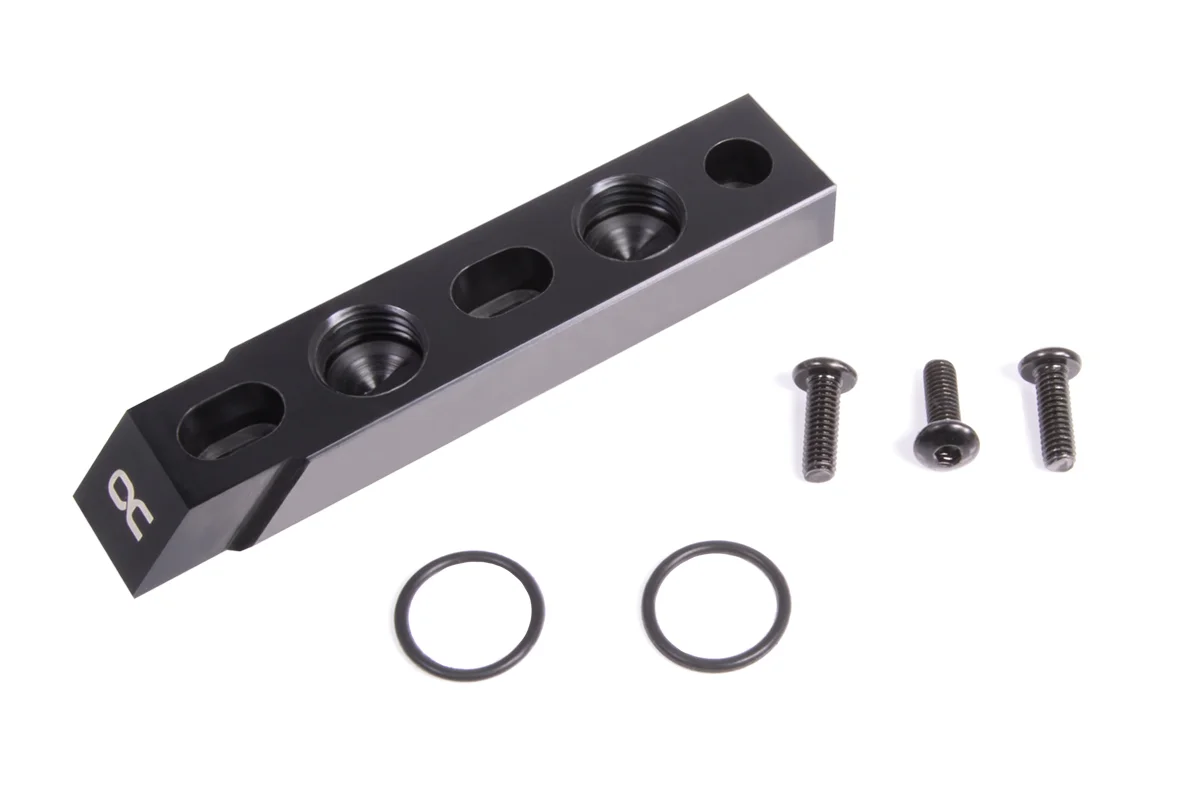

The assembly is quite simple. The two O-rings are simply placed in the respective groove on the side of the terminal, which is then placed on the graphics card cooler. The terminal is then placed on the side of the water cooler and mounted with the three screws. The conversion can be done in just a few minutes and can be done by anyone. To be on the safe side, we recommend using the Alphacool pressure tester (Alphacool Leak Testing Tool item number: 17482) for the reassembled block to ensure leak-free water cooling.
Compatibility:
All Alphacool Eisblock Aurora coolers
All Alphacool Core coolers for the RTX 5XXX and AMD RX 9XXX series
Attention
The terminal is not compatible with the Alphacool Core coolers of the RTX 4XXX and RX 7XXX series.
Note: Please follow the manual for the correct flow direction of the water.
The terminal is only 19 mm wide and fits snugly against the graphics card water cooler. The connectors are far enough apart to provide enough space for the use of connectors with a total diameter of up to 28 mm without them colliding with each other.
The assembly is quite simple. The two O-rings are simply placed in the respective groove on the side of the terminal, which is then placed on the graphics card cooler. The terminal is then placed on the side of the water cooler and mounted with the three screws. The conversion can be done in just a few minutes and can be done by anyone. To be on the safe side, we recommend using the Alphacool pressure tester (Alphacool Leak Testing Tool item number: 17482) for the reassembled block to ensure leak-free water cooling.
Compatibility:
All Alphacool Eisblock Aurora coolers
All Alphacool Core coolers for the RTX 5XXX and AMD RX 9XXX series
Attention
The terminal is not compatible with the Alphacool Core coolers of the RTX 4XXX and RX 7XXX series.
Note: Please follow the manual for the correct flow direction of the water.
| Technical Data | |
| Dimensions (L x W x H) | 92 x 19 x 10.5 mm |
| Weight | 18 g |
| Material | Acetal |
| Threads | 2 x G1/4“ |
