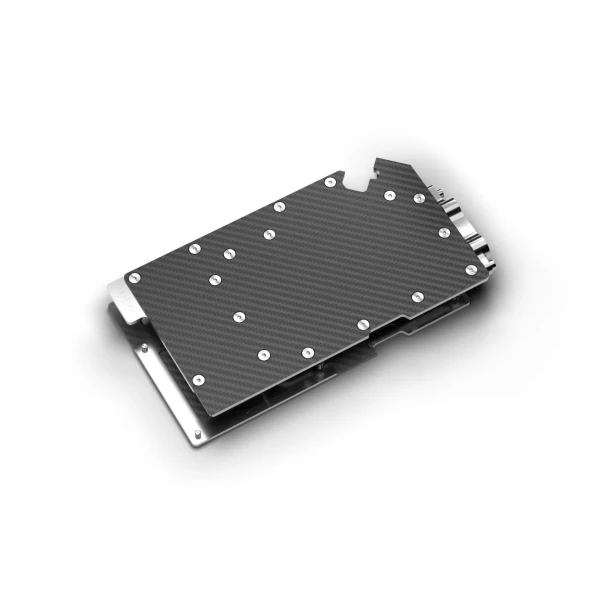

Alphacool ES RTX 6000 Pro Workstation/RTX 5090 Founders Edition
- Producent: Alphacool
- Kod producenta: 5100182
- Kod EAN: 4070201001829
- Gwarancja: 24 miesiące
Dostępność:
Czas realizacji orientacyjnie 5 dni roboczych
- NOWOŚĆ
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł
Alphacool ES GPU Water Block: Workstation Edition with Active Backplate
The Alphacool ES water block has been specifically developed for professional use in performance-optimized workstation and server environments. Thanks to its compact 1.5-slot design and intelligent port positioning, it delivers maximum cooling performance in limited space.

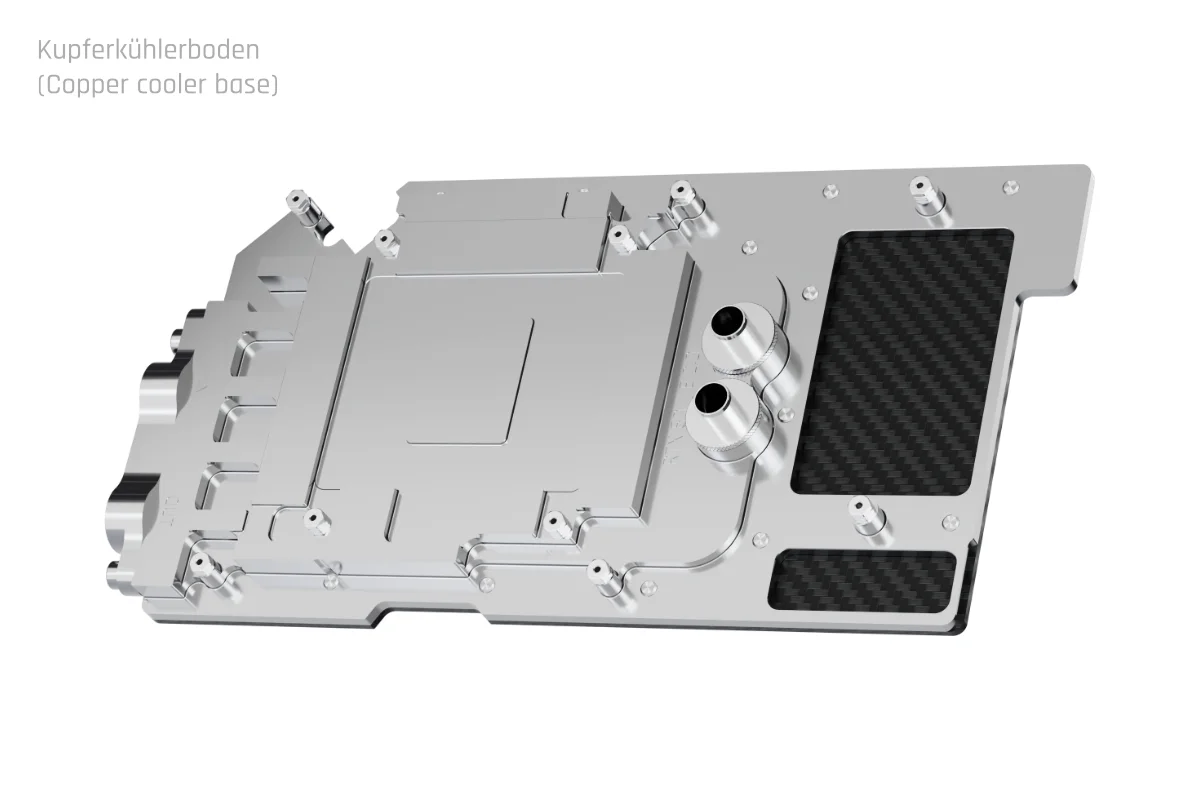

Materials & Durability: Carbon and Chrome-Plated Copper
Alphacool prioritizes reliability: The top is made of lightweight, high-strength carbon, significantly reducing overall weight. The cooling block itself is manufactured from chrome-plated copper. This chrome plating is considerably harder than conventional nickel plating, offering superior protection against corrosion and mechanical wear – ideal for low-maintenance 24/7 continuous operation.
Maximum Cooling with Included Active Backplate

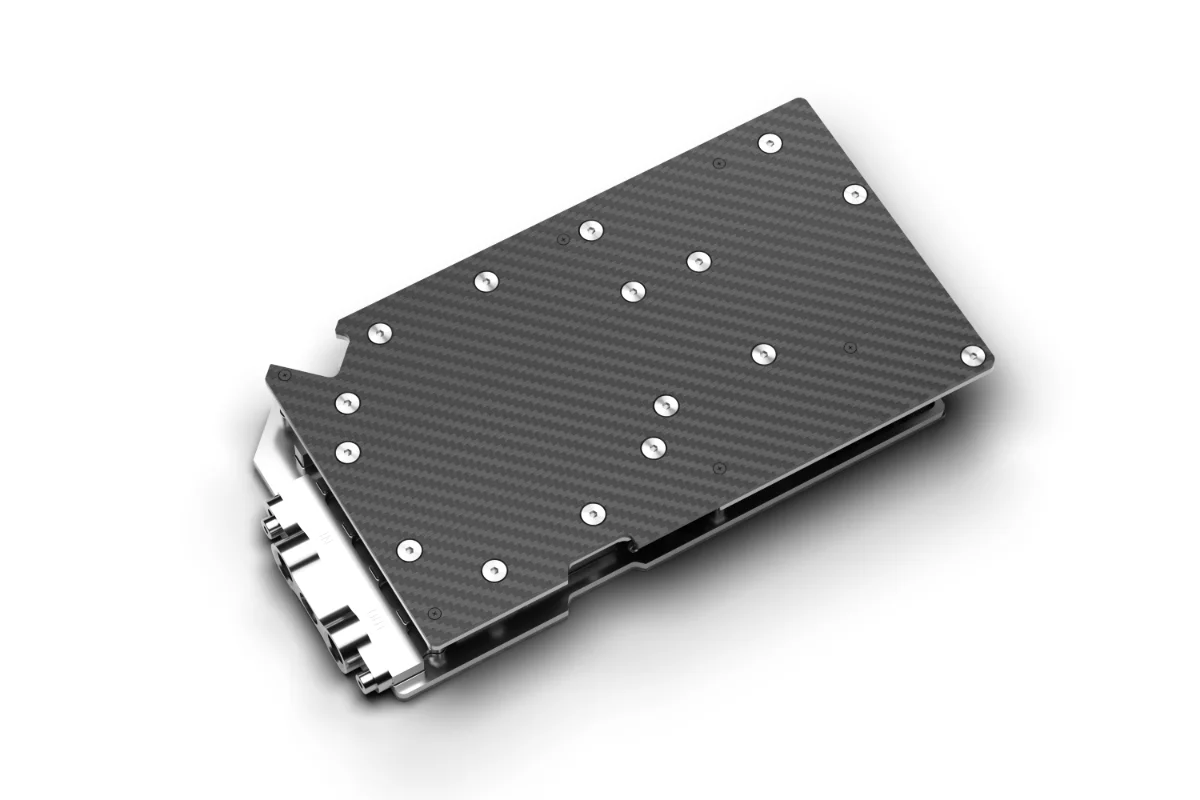

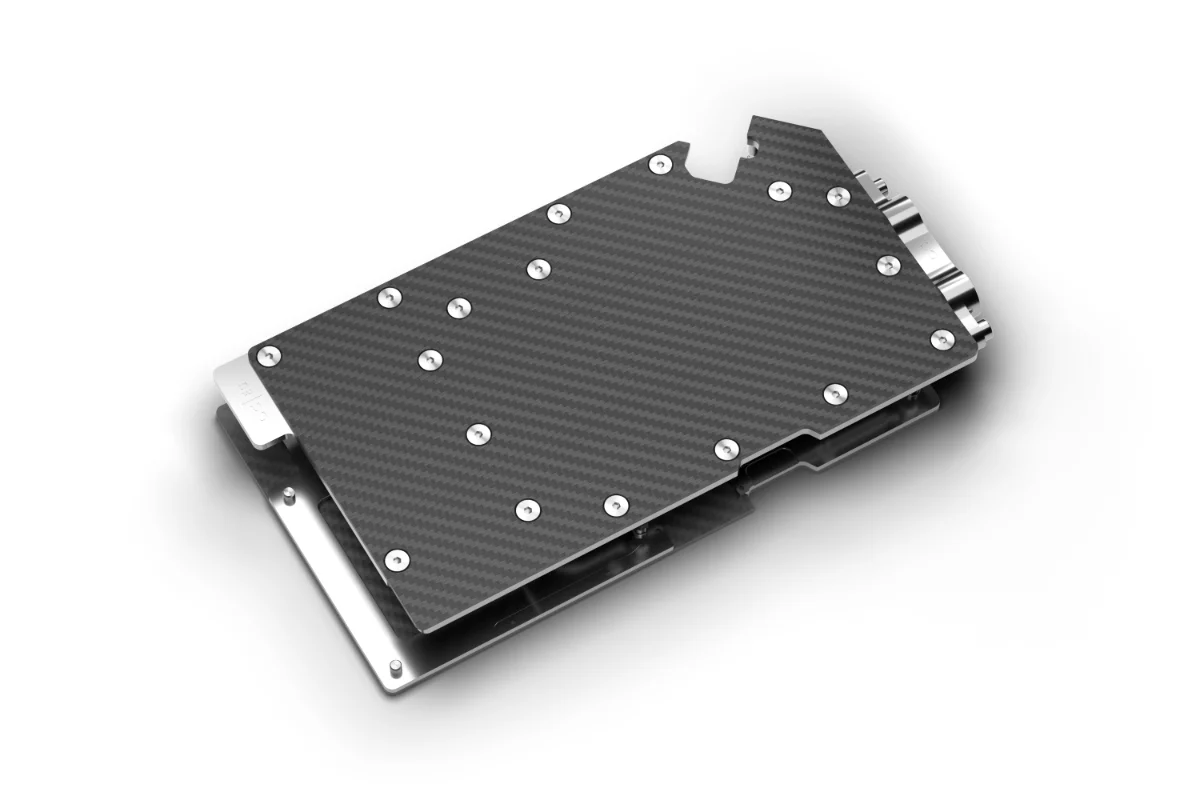

A key feature is the active backplate, which also features a chrome-plated copper base and a carbon top plate. A unique internal double-nipple system connects the main block directly to the backplate for efficient heat dissipation from both sides.
Compatibility
⚠️ Important Note: Please use only in combination with clear, transparent water cooling fluids. Particles and additives in pastel liquids can clog channels and lead to a loss of warranty.
The Alphacool ES water block has been specifically developed for professional use in performance-optimized workstation and server environments. Thanks to its compact 1.5-slot design and intelligent port positioning, it delivers maximum cooling performance in limited space.
Materials & Durability: Carbon and Chrome-Plated Copper
Alphacool prioritizes reliability: The top is made of lightweight, high-strength carbon, significantly reducing overall weight. The cooling block itself is manufactured from chrome-plated copper. This chrome plating is considerably harder than conventional nickel plating, offering superior protection against corrosion and mechanical wear – ideal for low-maintenance 24/7 continuous operation.
Maximum Cooling with Included Active Backplate
A key feature is the active backplate, which also features a chrome-plated copper base and a carbon top plate. A unique internal double-nipple system connects the main block directly to the backplate for efficient heat dissipation from both sides.
- Space-Saving Rear Terminal: Inlet and outlet are located at the back of the block, significantly simplifying tubing in tight server racks.

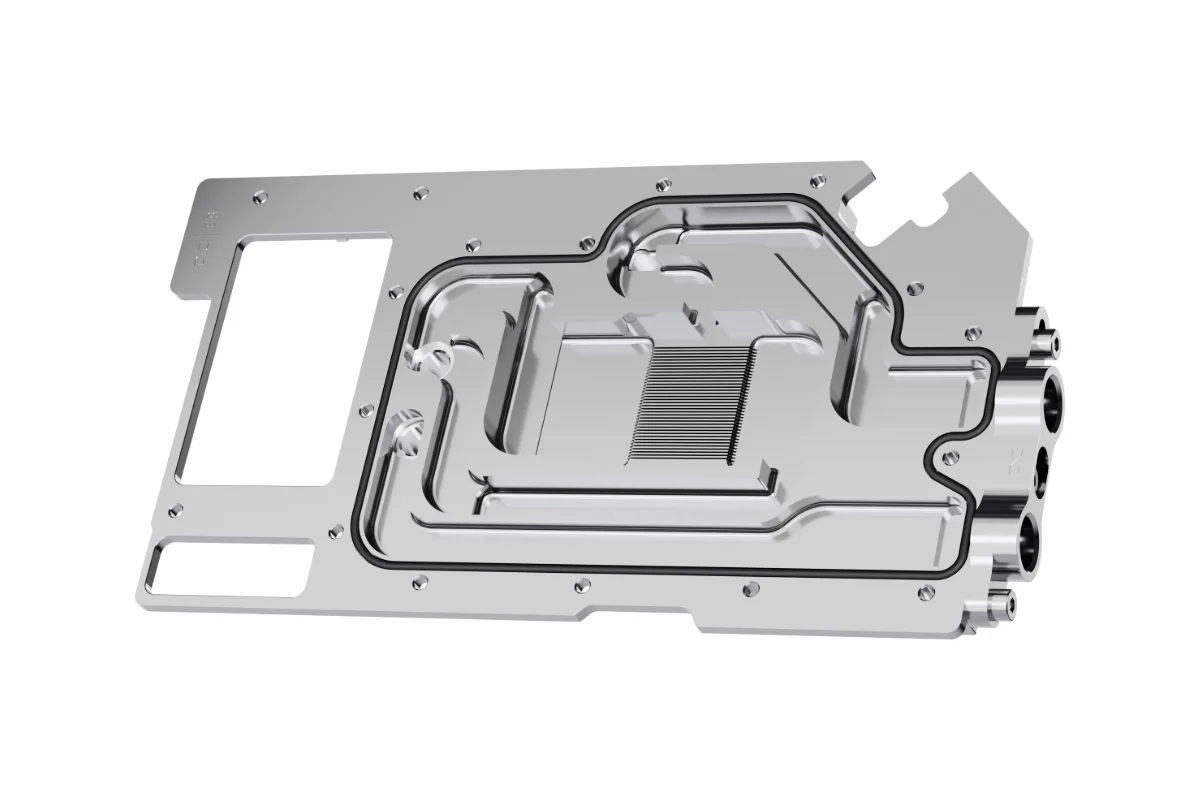

- Targeted Flow Guidance: The internal channel structure provides high-efficiency cooling for the GPU, VRAM, and voltage regulators (VRMs).
- Enterprise Standard: Solid copper bases ensure excellent heat absorption and transfer, even under high thermal loads.
Compatibility
- Nvidia GeForce RTX 5090 Founders Edition, 32GB GDDR7
- Nvidia RTX PRO 6000 Blackwell Workstation-Edition, 96GB GDDR7
| Parameter | Value |
|---|---|
| Slot Size | 1.5-Slot |
| Material | Chrome-plated copper (Base), Carbon (Top) |
| Inlets/Outlets | 2x G1/4" (Rear) |
| Max. Pressure / Temp | 4 Bar / 60°C |
| Thermal Pad Conductivity | 7 W/mK |
