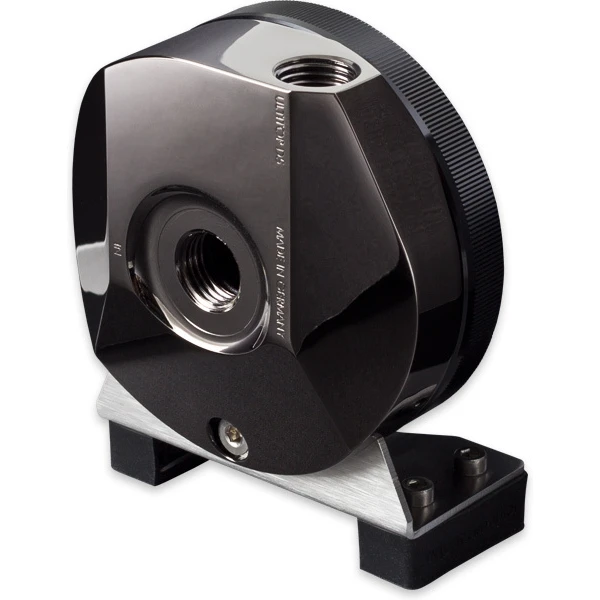

Aquacomputer ULTITOP D5 MIRROR BLACK pump cover for D5 pumps, G1/4
- Producent: Aqua Computer
- Kod producenta: 41133
- Kod EAN:
- Gwarancja: 24 miesiące
Dostępność:
Oczekujemy na dostawę
- Koszt wysyłki: od 0 zł
- Darmowa dostawa od 800,00 zł

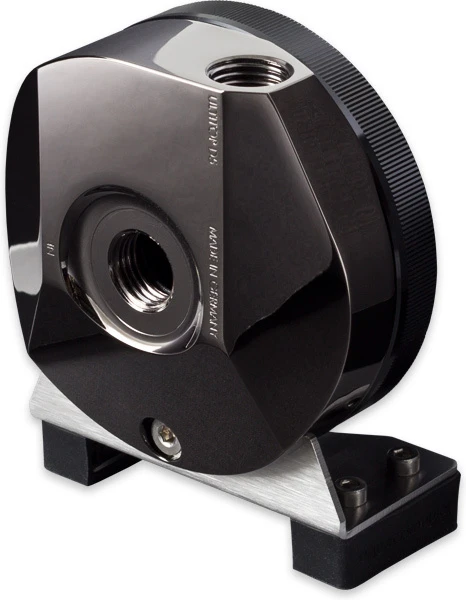

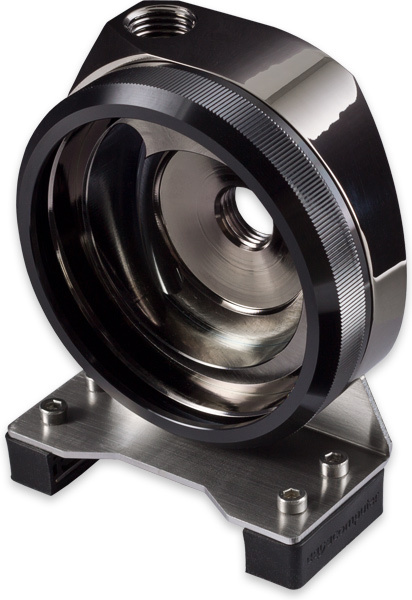

Exceptionally compact top for D5 pumps, manufactured from solid brass, manually polished and with a dark nickel plating. Main focus during development of the ULTITOP D5 were optimum flow characteristics, reducing noise and vibration to a bare minimum.

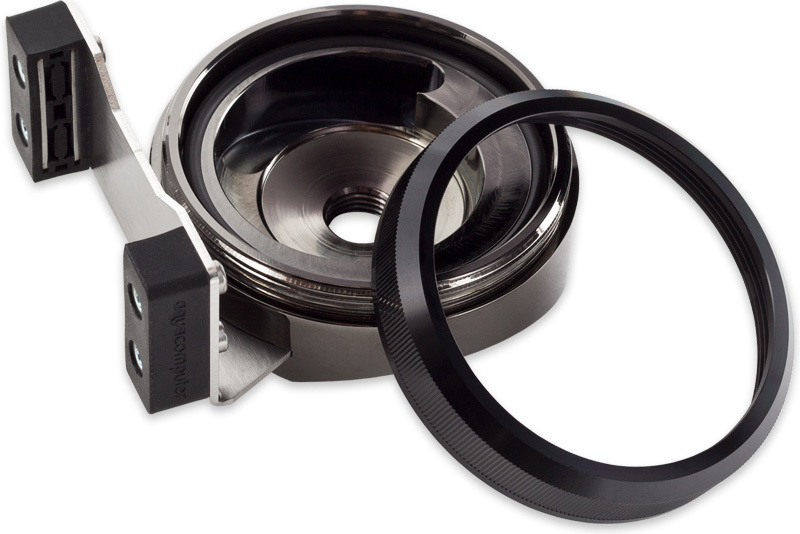

A fastening ring made from anodized aluminum and a gasket are supplied to attach a D5 pump (not included in delivery) to the ULTITOP. The mounting bracket is equipped with silicone decouplers specifically designed for the ULTITOP, effectively preventing remaining vibrations from being transmitted to the PC case. Stainless steel plates with M3 threads inserted into the decouplers ensure convenient installation. The bracket can be detached from the ULTITOP by removing a single screw for easy access to the pump.
Dimensions:
72 x 72 x 34 mm without bracket/decouplers, without pump
72 x 86 x 44 mm with bracket/decouplers, without pump

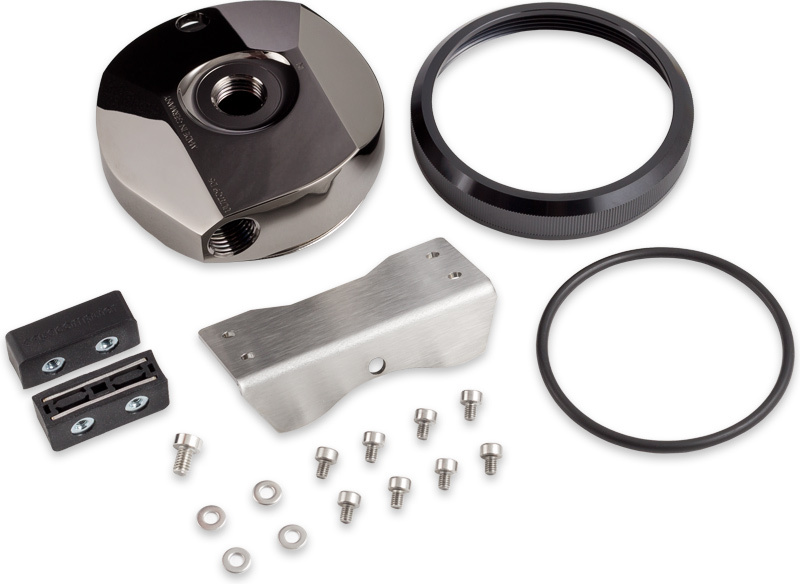

Scope of delivery:
Pump adapter
Pump fastening ring
O-ring gasket
Stainless steel bracket with silicone decouplers
Mounting material

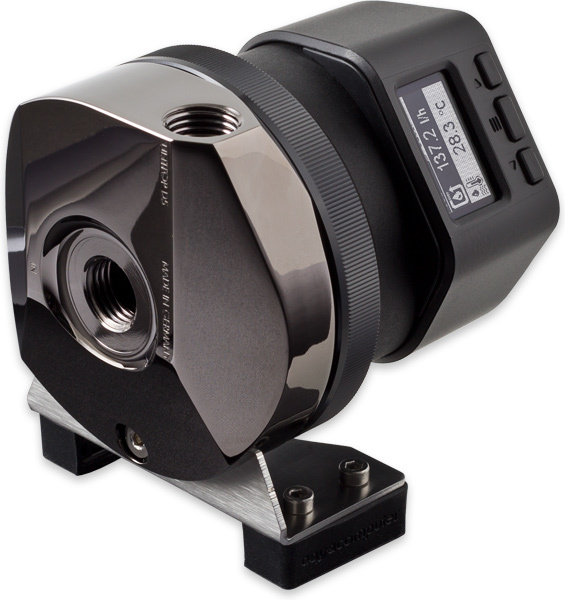

Compatible with:
Aqua Computer D5 pump motor with speed signal (art. no. 41091)
Aqua Computer D5 pump motor with PWM input and speed signal (art. no. 41105)
Aqua Computer D5-Pumpenmechanik mit USB- und aquabus Schnittstelle (art. no. 41093)
Aqua Computer D5 NEXT (art. no. 41118)
Laing D5 series pumps and OEM versions identical in construction
Please note:
Pump and fittings are not included in delivery!
