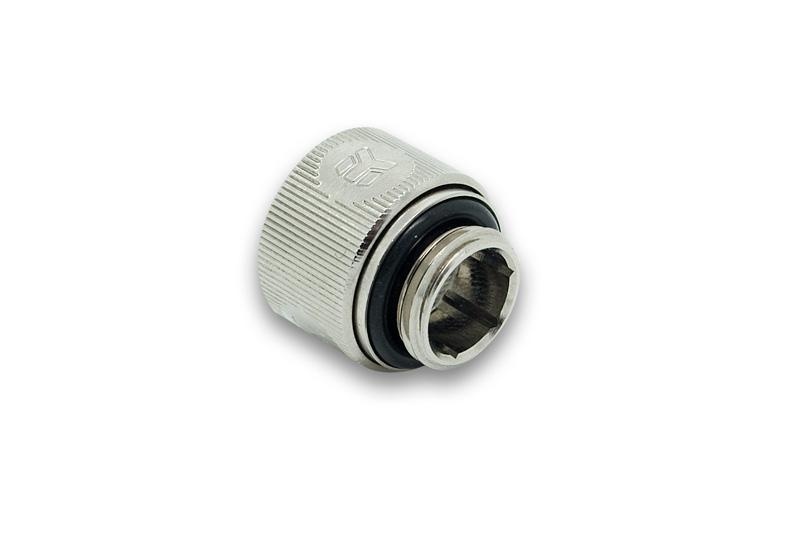

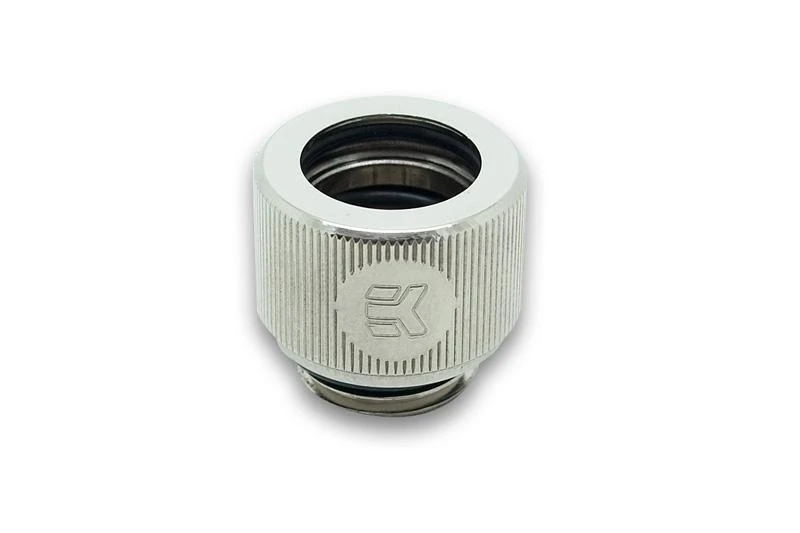

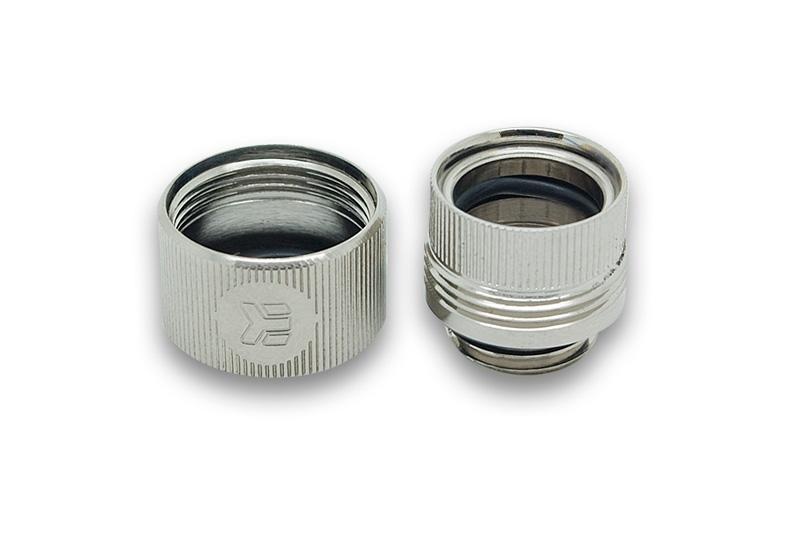

EK Water Blocks EK-HDC Fitting 12mm G1/4 - Nickel

EK Water Blocks EK-HDC Fitting 12mm G1/4 - Nickel

Brak ocen

Producent: EK Waterblocks
Kod producenta: 3831109845998
Kod EAN: 3831109845998
Gwarancja: 24 miesiące

Dostępność:

Ilość sztuk ograniczona, dostępność do wyczerpania zapasów

Dostępna ilość:

Koszt wysyłki: od 0 zł
Darmowa dostawa od 800,00 zł

Cechy produktu

Kolor:

Srebrny
Kształt:

Prosta
Strona A:

G1/4"
Strona B:

HT12

Cechy produktu

Typ

G-HT

EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.

EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.

The barb is made of black nickel-plated CNC machined brass while the ring is made of red anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.

Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).

Technical data:

- thread: G1/4" BSP; 4.5mm male thread lenght

- supported tube: 12mm (OD)

- outer diameter of a fitting: 18.8mm

- installed height: 17mm

- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - Europe!

PLEASE NOTE:

Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
Do not use excessive force when inserting solid tube!
It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
